AC Power Cord > IEC 60320 Power Cords > Right Angle IEC 60320 C13 Power Cord
Right-Angle-IEC-60320-C13-Power-Cord

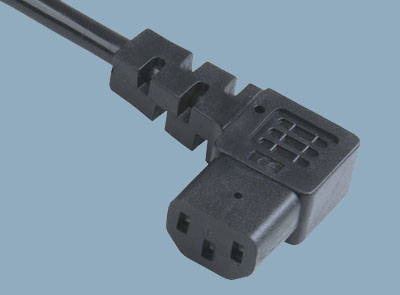

  • Right Angle IEC 60320 C13 Power Cord

  • IEC C13 Power Cords for most counrtries in the world. The IEC 60320-C13 three prong power receptacle is often referred to as the "computer power cable" receptacle. These right angled IEC 60320 C13 are same as Straight Angle and Left Angle versions commonly used in a variety of applications including computers, portable electronics, household applications, chargers , kitchen appliances and game systems. Available three prong male plug or IEC 60320 standard plug versions with international plugs being the far more popular power cord style.
  • Contact Us
Detailed description

Male Plug

IEC  C13 3 Prong Plug(left angle and right angle)

Female Receptacle

None

Amperage

Up to 10A

Voltage

Up to 250V 125V AC

Outer Mold Material

50P PVC

Blade Material

Nickel coated Brass

Color

Any color available

Cable Length

Any length available

Certifications

VDE UL CCC SAA

Environmental Certifications

RoHS, REACH

Testing

100% are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout


Available Opposite End Connectors:


Standard                                                  Part NO


IEC C14                                                   SZ3(IEC C14)


NEMA 5-15P                                            YY-3(NEMA 5-15P)North America


CEE 7/7 SCHUKO                                   Y003(CEE 7/7 SCHUKO)Europe


AS 3112                                                    D06(AS 3112)Australia


BS1363                                                     Y006(BS1363)UK


KSC 8305                                                 K04(KSC 8305)Korea


JIS C 8303                                               FH-3(JIS C 8303)Japan


CEI 23-16                                                 Y008(CEI 23-16)Italy


SABS 164-1                                             XH042A(SABS 164-1)South Africa


SEV 1011                                                 Y005(SEV 1011)Swiss


IRAM 2073                                                Y010(IRAM 2073)Argentina


NBR 14136                                               YHB-5(NBR 14136)Brazil


SI32                                                            XH071A(SI32)Israel


AFSNIT 107-2-D1                                     Y011(AFSNIT 107-2-D1)Denmark


GB2099                                                      PSB-10A(GB2099)China


GOST 7396                                                YX03(GOST 7396)Russia


SS 145                                                         Y006A(SS 145)Singapore


SASO 2203                                                 Y006(SASO 2203)Saudi


IA16A3                                                         JF-01(IA16A3)indonesia


Other Termination Options:


Click Here


Available Cable Styles:


H05VVF- 3X0.75-1.5mm2

H05RN-F 3X0.75-1.0mm2

H03VV-F 3X0.5-0.75mm2



IEC 60320 C13 Power Cords Right Angle Receptacle VDE KC PSE CCC SAA UL Approved

IEC 60320 C13 Power Cords Right Angle Receptacle

  • Plug type: IEC 320 C13 right angle
  • Standard: IEC 60320 C13
  • Approvals: VDE, CE, SAA, CCC, PSE, UL, cUL
  • Electricity:10A,250V, 15A
  • Number of Poles and Wires:2 poles 3 wires earthed
  • Cable length:1.0 meter, 1.5m, 1.8m,custom length
  • End Options:ROJ, Termination, IEC 320 C5, C13,C15,C19
  • Quality System:ISO9001:2008
  • Color: White and black are normal, Custom color
  • Outer Mold Material: PVC, Rubber
  • Plug Insert Material: PBT, ABS
  • Blade Material: Nickel Coated Brass
  • Cable Specifications: Standard and custom made
  • Wire Jacket Material: PVC, Rubber, TPE, Textile
  • Environmental Certifications: RoHS, REACH, PAHS
  • Model Number: ST3-W

PCs; monitors; printers; UPS; scanners and other similar devices will greatly benefit from our Power Cord Extension product; handles 10 Amps max 15 Amps and 250 Volts, molded with custom length cables, terminals, male plug and IEC connectors. These power cord extensions are great for replacing lost or malfunctioning cables.

IEC 60320 C13 Right Angle Connectors


IEC 60320 C13 Right Angle Power Cords

IEC 60320 C13 Right Angle Receptacle

Colorful IEC 60320 Connectors

Colorful IEC 60320 Connectors
