IEC 60320 C13 To C14 Computer Type Appliance Power Cord

Future Products

AC Power Cord > Power Cord > America Power Cords > IEC 60320 C13 To C14 Computer Type Appliance Power Cord

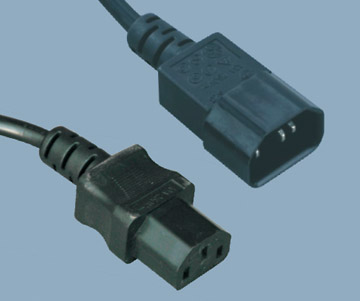

IEC 60320 C13 To C14 Computer Type Appliance Power Cord
IEC C13 to C14 American computer type power cord plug with North America certification,Built to the IEC standard C14 plug America and C13 receptacle for using in American countries appliances. Rated up to 15A 125V. 100percent of our America C13 to C14 power cords are molded with high quality and RoHS / REACH certified.

View technical drawing:C13 to C14 10A Power Cord(JPG)
Contact Us

Detailed description

Male Plug	IEC60320 C14 America
Female Receptacle	IEC60320 C13 America
Conductors	3 Wire
Copper Wire Stranding	42 strands of 0.148mm
Jacket Material	PVC
Temperature Rating	Up to 105C
Wire Outer Diameter	7.8mm
Conductor Color Code	Black, White and Green / NACC (North American color code)
Voltage	Up to 250 Volts AC
Amperage	Up to 10 Amps
Testing	100percent are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout
Certifications	UL CUL CSA
Environmental Compliance	RoHS, REACH, Sony Green Partner, ISO14001:2004, ISO9001:2008

Available Cable Styles

SVT AWG 18X3C

SJT AWG 16X3C

North American UL cUL approved international power cord IEC 60320 C13 to C14 computer type power supply cord Rating: 10A/13A/15A 125V.

IEC C14 to C13 Power Cord Drawing

Appliance power cord molded by IEC 60320 C14 plug and IEC C13 receptacle usually have three electrical ratings 10A 125V made by 18AWG Cables,13A of 16AWG cable and 14AWG molded with 15A heavy duty power cables.

Computer Power Extension Cord IEC-60320-C14 to IEC-320-C13 Power Extension Cable in Custom Long , Color

IEC-320-C14 to IEC-320-C13 Power Extension Cable

Plug type: IEC C14
Standard:IEC 60320
Approvals:VDE,SAA,CCC,UL,KC,PSE
Electricity:10A,13A,15A heavy duty,125V,250V
Number of Poles and Wires:2 pole 3 wires
Cable length:1.0 meter, 1.5m, 1.8m,custom length
Oppsite End Options:IEC 302 C13
Quality System:ISO9001:2008
Color:Custom color,white and black are normal
Outer Mold Material:PVC,Rubber
Plug Insert Material:PBT,ABS
Blade Material:Nickel coated Brass
Cable Specifications:Standard and custom made
Wire Outject Material:PVC,Rubber,TPE,Textile
Environmental Certifications:RoHS, REACH, PAHS
Model Number:SZ3/ST3
Plug Standard IEC 60320 C14 , 2 Pole 3 Wire Grounding,Connector Standard IEC 60320 (320) C13 Straight 10A 250V.
