AC Power Cord > Power Cord > Japan Power Cords > Japan JIS 8303 PSE JET 3 Prong 7A 12A 15A Plug Standard Power Cord
Japan-JIS-8303-PSE-JET-3-Prong-7A-12A-15A-Plug-Standard-Power-Cord

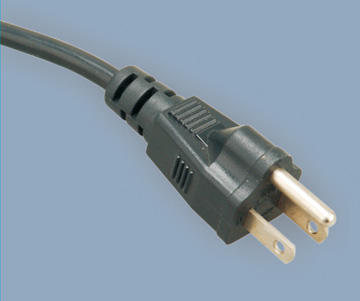

  • Japan JIS 8303 PSE JET 3 Prong 7A 12A 15A Plug Standard Power Cord

  • Japan JIS 8303 PSE 3 Prong Plug Standard Power Cord with PSE JET certification Rated up to 7A,12A,15A 125V Built to JIS C8303 standards and designed for 3 prong Japanese household application power supply cables,With IEC C5 , With IEC C13 , With IEC C15With IEC C19

  • Contact Us
Detailed description
Plug standard Japan three prong plug
Maximum Current rating 15A
Maximum Voltage 120V
Number of Poles and Wires 2 poles, 2 wires
Outer Mold Material 50P PVC
Blade Material Nickel coated Brass
Color Custom color available
Temperature Rating Minus 75C though plus 105C
Approvals PSE JET
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity
MOQ 3000 pcs
Delivery lead date 15-20 days
Samples Free samples can be sent within 3 days


Available Opposite End Connectors:


Standard                                               Part NO


Standard                                               Part NO


IEC 60320 C13                                     FT3(IEC C13)Japan


IEC 60320 C15                                     ST3H(IEC C15)Japan


IEC 60320 C5                                        ST1(IEC C5)Japan


IEC 60320 C19                                      XH008A(IEC C19)Japan


Other Termination Options:


Click Here


Available Cable Styles:


VCTF

HVCTF

3X0.75mm27A

3X1.25mm212A

3X2.0mm215A


More Information:


PAHS test report

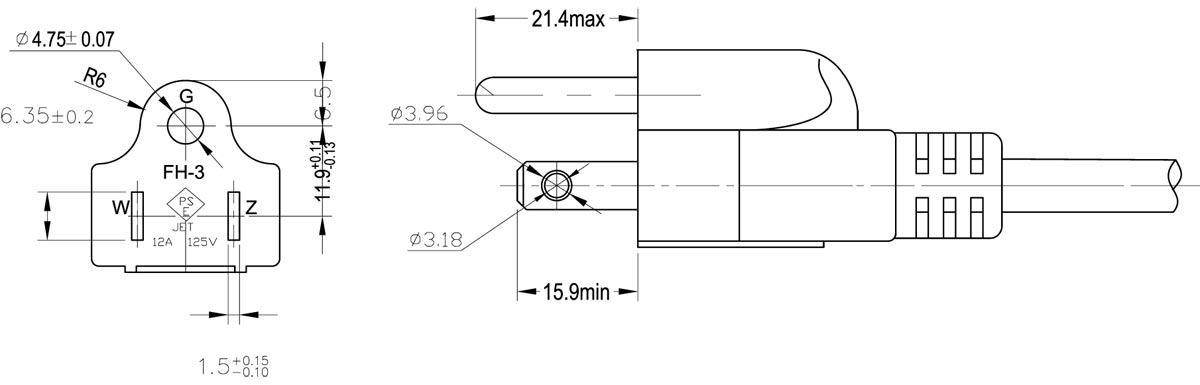

Japan Power Cord Plug Drawing


Japan JIS C8303 Plug with E JET marked power cord set drawing.

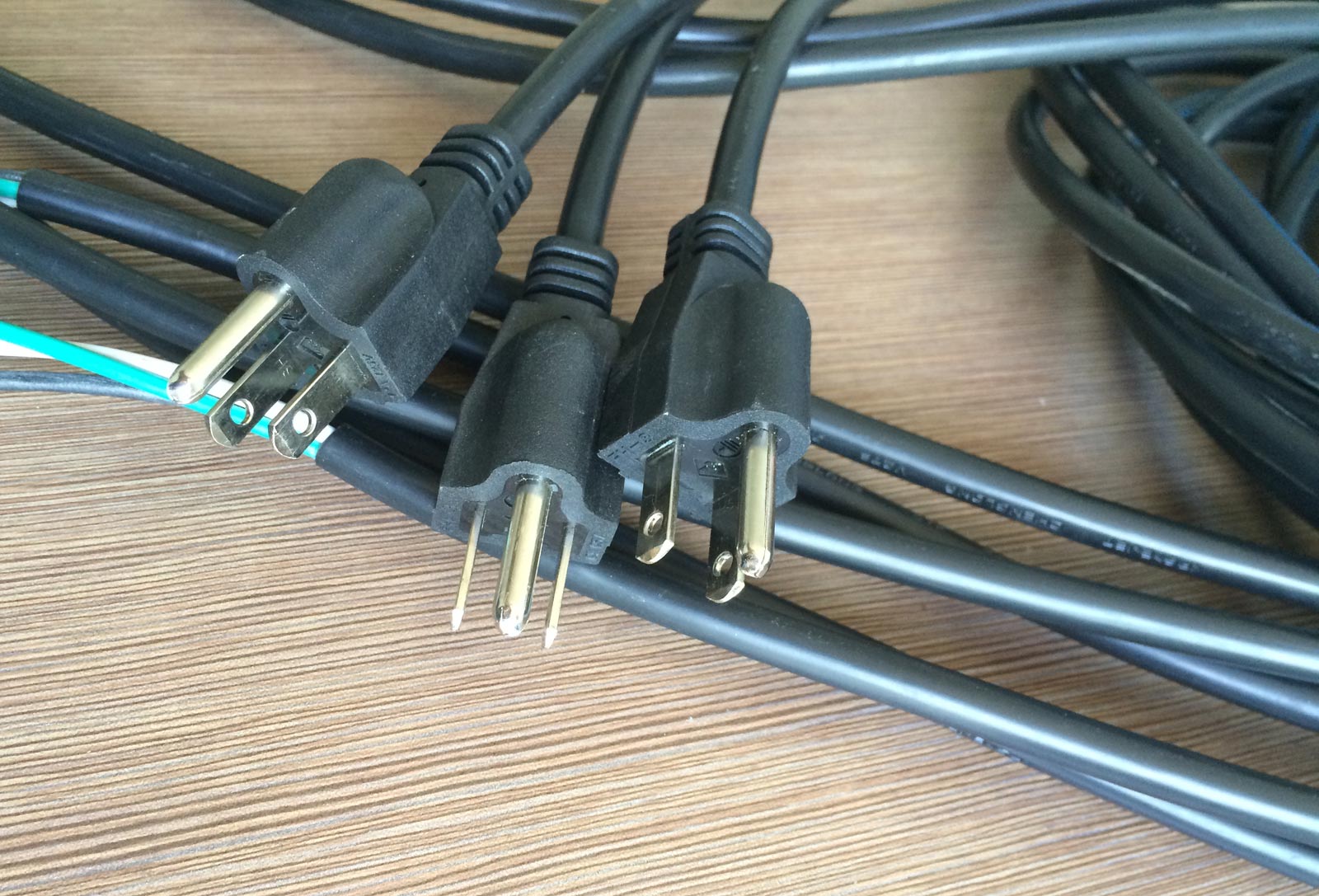

Japan 3 Prong Plug


Power Cord Image


Japan JIS C8303 15A AC Power Cord with or without Insulated Neutral/ Live Plug Pins.

Japan PSE JET Power Cord Plug


Japan Power Cords,AC Power Supply Cords JIS 8303 PSE JET 15 Amp 125V AC 2 Pole 3 Wire Grounding Type B Plug
Japan Power Cord  15 Amp 125V AC 2 Pole 3 Wire Grounding Type B Plug

Plug type: Japan Non-rewireable Type B plug
Standard:JIS 8303
Approvals:PSE, JET
Electricity:7A,12A,15A,125V
Number of Poles and Wires:2 pole 3 wires
Cable length:1.0 meter, 1.5m, 1.8m,custom length
Termination Options:ROJ, Termination, IEC 320 C5, C13,C15,C19
Quality System:ISO9001:2008
Color:Custom color,white and black are normal
Outer Mold Material:PVC,Rubber
Plug Insert Material:PBT,ABS
Blade Material:Nickel coated Brass
Cable Specifications:Standard and custom made
Wire Outject Material:PVC,Rubber,TPE,Textile
Environmental Certifications:RoHS, REACH, PAHS
Model Number:FH-3
Plug standard JIS 8303, PSE, JET, 15 Amp 125 Volt AC, 2 Pole 3 Wire Grounding, Type B Plug, Connector Standards IEC 60320 (320) C-13, C-13 Locking, C-19, C-19 Locking, C-5, C-7, C-15, Unterminated.
Japan Power Cords JIS 8303 PSE JET 15 Amp 125V AC 2 Pole 3 Wire Grounding Type B Plug are black and white as standard color. gray and custome color are  available. Custom length and shielded Japan AC power cord ,Japan AC power cables available. Terminated, custom stripping.


Available Opposite End
Normal Stripped, Splitter, and ROJ

We manufacturers and supply Japan power cord PSE JET 15Amp 125V AC 2 Pole 3 Wire Grouding Type B plug, JIS 8303 standard, the other end can be stripped, ROJ with custom length.

Available Opposite End


Common Termination

The Japan power cord PSE JET 15Amp 125V AC 2 Pole 3 Wire Grouding Type B plug, JIS 8303 standard is one end molded with standard plugs, the opposite could be terminated with types of terminals such as grounding rings terminals, fork with heat shrink or nylone insulated.

Common Termination


IEC 60320 Connectors

The Japan power cord PSE JET 15Amp 125V AC 2 Pole 3 Wire Grouding Type B plug, JIS 8303 standard to IEC 320 C5 laptop, C13 computer power cable and molded with IEC C19 as PDU power cords are normal versions of Japan ac power cords with IEC connectors.

IEC 60320 C13 Straight Power Cord

IEC 60320 C13 Straight Power Cord

IEC 60320 C13 Right Angle Power Cord

IEC 60320 C13 Right Angle Power Cord

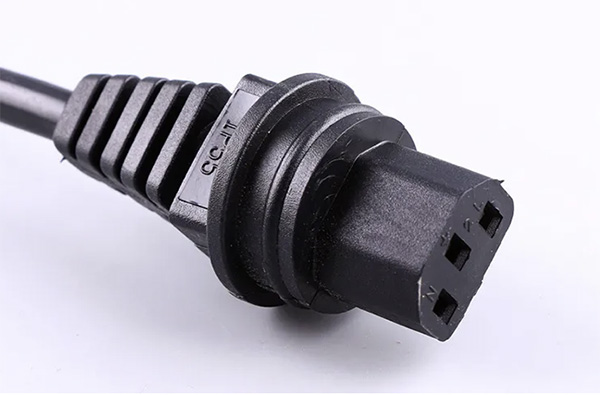

IEC 60320 C13 Waterproof Powe Cord

IEC 60320 C13 Waterproof Powe Cord

IEC 60320 C13 Locking Powe Cord

IEC 60320 C13 Locking Powe Cord

IEC 60320 C15 Powe Cord

IEC 60320 C15 Powe Cord

IEC 60320 C19 Powe Cord

IEC 60320 C19 Powe Cord

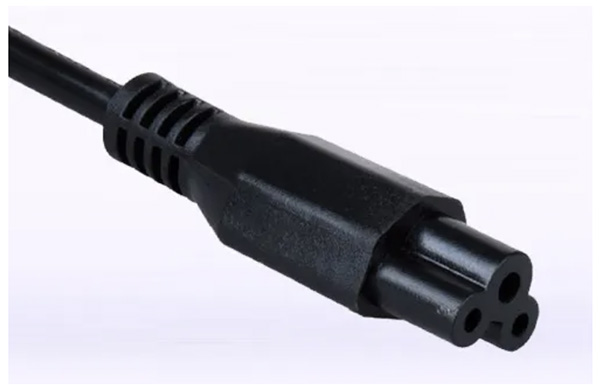

IEC 60320 C5 Power Cord

IEC 60320 C5 Power Cord


Package

The Japan power cord PSE JET 15Amp 125V AC 2 Pole 3 Wire Grouding Type B plug, JIS 8303 standard mostly bulk packed with export cartons, pallets.
Package
Yunhuan manufacturers and supplies electrical AC power supply cords for use in Japan and all Countries in the world. Our extensive and complete Japan power cord line includes power receptacle outlets, Plug, weatherproof receptacle outlets, sockets, multiple outlet power strips, power supply cords, power cable wire and plug adapters . Contact us for Japan AC power cords as China leading Japan power cord manufacturer and supplier.all of our Japan power supply cords are are made of high quality approved by PSE JET with Rohs and Reach compliant.
