AC Power Cord > Power Cord > Italy Power Cords > Italy CEI 23-16 2P+T IMQ 3 Prong 10A Plug Power Cord
Italy-CEI-23-16-2P+T-IMQ-3-Prong-10A-Plug-Power-Cord

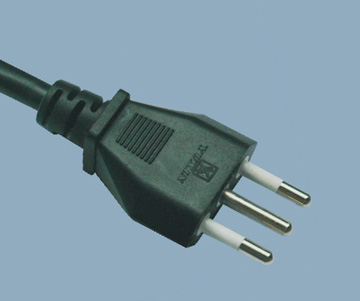

  • Italy CEI 23-16 2P+T IMQ 3 Prong 10A Plug Power Cord

  • Italy 3 Prong 10A Plug Power Cord with IMQ certification rated up to 10A 250V Built to CEI 23-16 standards and designed for 3 prong Italy AC power cord applications,CEI 23-16 to C5 cord With C13 With C15 With C19 describe Italian plug molded with IEC 320 connectors,Our Italy IMQ power cable products are fully molded with high quality and RoHS / REACH compliant.

  • Contact Us
Detailed description

Connector Standard Italy 2P+T plug
Maximum Current rating 10A
Maximum Voltage 250V
Number of Poles and Wires 2 poles, 3 wires
Outer Mold Material 50P PVC
Blade Material Nickel coated Brass
Flamability Rating 94V-0
Color Custom color available
Cable length Custom length available
Temperature Rating minus 40C though plus 75C
Approvals IMQ,VDE
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity
MOQ 2000pcs
Samples Free samples Available


Available Opposite End Connectors:


Standard                                                         Part NO


IEC 60320 C13                                               ST3(IEC C13)Italy


IEC 60320 C5                                                  ST1(IEC C5)Italy


IEC 60320 C15                                                ST3H(IEC C15)Italy


IEC 60320 C19                                                XH008A(IEC C19)Italy


Other Termination Options:


Click Here


Available Cable Styles:


H05VV-F 3G0.75-1.0
H03RT-F 3G0.75-1.0
H05RN-F 3G0.75-1.0
H03RR-F 3G0.75-1.0


More Information:


Italy IMQ Certification

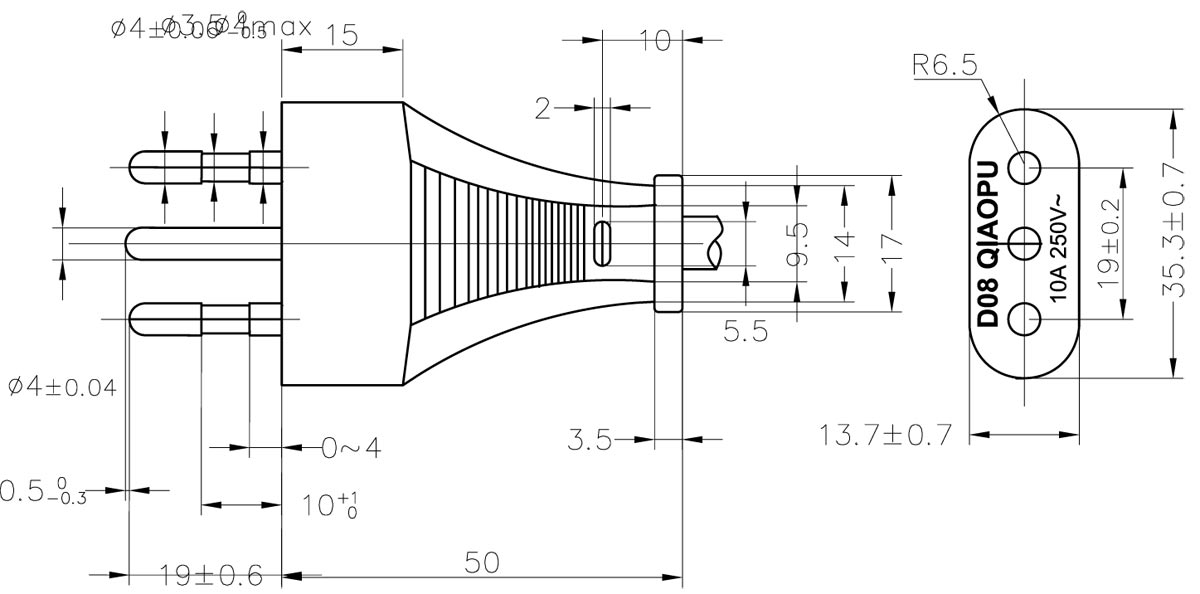

Italy D08 CEI 23-16 power cord Drawing


Power Supply Cord 3 Prong Italian Drawing

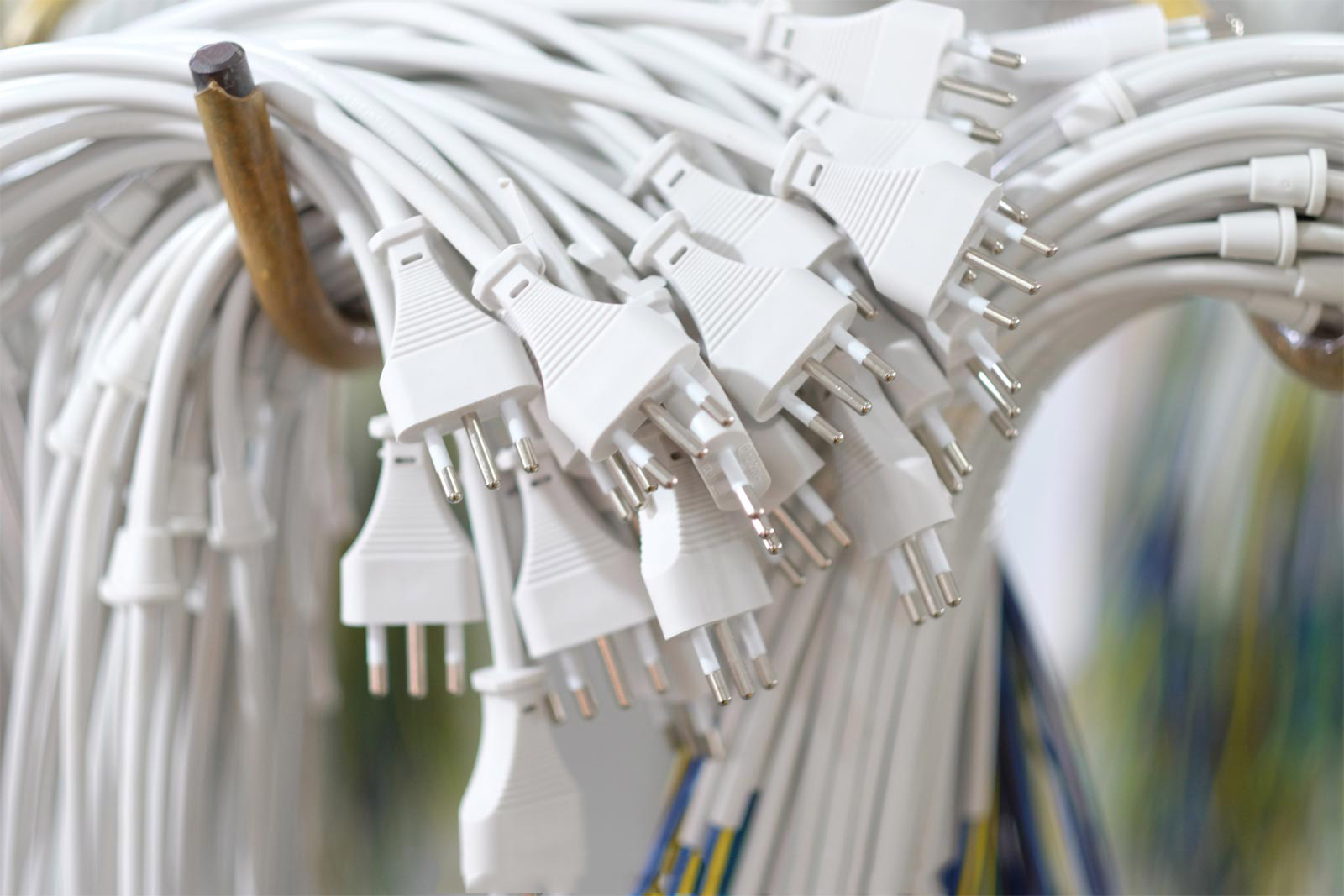

Power Supply Cord Italian Images

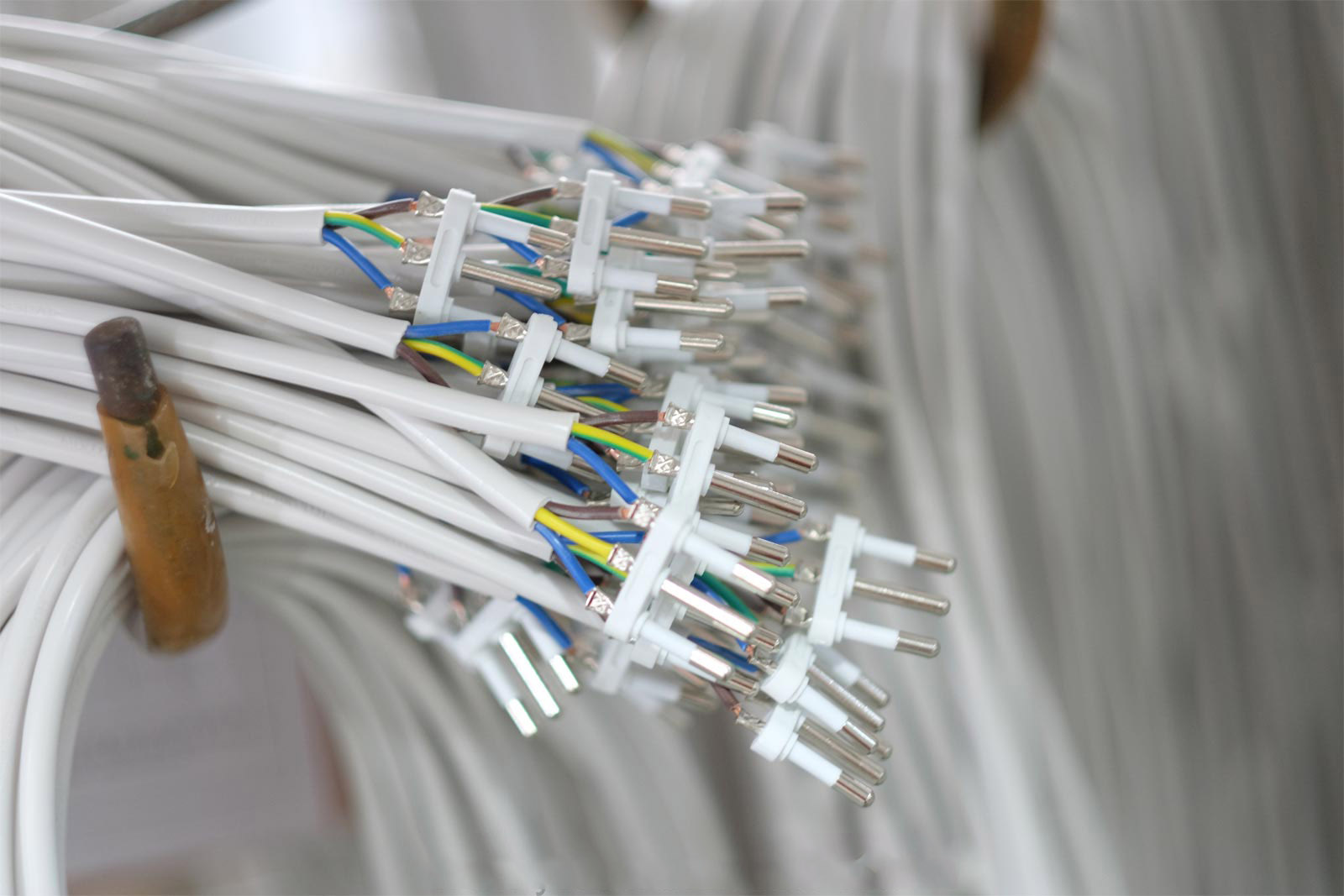

Power Supply Cord Italian Plug Insert 10A

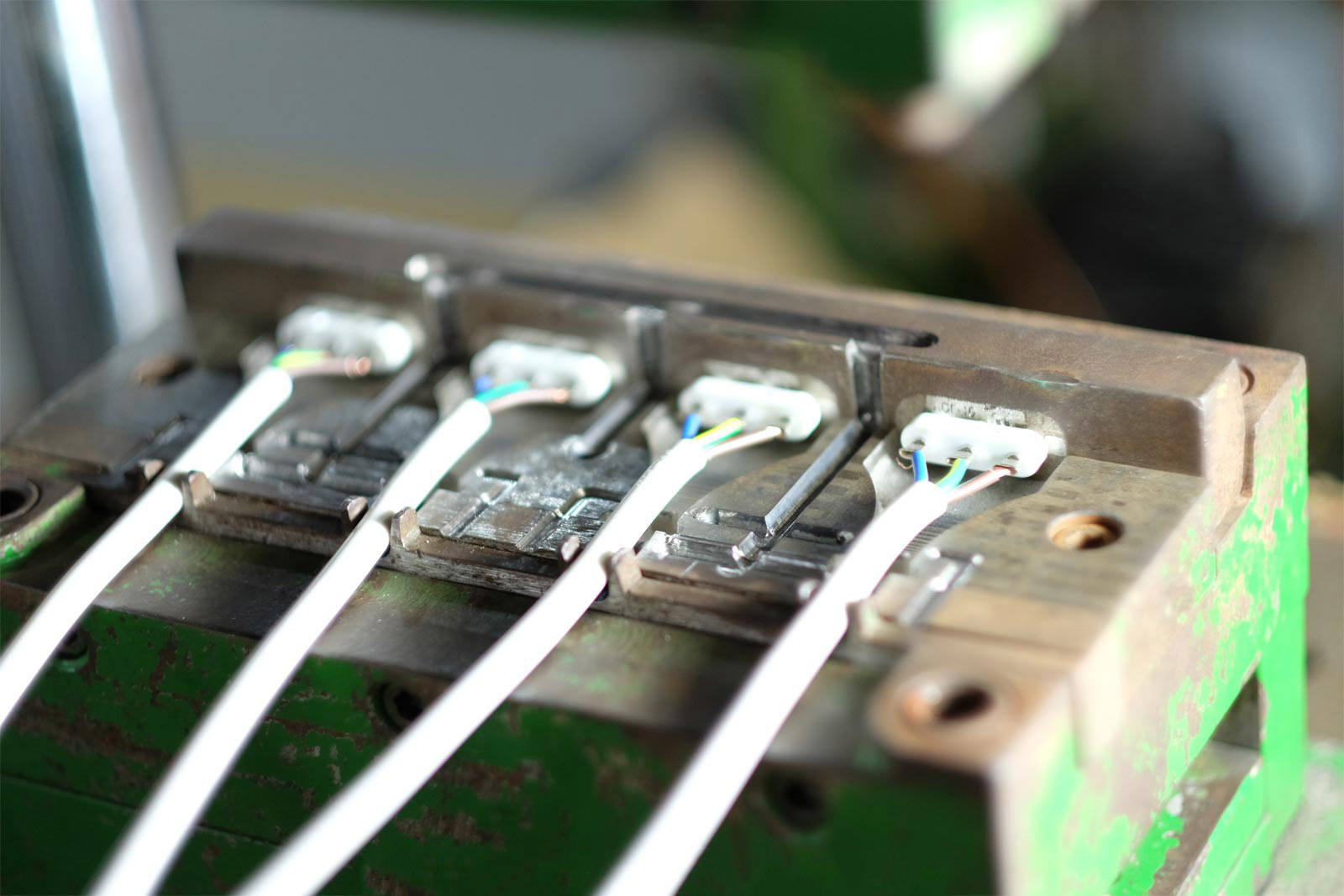

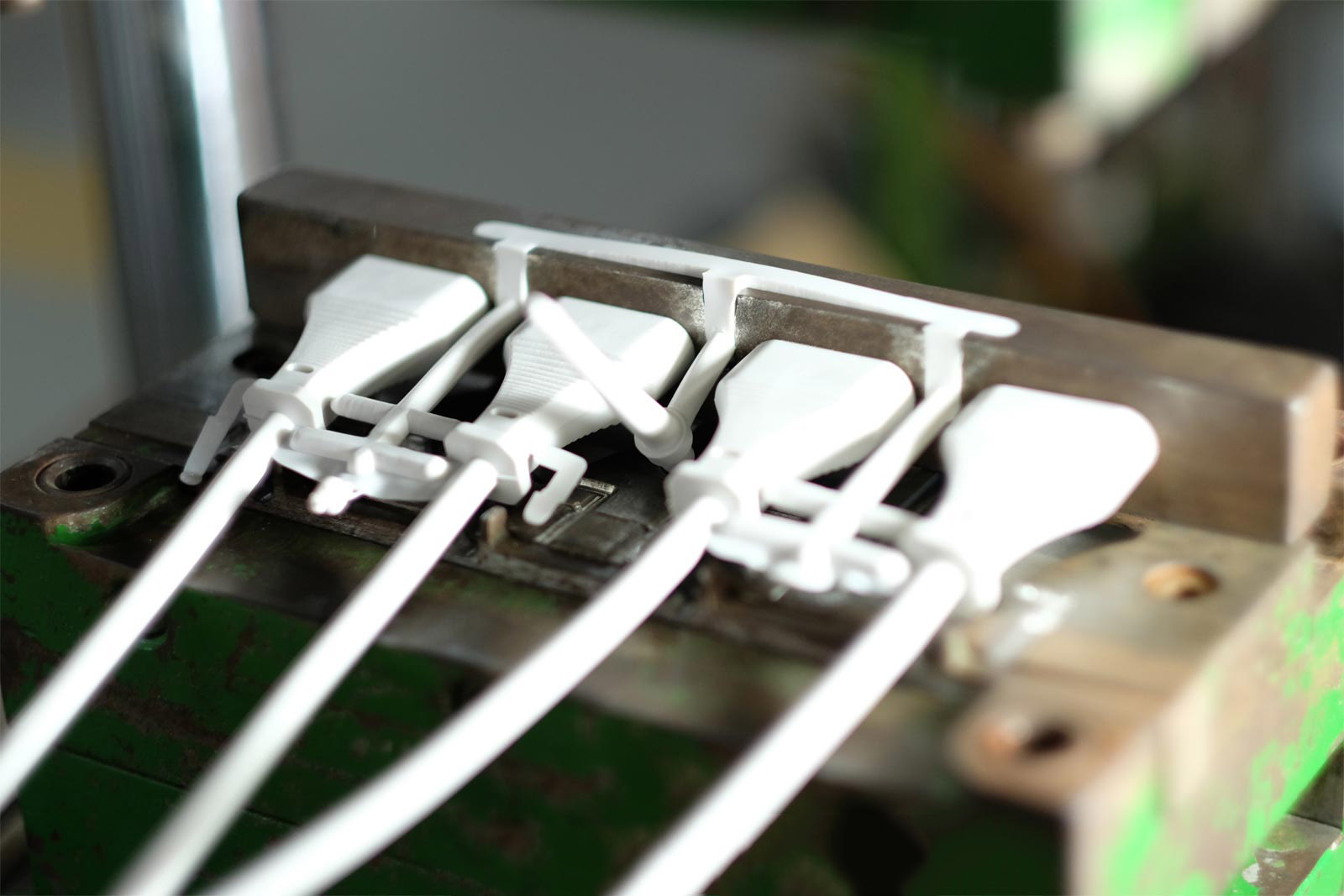

Power Supply Cord Italian Molding 10A

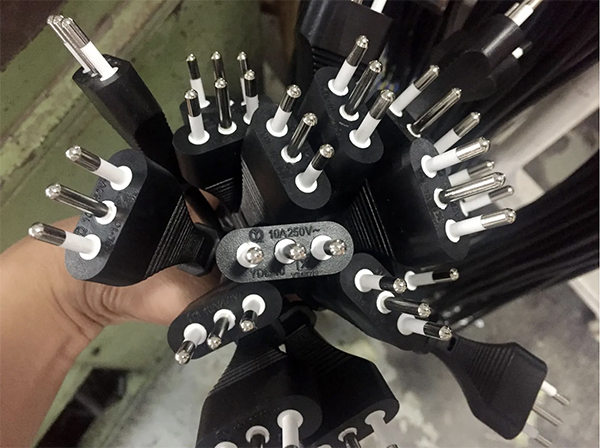

Power Cord Italian Plug Molding

Power Supply Cable Italian 10A plug IMQ


Italy Power Cord 10 Amp 3 Wire CEI 23-50 Standard Type L Plug AC Power Supply Cords, Custom Long Power Cord,IMQ Approved
Italy AC Power Cords, AC Power Supply Cords Italy Power Cords CEI 23-50

Plug type: Italy plug type L
Standard: CEI 23-50
Approvals: IMQ, VDE
Electricity:10A,250V
Number of Poles and Wires:2 poles 3 wires
Cable length:1.0 meter, 1.5m, 1.8m,custom length
End Options:ROJ, Termination, IEC 320 C5, C13,C15,C19
Quality System:ISO9001:2008
Color: White and black are normal, Custom color
Outer Mold Material: PVC, Rubber
Plug Insert Material: PBT, ABS
Blade Material: Nickel Coated Brass
Cable Specifications: Standard and custom made
Wire Jacket Material: PVC, Rubber, TPE, Textile
Environmental Certifications: RoHS, REACH, PAHS
Model Number: Y008,D08,I3-10
CEI 23-50 (10 Amp Cords), Type L Plug Connector Standards IEC 60320 (320) C-13, C-13 Locking, C-19, C-19 Locking, C-5, C-7, C-15, Unterminated, Italian IMQ compatible types (Type L),  connected with a three-wire grounding plug rated at max 10 Amp, 250 V.
Italy power cord 10 Amp 3 Wire CEI 23-50  standard Type L plug AC power supply cords are black and white as a standard color. gray and custom color are available. Custom length and shielded Italy AC power cord, AC power cables available. Terminated, custom stripping Suitable for most the small electrical appliances using the three phases Italian power line, the Italy type plug connecting the Italy plug connection with the household appliances.

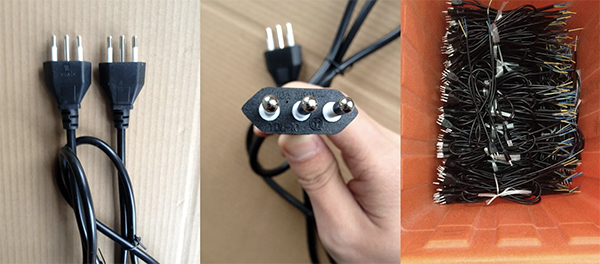

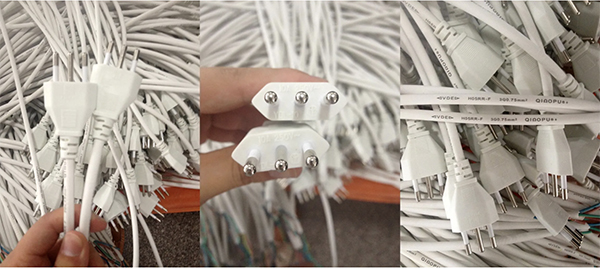

Italy 3 Wire 10A Power Cord

Italy CEI 23-50 Power Cord

Italy Type L Plug

Italy AC Power Supply Cord


Available Opposite End

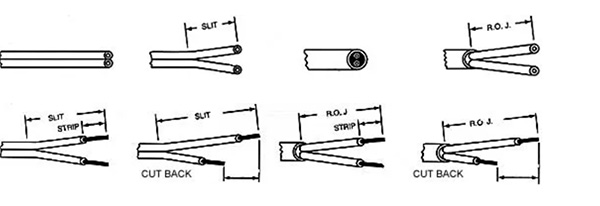

Normal Stripped, Splitter, and ROJ

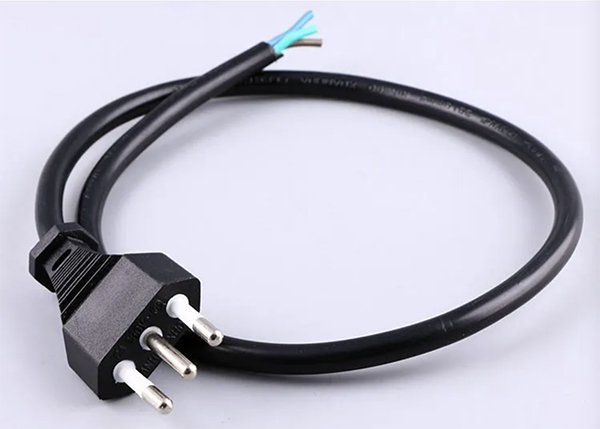

We manufacturers and supply Italy Power Cord 10 Amp 3 Wire CEI 23-50 Type L plug AC power supply cords, the other end can be stripped, ROJ with custom length.

Available Opposite End

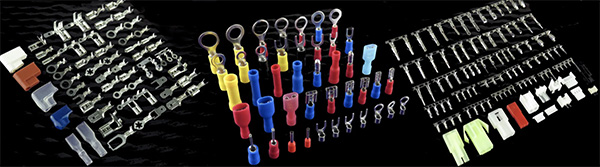

Common Termination

The Italy Power Cord 10 Amp 3 Wire CEI 23-50 standard Type L plug AC power supply cords is one end molded with standard plugs, the opposite could be terminated with types of terminals such as grounding rings terminals, fork with heat shrink or nylone insulated.

Common Termination


IEC 60320 Connectors


Italy power cord 10 Amp 3 Wire CEI 23-50 standard Type L plug AC power supply cords to IEC 320 C5 laptop, C13 computer power cable and molded with IEC C19 as PDU power cords are normal versions of Italy ac power cords with IEC connectors.

IEC 60320 C5 Power Cord

IEC 60320 C5 Power Cord

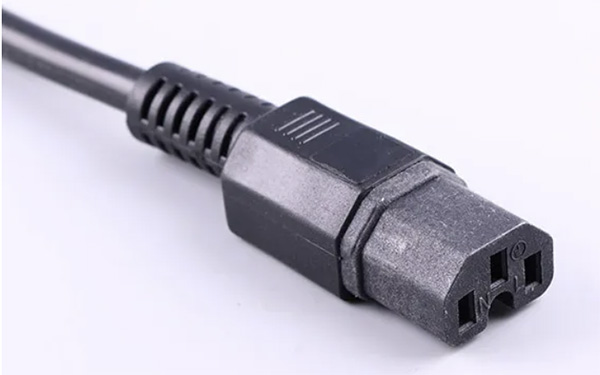

IEC 60320 C13 Straight Power Cord

IEC 60320 C13 Straight Power Cord

IEC 60320 C13 Right Angle Power Cord

IEC 60320 C13 Right Angle Power Cord

IEC 60320 C13 Waterproof Power Cord

IEC 60320 C13 Waterproof Power Cord

IEC 60320 C13 Locking Power Cord

IEC 60320 C13 Locking Power Cord

IEC 60320 C15 Power Cord

IEC 60320 C15 Power Cord

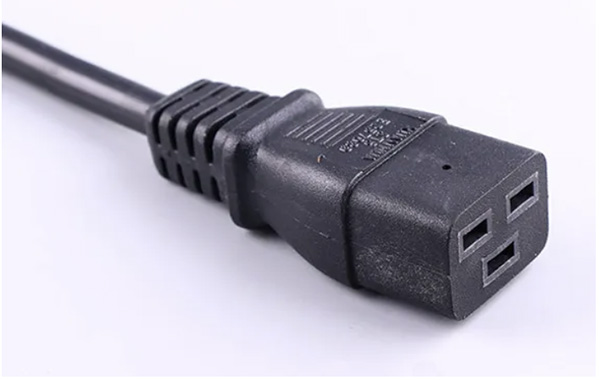

IEC 60320 C19 Power Cord

IEC 60320 C19 Power Cord



Package

The Italy Power Cord 10 Amp 3 Wire CEI 23-50 Type L plug AC Power  Supply Cords mostly bulk packed with export cartons, pallets.


Yunhuan manufacturers and supplies electrical AC power supply cords for use in Italy and all Countries in the world. Our extensive and complete Italy power cord line includes power receptacle outlets, Plug, weatherproof receptacle outlets, sockets, multiple outlet power strips, power supply cords, power cable wire and plug adapters . Contact us for Italy AC power cords as China leading  power cord manufacturer and supplier.all of our Italy power supply cords are are made of high quality approved by IMQ, German VDE with Rohs and Reach compliant.
