AC Power Cord > IEC 60320 Power Cords > IEC 60320 C7 Power Cord

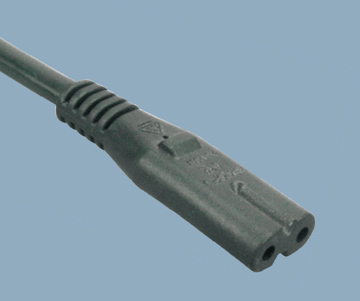

IEC-60320-C7-Power-Cord
  • IEC 60320 C7 Power Cord

  • IEC C7 Power Cords for most countries in the world. The IEC 60320-C7 two prong power cord receptacle is often referred to as the "figure 8" power cord receptacle. These IEC C7 power cords are commonly used in a variety of applications including electric shavers, portable electronics, notebook computers, CD and DVD players, kitchen appliances and game systems such as PlayStation II and Wii. Available in both polarized (one side flat) and non-polarized versions with the non-polarized being the far more popular power cord style。
  • Contact Us
Detailed description

Male Plug

IEC 60320 C7 2 Prong Plug

Female Receptacle

None

Amperage

Up to 2.5A

Voltage

Up to 250V 125V AC

Outer Mold Material

50P PVC

Blade Material

Nickel coated Brass

Color

Any color available

Cable Length

Any length available

Certifications

VDE UL SAA CCC PSE

Environmental Certifications

RoHS, REACH

Testing

100% are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout


IEC C7 Power Cords for most countries in the world. The IEC 60320-C7 two prong power cord receptacle is often referred to as the "figure 8" power cord receptacle. Available in both polarized (one side flat) and non-polarized versions with the non-polarized being the far more popular power cord style.


IEC C7 International Power Cable With Plugs


IEC 60320 C7 connector molded with most type male two prong plug for appliances.

Safety Mark Country International Power Cord
ul approved
USA,Canada NEMA 1-5P plug IEC C7
IRAM approved
Argentina Argentina IRAM 2063 plug to IEC C7
saa approved
Australia Australia AS/NZ 3112 Plug IEC C7
INMETRO approved
Brazil Brazil NBR 6147 Plug IEC C7
ccc approved
China China GB Plug IEC C7

VDE approved
Europe European CEE 7/16 Euro plug IEC C7
sni approved
Indonesia Indonesia SUCOFINDO SNI Plug IEC C7
sii approved
Israel Israel SI 32 plug IEC C7
PSE approved
Japan Japan JS C8303 Plug IEC C7
KSC KTL approved
Korea Korea KS C8305 Plug IEC C7
SEV approved
Switzerland Switzerland SEV1011 Plug IEC C7
BSI ASTA approved
UK BS 1363 Plug IEC C7


Available Cable Styles:


SPT-1/NISPT-1 18AWGX2C

SPT-2/NISPT-2 18AWGX2C

H03VVH2-F 0.5-0.75mm2X2C

H05VVH2-F  0.75mm2X2C

227 IEC52(RVV) 0.5-0.75mm2X2C

227 IEC53(RVV) 0.75mm2X2C


Other Termination Options:


Click Here


IEC 60320 C7 Power Cords Receptacle VDE CCC SAA KC PSE UL CCC Approved

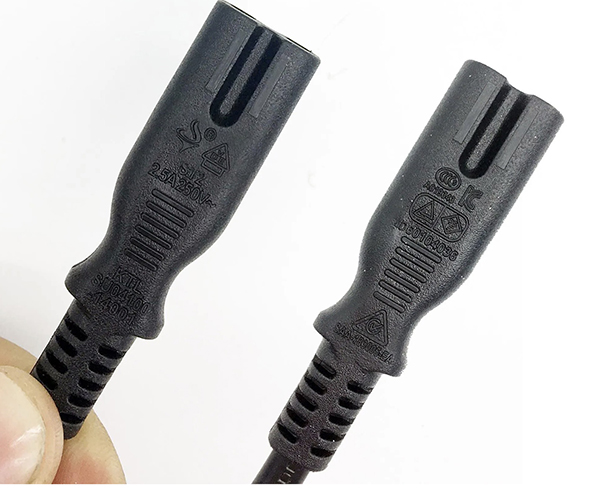

IEC 60320 C7 Power Cords Receptacle

  • Plug type: IEC 320 C7 receptacle
  • Standard: DIN EN 60320-1 (VDE 0625-1):2016-04; EN 60320-1:2015 + AC:2016
  • Approvals: VDE, CE,SAA,PSE,UL, cUL
  • Electricity:2.5A,250V
  • Number of Poles and Wires:2 poles 3 wires earthed
  • Cable length:1.0 meter, 1.5m, 1.8m,custom length
  • End Options: ROJ, Termination, Standard, and IEC plugs
  • Quality System: ISO9001:2008
  • Color: White and black are normal, Custom color
  • Outer Mold Material: PVC, Rubber
  • Plug Insert Material: PBT, ABS
  • Blade Material: Nickel Coated Brass
  • Cable Specifications: Standard and custom made
  • Wire Jacket Material: PVC, Rubber, TPE, Textile
  • Environmental Certifications: RoHS, REACH, PAHS
  • Model Number: QT8, ST2

IEC C7 Power Cords for most countries in the world. The IEC 60320-C7 two-prong power cord receptacle is often referred to as the “figure 8” power cord receptacle. These IEC C7 power cords are commonly used in various applications, including electric shavers, portable electronics, notebook computers, CD and DVD players, kitchen appliances, and game systems such as PlayStation II and Wii. Available in both polarized (one side flat) and non-polarized versions with the non-polarized being the far more popular power cord style.

IEC 60320 C7 Connector

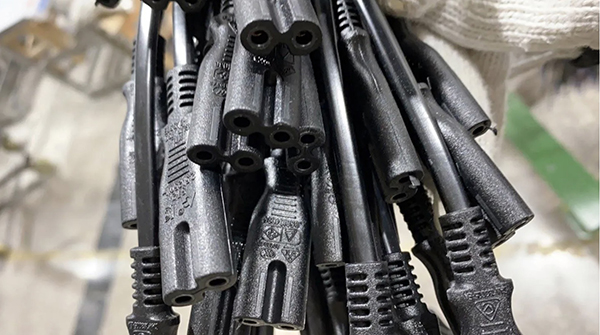

IEC 60320 C7 Power Cords

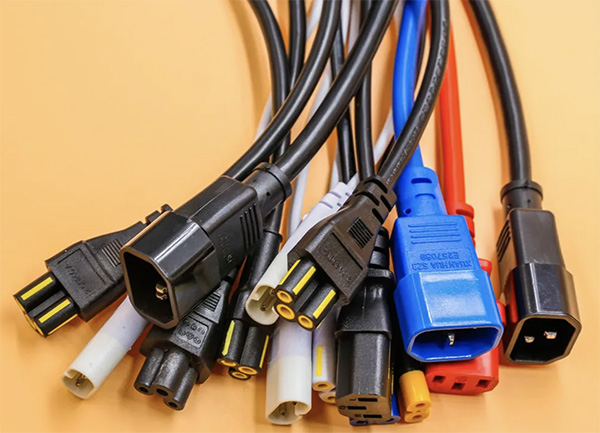

colorful IEC 60320 Connectors

Colorful IEC 60320 Connectors
