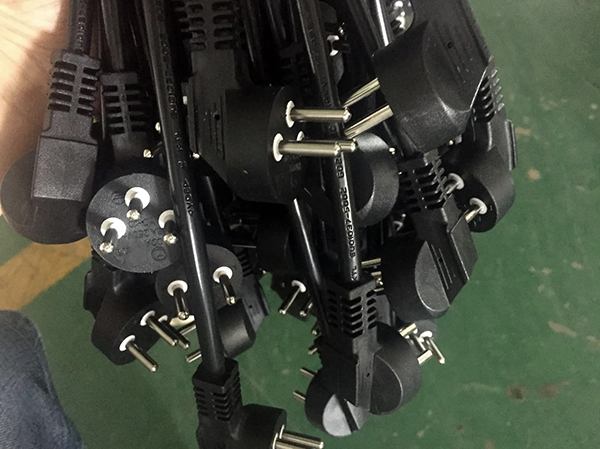

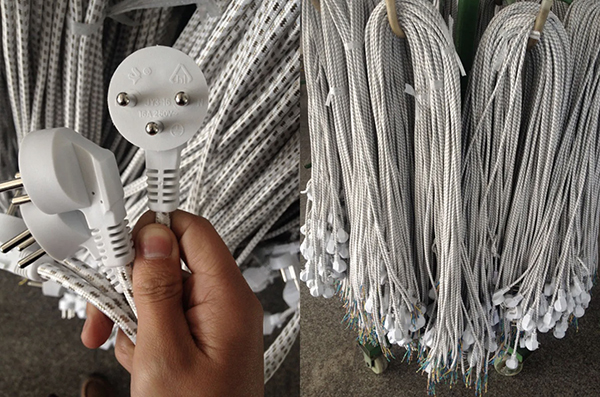

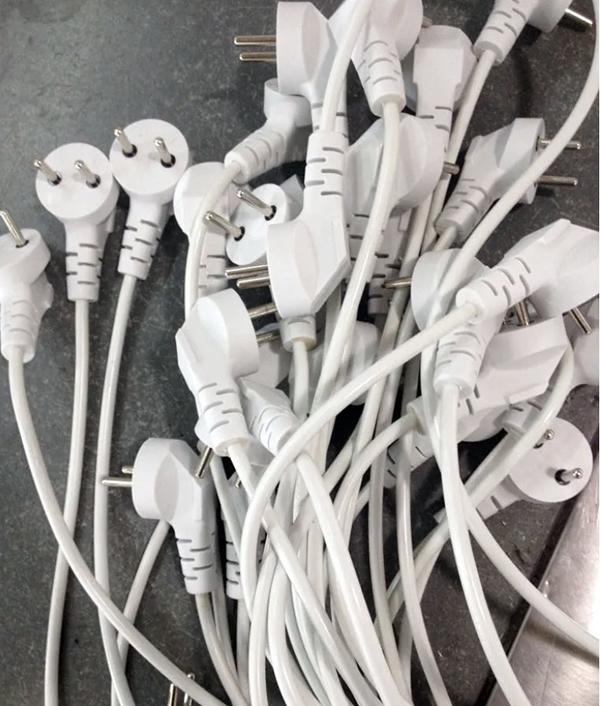

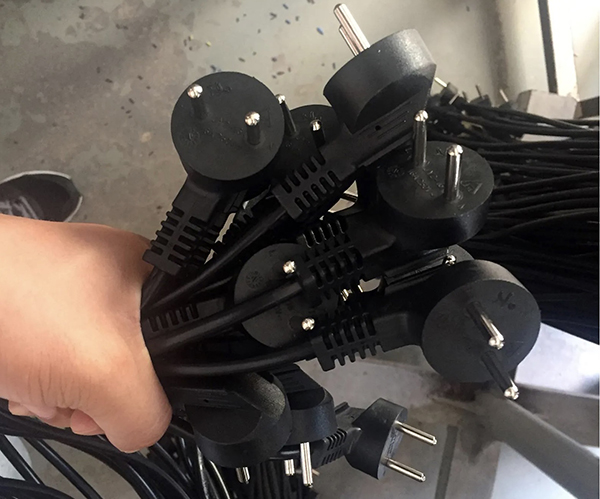

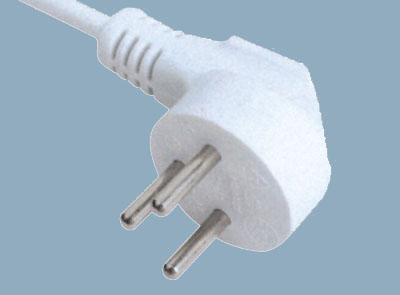

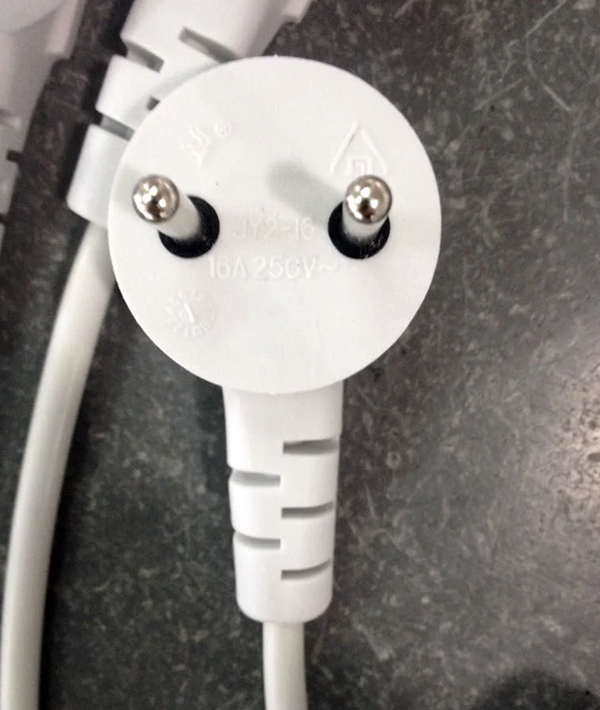

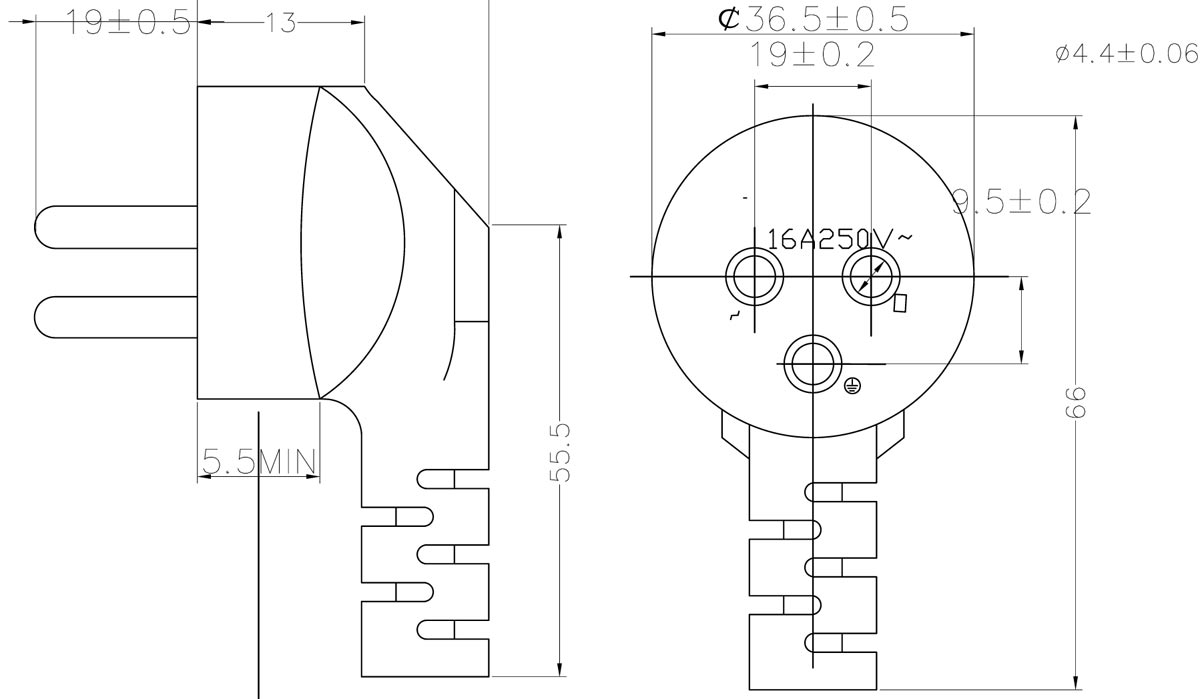

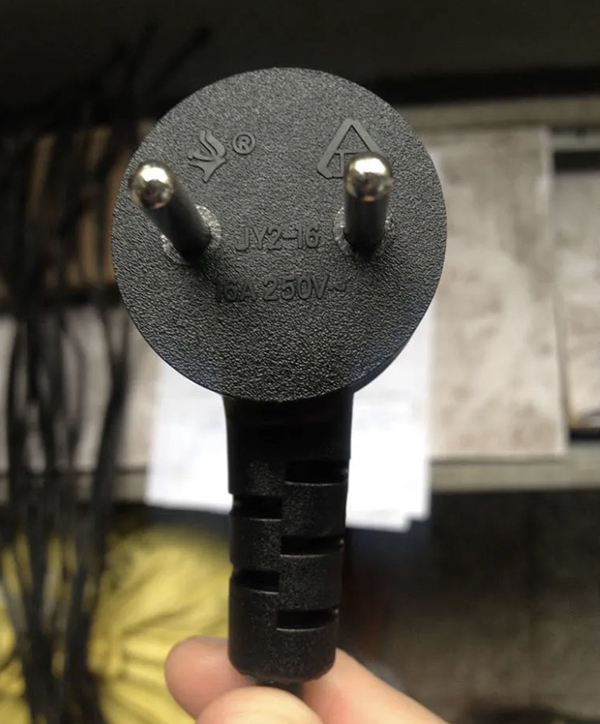

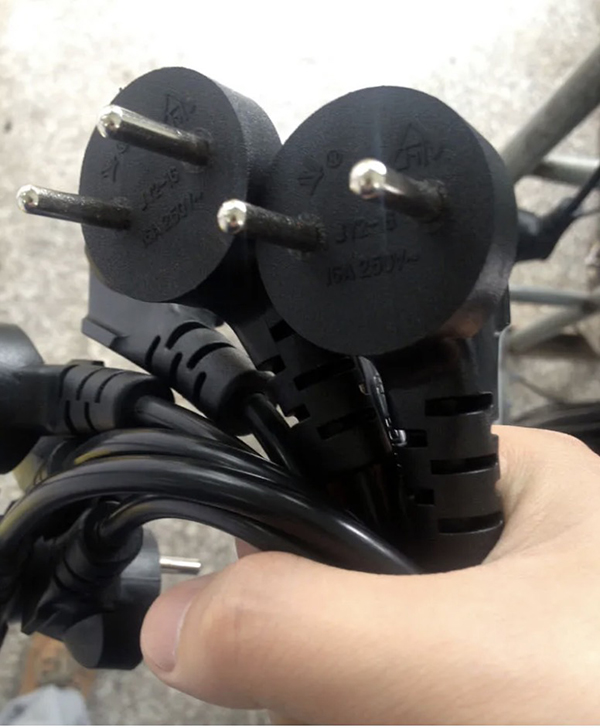

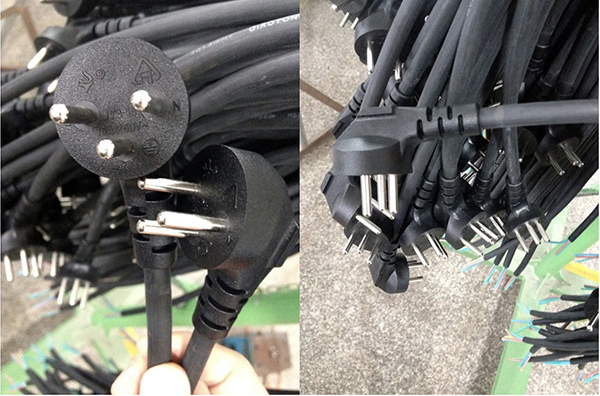

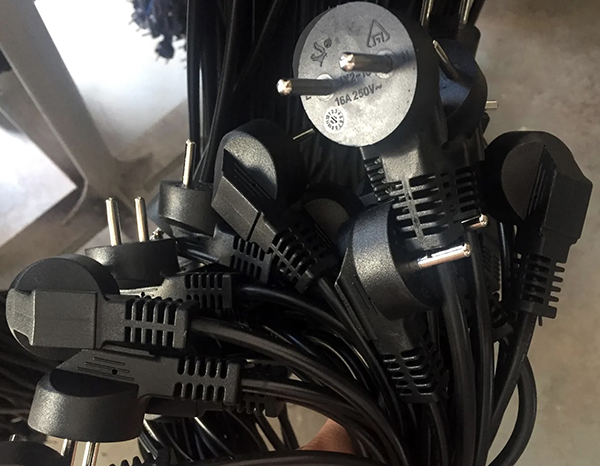

JY17,YD-10 16A with earthing contact plug with SII certification Rated up to 16A 250V Built to SI-32 standard ,designed for 3 conductor grounded Israel household application power supply cords,SI-32 to IEC C5 , SI-32 to IEC C13 , SI-32 to IEC C15 , SI-32 to IEC C19 describe Israel plug molded with IEC 60320 international power connectors.All of our Israle plugs,sockets,power cables are fully made with high quality and RoHS / REACH environment compliant as we are China premier power cord manufacturer.
Plug Standard | Israel 3P plug |
Maximum Current rating | 16A |
Maximum Voltage | 250V |
Number of Poles and Wires | 2 poles, 3 wires |
Outer Mold Material | 50P PVC |
Blade Material | Nickel coated Brass |
Flamability Rating | UL 94V-0 |
Color | Custom color available |
Cable length | Custom length available |
Temperature Rating | minus 40C though plus 75C |

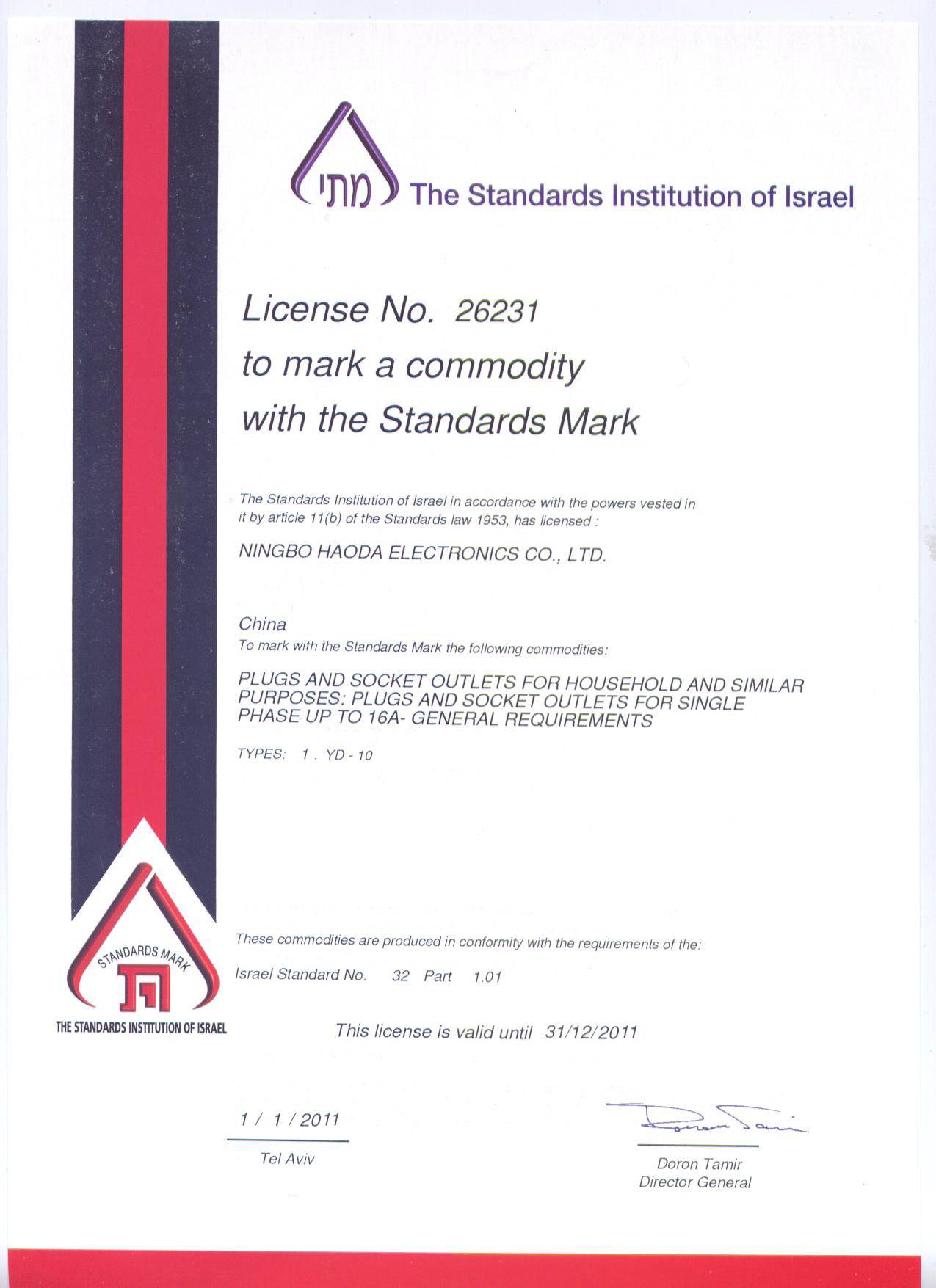

Approvals | Israel SII VDE |
Environmental Certifications | RoHS, REACH |
Testing | Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity |
MOQ | 2000pcs |
Samples | Free samples |
Available Opposite End Connectors:
Standard Part NO

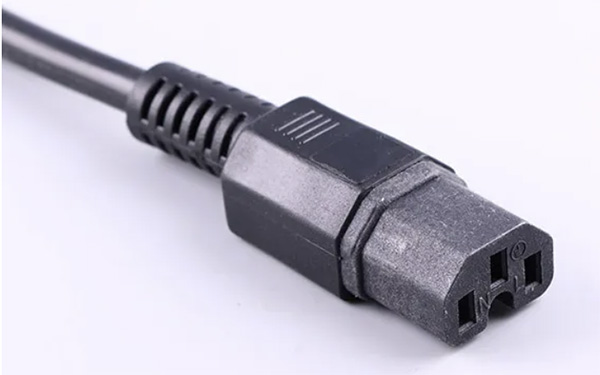

IEC 60320 C13 ST3(IEC C13)Israel
IEC 60320 C15 ST3H(IEC C15)Israel
IEC 60320 C5 ST1(IEC C5)Israel

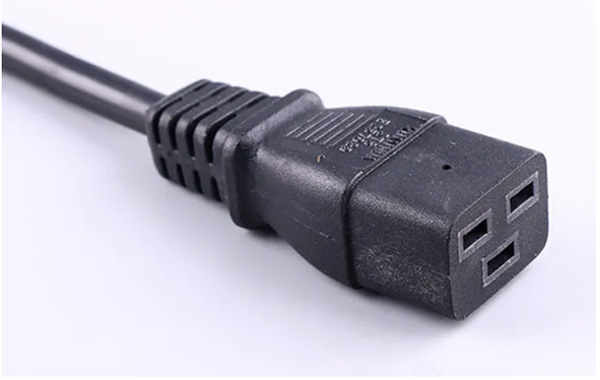

IEC 60320 C19 XH008A(IEC C19)Israel

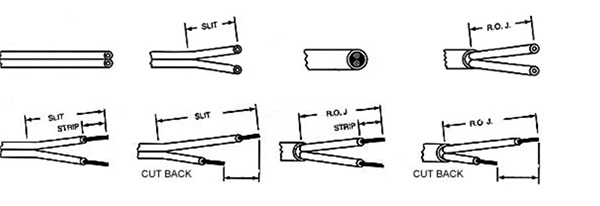

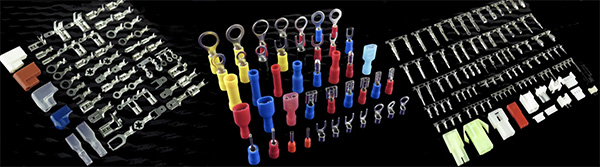

Other Termination Options:

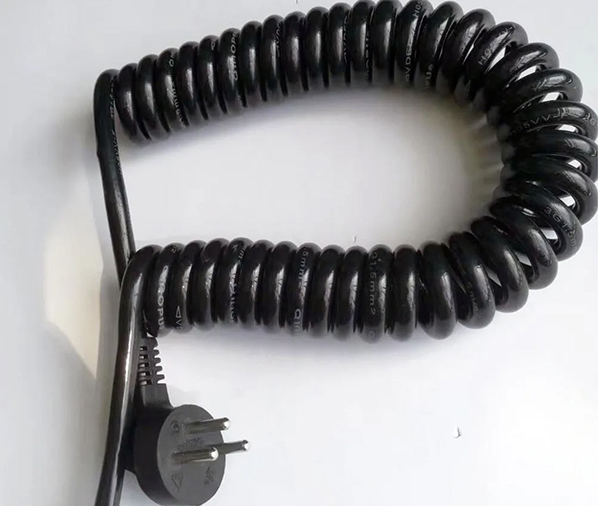

Available Cable Styles:
H05VV-F 3X0.75-1.5mm2
H05RN-F 3X0.75-1.0mm2
H05RR-F 3X1.0-1.5mm2
H07RN-F 3X1.0-1.5mm2
More Information:
