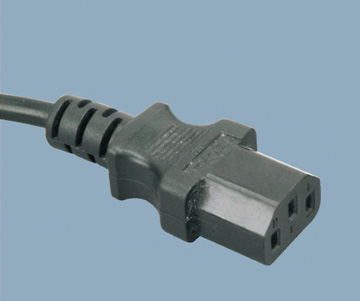

IEC 60320 C13 Power Cord
IEC C13 Power Cords for every country in the world. The IEC 60320-C13 three prong power cord receptacle is often referred to as the "computer power cable" receptacle. These IEC C13 power cords are commonly used in a variety of applications including computers, portable electronics, household applications, chargers , kitchen appliances and game systems such as PlayStation II and Wii. Available thre prong male plug or IEC 60320 standard plug versions with international plugs being the far more popular power cord style.

View the technical drawing:IEC C13 power cord drawing(PDF)
Contact Us

Detailed description

Available Cable Styles:
SVT 18-16AWGX3C
SJT/SJTW/SJTOW 18-14AWGX3C
H05VV-F 0.75-1.5X3C
227 IEC53(RVV) 0.75-1.5X3C

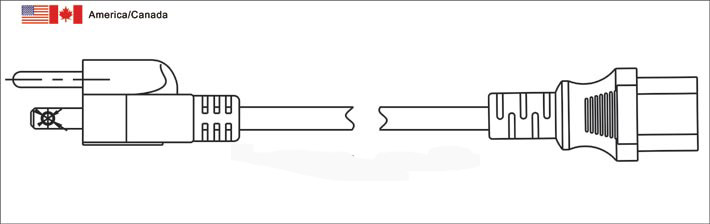

American NEMA 5-15 Grounded - Max 15 Amp to IEC C13

The North American NEMA 5-15 is the standard 3 wire wall receptacle found in the United States.

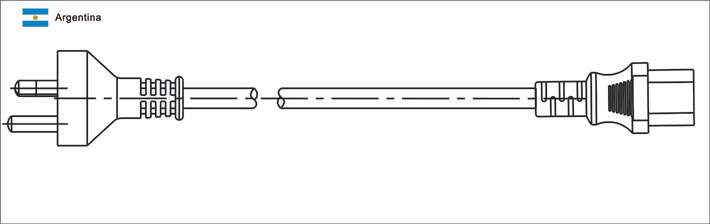

Argentine IRAM 2073 - 10 Amp to IEC C13

The Argentinean IRAM 2073 is physically the same as the Chinese GB 2099. The IRAM 2073 designation is merely a separate approval by that country's standards organization.

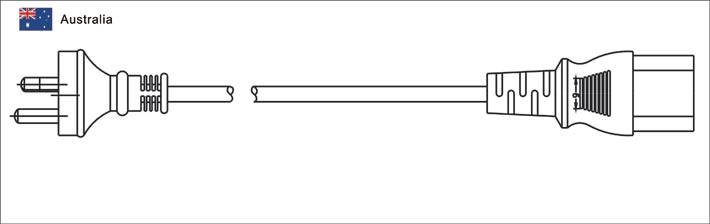

Australian AS/NZ-3112 - 10 Amp to IEC C13

The Australian and New Zealand AS 3112 is physically the same as the Argentinean IRAM 2073 and the Chinese GB 2099 but the line blades are insulated.

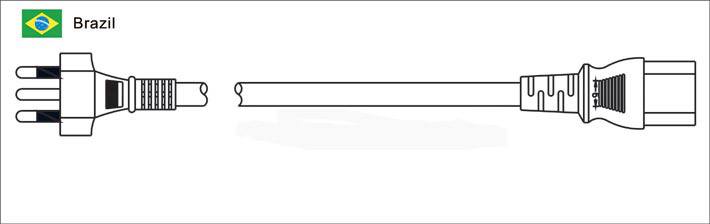

Brazilian NBR 14136 - 10 Amp

These Brazilian standards are new and notice the pin sizes vary between the different plugs.

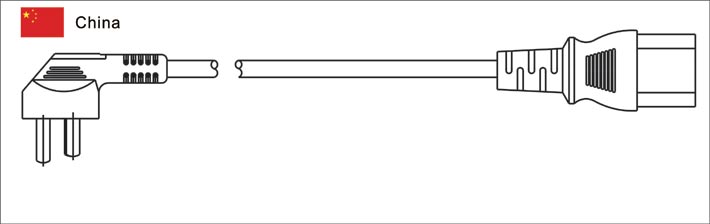

Chinese GB 2099 - 10 Amp

The Chinese GB 2099.1-1996 is physically the same as the Argentinean IRAM 2073. The GB 2099.1-1996 designation is merely a separate approval by this country's standards organization.

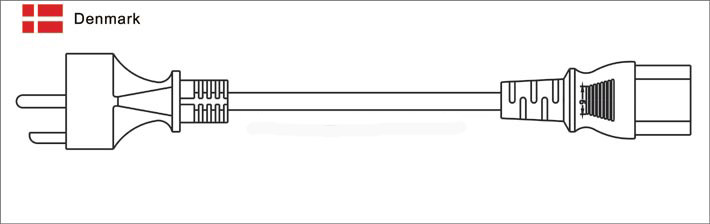

Danish AFSNIT 107-2-D1 - 13 Amp

The Danish AFSNIT 107-2-D1 is also referred to as SRAF 1962/DB 16/87.

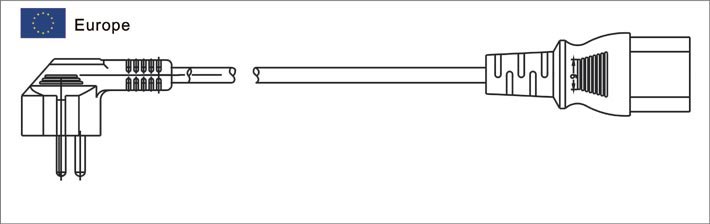

Euro CEE7/7 (Hybrid Type E/F) - 16 Amp

The CEE7/7 plug has both the side grounding clips of German CEE7/4 receptacle and a female contact to accept the grounding pin of the French CEE7/5 receptacle.

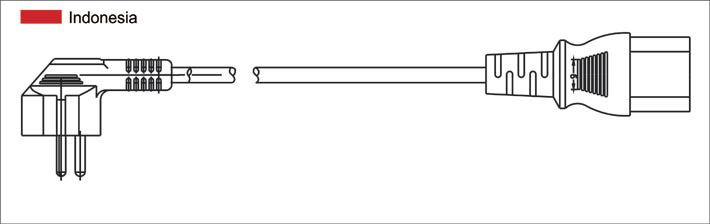

Indonesia SNI - 16 Amp to IEC C13

The Indonesia SNI is the same as the European CEE 7/7 Plug

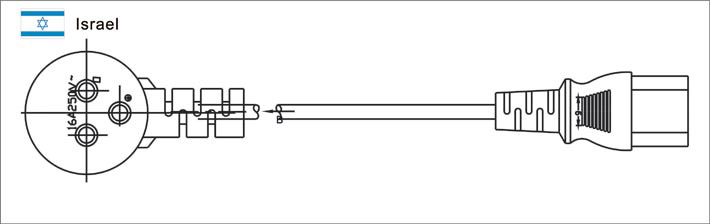

Israeli SI-32 IS16AR - 16 Amp to IEC C13

The Israeli SI-32 is the same as the Thailand TIS 166-2549.

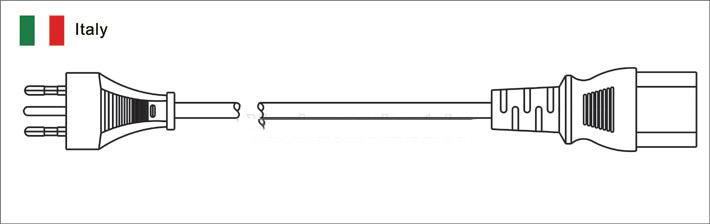

Italian CEI 23-16 - 10 Amp to IEC C13

Italian CEI 23-16 - 10 Amp which uses the center pin for grounding.

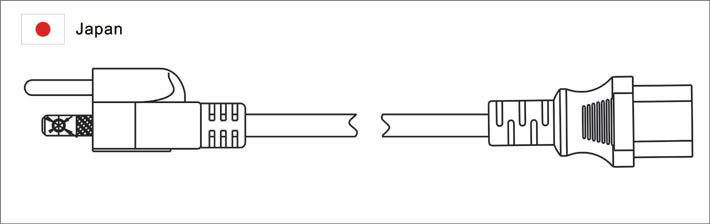

Japanese JIS 8303 - 15 Amp to IEC C13

The Japanese JIS 8303 grounded appears to be physically identical to the NEMA 5-15 found in North America. In many cases a North American plug will mate with Japanese receptacles without an adapter. However, the Japanese standard holds to tighter dimensional measurements than those in North America. This means that in some cases North American plugs will not quite fit into Japanese receptacles.

Korean KSC 8305 - 16 Amp to IEC C13

The Korean KSC 8305 is physically the same as the German CEE7/4. The KSC 8305 designation is merely a separate approval by this country's standards organization.

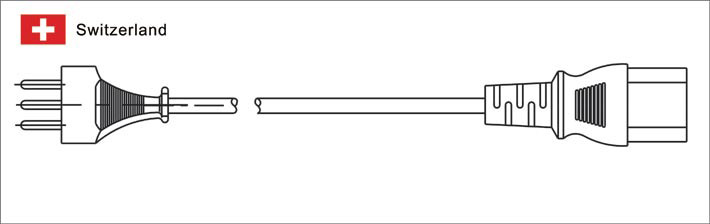

Swiss SEV 1011 - 10 Amp to IEC C13

Swiss SEV 1011 Plug will also accept the Europlug CEE7/16 however, the connection will be non-grounded.

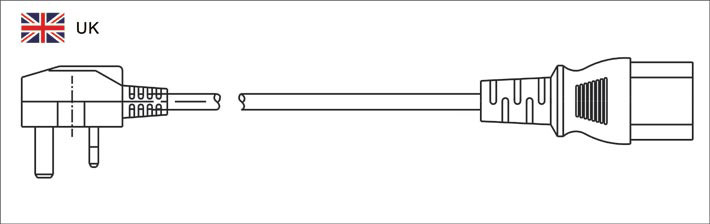

British BS-1363 - 13 Amp to IEC C13

The British BS 1363A typically has a 13 amp fused plug and is used throughout the United Kingdom. The BS 1363A replaced the old British BS 546 standard, which is no longer used in the U. K. but is still widely used in India and South Africa.

Male Plug	IEC C13 3 Prong Plug
Female Receptacle	IEC60320 C14,Every country's plug
Amperage	Up to 10A 13A
Voltage	Up to 250V 125V AC
Outer Mold Material	50P PVC
Blade Material	Nickel coated Brass
Color	Any color available
Cable Length	Any length available
Certifications	VDE,UL SAA,KSC,PSE,CCC
Environmental Certifications	RoHS, REACH
Testing	100% are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout
