Home > Power Cord > Indonesia Power Cords > Indonesia SNI power cords JF-01Indonesia SNI 2 Poles 4.0mm Without Earthing Contact Plug Pins 2.5A Power Cord
Indonesia-SNI-2-Poles-4.0mm-Without-Earthing-Contact-Plug-Pins-2.5A-Power-Cord
  • Indonesia SNI power cords JF-01Indonesia SNI 2 Poles 4.0mm Without Earthing Contact Plug Pins 2.5A Power Cord

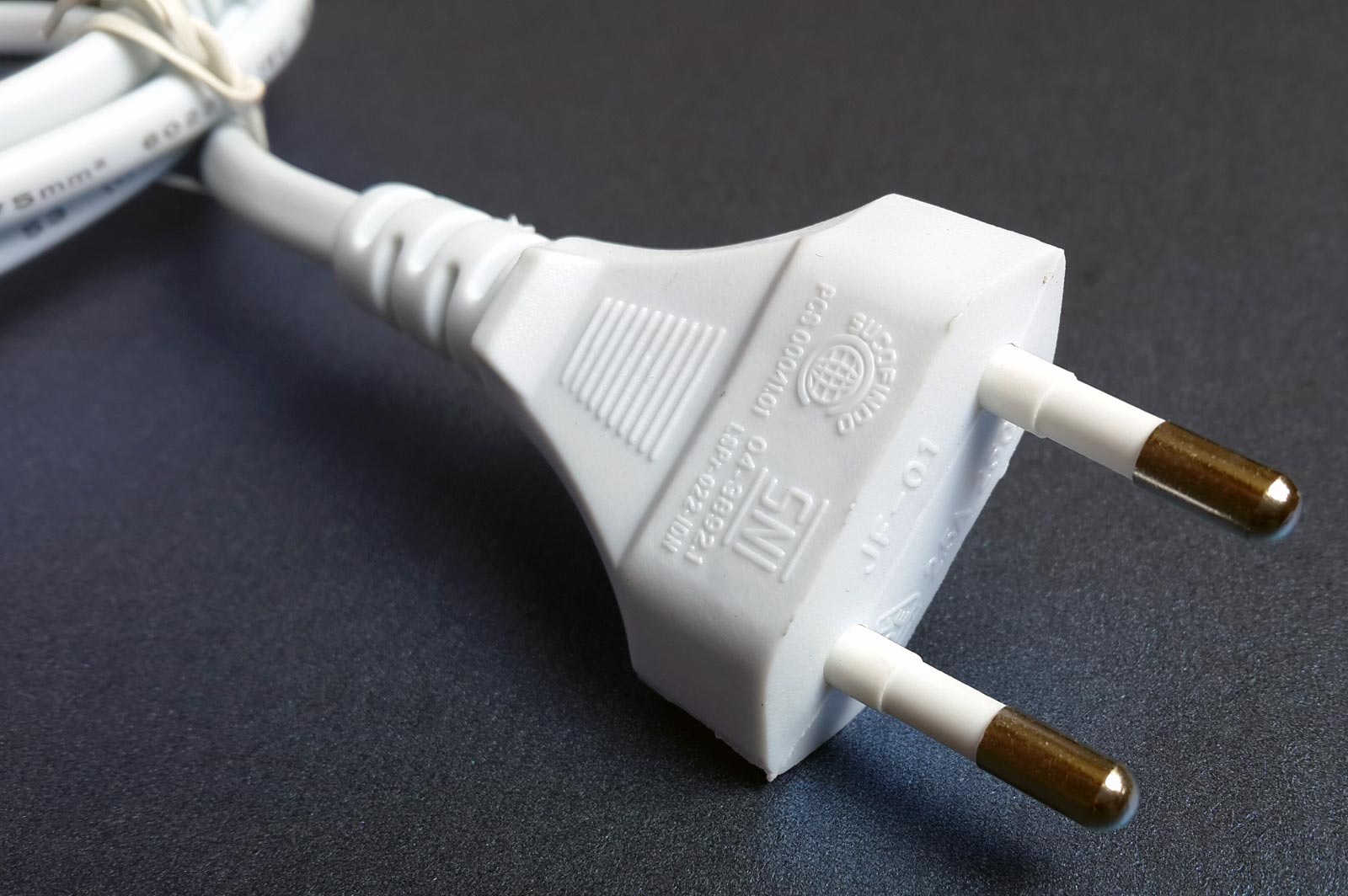

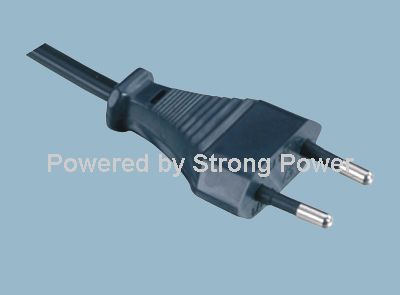

  • Indonesia Power Cord Indonesia SNI 2 Poles Without Earthing Contacts with pin provided insulateing sleeves,diameter 4.0mm and attached with flexible cables,Rated up to 2.5A 250V,Built to Indonesian standards and designed for household application power suppply cords.usually connected With IEC C7.Our Indonesian power cables are fully molded with high quality and RoHS / REACH compliant.
  • Contact Us
Detailed description

Plug Standard Indonesia 2P plug (same as CEE7/16 standard Euro 2P plug)
Maximum Current rating 2.5A
Maximum Voltage 250V
Number of Poles and Wires 2 poles, 2 wires
Available Wire Thickness 0.75mm² through 0.5mm²
Outer Mold Material 50P PVC
Blade Material Nickel coated Brass
Flamability Rating UL 94V-0
color black is standard but any color available
Temperature Rating minus 40C though plus 75C
Approvals SNI,VDE
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity


Available Opposite End Connectors:


Standard                                              Part NO


IEC C13                                               ST3(IEC C13)Indonesia


IEC C5                                                 ST1(IEC C5)Indonesia


IEC C7                                                 ST2(IEC C7)Indonesia



Other Termination Options:


Click Here


Available Cable Styles:


H03VV-F 2X0.5MM2
H03VV-F 2X0.75MM2
H05VV-F 2X0.75MM2
H03VVH2-F 2X0.5MM2
H03VVH2-F 2X0.75MM2
H05VVH2-F 2X0.75MM2
H05RR-F 2X0.75-1.0
H05RN-F 2X0.75-1.0


More Information:



SNI Certification



Indonesia Power Cord SNI

Indonesia Power Cord SNI Specification


Indonesia Power Cord SNI

Indonesia 2.5A Plug AC Power Cord
