AC Power Cord > Power Cord > Brazil Power Cords > Brazilian NBR 14136 3 Prong Grounded Max 20A Plug Power Cord
Brazilian-NBR-14136-3-Prong-Grounded-Max-20A-Plug-Power-Cord

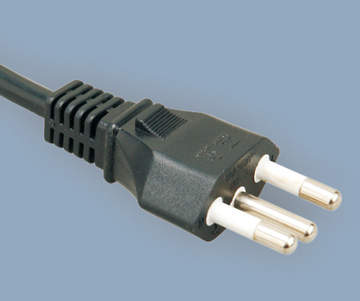

  • Brazilian NBR 14136 3 Prong Grounded Max 20A Plug Power Cord

  • NBR 6147 NBR 14136 Brazil 3 conductor grounded AC power supply cord plug with UC InMetro certification Rated up to 20A 250V Built to NBR 14136 standards and designed for Brazilian household application power supply connections, NBR 14136 to C5 NBR 14136 to C13 NBR 14136 to C15 NBR 14136 to C19 describe Brazilian plug molded with international power connectors. Our Brazilian NBR14136 power supply cords products are fully molded with high quality and RoHS / REACH compliant.

  • Contact Us
Detailed description

Connector Standard Brazil NBR 14136 3 Conductor Grounded plug
Maximum Current rating 20A
Maximum Voltage 250V
Number of Poles and Wires 2 poles, 3 wires
Outer Mold Material 50P PVC
Blade Material Nickel coated Brass
Flamability Rating UL 94V-0
Color Cusomer color available
Temperature Rating minus 40C though plus 75C
Approvals Brazil UC/NBR/INMETRO
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity


Available Opposite End Connectors:


Standard                                                    Part NO


IEC 60320 C13                                          ST3(IEC C13)Brazil


IEC 60320 C15                                           ST3H(IEC C15)Brazil


IEC 60320 C19                                            XH008A(IEC C19)Brazil


IEC 60320 C5                                               ST1(IEC C5)Brazil


Other Termination Options:


Click Here


More Information:


YHB-3 Brazil Power Cord Drawing(JPG)


Φ4.0 Pin Plug Maximum Current Rating 10A

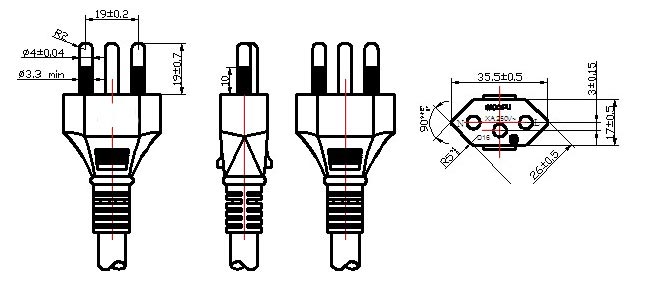

Plug Drawing

Brazilian New NBR 14136 Standard Φ4.0 Plug 3 conductor grounded Plug Technical Max 10 Amps Drawing.


Brazilian NBR 14136 3 Prong Grounded Max 20A Plug Power Supply Cord D16 LA141A


Φ4.8 Pin Plug Maximum Current Rating 20A

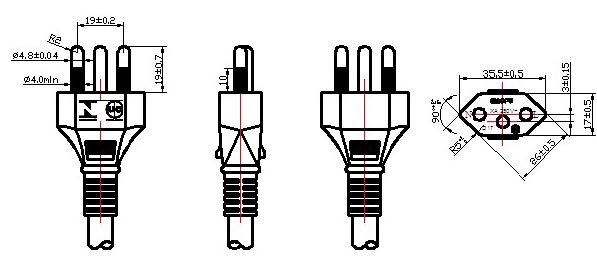

Plug Drawing

Brazilian New NBR 14136 Standard Φ4.8 Plug 3 Prong grounded Plug Technical Max 20 Amps Drawing.


3 Prong Brazilian Power Cord Drawing


Electrical Rating (Amps) Wire Styles Conductor Normal Area
2.5 Cabo Flexivel Circular 300V H03VV-F 60227 IEC 53 3x0.5mm2
10 Cabo Flexivel Circular 300V H03VV-F 60227 IEC 53 3x0.75mm2
Cabo Flexivel Circular 500V H05VV-F 60227 IEC 53 3x0.75mm2 or 3x1.0mm2
Cabo Flexivel Circular 500V H05RR-F 60245 IEC 53
Cabo Flexivel Circular 500V H05RN-F 60245 IEC 57
Cabo Flexivel Circular 500V H05V2V2-F 60245 IEC 57


Electrical Rating (Amps) Wire Styles Conductor Normal Area
12 Cabo Flexivel Circular 500V H05VV-F 60227 IEC 53 3x1.0mm2
Cabo Flexivel Circular 500V H05VVH2-F 60227 IEC 53
Cabo Flexivel Circular 500V H05RR-F 60245 IEC 53
Cabo Flexivel Circular 500V H05RN-F 60245 IEC 57
Cabo Flexivel Circular 750V H07RN-F 60245 IEC 66
Cabo Flexivel Circular 500V H05V2V2-F 60245 IEC 57
16 Cabo Flexivel Circular 500V H05VV-F 60227 IEC 53 3x1.5mm2
Cabo Flexivel Circular 500V H05RR-F 60245 IEC 53
Cabo Flexivel Circular 500V H05RN-F 60245 IEC 57
Cabo Flexivel Circular 750V H07RN-F 60245 IEC 66
Cabo Flexivel Circular 500V H05V2V2-F 60245 IEC 57
20 Cabo Flexivel Circular 500V H05VV-F 60227 IEC 53 3x2.5mm2


Brazilian Power Cord NBR 14136 UC Type N Plug Inmetro Certified TUV AC Power Supply Cable
Brazilian NBR 14136 Inmetro / TUV Certified  AC Power Supply Cable

Plug type: Brazil 3 wire grounding plug
Standard: NBR 14136
Approvals: Inmetro,TUV
Electricity:10A,12A,16A,20A,250V
Number of Poles and Wires:2 poles 3 wires
Cable length:1.0 meter, 1.5m, 1.8m,custom length
End Options: ROJ, Termination, IEC connectors
Quality System:ISO9001:2008
Color: White and black are normal, Custom color
Outer Mold Material: PVC, Rubber
Plug Insert Material: PBT, ABS
Blade Material: Nickel Coated Brass
Cable Specifications: Standard and custom made
Wire Jacket Material: PVC, Rubber, TPE, Textile
Environmental Certifications: RoHS, REACH, PAHS
Model Number: D15
NBR 14136 Brazil Power Cord Plug, 10Amp 250 Volt AC, 2 Pole 3 Wire Non-Grounding Brazil Power Cords, Power Supply Cord Sets to Connector Standards IEC 60320 (320) C-13, C-13 Locking, C-19, C-19 Locking, C-5,  C-15, Unterminated. Brazil NBR 14136 (Brazilian 10A,12A,16A,20A / 250 V) and compatible types (Type N), connected with a three-wire grounding plug max rated at 20 A, 250 V defined by Inmetro, TUV. The Brazil AC plugs and Sockets are mostly used in Brazil only.
Brazil Type N power cords are black, white as a standard color. Brazil power cords in gray or custom colors are special order. Custom length and shielded Brazil AC power cables available. Terminated, custom stripping, hanked Brazil cords available. IEC 60320 C-7, C17 connectors available on some Brazil AC power cords.
Brazil Power Cords

Brazil AC Power Cord

Cable Standards Brown, Blue ,Yellow/Green(3 wire) inner leads with below available standard flexible cables

Electrical Rating (Amps) Wire Styles Conductor Normal Area
2.5 Cabo Flexivel Circular 300V H03VV-F 60227 IEC 53 3×0.5mm2
10 Cabo Flexivel Circular 300V H03VV-F 60227 IEC 53 3×0.75mm2
Cabo Flexivel Circular 500V H05VV-F 60227 IEC 53 3×0.75mm2 or 3×1.0mm2
Cabo Flexivel Circular 500V H05RR-F 60245 IEC 53
Cabo Flexivel Circular 500V H05RN-F 60245 IEC 57
Cabo Flexivel Circular 500V H05V2V2-F 60245 IEC 57
12 Cabo Flexivel Circular 500V H05VV-F 60227 IEC 53 3×1.0mm2
Cabo Flexivel Circular 500V H05VVH2-F 60227 IEC 53
Cabo Flexivel Circular 500V H05RR-F 60245 IEC 53
Cabo Flexivel Circular 500V H05RN-F 60245 IEC 57
Cabo Flexivel Circular 750V H07RN-F 60245 IEC 66
Cabo Flexivel Circular 500V H05V2V2-F 60245 IEC 57
16 Cabo Flexivel Circular 500V H05VV-F 60227 IEC 53 3×1.5mm2
Cabo Flexivel Circular 500V H05RR-F 60245 IEC 53
Cabo Flexivel Circular 500V H05RN-F 60245 IEC 57
Cabo Flexivel Circular 750V H07RN-F 60245 IEC 66
Cabo Flexivel Circular 500V H05V2V2-F 60245 IEC 57
20 Cabo Flexivel Circular 500V H05VV-F 60227 IEC 53 3×2.5mm2

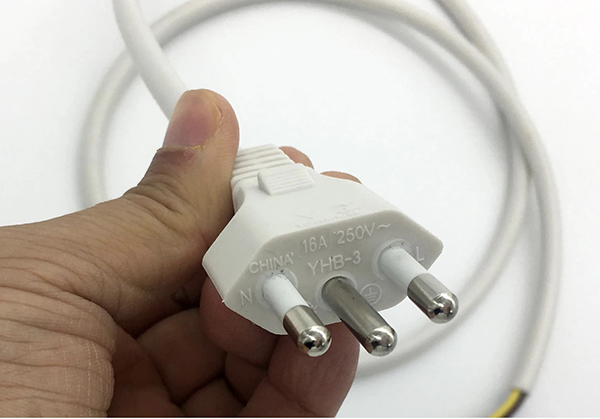

16A Brazil Power Plug

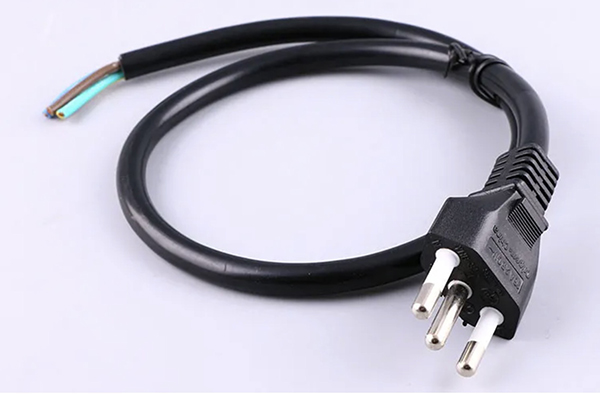

NBR 14136 Brazil Power Cord 3 Wire

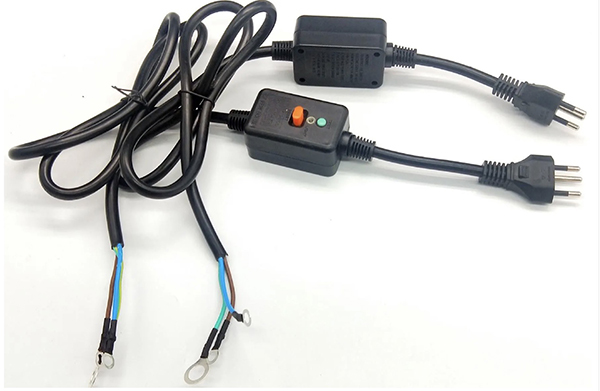

Brazil power cord with inline GFCI

Brazil power cord with inline GFCI

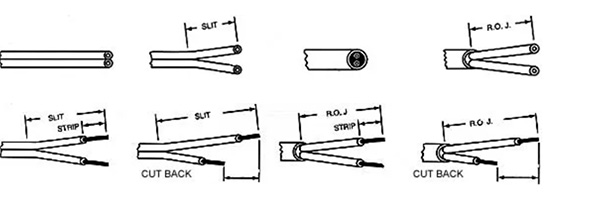

Available Opposite End

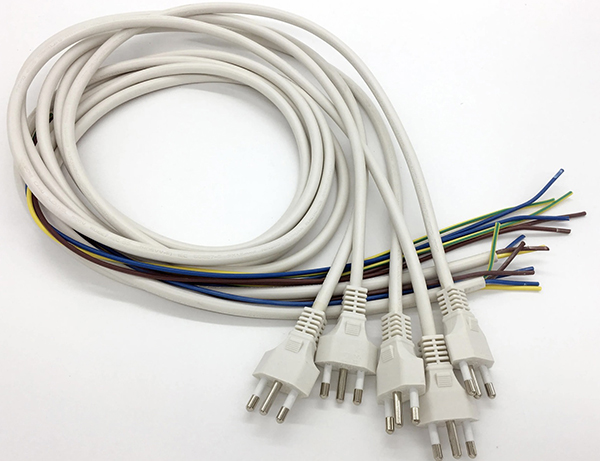

Normal Stripped, Splitter, and ROJ

We manufacturers and supply NBR 14137 N typ Polarized,10A/12A/16A/20A Brazil Power Cord Plug,250 Volt AC, 2 Pole 3 Wire Grounding, the other end can be stripped, ROJ with custom length.

Available Opposite End

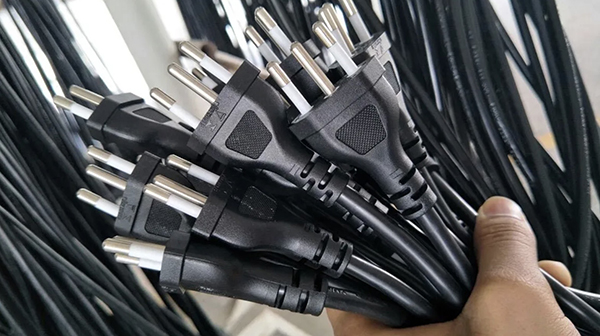

20A Brazil Inmentro Power Cord

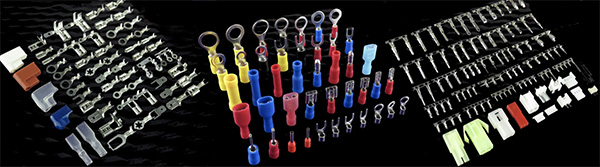

Common Termination

The NBR 14137 N typ Polarized,10A/12A/16A/20A Brazil Power Cord Plug,250 Volt AC, 2 Pole 3 Wire Grounding is one end molded with standard plugs, the opposite could be terminated with types of terminals such as grounding rings terminals, fork with heat shrink or nylone insulated.

Common Termination


IEC 60320 Connectors

The NBR 14137 N typ Polarized,10A/12A/16A/20A Brazil Power Cord Plug,250 Volt AC, 2 Pole 3 Wire Grounding to IEC 60320 C5 laptop,IEC 60320 C13 computer power cable,IEC 60320 C19 PDU power cord is normal versions of Brazil ac power cords with IEC connectors.

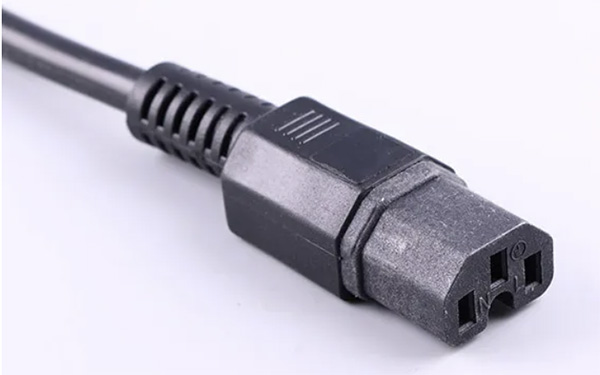

IEC 60320 C13 Straight Power Cord

IEC 60320 C13 Straight Power Cord

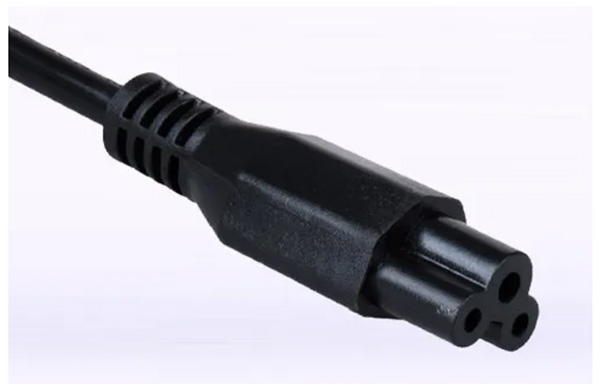

IEC 60320 C5 Power Cord

IEC 60320 C5 Power Cord

IEC 60320 C13 Right Angle Power Cord

IEC 60320 C13 Right Angle Power Cord

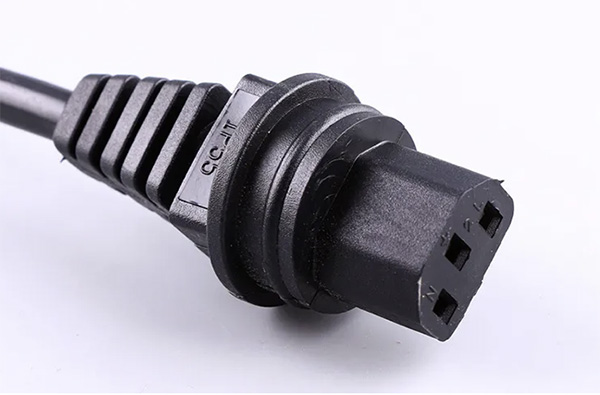

IEC 60320 C13 Waterproof Power Cord

IEC 60320 C13 Waterproof Power Cord

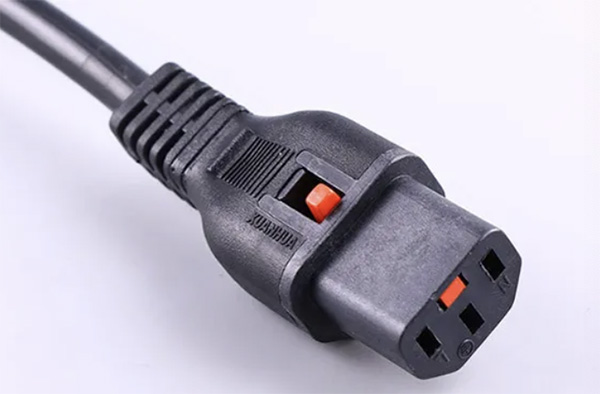

IEC 60320 C13 Locking Power Cord

IEC 60320 C13 Locking Power Cord

IEC 60320 C15 Power Cord

IEC 60320 C15 Power Cord

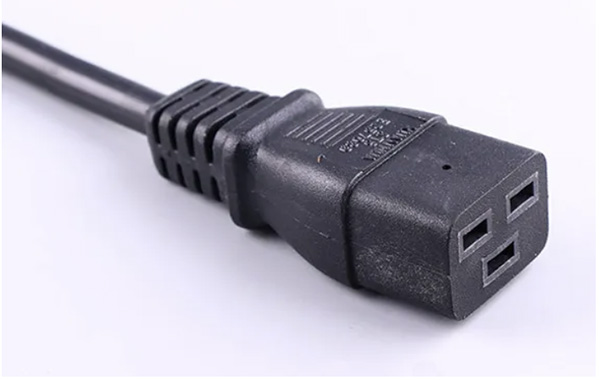

IEC 60320 C19 Power Cord

IEC 60320 C19 Power Cord

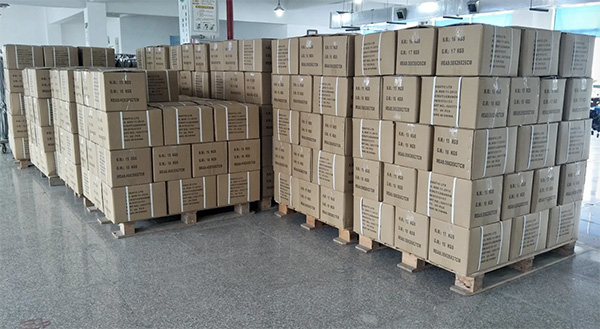

Package

The NBR 14137 N typ Polarized,10A/12A/16A/20A Brazil Power Cord Plug,250 Volt AC, 2 Pole 3 Wire Grounding Bulk packed with export cartons, pallets.
Package

Yunhuan manufacturers and supplies electrical AC power supply cords for use in Brazil and all Countries in the world. Our extensive and complete Brazil power cord line includes power receptacle outlets, Plug, weatherproof receptacle outlets, sockets, multiple outlet power strips, power supply cords, power cable wire, and plug adapters. Contact us for Brazil AC  power cords as China leading Brazil power cord manufacturer and supplier. all of Brazil’s AC power cables are approved by Inmetro or TUV and Rohs  /  Reach compliant.
