America UL power cord

America Power Cord products with UL CUL certification are manufactured to the North America NEMA standard,connected with receptacles as extension cords,heavy duty extension cords,locking adapters,connected with switch as switched power cord,connected with IEC 60320 series as computer power cable or other appliances electric cables,Locking Power Supply Cord,Rang & Dryer Cords,Appliance Connector,Hospital Grade Power Cord,Detachable Appliance Plugs,Assembly Plug and Connector,Adaptercord set,Indoor Extension Cords,Outdoor Seasonal-Use Cord-Connecteds listedare,applications in North America, Canada and Mexico.We stock literally thousands of two & three prong power cords in standard configurations and can make any custom version as well.100% of us are high quality molded power cords and RoHS compliant.
Multifunctional Power Socket with Power Cord
H05VV-F 3G1.0 60227 IEC 53 RVV 3*1.0 SJT AWG 14*3C
Viewdetail
UL ballast power cord BAASP BAASR FT-4
Connector Standard America Lamp Sun system ballast plug Maximum Current rating 13A Maximum Voltage 250V Number of Poles and Wires 2 poles, 3 wires Outer Mold Material 60,105P PVC Blade Material Nickel coated Brass Flamability Rating UL 94V-0 Color Any color available Cable length Any length available Temperature Rating minus 40C though plus 75C Approvals North America UL/CSA(cUL) Environmental Certifications RoHS, REACH Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity Available Opposite End Connectors Standard Part No IEC C13 ST3,(IEC C13)North America IEC C5 ST1,(IEC C5)North America IEC C19 XH008,(IEC C19)North America IEC C13(right angle)ST3W,(IEC C13 right angle)North Ameica Our UL file number E322665 E308931 Available Cable Styles: 16/3 SJT SJTW SJTO SJTOW SJTOO SJTOOW14/3 SJT SJTW SJTO SJTOW SJTOO SJTOOW12/3 SJT SJTW SJTO SJTOW SJTOO SJTOOW Other Termination Options Click Here More Information REACH 46 ITEMS test report
Viewdetail
Ballast power cord for sun system FT-5
Connector Standard America 3P ballast plug Maximum Current rating 13A Maximum Voltage 250V Number of Poles and Wires 2 poles, 3 wires Outer Mold Material 60,105P PVC Blade Material Nickel coated Brass Flamability Rating UL 94V-0 Color Any color available Cable length Any length available Temperature Rating minus 40C though plus 75C Approvals North America UL/CSA(cUL) Environmental Certifications RoHS, REACH Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity Available Opposite End Connectors Standard Part No IEC C13 ST3,(IEC C13)North America IEC C5 ST1,(IEC C5)North America IEC C19 XH008,(IEC C19)North America IEC C13(right angle)ST3W,(IEC C13 right angle)North Ameica Our UL file number E322665 E308931 Available Cable Styles: 16/3 STW STOW STO SJT SJTW SJTO SJTOW SJTOO SJTOOW 14/3 STW STOW STO SJT SJTW SJTO SJTOW SJTOO SJTOOW 12/3 STW STOW STO SJT SJTW SJTO SJTOW SJTOO SJTOOW Other Termination Options Click Here
Viewdetail

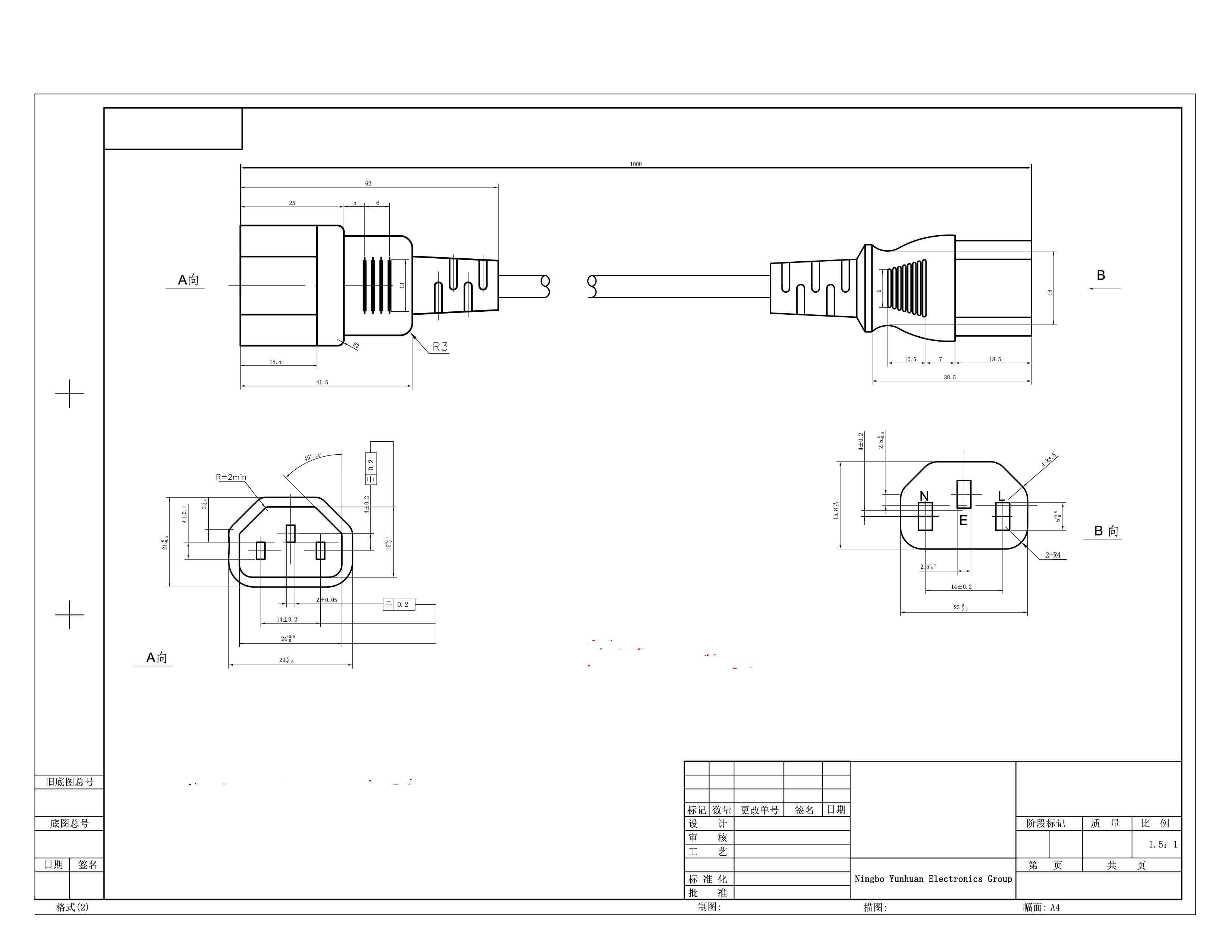

America_UL_power_cords_ST3_IEC_60320_C13_to_SZ3_IEC_60320_C14
Male Plug IEC60320 C14 Female Receptacle IEC60320 C13 Conductors 3 Wire Copper Wire Stranding 41 strands of 0.16mm Jacket Material PVC Temperature Rating Up to 105C Wire Outer Diameter 7.8mm Conductor Color Code Black, White and Green / NACC (North American color code) Voltage Up to 250 Volts AC Amperage Up to 10 Amps Testing 100% are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout Certifications UL/cUL Listed, CSA Environmental Compliance RoHS, REACH, Sony Green Partner, ISO14001:2004, ISO9001:2008 Available Cable Styles SVT AWG 18X3C SJT AWG 16X3C More Information ROHS test report
Viewdetail
America_UL_power_cords_YY_3_to_ST1_IEC_60320_C5
Male Plug NEMA 5-15P Female Receptacle IEC60320 C5 Conductors 3 Wire copper wire stranding 41 strands of 0.16mm Jacket Material PVC Temperature Rating Up to 105°C Conductor Color Code Black, White and Green / NACC (North American color code) Voltage Up to 125 Volts AC Amperage Up to 10 Amps Testing 100% are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout. Certifications UL/cUL Listed, CSA Environmental Compliance RoHS, REACH, Sony Green Partner, ISO14001:2004, ISO9001:2008 Available Cable Styles: SVT AWG 18X3C SPT-1 AWG 18X3C SPT-2 AWG 18X3C SJT AWG 18X3C More Information: REACH 46 ITEMS test report
Viewdetail
America_UL_power cords_YY_3 to_ST3_IEC_60320_C13
Male Plug NEMA 5-15P Female Receptacle IEC60320 C13 Wire Jacket Standard SVT,SJTJTW/SJTOW/SJTOOW STW/STOW/STOOW SPT-3 SJT/SJTO/SJTOO SJ/SJO/SJOW Gauge 18.16.1 AWG Conductors 3 Wire Copper Wire Stranding 41 strands of 0.16mm Jacket Material PVC Temperature Rating Up to 105C Wire Outer Diameter 6.3mm Conductor Color Code Black, White and Green / NACC (North American Color Code) Voltage Up to 125 Volts AC Amperage Up to 10 Amps Color anything Carton Weight 21/20kgs Carton Dimensions 51 X 31 X 24cm Testing 100% are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout. Certifications UL/ cUL Listed Environmental Compliance RoHS, REACH, Sony Green Partner, ISO14001:2004, ISO9001:2008 More Information America UL/CUL power cord spec(DOC)
Viewdetail
3-outlets Power Cords--XH515C
Connector Standard America 3R 5-15 socket Maximum Current rating 15A Maximum Voltage 125V Number of Poles and Wires 2 poles, 3 wires Outer Mold Material 60P PVC Blade Material Nickel coated Brass Flamability Rating UL 94V-0 Color Any color available Cable length Any length available Temperature Rating minus 40C though plus 75C Approvals North America UL/CSA(cUL) Environmental Certifications RoHS, REACH Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity Available Opposite End Connectors: Standard Part NO NEMA 5-15P YY-3G(5-15P)America Other Termination Options: Click Here Available Cable Styles: AWG 10/3C STW AWG 12/3C STW More Information: YY-2 Power Cord Plug drawing(PDF)
Viewdetail
NEMA 1-15R Power Cord
Connector Standard America 2R 1-15 socket Maximum Current rating 13A Maximum Voltage 125V Number of Poles and Wires 2 wires Outer Mold Material 60P PVC Blade Material Nickel coated Brass Flamability Rating UL 94V-0 Color Any color available Cable length Any length available Temperature Rating minus 40C though plus 75C Approvals North America UL/CSA(cUL) Environmental Certifications RoHS, REACH Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity Available Opposite End Connectors: Standard Part NO NEMA 1-15P YY-2(1-15P)America NEMA 1-15P YY-2I(1-15P)America Other Termination Options: Click Here Available Cable Styles: AWG 16/2C SPT-2 More Information: ROHS test report
Viewdetail
NEMA 5-15R Power Cord
Connector Standard America 3R 5-15 plug Maximum Current rating 15A Maximum Voltage 125V Number of Poles and Wires 3 wires Outer Mold Material 60P PVC Blade Material Nickel coated Brass Flamability Rating UL 94V-0 Color Any color available Cable length Any length available Temperature Rating minus 40C though plus 75C Approvals North America UL/CSA(cUL) Environmental Certifications RoHS, REACH Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity Available Opposite End Connectors: Standard Part NO NEMA 5-15P YY-3G(5-15P Plug)America NEMA 5-15P CL-3(5-15P Plug)America Other Termination Options: Click Here Available Cable Styles: AWG 12/3C SJT SJTW ST STW AWG14/3C SPT-3 SJT SJTW ST STW AWG 16/3CSPT-3 SJT SJTW ST STW
Viewdetail
America UL power cords-YY-2 to IEC 60320 C7
Male Plug America NEMA 1-15P Female Receptacle IEC60320 C7 Amperage Up to 2.5A Voltage Up to 125V AC Outer Mold Material 50P PVC Blade Material Nickel coated Brass Color Any color available Cable Length Any length available Certifications UL/CSA Environmental Certifications RoHS, REACH Testing 100% are individually tested Available Wire Styles 18/2 SPT-1,SPT-2,NISPT-1,NISPT-216/2 SPT-2,NISPT-2,SPT-3 Other Termination Options Click Here Available Cable Styles AWG 18/2C SPT-3
Viewdetail
America UL power cords --YY-2I
Connector Standard America 2P 1-15 plug Maximum Current rating 15A Maximum Voltage 125V Number of Poles and Wires 2 poles, 2 wires Outer Mold Material 60P PVC Blade Material Nickel coated Brass Flamability Rating UL 94V-0 Color Any color available Cable length Any length available Temperature Rating minus 40C though plus 75C Approvals North America UL/CSA(cUL) Environmental Certifications RoHS, REACH Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity Available Opposite End Connectors: Item Part No IEC C7 ST2,IEC C7 North America NEMA1-15R YY-2Z(N1-15R)America Other Termination Options: Click Here Available Cable Styles: AWG 14/2C SJT SJTW AWG 16/2C SJT SJTW SVT AWG 18/2C SVT SJT SJTW AWG 17/2C SVT More Information: NEMA Power Cord Standard
Viewdetail
America UL CSApower cord--XH212B
Connector Standard America 3P 6-15 plug Maximum Current rating 15A Maximum Voltage 125V Number of Poles and Wires 2 poles, 3 wires Outer Mold Material 60P PVC Blade Material Nickel coated Brass Flamability Rating UL 94V-0 Color Any color available Cable length Any length available Temperature Rating minus 40C though plus 75C Approvals North America UL/CSA(cUL) Environmental Certifications RoHS, REACH Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity Available Opposite End Connectors: Standard Part No IEC C13 ST3,(IEC C13)North America NEMA6-15R QJ-3Z(6-15R)North America Other Termination Options: Click Here Available Cable Styles: AWG 12/3C SJT SJTW ST STW AWG 14/3CSJT SJTW ST STW SPT-3 AWG 16/3CSJT SJTW ST STW SPT-2
Viewdetail
