AC Power Cord > Power Cord > America Power Cords > 6-20P 20A 250V America Standard Power Cord
6-20P-20A-250V-America-Standard-Power-Cord

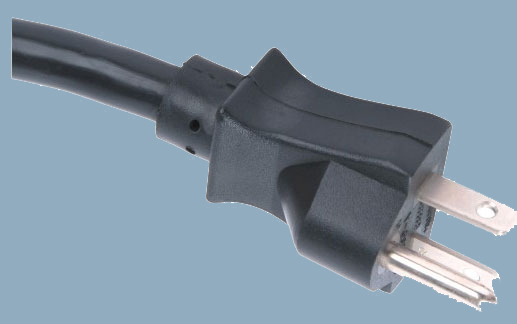

  • 6-20P 20A 250V America Standard Power Cord

  • NEMA 6-20P stright power cord plug with UL certification.Rated up to 20A 250V.  Built to the NEMA 6-20P standard.  Our NEMA 6-20P power cord plugs are fully molded with a low profile ergonomic design and RoHS and REACH compliant.

    NEMA 6-20P up angle version available here:YY-3H

  • Contact Us
Detailed description

Connector Standard

America 3P 6-20P plug

Maximum Current rating

15A

Maximum Voltage

125V

Number of Poles and Wires

2 poles, 3 wires

Outer Mold Material

60P PVC

Blade Material

Nickel coated Brass

Flamability Rating

94V-0

Color

Any color available

Cable length

Any length available

Temperature Rating

minus 40C though plus 75C

Approvals

UL CUL CSA

Environmental Certifications

RoHS, REACH

Testing

Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity


Available Opposite End Connectors:


Standard                              Part NO


IEC 60320 C13                     ST3,(IEC C13)America


IEC 60320 C5                       ST1,(IEC C5)America


IEC 60320 C19                     XH008,(IEC C19)America


IEC 60320 C13(right angle)  ST3W,(IEC C13 right angle)America


IEC 60320 C15                     ST3H(IEC C15)America


Other Termination Options:


Click Here


Available Cable Styles:


AWG 18/3C CSJ SJW SJO SJOW SJOO SJOOW SJT SJTW SJTO SJTOW SJTOO SJTOOW  S SO SOW SOO SOOW ST STW STO STOW STOO STOOW

AWG 16/3C  CSJ SJW SJO SJOW SJOO SJOOW SJT SJTW SJTO SJTOW SJTOO SJTOOW  S SO SOW SOO SOOW ST STW STO STOW STOO STOOW

AWG 14/3C CSJ SJW SJO SJOW SJOO SJOOW SJT SJTW SJTO SJTOW SJTOO SJTOOW  S SO SOW SOO SOOW ST STW STO STOW STOO STOOW

AWG 12/3C CSJ SJW SJO SJOW SJOO SJOOW SJT SJTW SJTO SJTOW SJTOO SJTOOW  S SO SOW SOO SOOW ST STW STO STOW STOO STOOW


Manufacturer Base NEMA 6-20P Power Cord Rated up to 20A 250V Custom Length / Color Power Supply Cord, UL Listed

NEMA 6-20P Power Supply Cord
NEMA 6-20P power cord 20 Amps 250 Voltage heavy duty plug molded with custom long, color PVC
Plug type: US 20A 3 prong plug
Standard: NEMA 6-20P
Approvals: UL, cUL
Electricity:20A, 250V
Number of Poles and Wires:2 poles 3 wires
Cable length:1.0 meter, 1.5m, 1.8m,custom length
End Options: ROJ, Termination
Quality System:ISO9001:2008
Color: White and black are normal, Custom color
Outer Mold Material: PVC, Rubber
Plug Insert Material: PBT, ABS
Blade Material: Nickel Coated Brass
Cable Specifications: Standard and custom made
Wire Jacket Material: PVC, Rubber, TPE, Textile
Environmental Certifications: RoHS, REACH, PAHS
Model Number: XH228, XH229
Plug Standard America NEMA 6-20P plug Maximum Electric Current rating 20A ,Maximum Voltage 250V Number of Poles and Wires 2 poles, 3 wires Grounded Plug,Heavy Duty – Featuring a 6-20P Plug can be used for cryptocurrency mining and other high-power computer needs Manufactured to the highest standards and tested for Voltage Hi-Potential, Continuity, Polarity and are UL listed.

NEMA 6-20P Power Supply Cord

NEMA 6-20P Power Cords are black and white as a standard color. gray and custom color are available. Custom length and shielded America power cord heavy duty, America AC power cables available. Terminated, custom stripping.

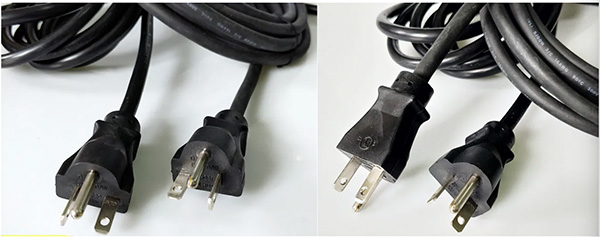

Available Opposite End
Normal Stripped, Splitter and ROJ

We manufacturers and supplies NEMA 6-20P Power Cord, custom color, the other end can be stripped , ROJ with custom length.
Available Opposite End


Common Termination

NEMA 6-20P Power Cord, one end is molded with NEMA  standard sheet plugs, the opposite could be terminated with types of terminals such as grounding rings terminals, fork with heat shrink or nylone insulated.
Common Termination


IEC 60320 Connectors

Power supply cord 6-20 straight plug to IEC C13 computer power cable and molded with IEC C19 as PDU power cords are normal versions of America ac power cords with IEC connectors.

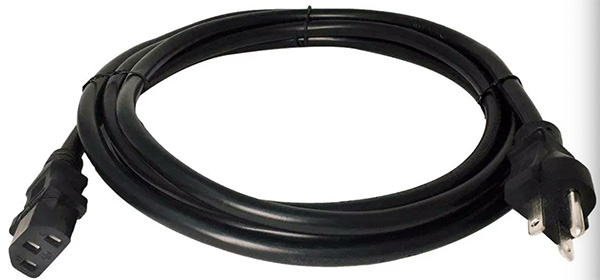

NEMA 6-20P Power supply cord IEC C13 Computer power cable

NEMA 6-20P Power supply cord IEC C13 Computer power cable

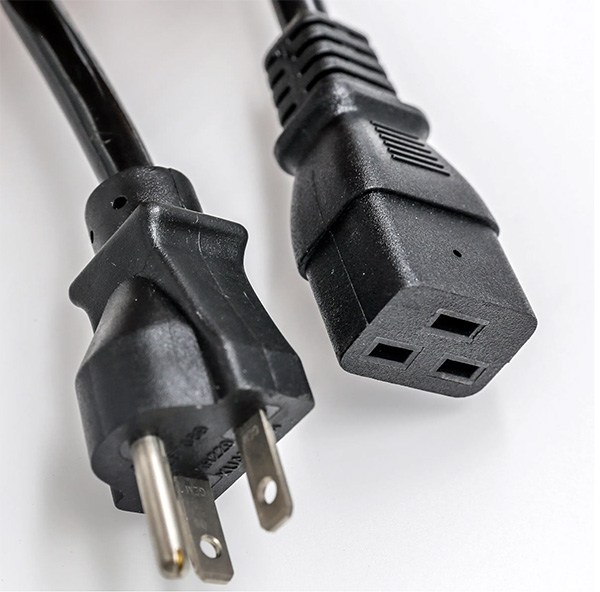

NEMA 6-20P Power supply cord IEC C19 PDU Power Cable

NEMA 6-20P Power supply cord IEC C19 PDU Power Cable

IEC 60320 C13 Power Cord Straight

IEC 60320 C13 Power Cord Straight

IEC 60320 C13 Power Cord Right Angle

IEC 60320 C13 Power Cord Right Angle

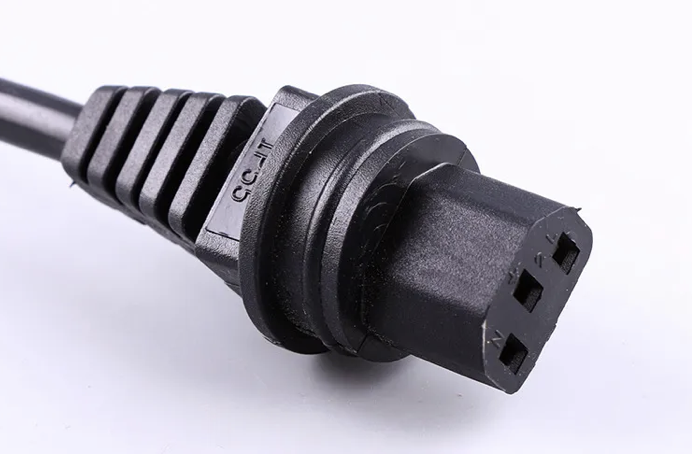

IEC 60320 C13 Power Cord Waterproof

IEC 60320 C13 Power Cord Waterproof

IEC 60320 C13 Power Cord Locking

IEC 60320 C13 Power Cord Locking

IEC 60320 C15 Power Cord

IEC 60320 C15 Power Cord

IEC 60320 C19 Power Cord

IEC 60320 C19 Power Cord

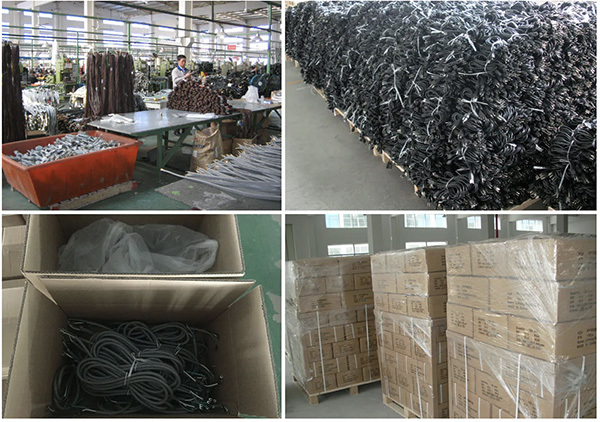

Package

NEMA 6-20P Power Cord bulk packed with export cartons, pallets.
NEMA6-20P Power Cord Package

Yunhuan manufacturers and supplies electrical AC power supply cords for use in USA, Canada and all countries in the world. Our extensive and complete USA power cord line includes power receptacle outlets, Plug, weatherproof receptacle outlets, sockets, multiple outlet power strips, power supply cords, power cable wire, and plug adapters. Contact us for North America power cords as China leading USA power cord manufacturer and supplier.all of US power cords are approved by UL, cUL with Rohs and Reach compliant.

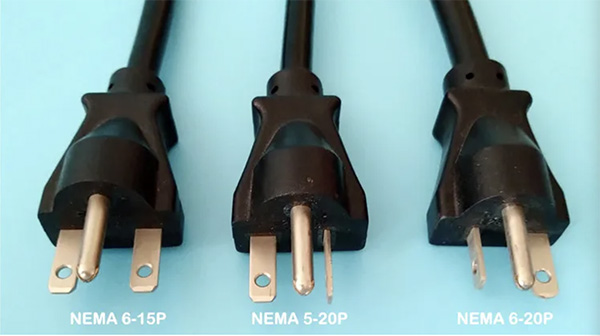

Differences of NEMA 5-20P, NEMA 6-20P, NEMA 6-15P

Differences of NEMA 5-20P, NEMA 6-20P, NEMA 6-15P
