AC Power Cord > Power Cord > America Power Cords > NEMA 5-15P Plug to IEC 60320 C15 Power Cord
NEMA-5-15P-Plug-to-IEC-60320-C15-Power-Cord

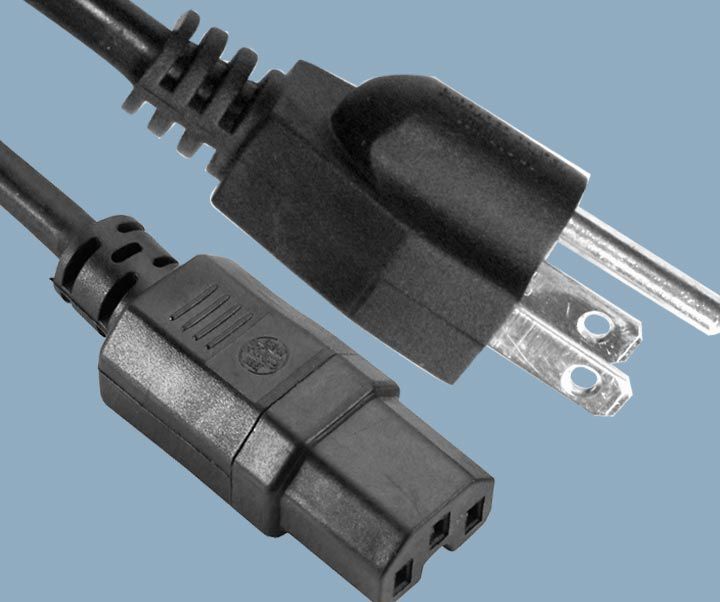

  • NEMA 5-15P Plug to IEC 60320 C15 Power Cord

  • America 15A 125V NEMA 5-15P Standard plug to IEC 60320 C15 Power Cord with UL Cul certification made with high quality and RoHS / REACH approved handle high temperature devices like electric kettles, server rooms, computing networking closets and Power over Ethernet switches having high wattage power supply. These connectors work on the temperature rating of 120°C.C15 power cords are used in high temperature surroundings like electric kettle and computer networking close.
  • Contact Us
Detailed description

Male Plug America NEMA 5-15P plug
Female Receptacle IEC 60320 C15 America
Amperage Up to 13A
Voltage Up to 125V AC
Outer Mold Material 50P PVC
Blade Material Nickel coated Brass
Color Any color available
Cable Length Any length available
Certifications UL CSA
Environmental Certifications RoHS, REACH
Testing 100percent are individually tested
Available Wire Styles 18/3 SJTW/SJTOW/SJTOOW SPT-2 SJT/SJTO/SJTOO SPT-3 SJ/SJO/SJOW
16/3 SJTW/SJTOW/SJTOOW STW/STOW/STOOW SPT-2 SJT/SJTO/SJTOO SPT-3
14/3 SJTW/SJTOW/SJTOOW STW/STOW/STOOW SPT-3 SJT/SJTO/SJTOO SJ/SJO/SJOW
MOQ 3000pcs
Delviery lead date 15-20days
Pakcing Export cartons
Samples Free samples can be sent within 3 days
Payment TT 30percent Advance,balance after shipping,L/C


Power Supply Cord NEMA 5-15P IEC 60320 C15 High Temperature AC Power Cord With Custom Long Cable, UL Listed

US IEC C15 Power Supply Cord

US IEC C15 Power Supply Cord 15 Amps 125 Voltage three prong plug molded with custom long ,color PVC or rubber cable and IEC 320 C15 connector.

Plug type: US NEMA 5-15 Plug
Standard:NEMA 5-15P Straight
Oppsite End:IEC 320 C15
Approvals:UL, cUL
Electricity:15A, 125V
Number of Poles and Wires:2 pole 3 wires
Cable length:1.0 meter, 1.5m, 1.8m,custom length
End Options:ROJ, Termination
Quality System:ISO9001:2008
Color:White and black are normal,Custom color
Outer Mold Material:PVC,Rubber
Plug Insert Material:PBT,ABS
Blade Material:Nickel coated Brass
Cable Specifications:Standard and custom made
Wire Outject Material:PVC,Rubber,TPE,Textile
Environmental Certifications:RoHS, REACH, PAHS
Model Number:JM-3/ST3H

Plug Standard America NEMA 5-15P earthed plug with Maximum Electric Current rating 15A ,Maximum Voltage 125V, Number of Poles and Wires 2 poles, 3 wires Grounded,Connector Standards IEC 60320 (320) C-15, C-15 right angle, C15 left angle- tested to ANSI/UL 62 and 817 and can/CSA C22.2 no. 21 and 49.

NEMA5-15P to IEC 60320 C15 Power Cord

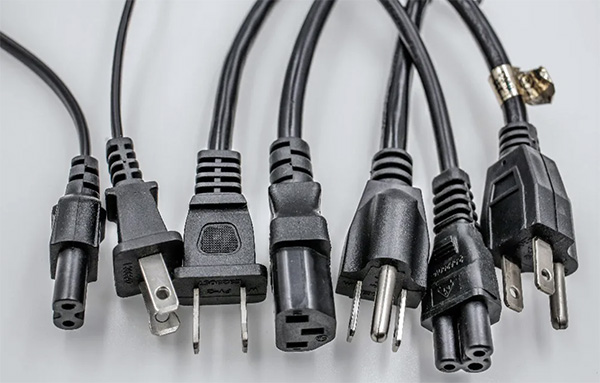

US Power Cord with IEC 60320 Receptacles

US Power Cord with IEC 60320 Receptacles

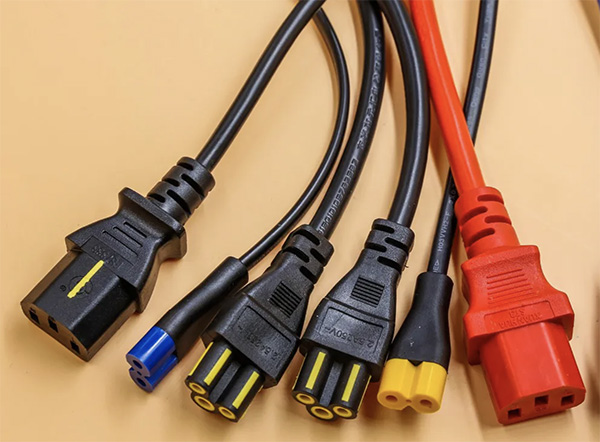

Colorful IEC 60320 Connectors

Colorful IEC 60320 Connectors

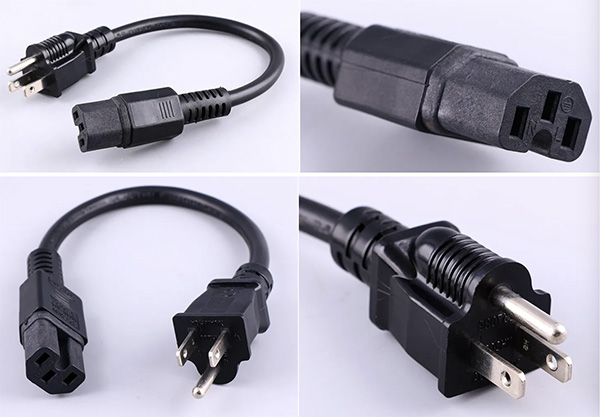

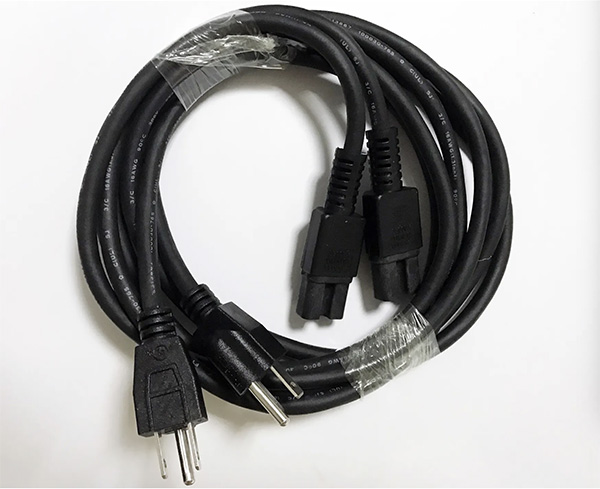

NEMA 5-15P to IEC 60320 C15 Power Supply Cord

US IEC C15 Power Supply Cord are black and white as standard color. gray and custome color are available. Custom length and shielded America power cord, America AC power cables available. Terminated, custom stripping.

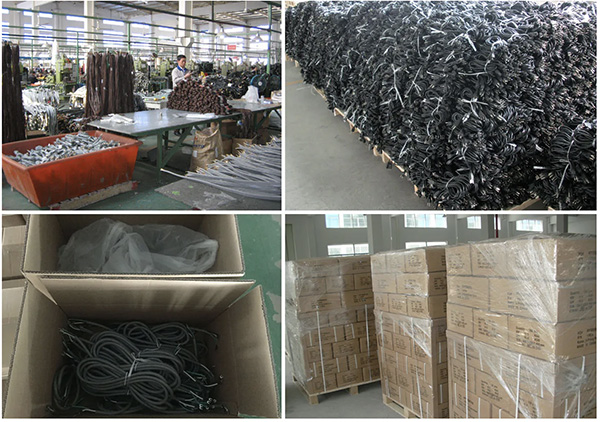

Package

US IEC C15 Power Supply Cord bulk packed with export cartons, pallets.
Package
