Home > Power Cord > America Power Cords > 6-20P 20A 250V 20A Plug America Electric Power Cord
6-20P-20A-250V-20A-Plug-America-Electric-Power-Cord

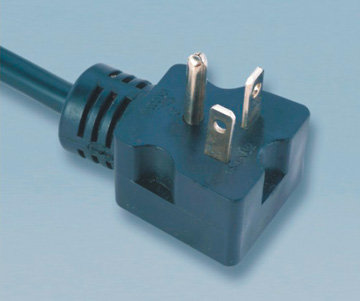

  • 6-20P 20A 250V 20A Plug America Electric Power Cord

  • YY-3H NEMA 6-20P up angle power cord plug with North America certification.  Rated up to 20A 250V or 15A 250V.  Built to the NEMA 6-20P standard America 20A plug cord with North America certified Rated up to 20A 250V Built to US NEMA standard and designed for North America 3 prong power cord applications, HEAVY DUTY - Featuring a 6-20P Plug Power Supply Cords Manufactured to the highest standards and tested for Voltage Hi-Potential, Continuity, Polarity and are UL listed and RoHS / REACH compliant.

    NEMA 6-20P straight version available here:XN620P

  • Contact Us
Detailed description

Connector Standard

America 3P 6-20 plug

Maximum Current rating

20A

Maximum Voltage

250V

Number of Poles and Wires

2 poles, 3 wires

Outer Mold Material

60P PVC

Blade Material

Nickel coated Brass

Flamability Rating

94V-0

Color

Any color available

Cable length

Any length available

Temperature Rating

minus 40C though plus 75C

Approvals

UL CUL CSA

Environmental Certifications

RoHS, REACH

Testing

Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity


Available Opposite End Connectors:


Standard               Part NO

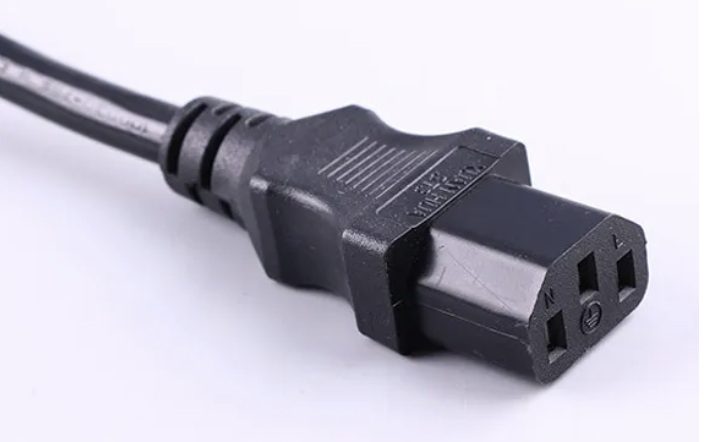

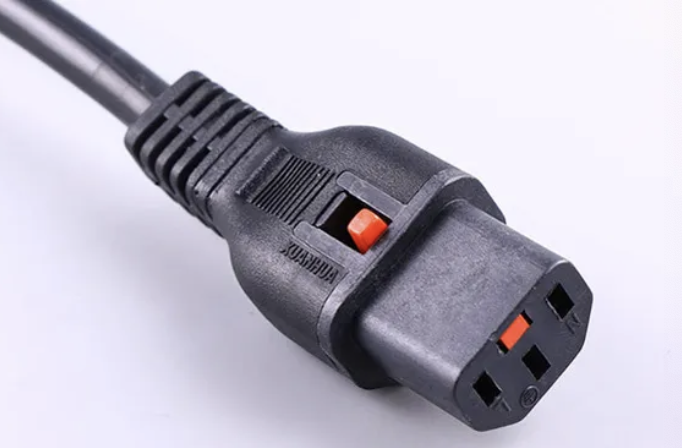

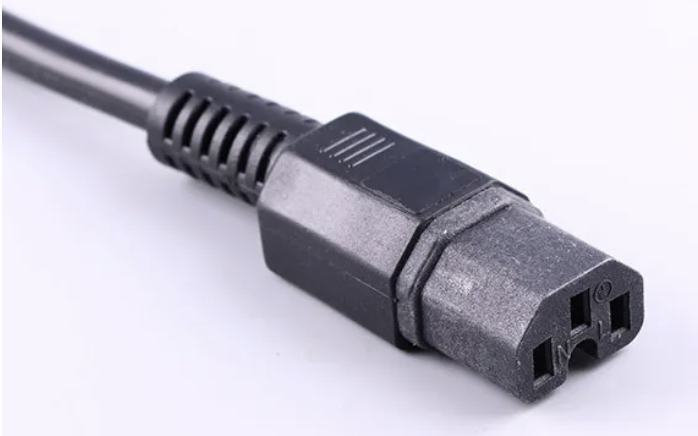

IEC 60320 C13                     ST3,(IEC C13)America


IEC 60320 C5                       ST1,(IEC C5)America

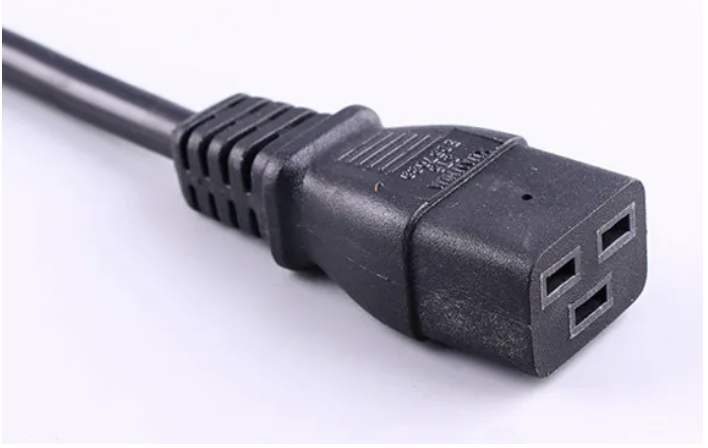

IEC 60320 C19                     XH008,(IEC C19)America

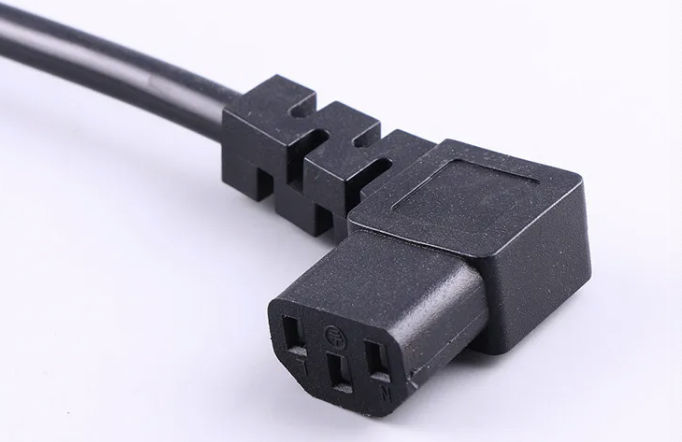

IEC 60320 C13(right angle) ST3W,(IEC C13 right angle)America

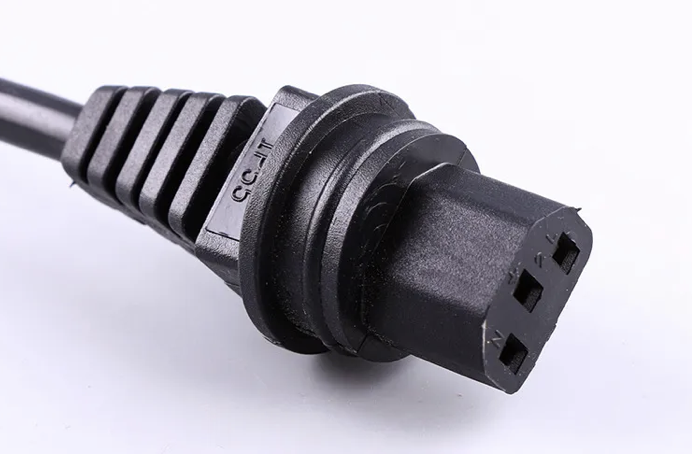

IEC 60320 C15                    ST3H(IEC C15)America

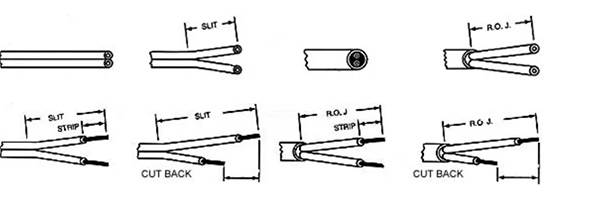

Other Termination Options:


Click Here


Available Cable Styles:


AWG 16/3C SPT-2 SPT-3 SVT SJT SJTW SJTO SJTOO SJTOW SJTOOW ST STW STO STOO STOOW

AWG 14/3CSJT SJTW SJTO SJTOO SJTOW SJTOOW ST STW STO STOO STOOW

AWG 12/3CSJT SJTW SJTO SJTOO SJTOW SJTOOW ST STW STO STOO STOOW

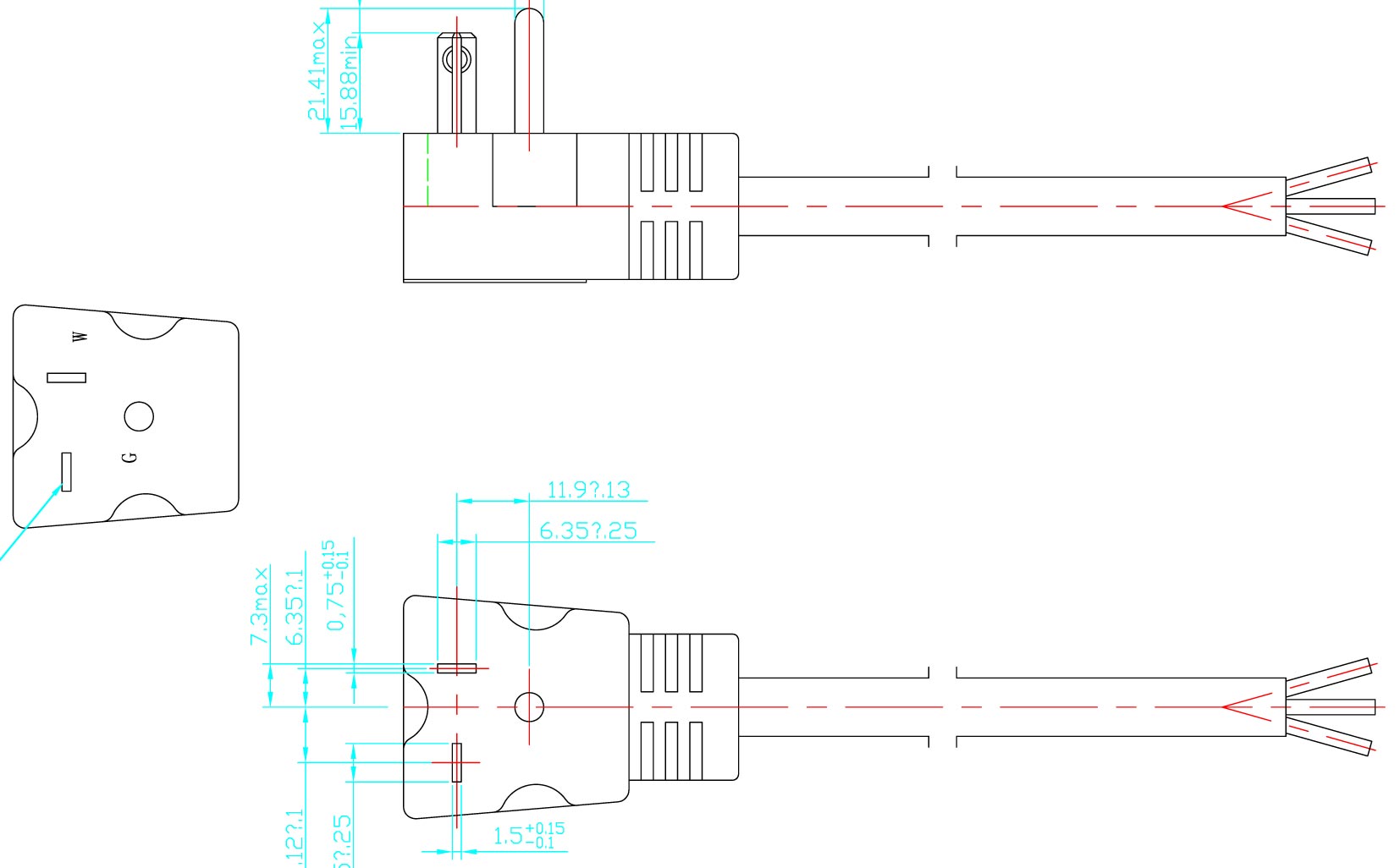

NEMA 6-20P Plug Drawing

Features: 6-20P plug, NEMA 6-20P Power supply cord with UL CSA approval
Rating: 20A 250V
Standards: NEMA 6-20P, 3-pole 3-wire heavy duty 20 Amps power cords

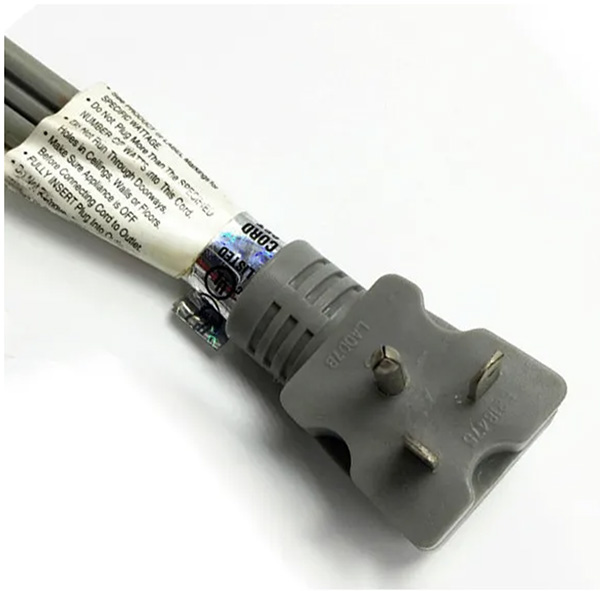

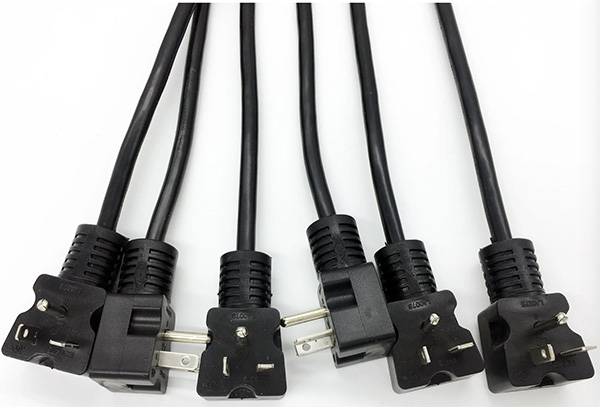

NEMA 6-20P Power Cord Right Angle
