AC Power Cord > Power Cord > America Power Cords > 5-15P 125V 45 Degree Angle Plug Power Cord
5-15P-125V-45-Degree-Angle-Plug-Power-Cord

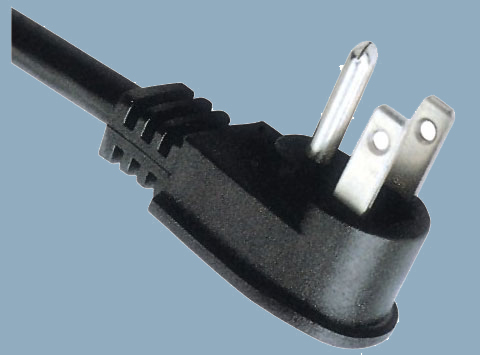

  • 5-15P 125V 45 Degree Angle Plug Power Cord

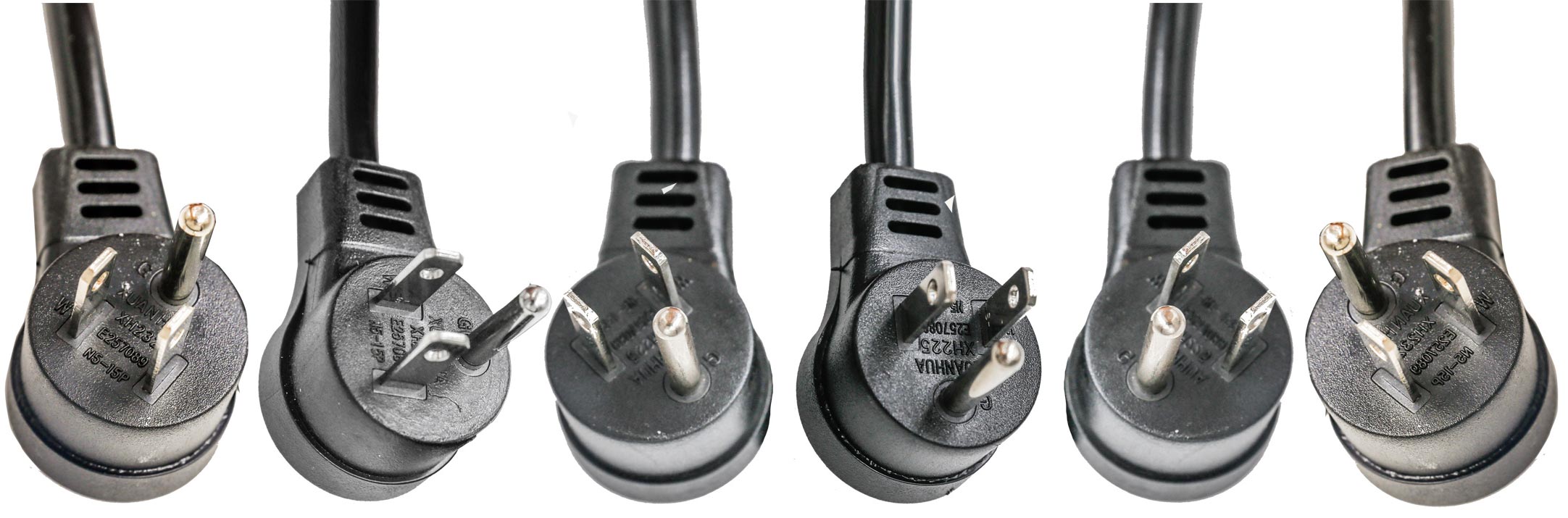

  • NEMA 5-15P ultra low profile USA 3 prong 45 degree angled plug power cord plug with UL certification.   Rated up to 15A 125V, 13A 125V or 10A 125V.  Built to the NEMA 5-15P standard.  Our NEMA 5-15 power cord plugs are fully molded with a low profile ergonomic design and RoHS and REACH compliant.

    Link to NEMA 5-15P 3 Prong up angle plug here:CL-3B

    Link to NEMA 5-15P 3 Prong straight plug to IEC C13 here:YY-3/ST3

  • Contact Us
Detailed description

Connector Standard

America 3P 5-15 plug

Maximum Current rating

15A

Maximum Voltage

125V

Number of Poles and Wires

2 poles, 3 wires

Outer Mold Material

60P PVC

Blade Material

Nickel coated Brass

Flamability Rating

94V-0

Color

Any color available

Cable length

Any length available

Temperature Rating

minus 40C though plus 75C

Approvals

UL CUL CSA

Environmental Certifications

RoHS, REACH

Testing

Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity


Available Opposite End Connectors:


standard                Part NO


IEC 60320 C13                     ST3,(IEC C13)America


IEC 60320 C5                       ST1,(IEC C5)America


IEC 60320 C19                     XH008,(IEC C19)America


IEC 60320 C13(right angle) ST3W,(IEC C13 right angle)America


IEC 60320 C15                    ST3H(IEC C15)America

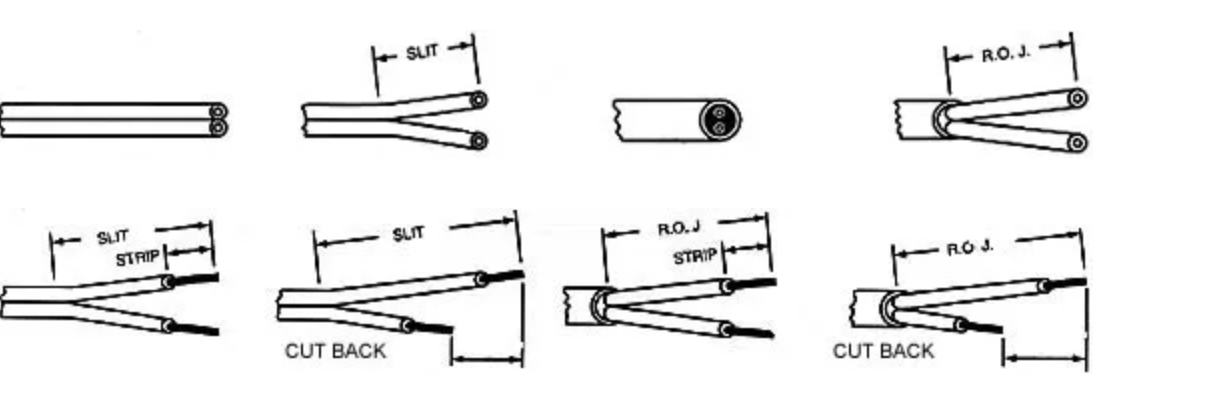

Other Termination Options:


Click Here


Available Cable Styles:

AWG 18/3C SPT-2  SPT-3 SJT SJTW SJTO SJTOO SJTOW SJTOOW

AWG 16/3CSPT-2  SPT-3 SJT SJTW SJTO SJTOO SJTOW SJTOOW

AGW 14/3CSPT-2  SPT-3 SJT SJTW SJTO SJTOO SJTOW SJTOOW


America Canada NEMA 5-15P Right Angle Offset Plug Power Cords
