AC Power Cord > Power Cord > America Power Cords > 15A 125V NEMA 5-15P 3 Prong Angled America Power Cord
15A-125V-NEMA-5-15P-3-Prong-Angled-America-Power-Cord

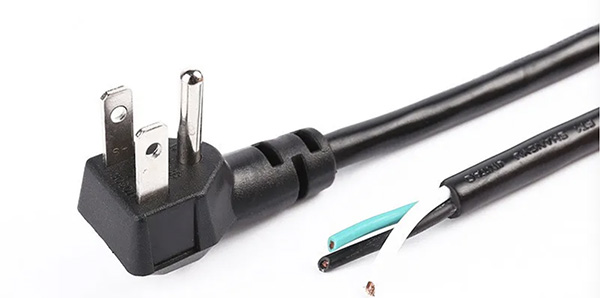

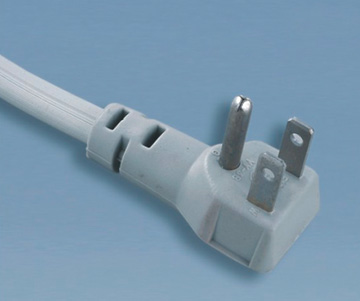

  • 15A 125V NEMA 5-15P 3 Prong Angled America Power Cord

  • NEMA 5-15P USA 3 prong up angle power cord plug with North America certification. Rated up to 15A 125V, 13A 125V or 10A 125V.Built to the NEMA 5-15P standard.

    3 prong electrical power cord plug with  UL certification rated up to 15A 125V Built to NEMA standards and designed for 3 conductor North American power supply cord applications,Our power cables are fully molded with high quality and RoHS / REACH compliant.

    NEMA 5-15P straight version available here:CL-3

    NEMA 5-15P ultra low profile angled version available here:XH204

  • Contact Us
Detailed description

Connector Standard

America 3P 5-15 plug

Maximum Current rating

15A

Maximum Voltage

125V

Number of Poles and Wires

2 poles, 3 wires

Outer Mold Material

60P PVC

Blade Material

Nickel coated Brass

Flamability Rating

94V-0

Color

Any color available

Cable length

Any length available

Temperature Rating

minus 40C though plus 75C

Approvals

UL CUL CSA

Environmental Certifications

RoHS, REACH

Testing

Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity


Available Opposite End Connectors:


Standard               Part NO


IEC 60320 C13                     ST3,(IEC C13)America


IEC 60320 C5                       ST1,(IEC C5)America


IEC 60320 C19                     XH008,(IEC C19)America


IEC 60320 C13(right angle) ST3W,(IEC C13 right angle)America


IEC 60320 C15                    ST3H(IEC C15)America


Other Termination Options:


Click Here


Available Cable Styles:


SJT, SJTO, SJTOO,SJTOW,SJTOOW ,   ST, STO, STOO,STOOW,
SJO,SJOW,SJOO,SJOOW,   SO,SOW,SOO,SOOW
SVT,SVTO,SVTOO,SVTOOW
HPN, HPN-R    30A/250
(16 AWG/3C)
SJ,SJO,SJOW,SJOO,SJOOW, SJT, SJTW,SJTO, SJTOO,SJTOW,SJTOOW
S,SO,SOW,SOO,SOOW,ST,STW, STO, STOO,STOW,STOOW, SPT-3
 HPN, HPN-R  30A/250
(14 AWG/3C)
 SJ,SJO,SJOW,SJOO,SJOOW, SJT, SJTW,SJTO, SJTOO,SJTOW,SJTOOW
S,SO,SOW,SOO,SOOW,ST,STW, STO, STOO,STOW,STOOW, SPT-3
HPN, HPN-R  30A/250
 (12 AWG/3C)
SJ,SJO,SJOW,SJOO,SJOOW, SJT, SJTW,SJTO, SJTOO,SJTOW,SJTOOW
S,SO,SOW,SOO,SOOW,ST,STW, STO, STOO,STOW,STOOW, SPT-3
HPN, HPN-R  30A/250


More Information:


CL-3B UL/CUL 5-15P drawing(JPG)

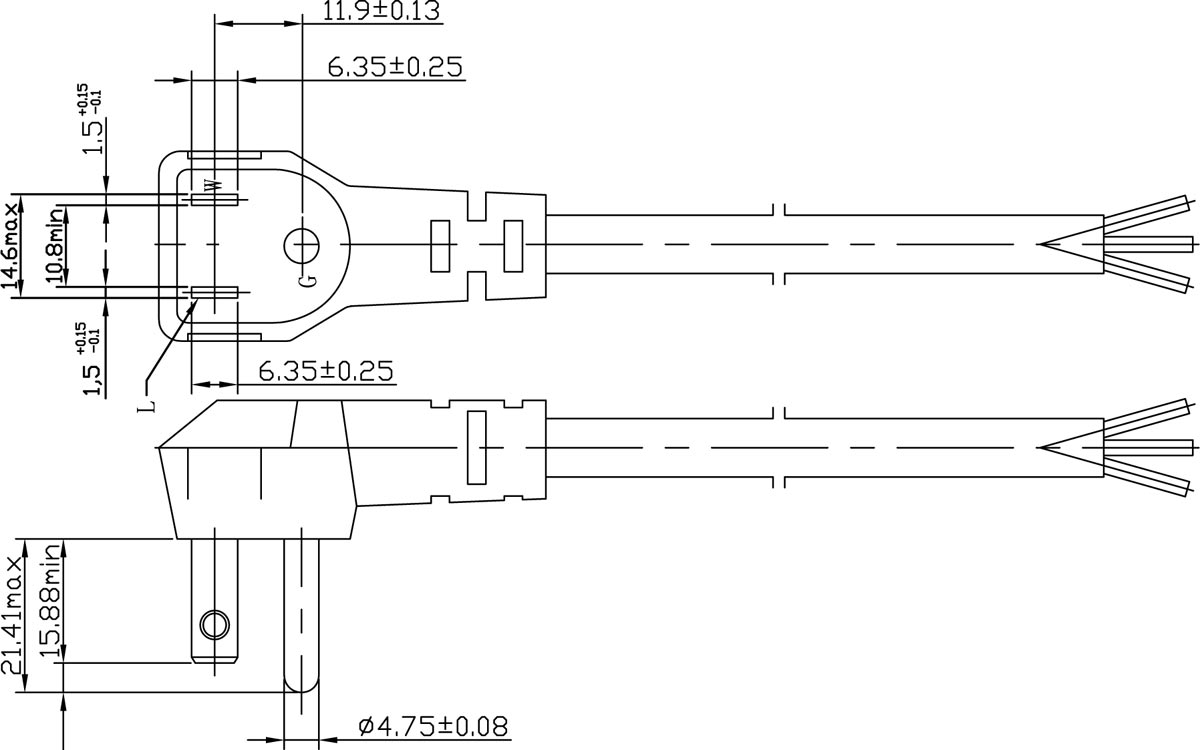

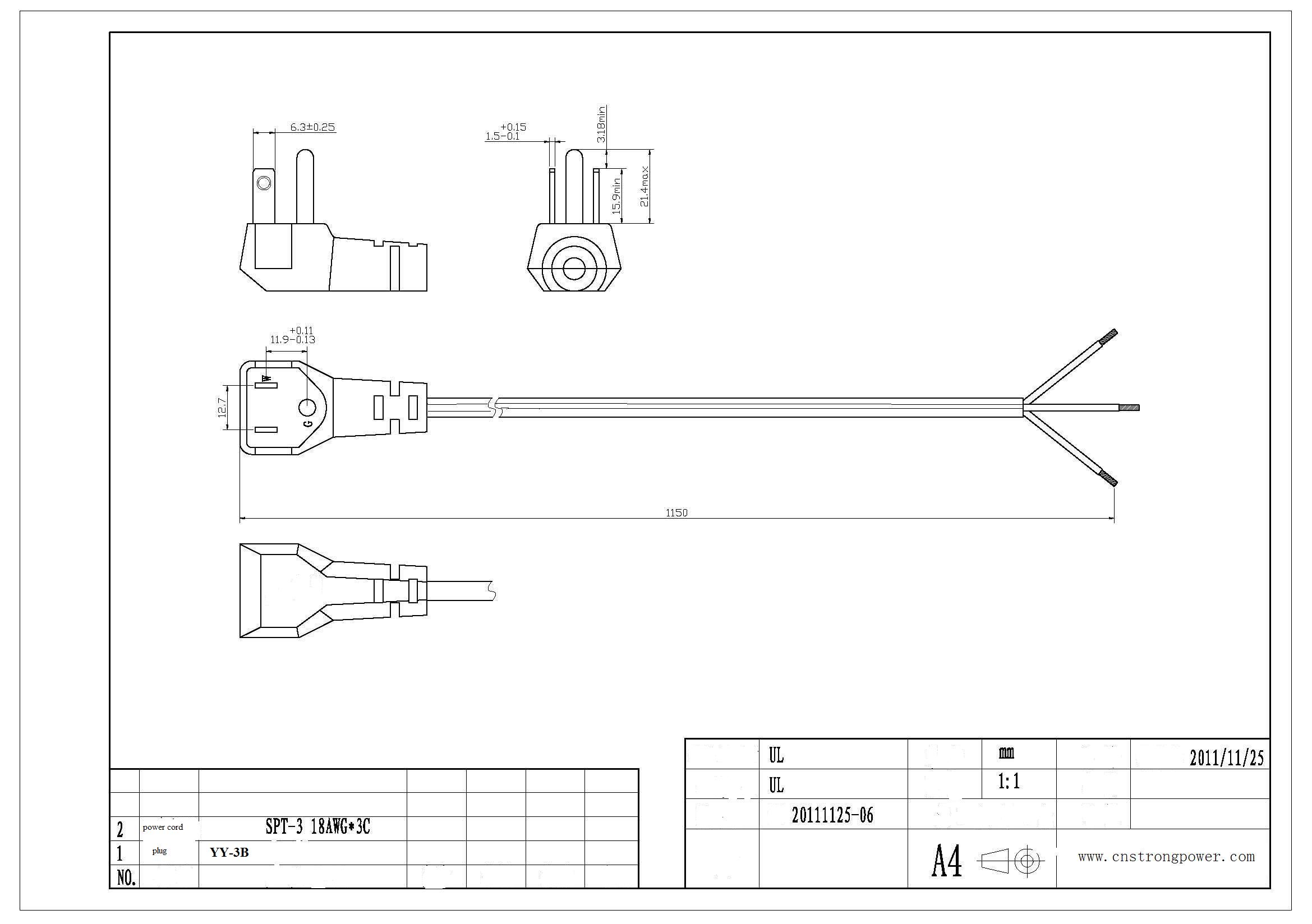

5-15P Angle Power Cord Drawing


America 3 prong electrical power cord drawing

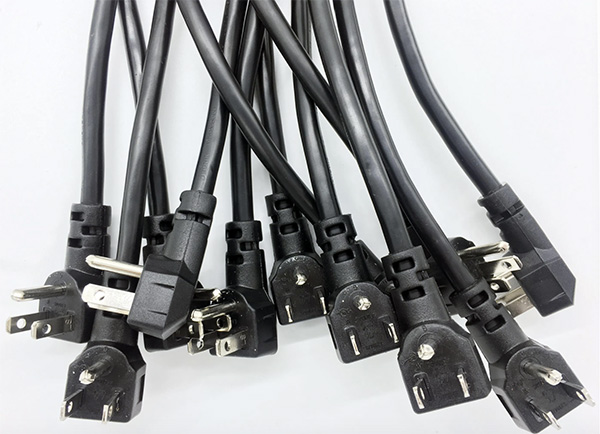

5-15P Angle Power Cord Image


YY-3B America Electrical Power Cord


Power Supply Cord America NEMA 5-15 2 Pole 3 Wire Grounded Angle Plug AC Power Cable, Custom Long, UL Listed

Angle Plug 15 Amp Power Supply Cord

Plug type: US 3 prong grounded plug
Standard:NEMA 5-15P
Approvals:UL, cUL
Electricity:15A, 125V
Number of Poles and Wires:2 pole 3 wires
Cable length:1.0 meter, 1.5m, 1.8m,custom length
End Options:ROJ, Termination, IEC 320 C5, C13,C15,C19
Quality System:ISO9001:2008
Color:White and black are normal,Custom color
Outer Mold Material:PVC,Rubber
Plug Insert Material:PBT,ABS
Blade Material:Nickel coated Brass
Cable Specifications:Standard and custom made
Wire Outject Material:PVC,Rubber,TPE,Textile
Environmental Certifications:RoHS, REACH, PAHS
Model Number:YY-3B,JM-3B
Plug Standard America NEMA 5-15P plug Maximum Electric Current rating 15A Maximum Voltage 125V Number of Poles and Wires 2 poles, 3 wires  Grounded Type B Angle Plug, Connector Standards IEC 60320 (320) C-13, C-13 Locking, C-19, C-19 Locking, C-5,  C-15, Unterminated.

Angle Plug 15Amp Power Supply Cord

Power supply cord 5-15 angle plug are black and white as standard color. gray and custome color are  available. Custom length and shielded America power cord heavy duty,Australia AC power cables available. Terminated, custom stripping.

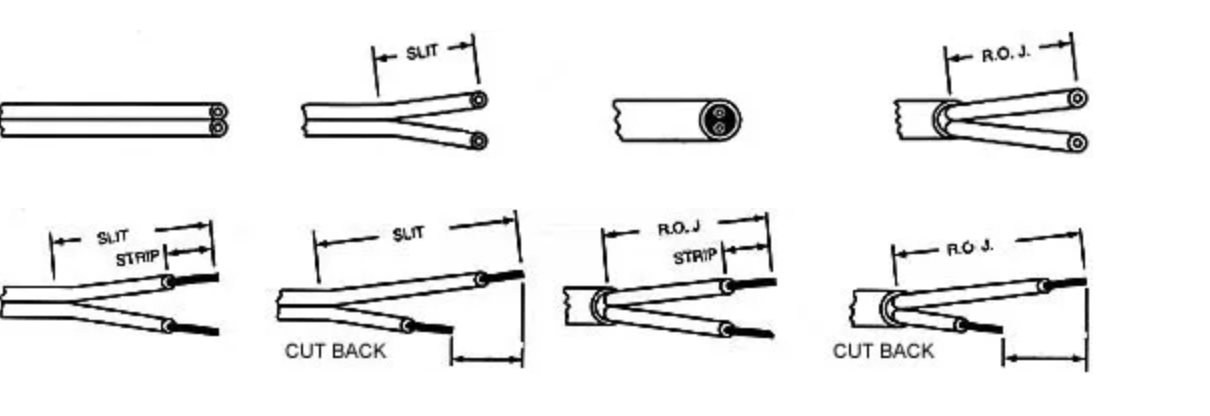

Available Opposite End
Normal Stripped, Splitter and ROJ

We manufacturers and supplies Power supply cord 5-15 angle plug, custom color,the other end can be stipped ,ROJ with custom length.
Available Opposite End

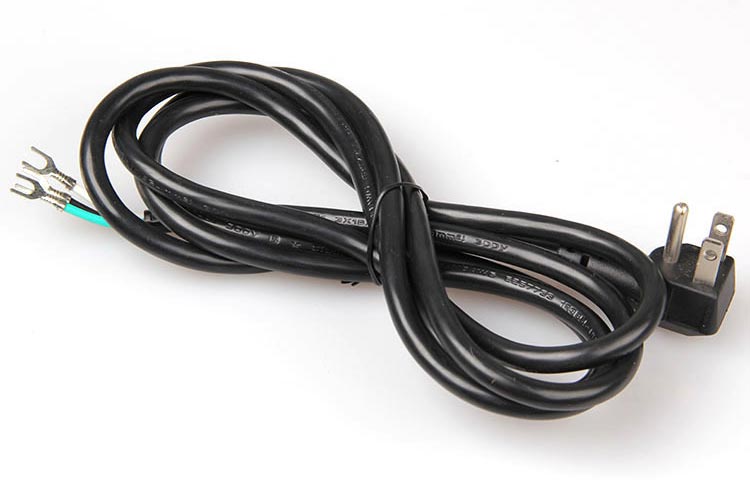

Angle Plug Power Cord


Common Termination

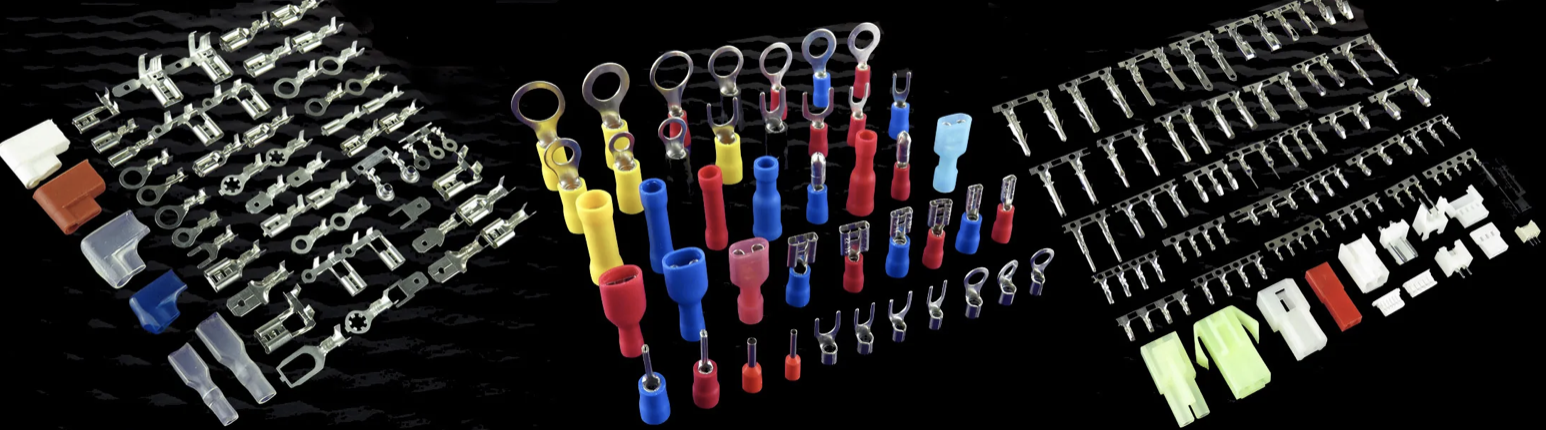

Power supply cord 5-15 angle plug, one end is molded with NEMA  standard sheet plugs, the opposite could be terminated with types of terminals such as grounding rings terminals ,fork with heat shrink or  nylone insulated.
Common Termination


IEC 60320 Connectors

Power supply cord 5-15 angle plug to IEC 320 C5 laptop, IEC C13 computer power cable and molded with IEC C19 as PDU power cords are normal versions of America ac power cords with IEC connectors.

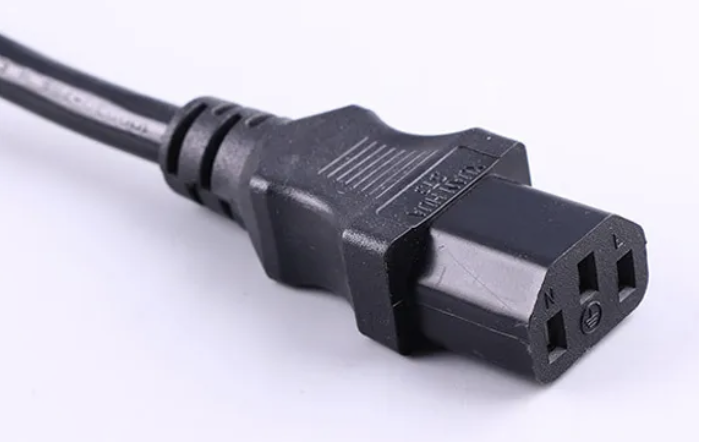

IEC 60320 C13 Power Cord Straight

IEC 60320 C13 Power Cord Straight

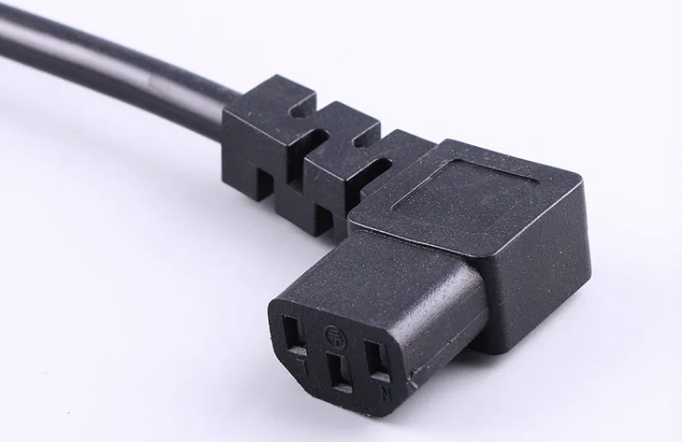

IEC 60320 C13 Power Cord Right Angle

IEC 60320 C13 Power Cord Right Angle

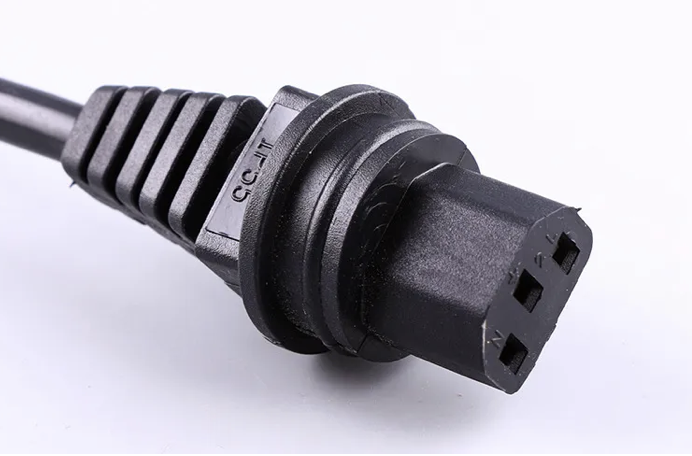

IEC 60320 C13 Power Cord Waterproof

IEC 60320 C13 Power Cord Waterproof

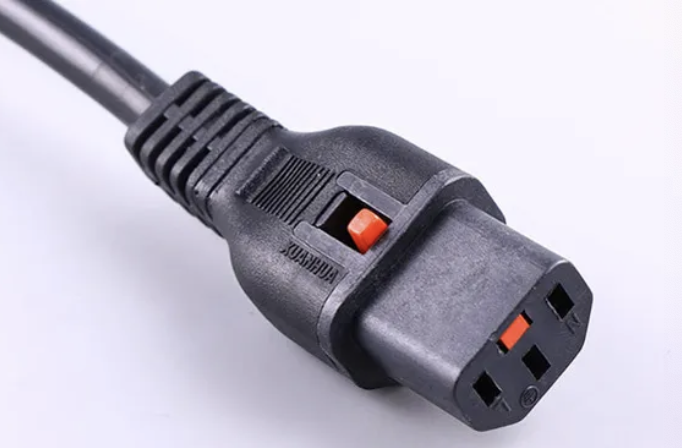

IEC 60320 C13 Power Cord Locking

IEC 60320 C13 Power Cord Locking

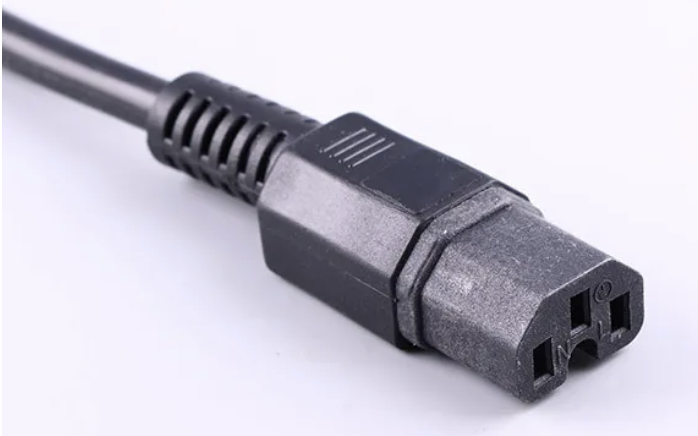

IEC 60320 C15 Power Cord

IEC 60320 C15 Power Cord

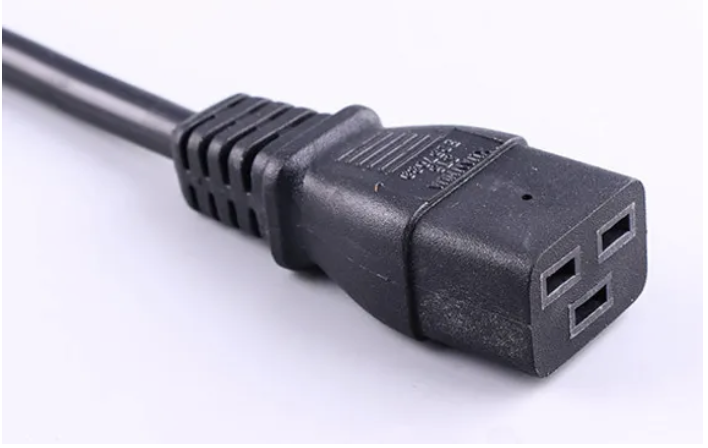

IEC 60320 C19 Power Cord

IEC 60320 C19 Power Cord


Package

Power supply cord 5-15 angle plug bulk packed with export cartons, pallets.
Power Cord Package

Yunhuan manufacturers and supplies electrical AC power supply cords for use in USA, Canada and all countries in the world. Our extensive and complete USA power cord line includes power receptacle outlets, Plug, weatherproof receptacle outlets, sockets, multiple outlet power strips, power supply cords, power cable wire and plug adapters . Contact us for North America power cords as China leading USA power cord manufacturer and supplier.all of US power cords are approved by UL, cUL with Rohs and Reach compliant.
