AC Power Cord > Power Cord > America Power Cords > 15A 250V NEMA 6-15P America Power Cord
15A-250V-NEMA-6-15P-America-Power-Cord

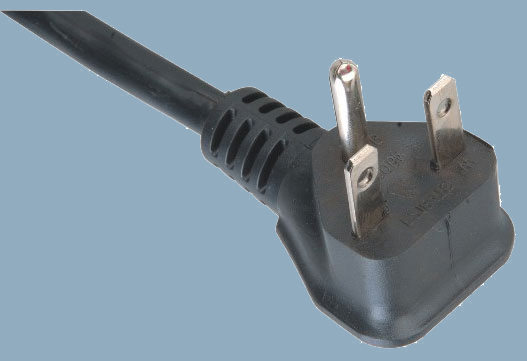

  • 15A 250V NEMA 6-15P America Power Cord

  • NEMA 6-15P USA 3 prong up angle power cord plug with North America certification. Rated up to 15A 125V, 13A 125V or 10A 125V.Built to the NEMA 6-15P standard.

    15A 250V NEMA 6-15P America Power Cord certified built to US NEMA standard and designed for North America three prong 250V 15A household applications,Our American power cables are molded with high quality and RoHS / REACH compliant.

    NEMA 5-15R 3 outlets mating receptacle found here:XH515C(transparent).

  • Contact Us
Detailed description

Connector Standard

America 3P 6-15 plug

Maximum Current rating

15A

Maximum Voltage

125V

Number of Poles and Wires

2 poles, 3 wires

Outer Mold Material

60P PVC

Blade Material

Nickel coated Brass

Flamability Rating

94V-0

Color

Any color available

Cable length

Any length available

Temperature Rating

minus 40C though plus 75C

Approvals

UL CUL CSA

Environmental Certifications

RoHS, REACH

Testing

Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity


Available Opposite End Connectors:


Standard                                Part No

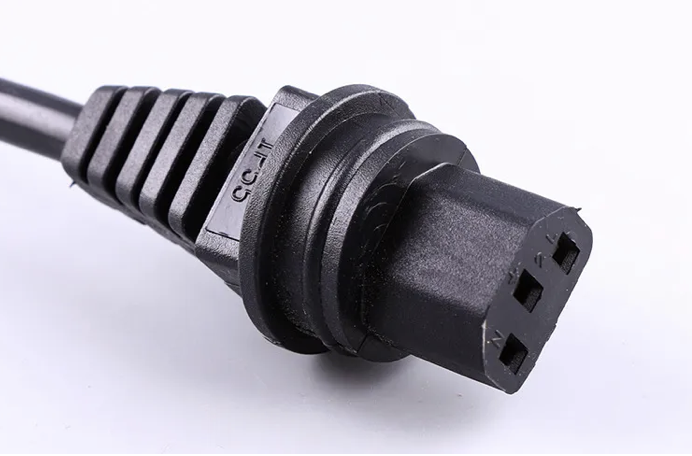

IEC 60320 C13                     ST3,(IEC C13)America


IEC 60320 C5                       ST1,(IEC C5)America


IEC 60320 C19                     XH008,(IEC C19)America


IEC 60320 C13(right angle) ST3W,(IEC C13 right angle)America


IEC 60320 C15                    ST3H(IEC C15)America


YY-3Z receptacle                   YY-3Z(NEMA 5-15R)America


Other Termination Options:



Click Here


Available Cable Styles:


AWG 12/3C SJT SJTW ST STW

AWG 14/3CSJT SJTW ST STW SPT-3

AWG 16/3CSJT SJTW ST STW SPT-2


NEMA 6-15P America power cords drawing
