AC Power Cord > Power Cord > America Power Cords > 15A 125V NEMA 5-15P American Power Supply Cord

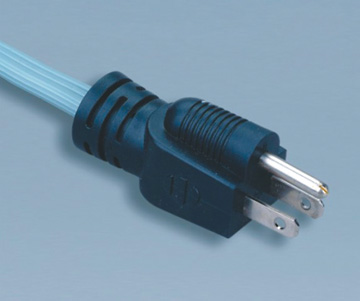

15A-125V-NEMA-5-15P-American-Power-Supply-Cord
Detailed description

Connector Standard

America 3P 5-15 plug

Maximum Current rating

15A

Maximum Voltage

125V

Number of Poles and Wires

2 poles, 3 wires

Outer Mold Material

60P PVC

Blade Material

Nickel coated Brass

Flamability Rating

94V-0

Color

Any color available

Cable length

Any length available

Temperature Rating

minus 40C though plus 75C

Approvals

UL CUL CSA

Environmental Certifications

RoHS, REACH

Testing

Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity


Available Opposite End Connectors:


IEC 60320 C13                     ST3,(IEC C13)America


IEC 60320 C5                       ST1,(IEC C5)America


IEC 60320 C19                     XH008,(IEC C19)America


IEC 60320 C13(right angle) ST3W,(IEC C13 right angle)America


IEC 60320 C15                    ST3H(IEC C15)America



Other Termination Options:


Click Here


Available Cable Styles:


AWG 12/3C ST STW

AWG 14/3C ST STW SPT-3

AWG 16/3C ST STW SPT-3

AWG 18/3C ST STW

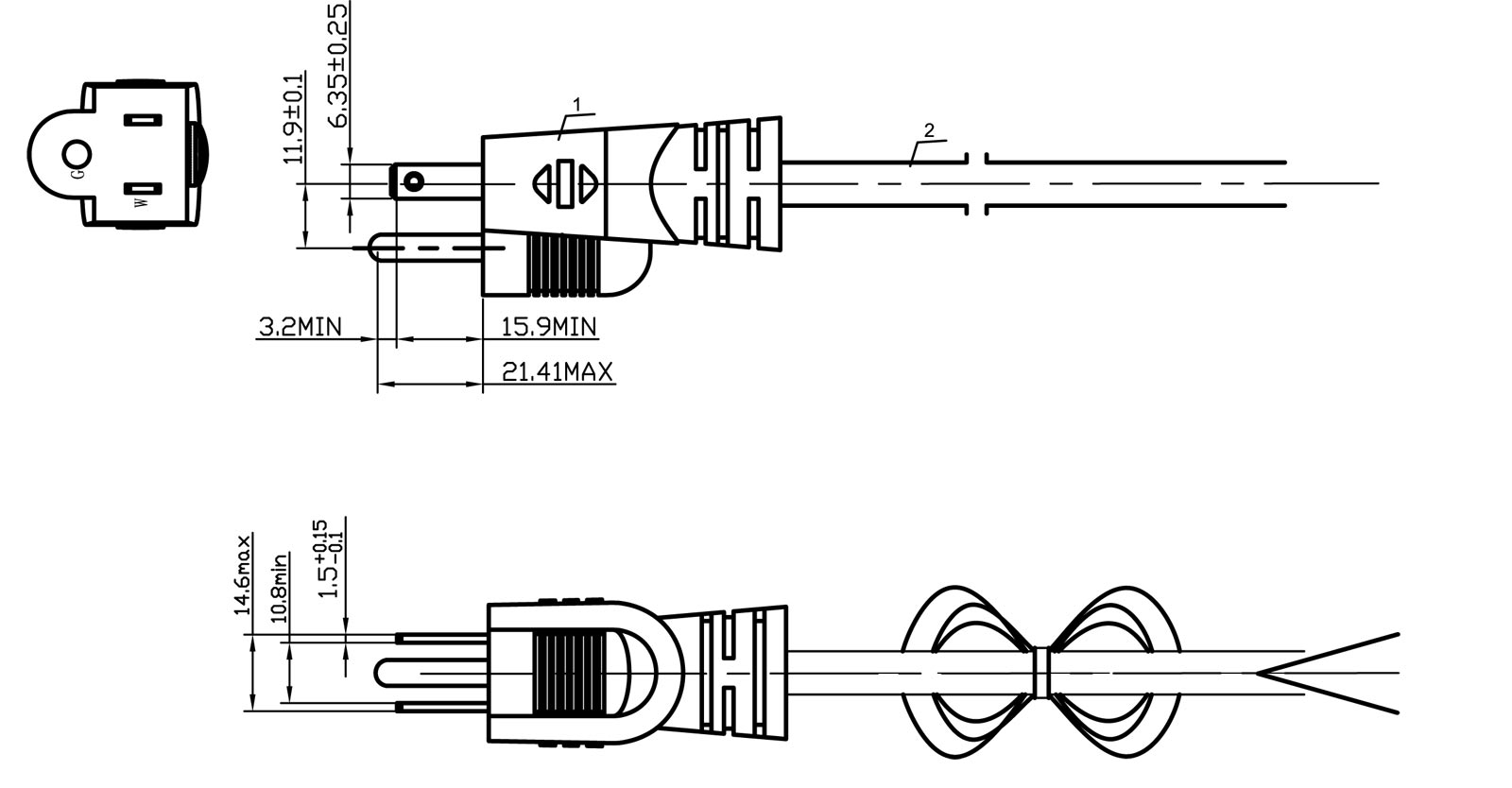

Power Cable Drawing


UL CSA Certified NEMA 5 15P American Power Cord LA004H,YY-3G


Power Supply Cord NEMA 5-15 Plug Straight Grounded Custom Long, Color Power Cable, UL Listed

America Power Supply Cords 15 Amp 125V

Plug type: US 3 prong grounded plug
Standard: NEMA 5-15P
Approvals: UL, cUL
Electricity:15A, 125V
Number of Poles and Wires:2 pole 3 wires
Cable length:1.0 meter, 1.5m, 1.8m,custom length
End Options: ROJ, Termination
Quality System: ISO9001:2008
Color: White and black are normal, Custom color
Outer Mold Material: PVC, Rubber
Plug Insert Material: PBT, ABS
Blade Material: Nickel coated brass
Cable Specifications: Standard and custom made
Wire Outject Material:PVC,Rubber,TPE,Textile
Environmental Certifications: RoHS, REACH, PAHS
Model Number:YY-3G
Plug Standard America NEMA 5-15P plug Maximum Electric Current rating 15A Maximum Voltage 125V Number of Poles and Wires 2 poles, 3 wires Grounded Type B Plug

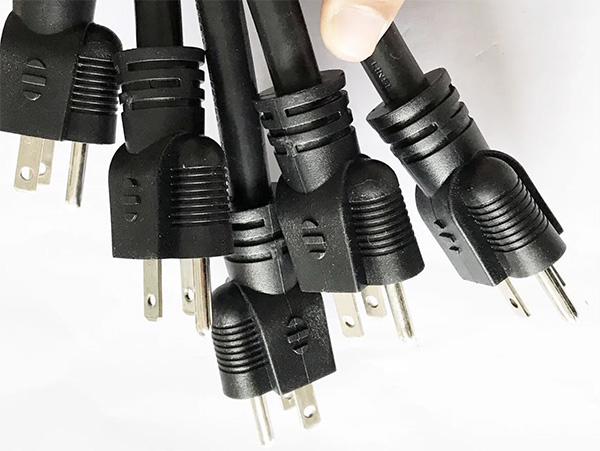

American Power Supply Cord

American power supply cords are black and white as the standard colors. gray and custom colors are available. Custom length and shielded America power cord heavy duty, Australia AC power cables available. Terminated, custom stripping.

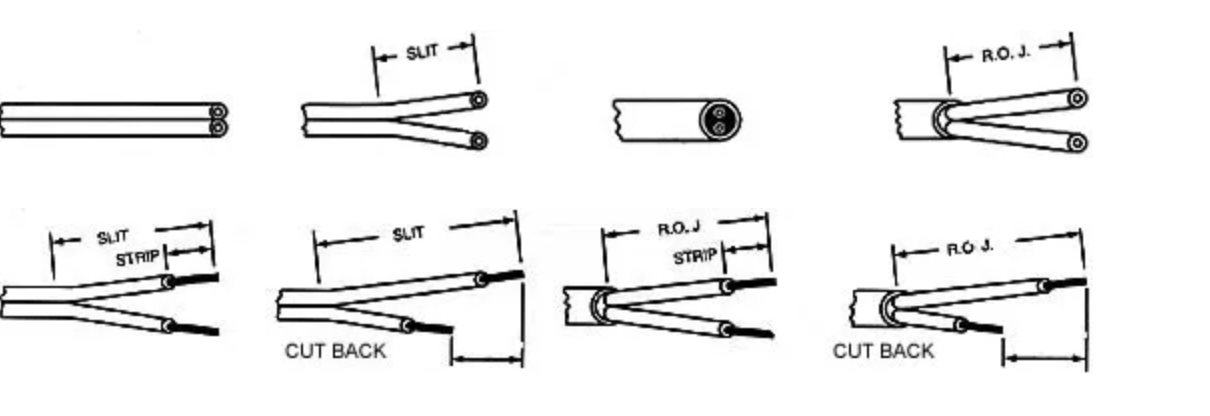

Available Opposite End
Normal Stripped, Splitter, and ROJ

We manufacturers and supplies America power supply cords, custom color, the other end can be stripped, ROJ with custom length.
Available Opposite End

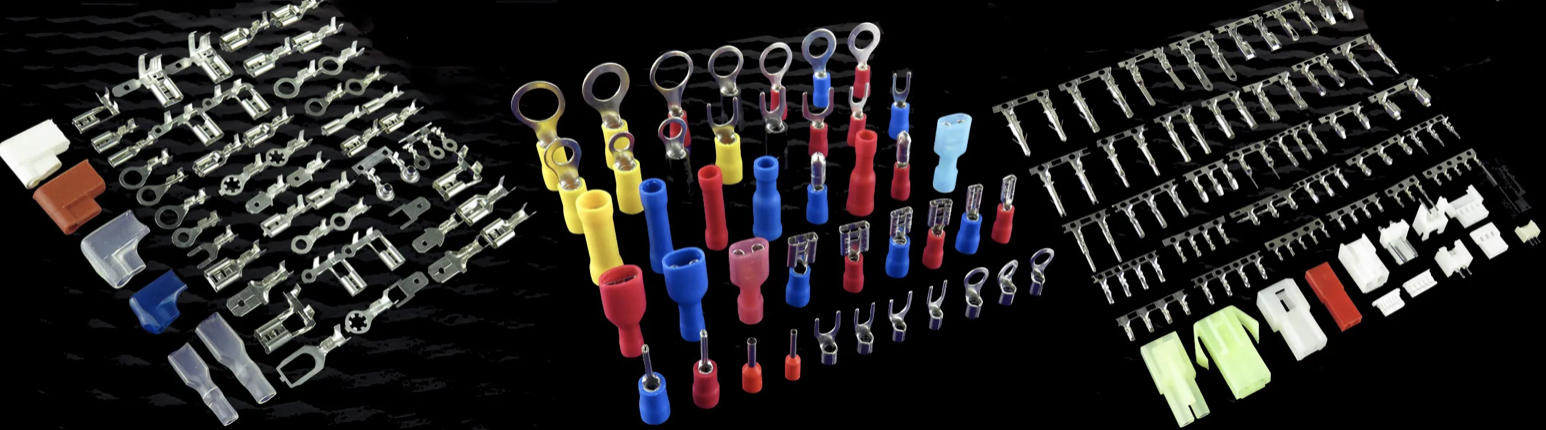

Common Termination

America power supply cords, one end is molded with NEMA  standard sheet plugs, the opposite could be terminated with types of terminals such as grounding rings terminals, fork with heat shrink or nylone insulated.
Common Termination

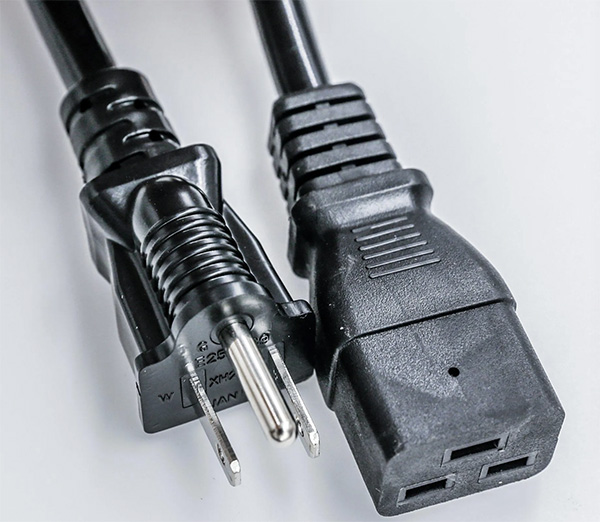

Plug with IEC Connectors

Pkug with IEC Connector


Package

America power supply cords bulk packed with export cartons, pallets.
Package for Power Cord

Yunhuan manufacturers and supplies electrical AC power supply cords for use in USA, Canada and all countries in the world. Our extensive and complete USA power cord line includes power receptacle outlets, Plug, weatherproof receptacle outlets, sockets, multiple outlet power strips, power supply cords, power cable wire, and plug adapters. Contact us for North America power cords as China leading USA power cord manufacturer and supplier.all of US power cords are approved by UL, cUL with Rohs and Reach compliant。
