Italy Power Cord Standard

Italian CEI 23-16 AC Power Cord,Plug,Flexible Cable Socket


Italian earthed plugs and sockets are defined by the standard CEI 23-50 which superseded CEI 23-16. This includes two models rated at 10 A and 16 A that differ in contact diameter and spacing. Both are symmetrical, allowing the line and neutral contacts to be inserted in either direction. This plug is also commonly used in Chile and Uruguay.


Contents

1 . Plug Guide
2 . Power Cord
3 . Extension Outlet
4 . Cable Reel
5 . Flexible Cable
6 . Certification
7 . Reference

Plug Guide


Italy 10A Plug
Italy 10A Plug
10A Plug
The 10 A plug has pins which are 4 mm in diameter, the centres spaced 19 mm apart. The 10 A socket can accept Europlugs.
16A Plug

The 16 A plug has pins which are 5 mm in diameter, the centres spaced 26 mm apart. The 16 A socket used to be referred to as per la forza motrice[48] (for electromotive force, see above) or sometimes (inappropriately) industrial.


Power Cord


Italy Power Cord products with IMQ certification are manufactured to CEI 23-16 and IEC standards designed for Italian power cord applications,We are producing Italy AC power cords in standard configurations and can make any custom version as well. 100% of our Italy power supply cords are fully molded high quality cords and RoHS and REACH compliant and we are China leading Italy power cord manufacturer and supplier providing cheapest prices of Italy IMQ approved AC power cable products with IEC 60320 C7,C5,C13,C14,C15 and IEC 320 C19 power cord sets.
The Italian earthed plug standard, CEI 23-16/VII, includes two models rated at 10 A and 16 A that differ in contact diameter and spacing (see below for details). The 10 A plug is called IT1-10P or S11. The 16 A plug is called IT2-16P or S17. This plug is also commonly used in Chile.the 10A style extends CEE 7/16 by adding a central earthing pin of the same gauge.the 16 A style looks like a magnified version of the 10A style, identical in shape. The pins are 5 millimetres in diameter (being 4 mm thick in 10 A type),16 Ampere non-rewirable plugs are only used in power cords.

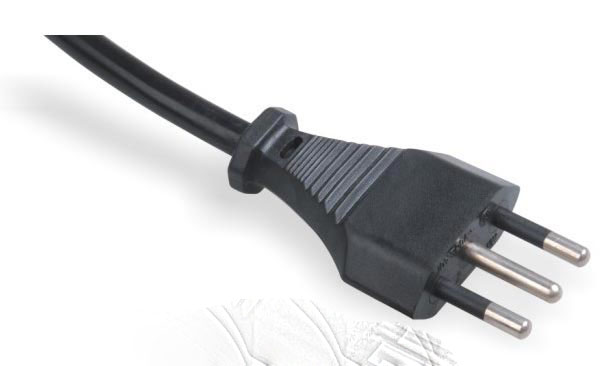

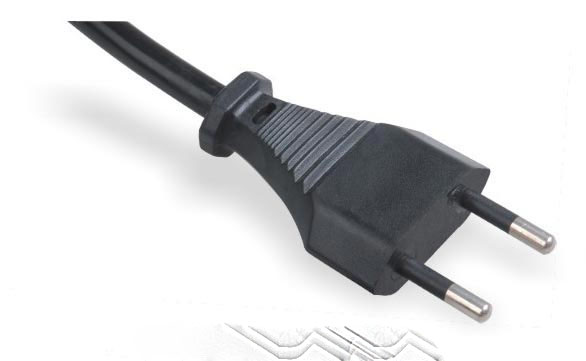

Power Supply Cord Italian 10A LA011A

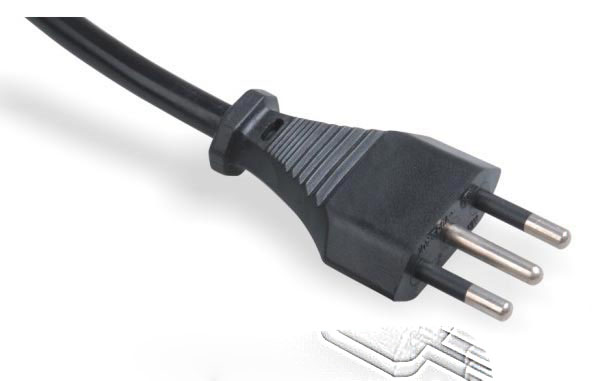

 Power Supply Cord Italian 10A LA013A

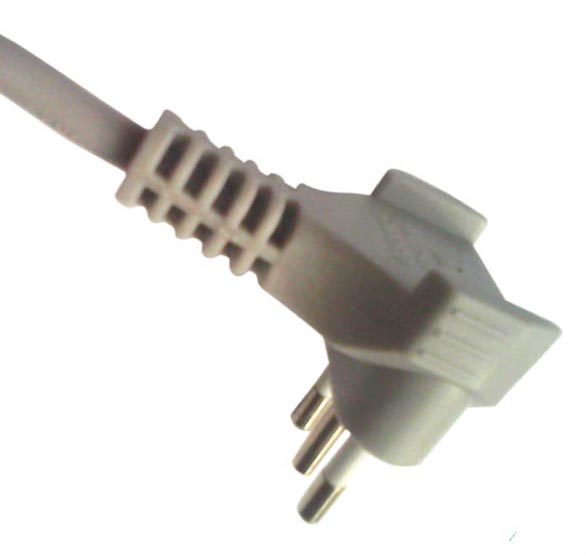

 Power Supply Cord Italian Right Angle 10A D08B

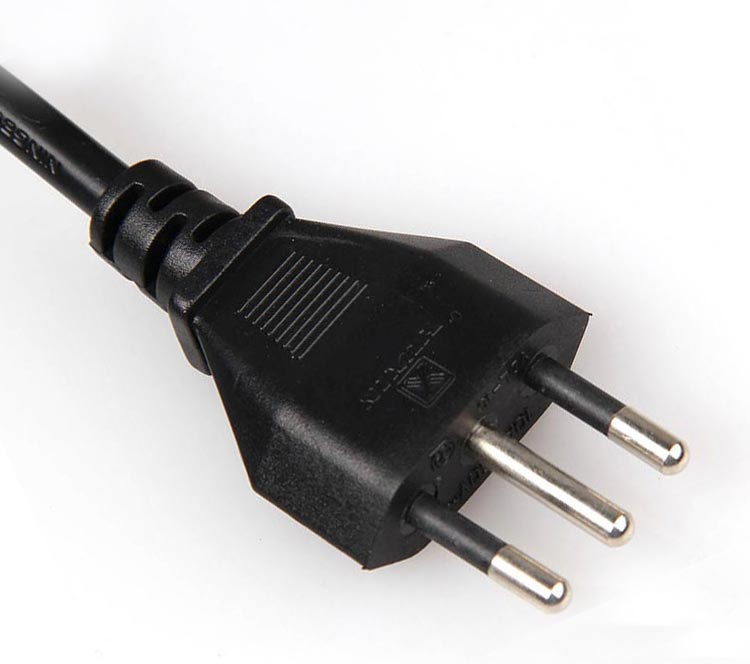

 Power Supply Cord Italian 16A LA014A
Power Supply Cord Italian 10A LA011A Power Supply Cord Italian 10A LA013A Power Supply Cord Italian Right Angle 10A D08B Power Supply Cord Italian 16A LA014A

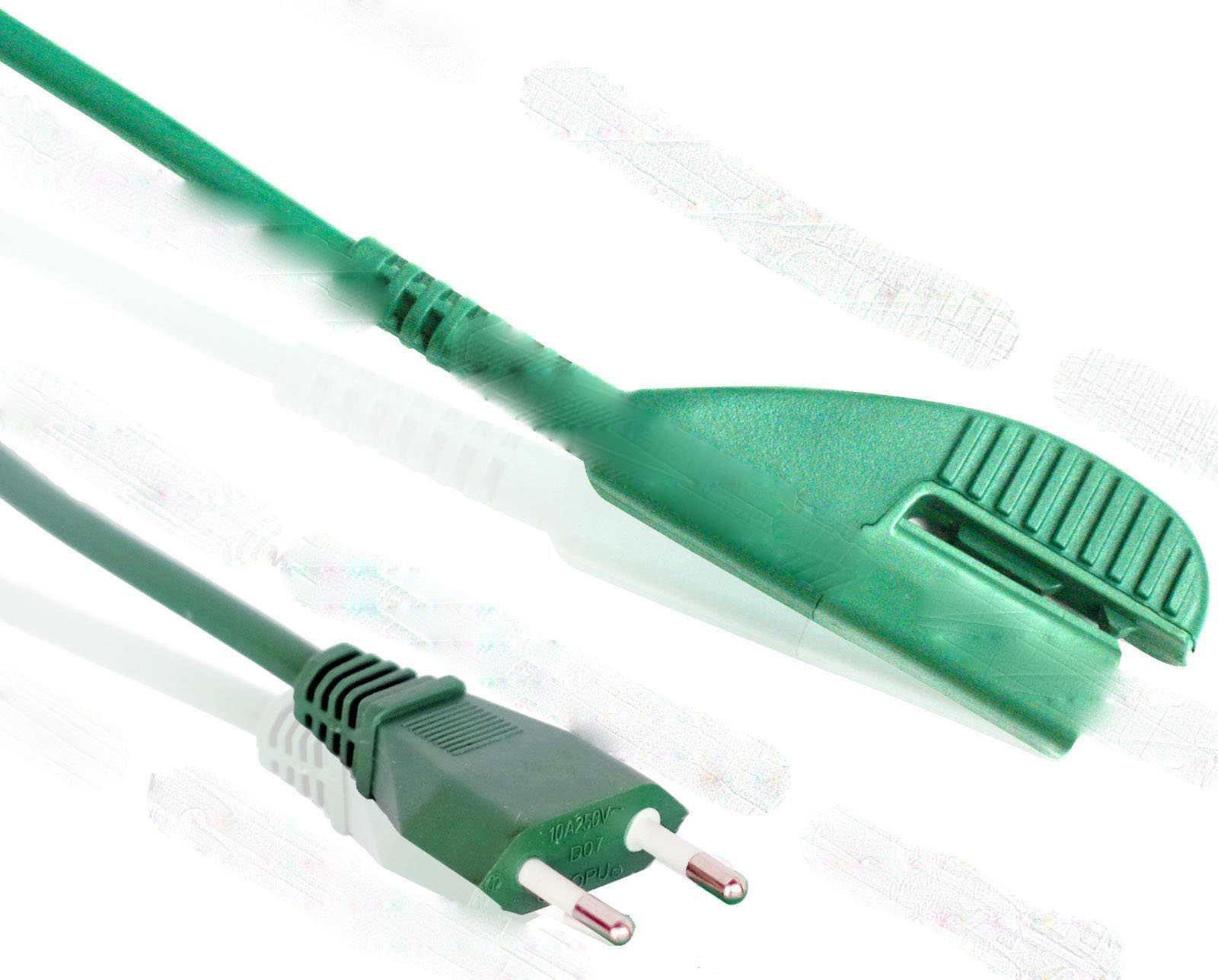

Italy Plug To Vorwerk Kobold VK 130-131 Vacuum Cleaner Power Cord FVC-1

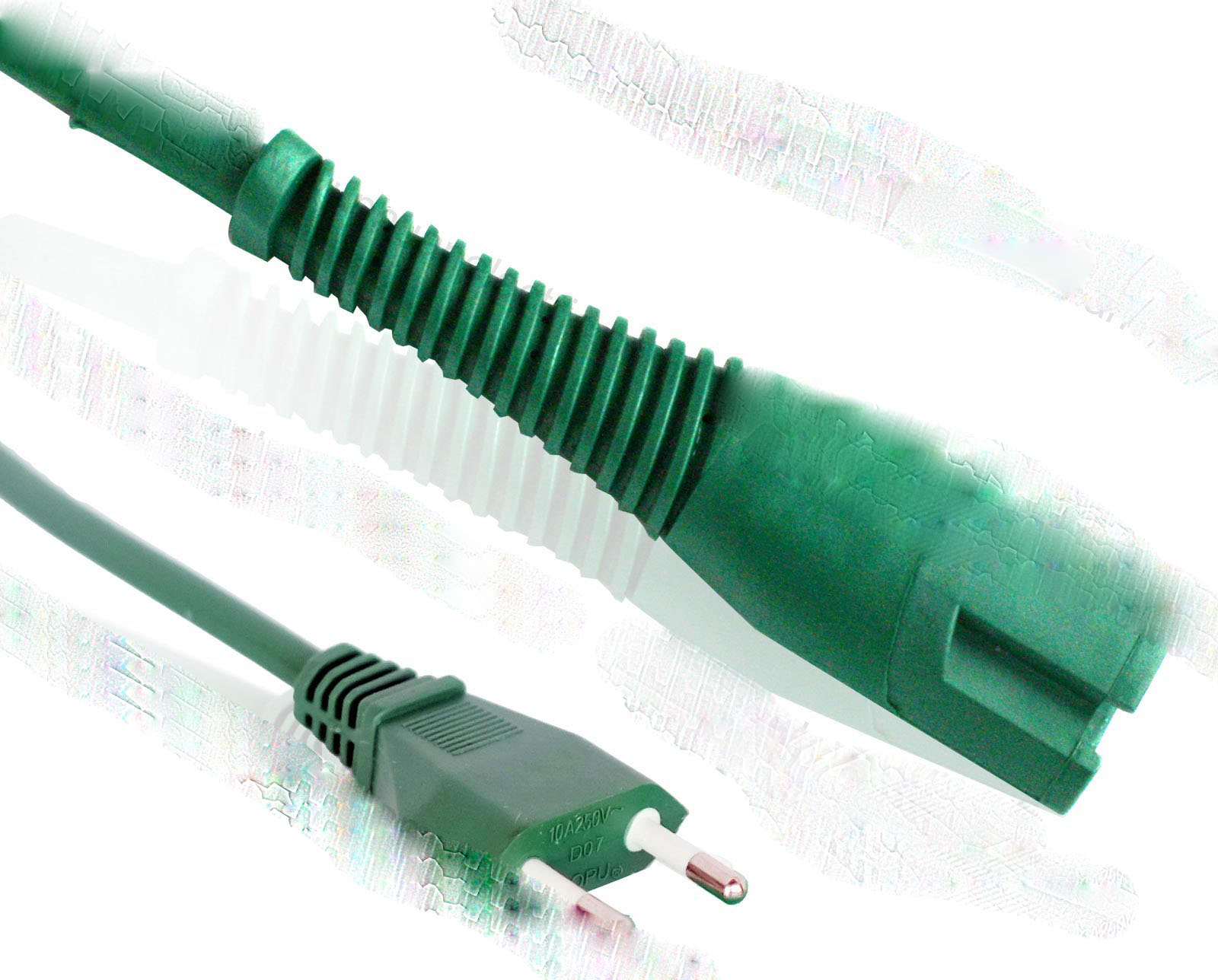

 Italy Plug To Vorwerk Kobold VK 130-131 Vacuum Cleaner Power Cord FVC-2
 Italy Plug To Vorwerk Kobold VK 130-131 Vacuum Cleaner Power Cord FVC-3
Italy Plug To Vorwerk Kobold VK 130-131 Vacuum Cleaner Power Cord FVC-1
 Italy Plug To Vorwerk Kobold VK 130-131 Vacuum Cleaner Power Cord FVC-2 Italy Plug To Vorwerk Kobold VK 130-131 Vacuum Cleaner Power Cord FVC-3

IEC 60320 Connectors


IEC 60320 power cables come in normal and high-temperature variants, as well as various rated currents. The connectors have slightly different shapes to ensure that it is not possible to substitute a cable with a lower temperature or current rating, but that it is possible to use an overrated cable. Cords also have different types of exterior jackets available to accommodate environmental variables such as moisture, temperature, oils, sunlight, flexibility, and heavy wear. For example, a heating appliance may come with a cord designed to withstand accidental contact with heated surfaces.

IEC 60320 C5 Power Receptacle
 IEC 60320 C5 Power Cord
 IEC 60320 C5 Power Cord with Protection Cover
 IEC 60320 C7 Power Cord
IEC 60320 C5 Power Receptacle IEC 60320 C5 Power Cord IEC 60320 C5 Power Cord with Protection Cover IEC 60320 C7 Power Cord
IEC 60320 C7 Power Receptacle
 IEC 60320 C13 Power Cord
 IEC 60320 C13 Power Cord Right Angle
 IEC 60320 C13 Power Cord Custom Made
IEC 60320 C7 Power Receptacle IEC 60320 C13 Power Cord IEC 60320 C13 Power Cord Right Angle IEC 60320 C13 Power Cord Custom Made
IEC 60320 C13 Power Cord Waterproof
 IEC 60320 C14 Power Plug
 IEC 60320 C14 Power Plug Waterproof
 IEC 60320 C14 Power Plug Custom
IEC 60320 C13 Power Cord Waterproof IEC 60320 C14 Power Plug IEC 60320 C14 Power Plug Waterproof IEC 60320 C14 Power Plug Custom
IEC 60320 C14 Power Cord Right Angle
 IEC 60320 C15 Power Cord
 IEC 60320 C15 Power Cord Right Angle
 IEC 60320 C17 Power Connector
IEC 60320 C14 Power Cord Right Angle IEC 60320 C15 Power Cord IEC 60320 C15 Power Cord Right Angle IEC 60320 C17 Power Connector
IEC 60320 C18 Power Plug
 IEC 60320 C19 Power Connector
 IEC 60320 C19 Power Cord Right Angle IEC 60320 C20 Power Cord
IEC 60320 C18 Power Plug IEC 60320 C19 Power Connector IEC 60320 C19 Power Cord Right Angle IEC 60320 C20 Power Cord


Extension Outlet


Italy extension cord socket with Italy IMQ certification are built to CEI standards for Italy AC extension cord applications also known as Italy extension outlets,We are producing 3,4,5,6 way Italy extension cable in standard configurations and can make any custom version as well.100% of our Italy extension power sockets are fully molded with high quality cords and RoHS,REACH compliant as we are China leading Italy extension cord manufacturer and supplier providing cheapest prices of Italy IMQ approved extension power cords,extension cable,power extension sockets,extension cord outlets,outlet power extension cord products.


Cable Reel


Italy Cable Reel products with IMQ/CE/GS certification are manufactured to CEI 23-16 standards designed for Italian cable reels applications,We are producing Italy cable reels in standard configurations and can make any custom version as well. 100% of our Italy cord reels are fully molded high quality cords and RoHS and REACH compliant as we are China leading Italy cable reel manufacturer and supplier providing cheapest prices of Italy IMQ approved AC wire reels products.
Cable Reel Italian XIR10
Cable Reel Italian 4YJR-GIA
Cable Reel Italian XIR10 Cable Reel Italian 4YJR-GIA


Flexible Cable


PVC Insulated Flexible Cord

Cable type Number of cores conductors Section mm2
H03VVH2-F ( Flat) 2 x 0.5-0.75
H03VV-F 2-4 x 0.5-0.75
H05VVH2-F (Flat) 2x 0.75-1.0
H05VV-F 2-5 x 0.75-4.0

90 PVC Insulated Heat-resistant Flexible Cord

Cable type Number of cores conductors Section mm2
H03V2V2H2-F ( Flat) 2 x 0.5-0.75
H03V2V2-F 2-4 x 0.5-0.75
H05V2V2H2-F ( Flat) 2 x 0.75-1.0
H05V2V2-F 2-5 x 0.75-4.0

Insulated and Sheathed with halogen-free thermoplastic compounds

Cable type Number of cores conductors Section mm2
H03Z1Z1 H2-F ( Flat) 2 x 0.5-0.75
H03Z1Z1-F 2-3 x 0.5-0.75
H05Z1Z 1H 2-F ( Flat) 2 x 0.75-1.0
H05Z1Z1-F 2-3 x 0.75-1.5

Rubber Flexible Cord

Cable type Number of cores conductors Section mm2
H05RN-F 2-3 x 0.75-1.0
H05RR-F 2-5 x 0.75-4.0
H07RN-F 2-5 x 1.0-4.0

Water resistant Polypropylene or equivalent synthetic Elastoplast sheath cables

Cable type Number of cores conductors Section mm2
H07RN8-F 2-5 x 1.0-4.0

Single core non-sheathed cable for decorative chains

Cable type Number of cores conductors Section mm2
H03VH7-H 1 x 0.5-0.75

Single core non-sheathed cable for internal wiring for a conductor temperature of 90

Cable type Number of cores conductors Section mm2
H05V2-K 1 x 0.5-1.0

Cable for photovoltaic systems

Cable type Number of cores conductors Section mm2
PV1-F 0.6/1KV 1.5mm2 2.5mm2 4.0mm2 6.0mm2 25mm2 35mm2


Certification

Italian IMQ power cord plug.
Italy IMQ certificated
