AC Power Cord > IEC 60320 Power Cords > IEC 60320 C5 Power Cord

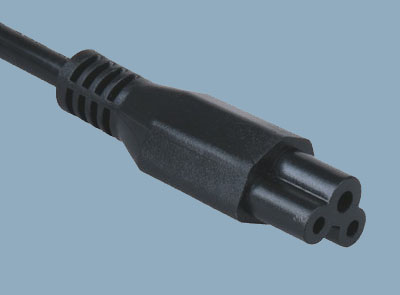

IEC-60320-C5-Power-Cord
  • IEC 60320 C5 Power Cord

  • IEC C5 Power Cords for most country in the world. The IEC 60320-C5 three prong power cord receptacle is often referred to as the "Clover Type Power Cable ~ Cloverleaf ~ Mickey Mouse Laptop / Notebook / Notepad Power Adapter ~ Lead ~ Mains ~ IEC power cord receptacle. These IEC C5 power cords are commonly used in a variety of applications including electric computer,projector, portable electronics, notebook computers, CD and DVD players, kitchen appliances and game systems.
  • Contact Us
Detailed description

Available Cable Styles:


SVT18AWGX3C

SJT/SJTW/SJ18AWGX3C

H05VV-F0.5-0.75mm2X3C
227 IEC53(RVV) 0.5-0.75mm2X3C

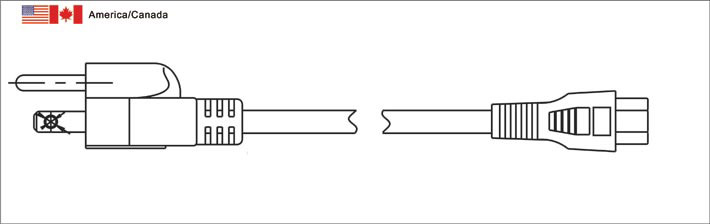

American NEMA 5-15 Grounded - Max 15 Amp to IEC C5


The North American NEMA 5-15 is the standard 3 wire wall receptacle found in the United States mold with IEC 60320 C5 connector.

America NEMA 5-15P Plug to IEC 60320 C5 Power Cord

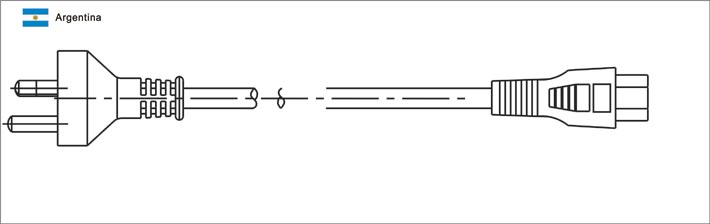

Argentine IRAM 2073 - 10 Amp to IEC C5


The Argentinean IRAM 2073 is physically the same as the Chinese GB 2099. The IRAM 2073 designation is merely a separate approval by that country's standards organization.

Argentine IRAM 2073 Plug to IEC 60320 C5 Power Cord


Australian AS/NZ-3112 - 10 Amp to IEC C5


The Australian and New Zealand AS 3112 is physically the same as the Argentinean IRAM 2073 and the Chinese GB 2099 but the line blades are insulated.

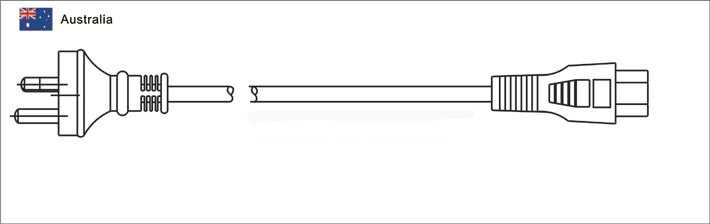

Australia AS/NZ 3112 Plug to IEC C5

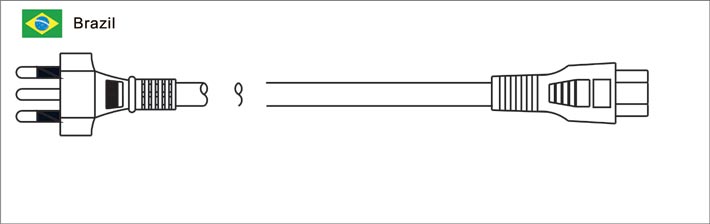

Brazilian NBR 14136 - 10 Amp To IEC C5


These Brazilian standards are new and notice the pin sizes vary between the different plugs.

Brazil 14136 Plug to IEC C5

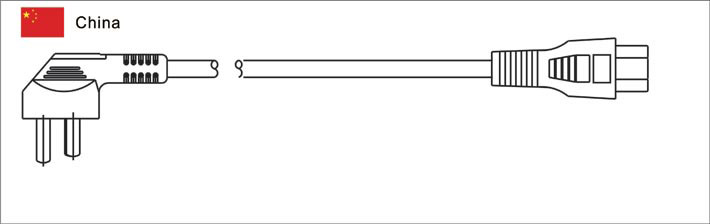

Chinese GB 2099 - 10 Amp To IEC 60320 C5


The Chinese GB 2099.1-1996 is physically the same as the Argentinean IRAM 2073. The GB 2099.1-1996 designation is merely a separate approval by this country's standards organization.

Chinese GB 2099 Plug IEC C5 Power Cord

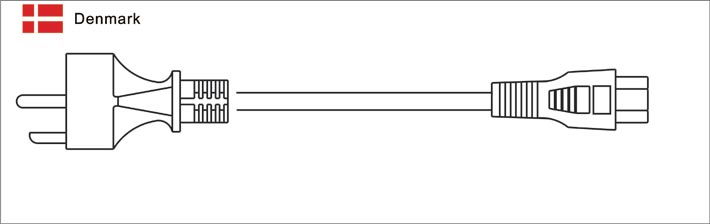

Danish AFSNIT 107-2-D1 - 13 Amp To IEC C5


The Danish AFSNIT 107-2-D1 is also referred to as SRAF 1962/DB 16/87.

Denmark Plug to IEC C5 Power Cord

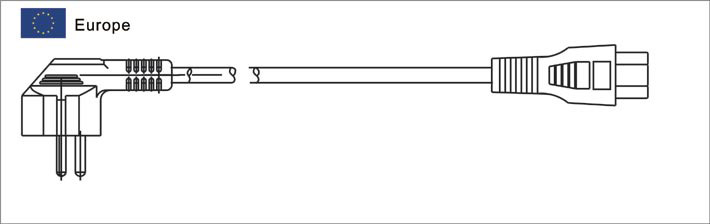

Euro CEE7/7 (Hybrid Type E/F) - 16 Amp To IEC C5


The CEE7/7 plug has both the side grounding clips of German CEE7/4 receptacle and a female contact to accept the grounding pin of the French CEE7/5 receptacle.

Euro CEE 7/7 (Hybrid Type E/F) Plug to IEC 60320 C5

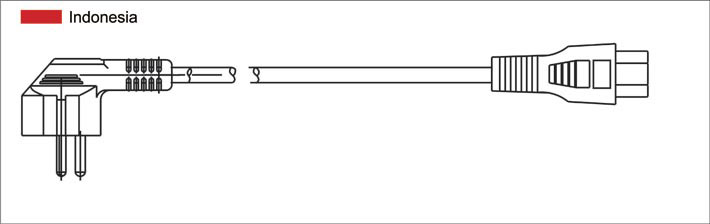

Indonesia SNI - 16 Amp to IEC C5


The Indonesia SNI is the same as the European CEE 7/7 Plug.

Indonesia SNI Plug to IEC 60320 C5 Power Cord

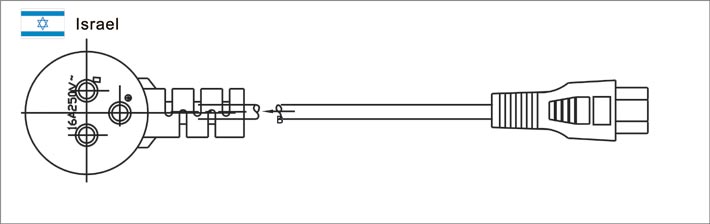

Israeli SI-32 IS16AR - 16 Amp to IEC C5


The Israeli SI-32 is the same as the Thailand TIS 166-2549.

Israel Plug to IEC 60320 C5

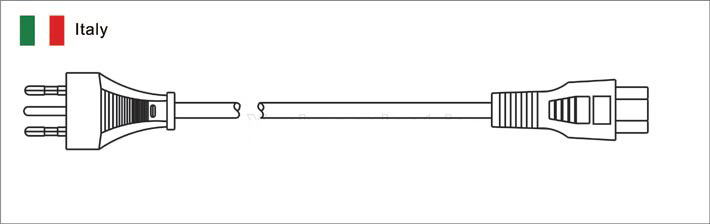

Italian CEI 23-16 - 10 Amp to IEC C5


Italian CEI 23-16 - 10 Amp which uses the center pin for grounding.

Italian Plug to IEC C5

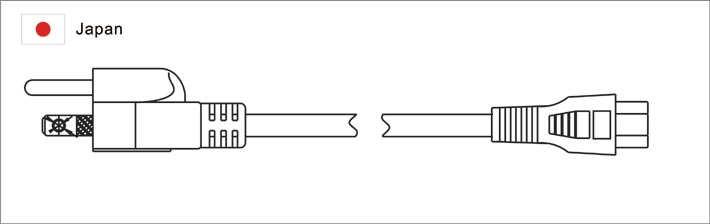

Japanese JIS 8303 - 15 Amp to IEC C5



The Japanese JIS 8303 grounded appears to be physically identical to the NEMA 5-15 found in North America. In many cases a North American plug will mate with Japanese receptacles without an adapter. However, the Japanese standard holds to tighter dimensional measurements than those in North America. This means that in some cases North American plugs will not quite fit into Japanese receptacles.

Japan Plug to IEC C5

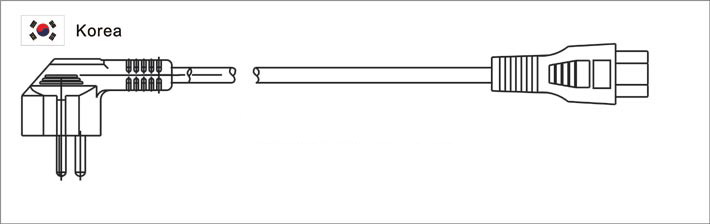

Korean KSC 8305 - 16 Amp to IEC C5


The Korean KSC 8305 is physically the same as the German CEE7/4. The KSC 8305 designation is merely a separate approval by this country's standards organization.

Korean KSC 8305 to IEC C5

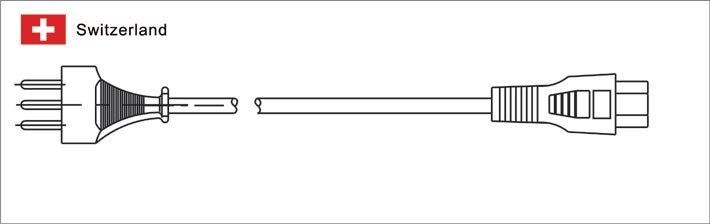

Swiss SEV 1011 - 10 Amp to IEC C5


Swiss SEV 1011 Plug will also accept the Europlug CEE7/16 however, the connection will be non-grounded.

Swiss SEV 1011 Plug to IEC C5

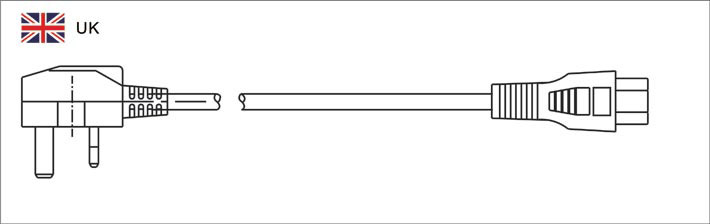

British BS-1363 - 13 Amp to IEC C5


The British BS 1363A typically has a 13 amp fused plug and is used throughout the United Kingdom. The BS 1363A replaced the old British BS 546 standard, which is no longer used in the U. K. but is still widely used in India and South Africa.

UK BS 1363A Plug to IEC C5 Power Cord


Male Plug

IEC C5 3 Prong Plug

Female Receptacle

None

Amperage

Up to 2.5A

Voltage

Up to 250V 125V AC

Outer Mold Material

50P PVC

Blade Material

Nickel coated Brass

Color

Any color available

Cable Length

Any length available

Certifications

VDE UL SAA CCC

Environmental Certifications

RoHS, REACH

Testing

100% are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout


IEC 60320 C5 Power Cords Receptacle VDE CCC SAA KC PSE UL Approved

IEC 60320 C5 Power Cords

  • Plug type: IEC 320 C5 receptacle
  • Standard: IEC 60320 C5
  • Approvals: VDE,CE,CCC,SAA,PSE,UL, cUL
  • Electricity:2.5A,250V
  • Number of Poles and Wires:2 poles 3 wires earthed
  • Cable length:1.0 meter, 1.5m, 1.8m,custom length
  • End Options: ROJ, Termination, Standard and IEC plugs
  • Quality System:ISO9001:2008
  • Color: White and black are normal, Custom color
  • Outer Mold Material: PVC, Rubber
  • Plug Insert Material: PBT, ABS
  • Blade Material: Nickel Coated Brass
  • Cable Specifications: Standard and custom made
  • Wire Jacket Material: PVC, Rubber, TPE, Textile
  • Environmental Certifications: RoHS, REACH, PAHS
  • Model Number: JT-ST2B,ST1

IEC C5 Power Cords for most countries in the world. The IEC 60320-C5 three prong power cord receptacle is often referred to as the “Clover Type Power Cable ~ Cloverleaf ~ Mickey Mouse Laptop / Notebook / Notepad Power Adapter ~ Lead ~ Mains ~ IEC power cord receptacle. These IEC C5 power cords are commonly used in a variety of applications including electric computer, projector, portable electronics, notebook computers, CD and DVD players, kitchen appliances and game systems.

IEC 60320 C5 Connector

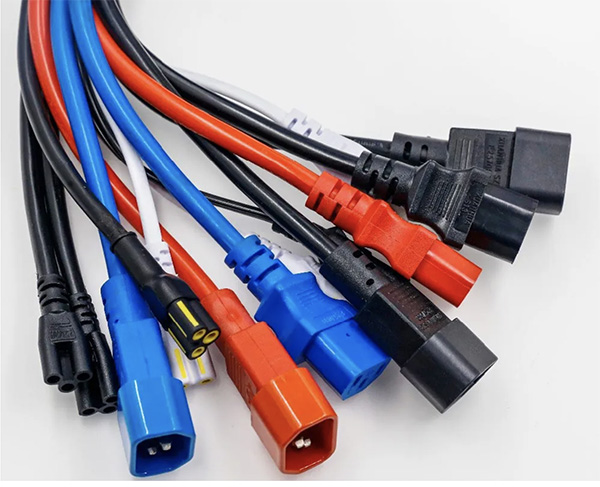

Colorful IEC 60320 Connectors
