AC Power Cord > Power Cord > Italy Power Cords > Italy CEI 23-16 16 Amps Plug Power Cord
Italy-CEI-23-16-16-Amps-Plug-Power-Cord

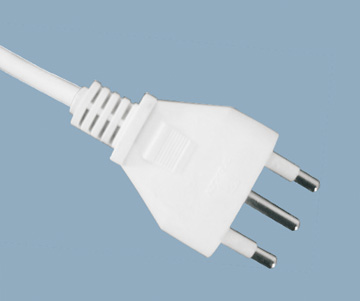

  • Italy CEI 23-16 16 Amps Plug Power Cord

  • CEI 23-16 Italy power cord three prong plug with IMQ certification.  Rated up to 16A 250V.  Built to the Italy CEI-23-16 power cord plug standard.Italy CEI 23-16 16 Amps Plug Power Cord with IMQ certification Rated up to 16A 250V designed for Italian 3 prong 16 Amps heavy duty household applications power supply cords,Our Italy IMQ power cables are fully molded with high quality and RoHS / REACH compliant.

    Link to CEI23-16 to C19:YDL-16/XH008A

  • Contact Us
Detailed description
Connector Standard Italy 3P plug
Maximum Current rating 16A
Maximum Voltage 250V
Number of Poles and Wires 2 poles, 3 wires
Outer Mold Material 50P PVC
Blade Material Nickel coated Brass
Color Custom color available
Cable length Custom length available
Temperature Rating minus 60C though plus 90C
Approvals Europe VDE IMQ
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity
MOQ 3000pcs
Samples Free samples Available


Other Termination Options:


Click Here


Available Opposite End Connectors:


Standard                                                  Part NO


IEC C19                                                   XH008A(IEC C19)Italy


Available Cable Styles:


H05VV-F 3G 0,75 mm² H05VV-F 3G 1,0 mm² H05VV-F 3G 1,5 mm²
H05RR-F 3G 0,75 mm² H05RR-F 3G 1,0 mm² H05RR-F 3G 1,5 mm²
H05RN-F 3G 0,75 mm² H05RN-F 3G 1,0 mm²
H07RN-F 3G 1,0 mm² H07RN-F 3G 1,5 mm²
H03RT-H 3G 0,75 mm² H03RT-H 3G 1,0 mm²
H05V2V2-F 3G 0,75 mm²
H05V2V2-F 3G 1,0 mm


More Information:


Italy IMQ specification                       Italy 16A 3 Prong Power Cord Drawing(PDF)

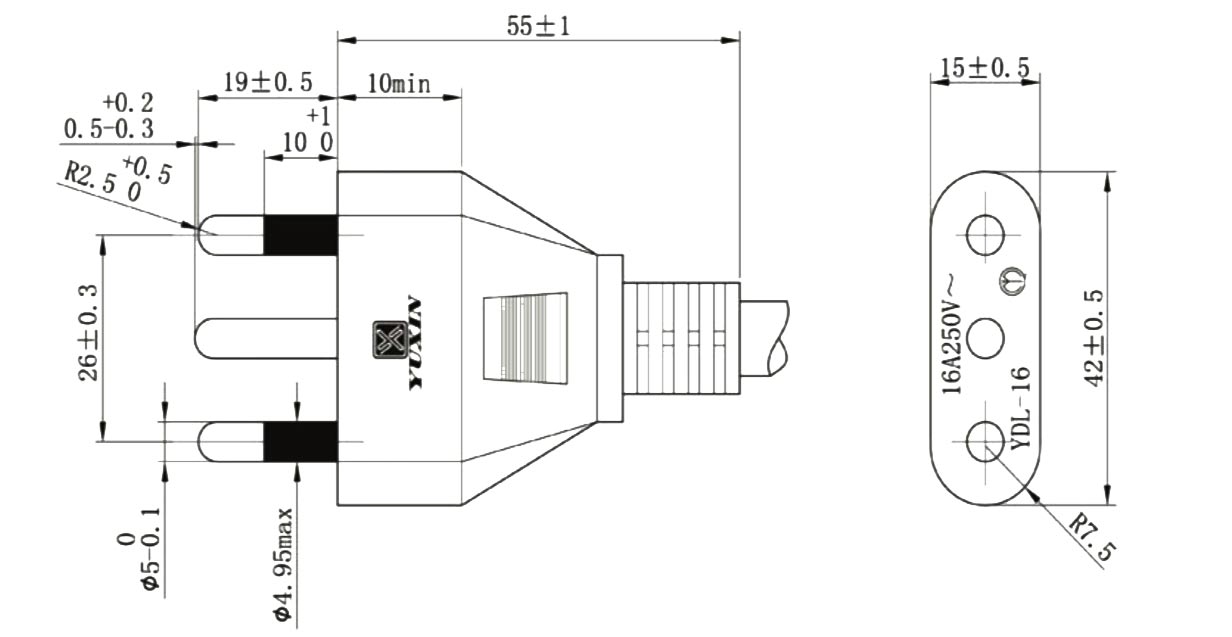

CEI 23-16 16A Plug Drawing


Italy 16A power cord drawing



Italy Power Cord 16 Amp 3 Wire CEI 23-50 Standard Type L Plug AC Power Supply Cords, Custom Long Power Cord, IMQ Approved
Italy AC Power Cords, AC Power Supply Cords

Plug type: Italy plug type L heav duty
Standard:CEI 23-50
Approvals:IMQ,VDE
Electricity:16A,250V
Number of Poles and Wires:2 pole 3 wires
Cable length:1.0 meter, 1.5m, 1.8m,custom length
End Options:ROJ, Termination, IEC 320 C15,C19
Quality System:ISO9001:2008
Color:White and black are normal,Custom color
Outer Mold Material:PVC,Rubber
Plug Insert Material:PBT,ABS
Blade Material:Nickel coated Brass
Cable Specifications:Standard and custom made
Wire Outject Material:PVC,Rubber,TPE,Textile
Environmental Certifications:RoHS, REACH, PAHS
Model Number:YDL-16,I3-16
Plug standard CEI 23-50 16 Amp Cords,CEI 23-50 (16 Amp Cords), Type L Plug; Connector Standards IEC 60320 (320) C-19, C-19 Locking, C-15, Unterminated, Italian IMQ compatible types (Type L),  connected with a three-wire grounding plug rated at max 10 Amp , 250 V.
Italy power cord 16 Amp 3 Wire CEI 23-50  standard Type L plug AC power supply cords are black and white as standard color. gray and custom color are  available. Custom length and shielded Italy AC power cord , AC power cables available. Terminated, custom stripping Suitable for most the small electrical appliances using the three phase Italian power line, the Italy type  plug connecting the Italy plug connection with the household appliances.


Available Opposite End
Normal Stripped, Splitter, and ROJ

We manufacturers and supply Italy Power Cord 16 Amp 3 Wire CEI 23-50 Type L plug, the other end can be stripped, ROJ with custom length.

Available Opposite End


Common Termination

The Italy Power Cord 16 Amp 3 Wire CEI 23-50 standard Type L plug is one end molded with standard plugs, the opposite could be terminated with types of terminals such as grounding rings terminals, fork with heat shrink or nylone insulated.

Common Termination


IEC 60320 Connectors


Italy power cord 16 Amp 3 Wire CEI 23-50 standard Type L plug  to IEC 60320 C5 Power Cable and  IEC C19 as PDU power cords are normal versions of Italy ac power cords with IEC connectors.

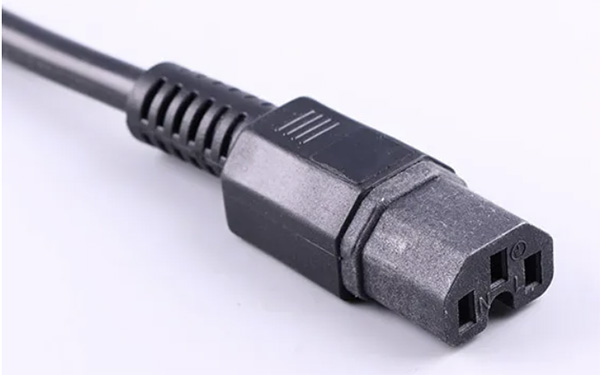

IEC 60320 C15 Power Cord

IEC 60320 C15 Power Cord

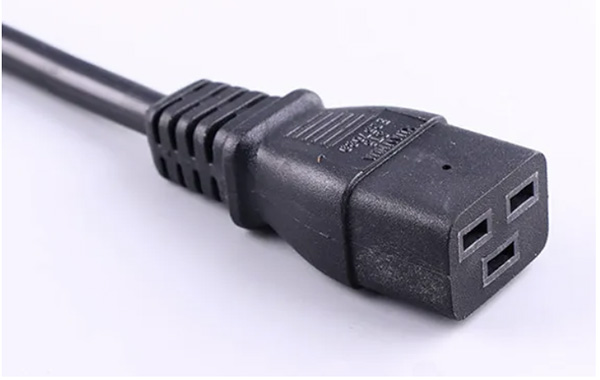

IEC 60320 C19 Power Cord

IEC 60320 C19 Power Cord


Package

The Italy Power Cord 16 Amp 3 Wire CEI 23-50 Type L plug mostly bulk packed with export cartons, pallets.

Package

Yunhuan manufacturers and supplies electrical AC power supply cords for use in Italy and all Countries in the world. Our extensive and complete Italy power cord line includes power receptacle outlets, Plug, weatherproof receptacle outlets, sockets, multiple outlet power strips, power supply cords, power cable wire and plug adapters . Contact us for Italy AC power cords as China leading  power cord manufacturer and supplier.all of our Italy power supply cords are are made of high quality approved by IMQ, German VDE with Rohs and Reach compliant.
