AC Power Cord > Power Cord > Italy Power Cords > Italy CEI 23-16 2 Pin 10A IMQ Plug Power Cord

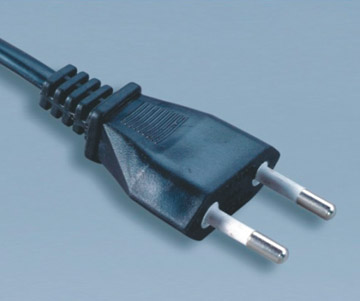

Italy-CEI-23-16-2-Pin-10A-IMQ-Plug-Power-Cord
Detailed description
Connector Standard Italy 2P plug
Maximum Current rating 10A
Maximum Voltage 250V
Number of Poles and Wires 2 poles, 2 wires
Outer Mold Material 50P PVC
Blade Material Nickel coated Brass
Color Custom color available
Cable length Custom length available
Temperature Rating minus 60C though plus 90C
Approvals IMQ,VDE
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity
MOQ 5000pcs
Samples Free samples Available


Other Termination Options:


Click Here


Available Cable Styles:


H03VV-F 2X0.75
H05VV-F 2X0.75-1.0
H05VVH2-F 2X0.75-1.0
H05RN-F 2X0.75-1.0
H05RR-F 2X0.75-1.0


More Information:


5 Items PVC ROHS

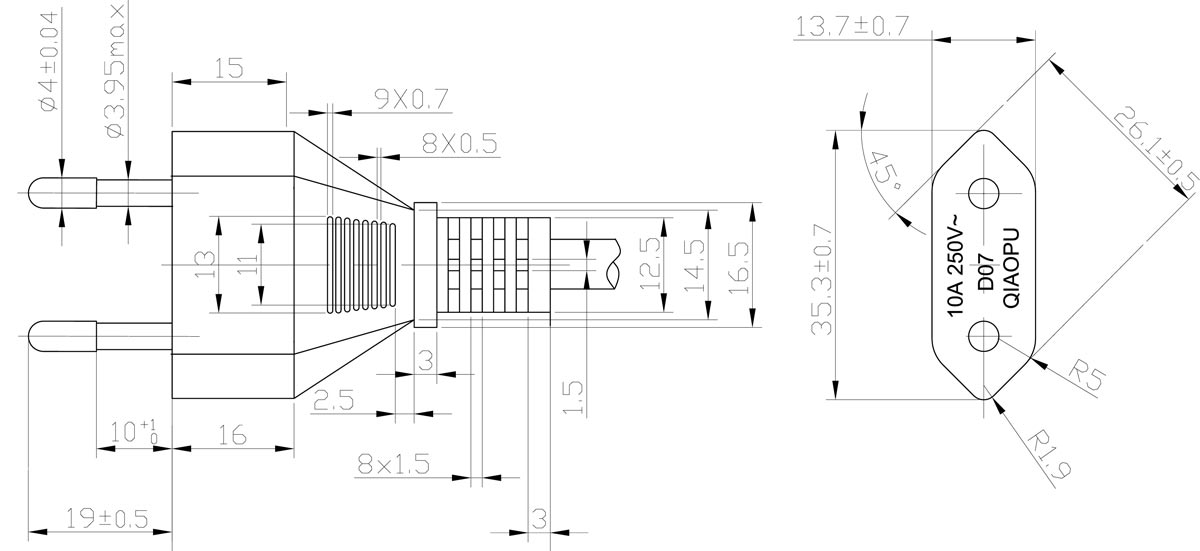

CEI 23-16 Italy 2 pin plug Drawing


CEI 23-16 2 pin plug Italy Power Plug


Italy Power Cord 10 Amp 2 Wire CEI 23-50 Standard Plug AC Power Supply Cords, Custom Long Power Cord,IMQ Approved
Italy AC Power Cords 2 Wire

Plug type: Two-pin unearthed plug
Standard:CEI 23-50 S 10
Approvals:IMQ,VDE
Electricity:10A,250V
Number of Poles and Wires:2 pole 2 wires
Cable length:1.0 meter, 1.5m, 1.8m,custom length
End Options:ROJ, Termination, IEC 320 C7, C17
Quality System:ISO9001:2008
Color:White and black are normal,Custom color
Outer Mold Material:PVC,Rubber
Plug Insert Material:PBT,ABS
Blade Material:Nickel coated Brass
Cable Specifications:Standard and custom made
Wire Outject Material:PVC,Rubber,TPE,Textile
Environmental Certifications:RoHS, REACH, PAHS
Model Number:Y007,D07,I2-10
The 10A two-pin unearthed plug is designated CEI 23-50, Connector Standards IEC 60320 (320) C7, C17,Unterminated, Italian IMQ compatible types (Type C), connected with a two-wire ungrounded plug rated at max 10 Amp , 250 V.
Italy Power Cord 10 Amp 2 Wire CEI 23-50 are black and white as standard color. gray and custom color are  available. Custom length and shielded Italy AC power cord , AC power cables available. Terminated, custom stripping. Suitable for most the small electrical appliances using the two phase Italian power line, the Italy type  plug connecting the Italy plug connection with the household appliances.
Italy Power Cord IMQ Approved

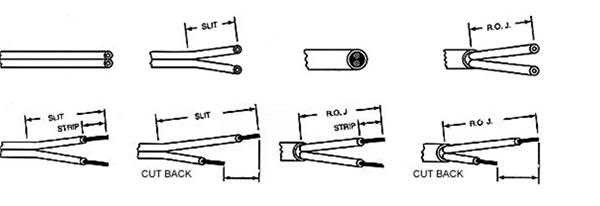

Available Opposite End
Normal Stripped, Splitter, and ROJ

We manufacturers and supply Italy Power Cord 10 Amp 2 Wire CEI 23-50, the other end can be stripped, ROJ with custom length.

Available Opposite End

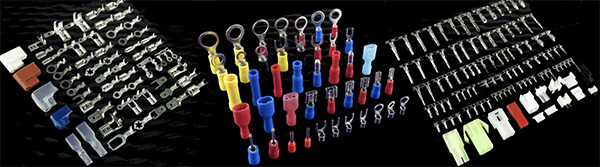

Common Termination

The Italy Power Cord 10 Amp 2 Wire CEI 23-50 is one end molded with standard plugs, the opposite could be terminated with types of terminals such as grounding rings terminals, fork with heat shrink or nylone insulated.

Common Termination


IEC 60320 Connectors

The Italy Power Cord 10 Amp 2 Wire CEI 23-50 to IEC 60320 C7 is normal versions of Japan ac power cords with IEC connectors.

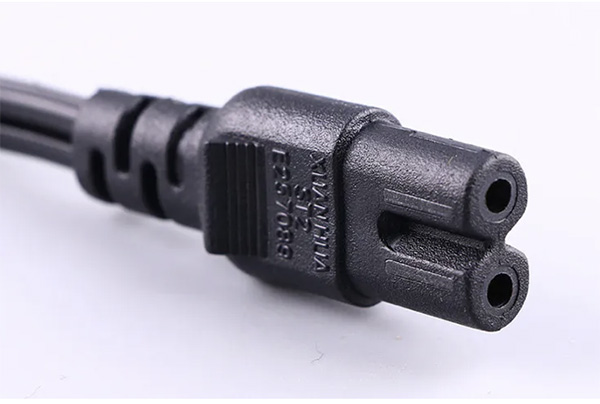

IEC 60320 C7 Power Cord Connector

IEC 60320 C7 Power Cord Connector

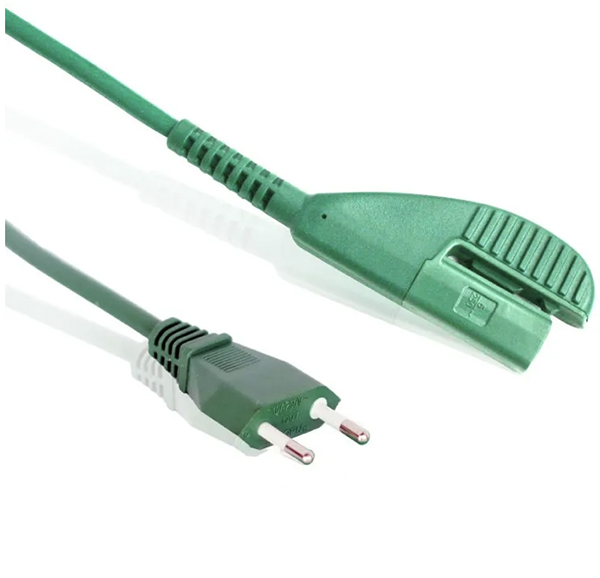

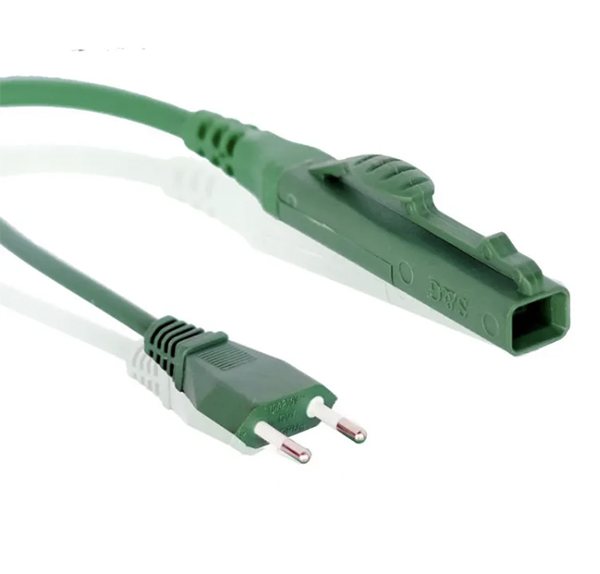

Vorwerk Kobold Vaccum Cleaner Connector


Italy power cord 2 wire 10A plug to Vorwerk Kobold VK130/131, 135/136, VK140/141 connector

Vorwerk Kobold Power Cords Italy Plug VK 130,131

Vorwerk Kobold Power Cords Italy Plug VK 130,131

Vorwerk Kobold Power Cords Italy Plug VK 130,131

Vorwerk Kobold Power Cords Italy Plug VK 130,131

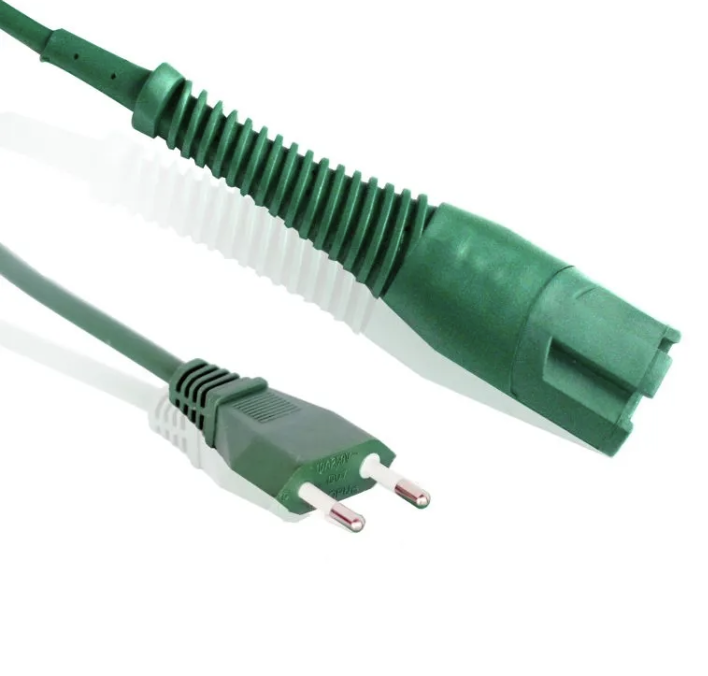

Vorwerk Kobold Power Cords Italy Plug VK 140,141

Vorwerk Kobold Power Cords Italy Plug VK 140,141



Power Cord Available Switches

Italy power cord 2 wire 10A plug are used to molded with online switches for salt lamp power supply cords.
CEE 7/16 European Power Cord with Swich

Swich Series

The color of online swtiches mostly white, black and transparent

Power cord with Swich

Transparent CEE 7/16 2.5A Plug Power Cord

Power Supply Cord with Swich

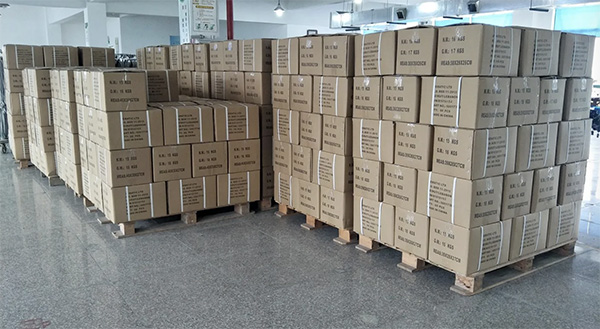

Package

The Italy Power Cord 10 Amp 2 Wire CEI 23-50 mostly bulk packed with export cartons, pallets.
Package

Yunhuan manufacturers and supplies electrical AC power supply cords for use in Italy and all Countries in the world. Our extensive and complete Italy power cord line includes power receptacle outlets, Plug, weatherproof receptacle outlets, sockets, multiple outlet power strips, power supply cords, power cable wire and plug adapters . Contact us for Italy AC power cords as China leading  power cord manufacturer and supplier.all of our Italy power supply cords are are made of high quality approved by IMQ, German VDE with Rohs and Reach compliant.
