Australia power cord standard

Australian AS/NZS 3112 SAA Power Cord,Plug,Flexible Cable


Australian 2005 standard power plug with insulated pins For more details on this topic, see AS 3112.Australasian switched 3-pin dual power point (socket)

The plug used in Australia, New Zealand, Fiji, Tonga, Argentina, Solomon Islands, Papua New Guinea and China has an earthing pin and two flat current-carrying pins forming an upside down V-shape.The flat blades measure 6.5 by 1.6 mm (0.256 by 0.063 in) and are set at 30° to the vertical at a nominal pitch of 13.7 mm (0.539 in). Australian and New Zealand wall sockets almost always have switches on them for extra safety, as in the UK. An unearthed version of this plug with two angled power pins but no earthing pin is used with small double-insulated appliances, but the sockets always include an earth pin.

There are several AS/NZS 3112 plug variants,including ones with larger or differently shaped pins used for devices drawing 15, 20, 25 and 32 A. These sockets accept plugs of equal or of a lower current capacity, but not of higher capacity. For example, a 10 A plug will fit all sockets but a 20 A plug will fit only 20, 25 and 32 A sockets.

Australia's standard plug/socket system was originally codified as standard C112 (floated provisionally in 1937, and adopted as a formal standard in 1938), which was superseded by AS 3112 in 1990. The requirement for insulated pins was introduced in the 2004 revision.The current version is AS/NZS 3112:2011, Approval and test specification - Plugs and socket-outlets.


Contents

1 . Plug Guide
2 . 3 Prong Power Plug
3 . Plug with Insulated Pins
4 . Comparison of Plug Round/Flat Earth Pins
5 . Power Cords
6 . Extension Cords
7 . Cable Reels
8 . Flexible Cables
9 . Certifications
10. Reference


Plug Guide - AS/NZS 3112


Australia Power Cord Plug Guide - AS/NZS 3112,the Table below shows 240V AC Power cord plugs as used in Australia.




7.5A/10A 2 Pins 10A 3 Pins (Flat Earth) 10A 3 Pins (Round Earth) 15A 3 Pins
(Flat Earth)
20A 3 Pins
(Flat Earth)
Plug End
Pinout

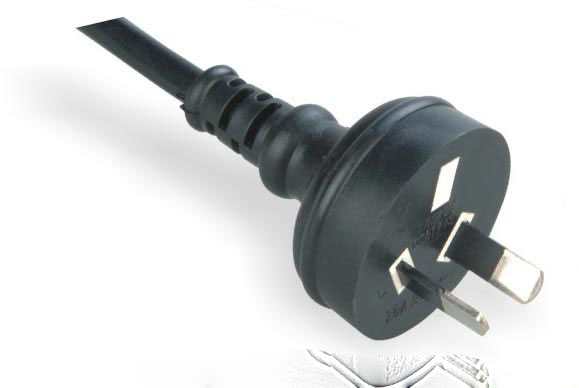

Australian 10A 240V 2 prong power cord
Australia plug shape
Australia power cord 240V 10A round earth pin
Australia heavy duty power cord 15A 3 prong
Australia 20A power cord plug
Description
Standard 10A mains plug for double insulated appliances. Standard 10A mains plug 10A mains plug with round earth pin Standard 15A mains plug Standard 20A mains plug.
Socket Compatibility




10Amp - Flat Earth


10Amp - Round Earth


15Amp - Flat Earth

20Amp - Flat Earth
Applications
Double insulated domestic appliances and equipment. Earthed domestic appliances and equipment. Special purpose outlets such as control circuits, lighting and exhaust fans etc. Caravans, air conditioning, light industrial appliances and equipment. Plug-in stoves air conditioning and light industrial appliances and equipment.
Active & Neutral Pins 6.35mm x 1.63mm

9.08mm x 1.63mm



Earth Pin 6.35mm x 1.63mm N/A



9.08mm x 1.63mm N/A


4.75mm diameter N/A



3 Prong Power Plug


Australia SAA Standard 3 Prong Power cord,The plug in Australia is 250V AC, 50Hz. Standard 3 prong earthed power outlets are rated at 10Amps and are usually switched. The 3-flat-pin plug is used in all states of Australia (including its external territories), New Zealand, Although the configuration is similar to mains plugs used in mainland China, dimensional differences to the plug body may be incompatible with recessed cord socket and prevent Chinese-compliant CPCS/CCC (CCEE) plugs from being legally sold/used in Australia. Argentina also uses a similar 3-flat-pin configuration as Australia, but with slight dimensional differences and with the active and neutral wires being reversed. These important differences prevent the Argentina-compliant IRAM plugs from being legally sold/used in Australia as incorrect polarity may present an electrical safety hazard.

The Australia power cord configuration is now Australian Standards AS/NZS 3112:2000 and AS/NZS 3112:2004 for Australian power plug now define the requirements for the insulation of the Active and Neutral pins of the plug. 15Amp and 20Amp configurations of the mains plug and outlet are also defined by the standard.

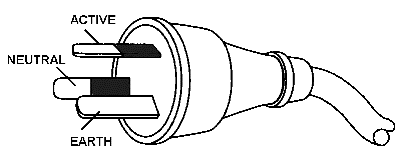

The following picture shows the Australia power cord configuration.

 Australian mains plug

The diagrams below show wiring for an Australian 240V mains cord plug and socket. Note the "reversal" of the Active and Neutral wires depending on whether you are wiring a socket or a plug.

240v mains socket wiring  Australia plug wiring

Standard wire colors are:


Marking Flex conductor colors Building wire conductor colors
Active A Brown Red
Neutral N Blue Black
Earth E Green/Yellow Green/Yellow

Older flex and premises wiring will use the following colors:


Marking Flex conductor colors Building wire conductor colors
Active A Red Red
Neutral N Black Black
Earth E Green Green



Plug with Insulated Pins


Australia Power Cord Plug with Insulated Pins,Australian Standards AS/NZS3112:2000 and AS/NZS3112:2004 for Australia Power Cord Plug define the requirements for insulating the Active and Neutral pins of the plug. These requirements were introduced in response to a number of incidents (including fatalities) involving both mains-plugs and plug-in-devices where a metal object (such as a knife blade, a metal blind slat or a sheet of metal) came into contact with a plug pin that was partially removed from a socket and resulted in an electrical shock.
Since 3 April 2005 insulated live pins have been mandatory for all plugs (and appliances with integral pins). Approval Certificates for items having non- insulated pins were cancelled on that date. In the interests of enhanced electrical safety and to ensure rapid dispersion into the marketplace, each Australian State and Territory and New Zealand Electrical Regulator required that all electrical equipment was supplied with insulated pin plugs, at all points of sale, by 3 April 2005.




Comparison of Plug Round/Flat Earth Pins

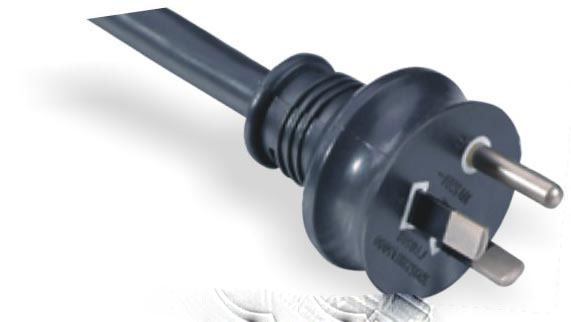

Comparison of Australia Power Cord Plug Round/Flat Earth Pins,AS/NZS3112:2000 and AS/NZS3112:2004 Australian and New Zealand 3-pin 10Amp main plug with ROUND EARTH PIN for equipment which may be connected to a special purpose power circuit. Applications include lighting, exhaust fans, cash registers and IT equipment.

Australia flat earth pin power plugAustralia round earth pin power plug


Power Cord


Australia power supply cord plug with SAA certifications are built to AS/NZS 3112 and IEC standards for Australia AC power cord applications also known as Australia mains power leads,We are producing two and three prong Australian AC power cables in standard configuration and can make any custom version as well.100% of our Australia power cord are fully molded with high quality and RoHS,REACH compliant.We are China leading Australian power cord manufacturer and supplier providing cheapest prices of Australian SAA approved plug with IEC 320 C7,C5,C13,C15,C19 power supply cords.In Australia,the electricity supplied by the normal wall inlet is called the "mains power system" and therefore Australian power cords are often referred to as Australia mains leads,Australia mains cords,Australia mains cables,Australia line cords and mains power leads.


Features

The power plug matching the socket outlet pictured on the left, used in Australia, New Zealand, Fiji, Papua New Guinea and many Pacific Island countries has two flat pins forming an inverted V-shape plus an earthing pin. These flat blades measure 6.35 by 1.6 mm with the Active and Neutral pins of 17.35 mm in length set 30° to the vertical on a nominal pitch of 13.7 mm and the Earth pin being 20 mm in length.A standard power outlet Australia provides a nominal voltage of 230 volts at a maximum of 10 amps and always includes an earth connection. There are unearthed versions of the plug used with this outlet having only the two flat inverted V-aligned pins, without the Earthing pin. Such plugs are only to be used for devices where other safety standards are in use (e.g. double insulation) and these plugs are rated at a maximum of only 7.5 amps. They are not available separately but only integrally with power cords specifically designed for the purpose.If required,Australia socket outlets now can be obtained (at additional cost) utilizing insulation displacement as a means of connecting to the supply conductors, as can be seen in the illustration - The benefits claimed for their use in these applications include up to 50 % faster installation, due to the reduction in the stripping, twisting and screwing down processes.

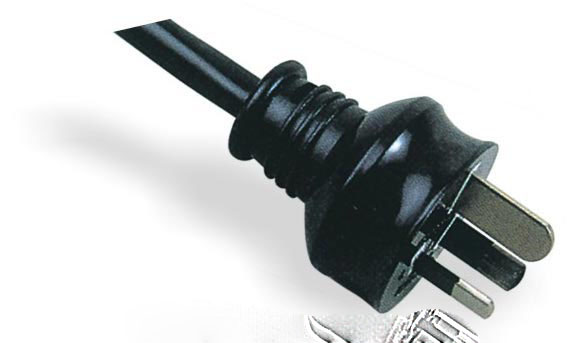

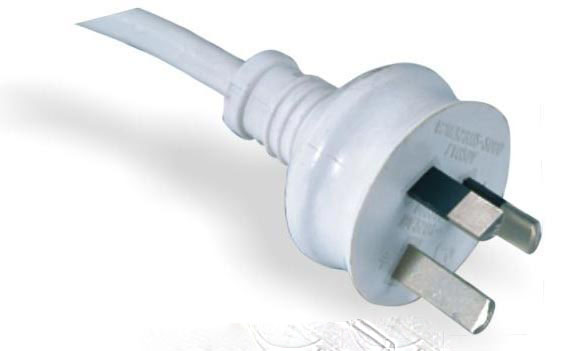

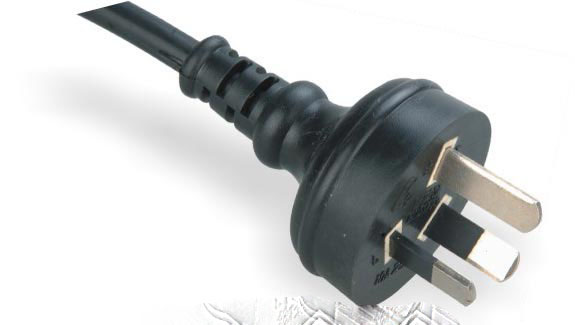

LA020A 3-conductor Non-rewirable Plug Power Supply Cord

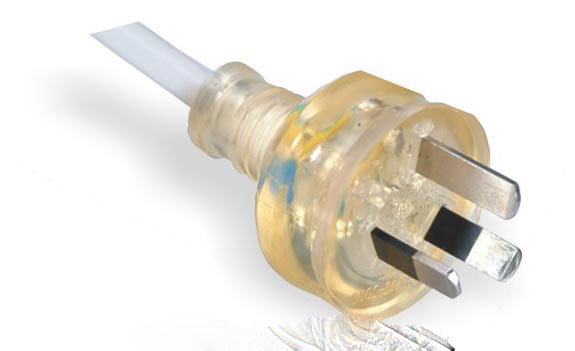

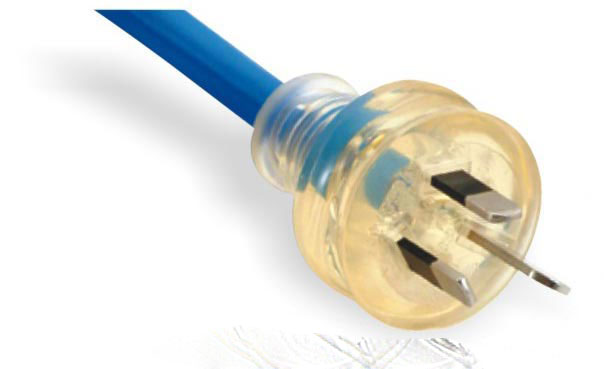

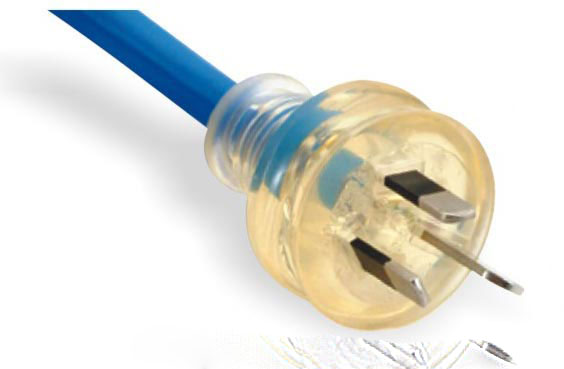

LA020C 3-conductor Non-rewirable Translucent Plug Power Supply Cord
LA021C 3-conductor Non-rewirable Plug with translucent cover Power Supply Cord
LA021D 3-conductor Non-rewirable Plug with translucent cover and indicator light Power Supply Cord
LA020A 3-conductor Non-rewirable Plug Power Supply Cord LA020C 3-conductor Non-rewirable Translucent Plug Power Supply Cord LA021C 3-conductor Non-rewirable Plug with translucent cover Power Supply Cord LA021D 3-conductor Non-rewirable Plug with translucent cover and indicator light Power Supply Cord
LA020B 3-conductor Non-rewirable Plug Power Supply Cord
LA020H 3-conductor Non-rewirable Translucent Plug with Indicator Light Power Supply Cord

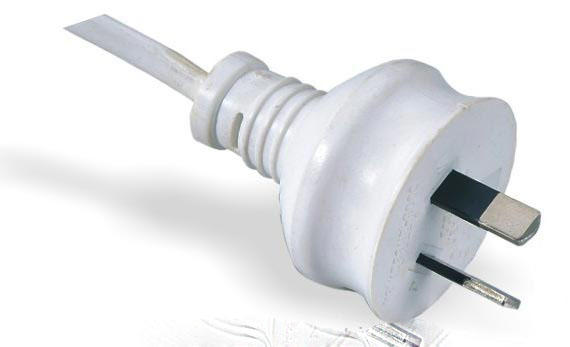

LA022A LA020B 2-conductor Non-rewirable Plug Power Supply Cord
LA022C LA022D 2-conductor Non-rewirable Plug Power Supply Cord
LA020B 3-conductor Non-rewirable Plug Power Supply Cord LA020H 3-conductor Non-rewirable Translucent Plug with Indicator Light Power Supply Cord LA022A LA020B 2-conductor Non-rewirable Plug Power Supply Cord LA022C LA022D 2-conductor Non-rewirable Plug Power Supply Cord
LA021A 3-conductor Non-rewirable Plug Power Supply Cord
LA020E 3-conductor Non-rewirable Plug Power Supply Cord
LA020G 3-conductor Non-rewirable Plug Power Supply Cord

LA021A 3-conductor Non-rewirable Plug Power Supply Cord LA020E 3-conductor Non-rewirable Plug Power Supply Cord LA020G 3-conductor Non-rewirable Plug Power Supply Cord


Connectors

IEC 60320 power cables come in normal and high-temperature variants, as well as various rated currents. The connectors have slightly different shapes to ensure that it is not possible to substitute a cable with a lower temperature or current rating, but that it is possible to use an overrated cable. Cords also have different types of exterior jackets available to accommodate environmental variables such as moisture, temperature, oils, sunlight, flexibility, and heavy wear. For example, a heating appliance may come with a cord designed to withstand accidental contact with heated surfaces.



IEC 60320 Connectors

IEC 60320 power cables come in normal and high-temperature variants, as well as various rated currents. The connectors have slightly different shapes to ensure that it is not possible to substitute a cable with a lower temperature or current rating, but that it is possible to use an overrated cable. Cords also have different types of exterior jackets available to accommodate environmental variables such as moisture, temperature, oils, sunlight, flexibility, and heavy wear. For example, a heating appliance may come with a cord designed to withstand accidental contact with heated surfaces.
IEC 60320 C5 Power Receptacle
IEC 60320 C5 Power Cord
IEC 60320 C5 Power Cord with Protection Cover
IEC 60320 C7 Power Cord
IEC 60320 C5 Power Receptacle IEC 60320 C5 Power Cord IEC 60320 C5 Power Cord with Protection Cover IEC 60320 C7 Power Cord
IEC 60320 C7 Power Receptacle
IEC 60320 C13 Power Cord
IEC 60320 C13 Power Cord Right Angle
IEC 60320 C13 Power Cord Custom Made
IEC 60320 C7 Power Receptacle IEC 60320 C13 Power Cord IEC 60320 C13 Power Cord Right Angle IEC 60320 C13 Power Cord Custom Made
IEC 60320 C13 Power Cord Waterproof
IEC 60320 C14 Power Plug
IEC 60320 C14 Power Plug Waterproof
IEC 60320 C14 Power Plug Custom
IEC 60320 C13 Power Cord Waterproof IEC 60320 C14 Power Plug IEC 60320 C14 Power Plug Waterproof IEC 60320 C14 Power Plug Custom
IEC 60320 C14 Power Cord Right Angle
IEC 60320 C15 Power Cord
IEC 60320 C15 Power Cord Right Angle
IEC 60320 C17 Power Connector
IEC 60320 C14 Power Cord Right Angle IEC 60320 C15 Power Cord IEC 60320 C15 Power Cord Right Angle IEC 60320 C17 Power Connector
IEC 60320 C18 Power Plug
IEC 60320 C19 Power Connector
IEC 60320 C19 Power Cord Right Angle IEC 60320 C20 Power Cord
IEC 60320 C18 Power Plug IEC 60320 C19 Power Connector IEC 60320 C19 Power Cord Right Angle IEC 60320 C20 Power Cord



Worldwide, more than twelve different types of connectors are used for fixed building wiring. Products sold in many different markets can use a standardized IEC 60320 connector and then use a detachable power cord to match the local electrical outlets. This simplifies safety approvals, factory testing, and production since the power cord is a low-cost item available as a commodity. Note that the same types of appliance-side connectors are used with both 110 V and 230 V power cables, so care must be used when moving appliances between countries with different voltage standards — substituting a power cord that matches local power outlets will result in an incorrect voltage being applied to the appliance or equipment. Unless explicitly labelled as capable of handling local voltages, this is very likely to damage or destroy the appliance. Some devices have a slide-switch to adapt to different voltages, or wide-ranging power supplies.


Switches

Australia plug with 303,304,315,317 switch power cord under SAA certification Rated up to 7.5A 250V Built to Australia AS/NZS 3112 standards and designed for Australia lamp power cord applications

Extension Cords


Australia Extension Cord plug and socket with Australian SAA certification are built to the AS 3112 standards for Australia AC extension cord applications also known as Australian mains extension lead,Australia SAA approved power extension cords,extension cord plug,extension power cord,extension socket,outdoor extension cord,outlet cord,outlet power extension cords,lit extension cord,heavy duty extension cord made from Australia AS/NZ3112 plug connected with flexible cable and Australia Female receptacle.
