Click here:D06(Light-Duty)

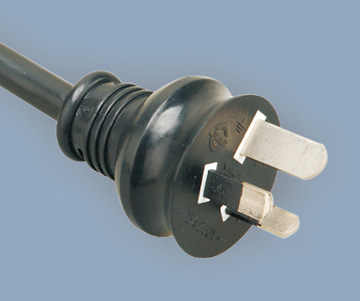

Connector Standard | 3-pin plug moulded to supply flexible cords |
Maximum Current rating | 15A |
Maximum Voltage | 250V |
Number of Poles and Wires | 2 poles, 3 wires |
Outer Mold Material | 50P PVC |
Blade Material | Nickel coated Brass |
Color | Custom cable color available |
Cable length | Custom cable length available |
Temperature Rating | minus 60C though plus 105C |
Approvals | Australia SAA |
Environmental Certifications | RoHS, REACH |
Testing | Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity |
MOQ | 2000pcs |
Samples | Free and could be sent within three days |
Other Termination Options:
Available Opposite End Connectors:
Standard Part NO
Australia receptacle XH026B(AS3112)Australia

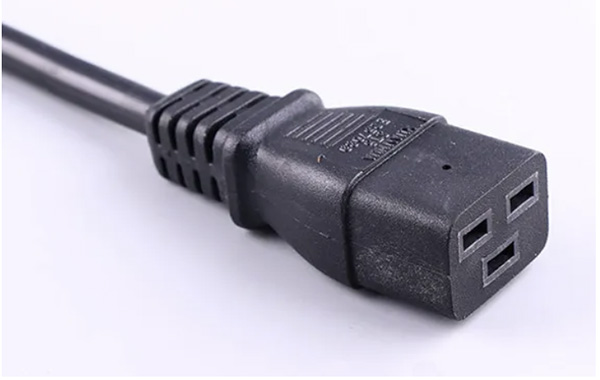

IEC 60320 C19 XH008A(IEC C19)Australia
Available Cable Styles:
DL3 4V-75 250/440V 3G1.5mm2(N16066)
4V-75 0.6/1KV 3G1.5mm2(ESO120470)
H05VV-F 250/440V 3G1.5mm2(N18298)
H07RN-F 450/750V 3G1.5mm2(ESV110434)
3x1.0 H05VV-F V-750.6/1 KV (Q031043)
H05RR-FH05RN-FH07RN-F (NSW22432)
3x1.5 H05VV-F V-750.6/1KV (Q031043)
H05RR-FH05RN-FH07RN-F (NSW22432)
H05VV-F screen(SAA111951)
3x2.5 H05VV-F
