Click to here AS3112 Plug to C7:D05/QT2

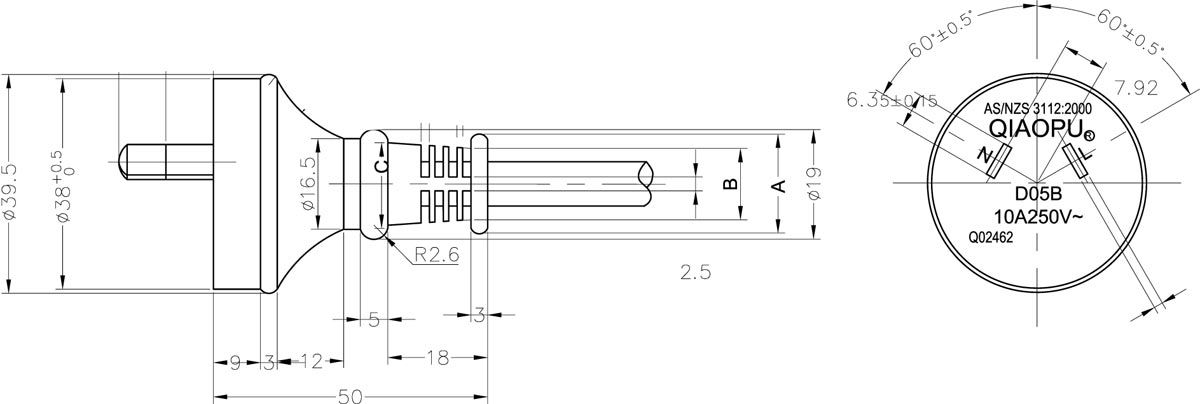

Click to here AS3112 2 Prong Power Cord:D05 Power Cord Drawing(JPG)
|Plug standard||Australia 2p plug|
|Maximum Current rating||7.5/10A|
|Number of Poles and Wires||2 poles, 2 wires|
|Outer Mold Material||50P PVC|
|Blade Material||Nickel coated Brass|
|Color||Custom color available|
|Temperature Rating||Minus 40C though plus 75C|
|Environmental Certifications||RoHS, REACH|
|Testing||Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity|
|Delviery lead date||15-20days|
|Samples||Free samples can be sent within 3 days|
Other Termination Options:
Available Opposite End Connectors:
Standard Part NO

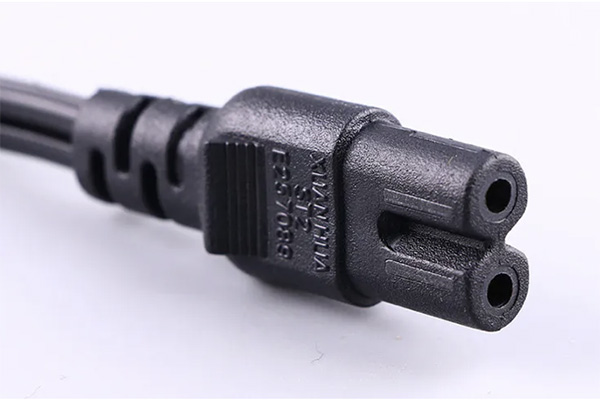

IEC 60320 C7 ST2(IEC C7)Australia
Available Cable Styles:
Electrical Rating (Amps/Volts)
Rated at Input:250 V~ 7.5 A
Comments Moulded to Ningbo Qiaopu Electric Co.,Ltd.
H03VVH2-F 2x0.5-0.75mm²(N18298),H05VVH2-F 2x0.75mm²(N18298),
DL2 2x0.75mm²(N16066),H05VV-F 2x0.75mm²(N18298)
Rated at Input: 250 V~, 10 A
Comments Moulded to Ningbo Qiaopu Electric Co.,Ltd
H05VV-F 2x0.75-1.5mm²(N18298),H05VVH2-F 2x0.75-1.0mm²(N18298)
DL2 2x0.75-1.0mm²(N16066),H05RN-F 2x0.75-1.0mm²(ESV110434)

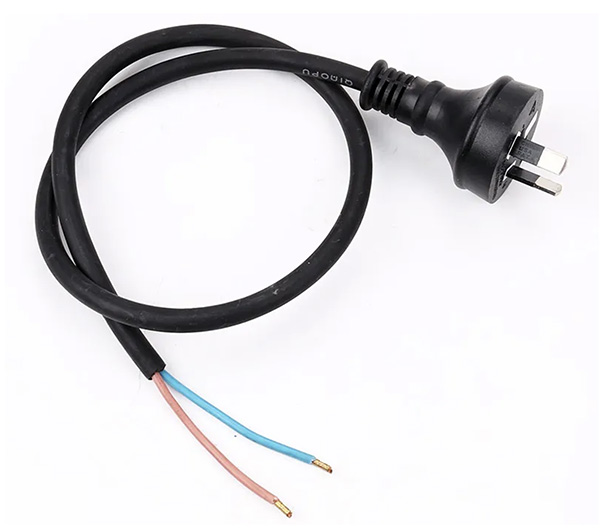

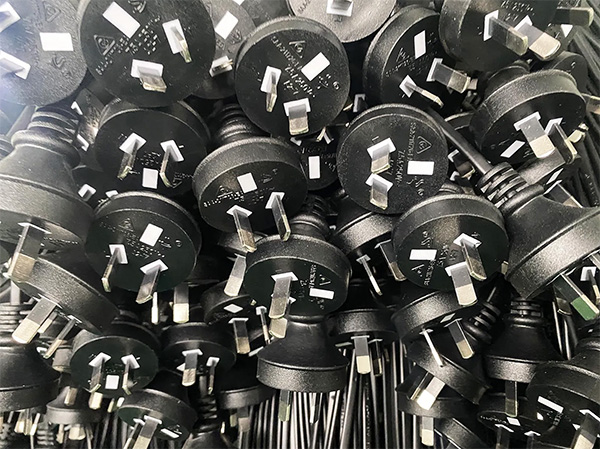

Australia Power Cord,AS NZS 3112 AC 2 Pole 2 Wire Non-Grounding Plug Power Supply Cord
Plug type: Australia Plug 2 Wire
Standard:AS NZS 3112
Number of Poles and Wires:2 pole 2 wires
Cable length:1.0 meter, 1.5m, 1.8m,custom length
End Options:ROJ, Termination, IEC 320 C7, C17
Color:White and black are normal,Custom color
Outer Mold Material:PVC,Rubber
Plug Insert Material:PBT,ABS
Blade Material:Nickel coated Brass
Cable Specifications:Standard and custom made
Wire Outject Material:PVC,Rubber,TPE,Textile
Environmental Certifications:RoHS, REACH, PAHS
Model Number:D05A , D05B , A2-7 , A2-10
Australia AC Power Cords AS NZS 3112, 7.5/10 Amp 250 Volt AC, 2 Pole 2 Wire Non-Grounding Type I Plug Connector Standards IEC 60320 (320) C-7, C17,Unterminated .Australia AS NZS 3112 (Australian 7.5 A, 10A / 250 V) and compatible types (Type I), connected with a two-wire ungrounded plug rated at 10 A , 250 V defined by SAA.The Australia AC plugs and Sockets are similar in appearance to the Argentine and Chinese plugs.

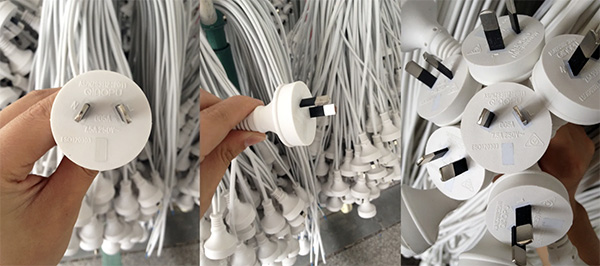

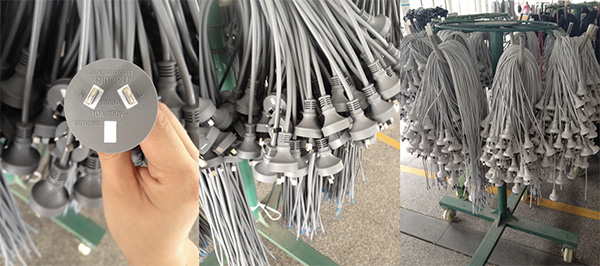

Australia power cords are black and white as standard color. gray and custome color are available. Custom length and shielded Australia power cord heavy duty,Australia AC power cables available. Terminated, custom stripping.
Australia AC power cords, power supply cords , New Zealand mains power cable SAA 10 Amp AS NZS 4417, AS NZS 3112, 15 Amp 250 Volt AC, 2 Pole 2 wire grounding.In Australia,the electricity supplied by the normal wall inlet is called the “mains power system” and therefore Australian power cords are often referred to as Australia mains leads,Australia mains cords,Australia mains cables,Australia line cords and mains power leads.
Available Opposite End
Normal Stripped, Splitter and ROJ
We manufacturers and supplies Australia Power Cord,AS NZS 3112 AC 2 Pole 2 Wire Non-Grounding Plug,custom color,the other end can be stipped ,ROJ with custom length.
Australia power cords, one end is molded with AS standard plugs, the opposite could be terminated with types of terminals such as grounding rings terminals ,fork with heat shrink or nylone insulated.
Power Cord Available Switches
Australia Power Cord AS NZS 3112 AC 2 Pole 2 wire are used to molded with online switches for salt lamp power supply cords.
The color of online swtiches mostly white, black and transparent
Australia Power Cord AS NZS 3112 AC 2 Pole 2 Wire Bulk packed with export cartons, pallets.
