AC Power Cord > Power Cord > Korean Power Cords > Korea KSC 8305 KTL KC CEE 7/7 Type 16A Angle Plug Power Cord
Korea-KSC-8305-KTL-KC-CEE-7/7-Type-16A-Angle-Plug-Power-Cord
  • Korea KSC 8305 KTL KC CEE 7/7 Type 16A Angle Plug Power Cord

  • Korean CEE7/7 type angle grounded plug power cord with KTL(Korea Testing Laboratory) KC certification Rated up to 16A 125V Built to KSC 8305 standard and designed for 3 prong Korean power supply cord applications,With IEC C5 , With IEC C13 , With IEC C15 , With IEC C19 describe Korean electrical plug molded with IEC 60320 connectors,All of our Korean AC plugs,connectors and power cords are fully made with high quality and RoHS / REACH compliant as we are China premier Korea power cord manufacturer.

    You can click here Korea 3 Prong Plug to C13:K04/ST3

  • Contact Us
Detailed description
Connector Standard CEE 7/7 Type KSC 8305 Angle Plug
Maximum Current rating 16A
Maximum Voltage 250V
Number of Poles and Wires 2 poles, 3 wires
Outer Mold Material 50P PVC
Blade Material Nickel coated Brass
Color Custom color available
Cable length Custom length available
Temperature Rating minus 40C though plus 75C
Approvals KTL,KC
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity
MOQ 2000pcs
Samples Free and could be sent within three days


Available Opposite End Connectors:


Standard                                                       Part NO


IEC 60320 C13                                             ST3(IEC C13)Korea


IEC 60320 C5                                               ST1(IEC C5)Korea


IEC 60320 C15                                            ST3H(IEC C15)Korea


IEC 60320 C19                                            XH008A(IEC C19)Korea


Other Termination Options:


Click Here


Applicable cable:


H05VV-F 3x0.75mm2  3x1.0mm2  3x1.5mm2

H05RR-F 3x0.75mm2  3x1.0mm2  3X1.5mm2

H05RN-F 3x0.75mm2  3x1.0mm2  3X1.5mm2

H07RN-F 3x1.0mm2   3x1.5mm2


More Information:


Korea 3 Prong Plug Specications

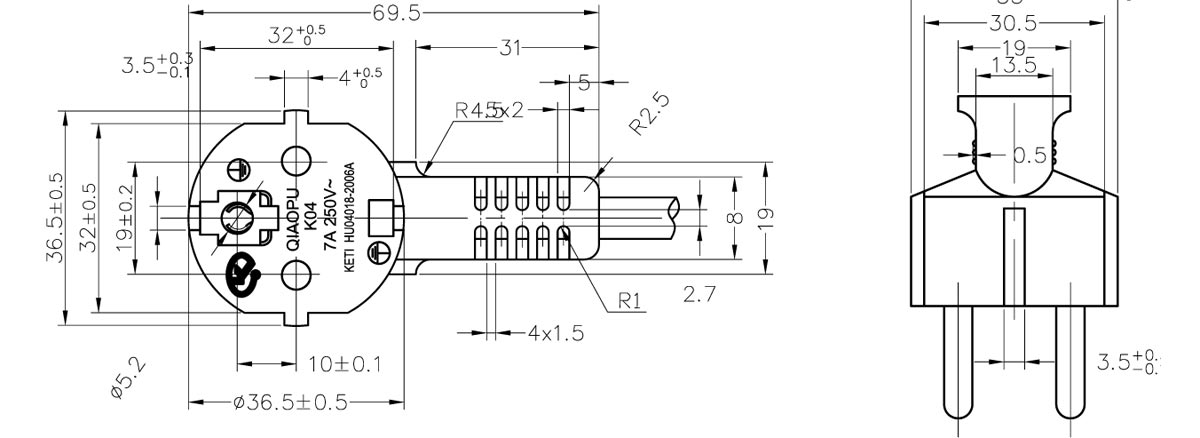

CEE 7/7 Korean Type Plug Drawing



CEE7/7 Plug Type Korea Power Cord


Korea AC Power Cords, AC Power Supply Cords Schuko, CEE 7/7, Type F Plug 16 Amp 250 Volt, 2 Pole 3 Wire Grounding

Korea Power Cords 2 Pole 3 Wire CEE 7/7 Plug, Custom Long Cable, Color KC Approved

Plug type: Non-rewireable Type E,F plug
Standard:CEE 7/7 Schuko
Approvals:KTL,KC
Electricity:16A
Number of Poles and Wires:2 pole 3 wires
Cable length:1.0 meter, 1.5m, 1.8m,custom length
Termination Options:ROJ,IEC Connectors ,terminations
Quality System:ISO9001:2008
Color:Custom color,white and black are normal
Outer Mold Material:PVC,Rubber
Plug Insert Material:PBT,ABS
Blade Material:Nickel coated Brass
Cable Specifications:Standard and custom made
Wire Outject Material:PVC,Rubber,TPE,Textile
Environmental Certifications:RoHS, REACH, PAHS
Model Number:K04
Plug standard CEE 7/7, Type F Plug 16 Amp 250 Volt, 2 Pole 3 Wire Grounding ,KTL KC approvals, Connector Standards IEC 60320 (320) C-13, C-13 Locking, C-19, C-19 Locking, C-5, C-7, C-15, Unterminated. The Korea AC plugs and sockets are same as European and Indonesia but different safety approvals.
Korea Power Cords 2 Pole 3 Wire CEE 7/7 Plug


Available Opposite End
Normal Stripped, Splitter, and ROJ

We manufacturers and supply Korea AC power cords, the other end can be stripped, ROJ with custom length.

Available Opposite End


Common Termination

The Korea ac power cord is one end molded with standard plugs, the opposite could be terminated with types of terminals such as grounding rings terminals, fork with heat shrink or nylone insulated.

Common Termination


IEC 60320 Connectors

The Korea ac power cord to IEC 320 C13 computer power cord,IEC 60320 C5 laptop power cord is normal versions of  Korea power supply cord,ac power cords with IEC connectors.

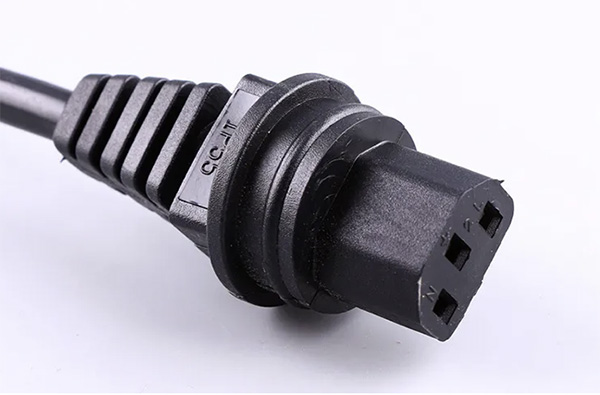

IEC 60320 C13 Straight Power Cord

IEC 60320 C13 Straight Power Cord

IEC 60320 C13 Right Angle Power Cord

IEC 60320 C13 Right Angle Power Cord

IEC 60320 C13 Waterproof Power Cord

IEC 60320 C13 Waterproof Power Cord

IEC 60320 C13 Locking Power Cord

IEC 60320 C13 Locking Power Cord

IEC 60320 C15 Power Cord

IEC 60320 C15 Power Cord

IEC 60320 C19 Power Cord

IEC 60320 C19 Power Cord

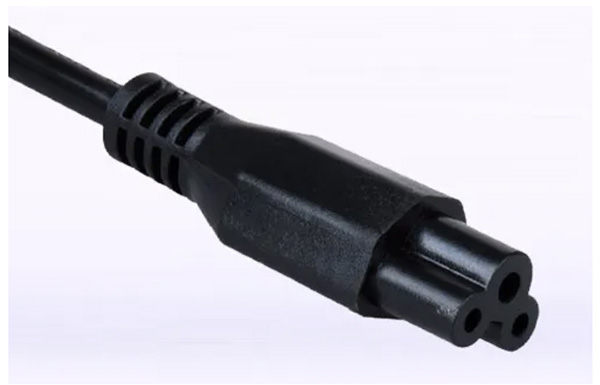

IEC 60320 C5 Power Cord

IEC 60320 C5 Power Cord


Package

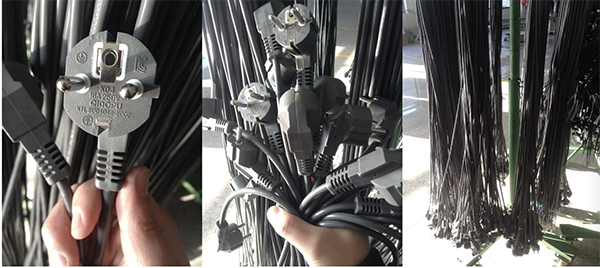

The Korea ac power cord mostly bulk packed with export cartons, pallets.
Package
Yunhuan manufacturers and supplies electrical AC power supply cords for use in Korea and all Countries in the world. Our extensive and complete Korea power cord line includes power receptacle outlets, Plug, weatherproof receptacle outlets, sockets, multiple outlet power strips, power supply cords, power cable wire and plug adapters . Contact us for Korea AC power cords as China leading power cord manufacturer and supplier.all of our Korea power supply cords are are made of high quality approved by KTL, KC  with Rohs and Reach compliant.
