AC Power Cord > Power Cord > Korean Power Cords > Koran KSC 8305 KTL KC Straight Plug 16A AC Power Cord
Koran-KSC-8305-KTL-KC-Straight-Plug-16A-AC-Power-Cord

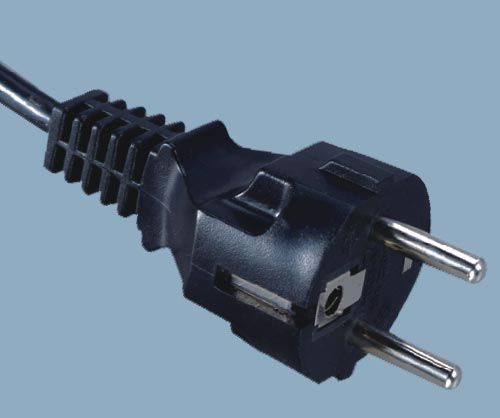

  • Koran KSC 8305 KTL KC Straight Plug 16A AC Power Cord

  • Korean straight grounded plug power cord with KTL(Korea Testing Laboratory) KC certification Rated up to 16A 125V Built to KSC 8305 standard and designed for 3 prong Korean power supply cord applications,With IEC C5 , With IEC C13 , With IEC C15 , With IEC C19 describe Korean electrical plug molded with IEC 60320 connectors,All of our Korean AC plugs,connectors and power cords are fully made with high quality and RoHS / REACH compliant as we are China premier Korea power cord manufacturer.
  • Contact Us
Detailed description

Connector Standard CEE 7/7 Type KSC 8305 Angle Plug
Maximum Current rating 16A
Maximum Voltage 250V
Number of Poles and Wires 2 poles, 3 wires
Outer Mold Material 50P PVC
Blade Material Nickel coated Brass
Color Custom color available
Cable length Custom length available
Temperature Rating minus 40C though plus 75C
Approvals KTL,KC
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity
MOQ 2000pcs
Samples Free and could be sent within three days

Available Opposite End Connectors:


Standard                                                       Part NO


IEC 60320 C13                                             ST3(IEC C13)Korea


IEC 60320 C5                                               ST1(IEC C5)Korea


IEC 60320 C15                                            ST3H(IEC C15)Korea


IEC 60320 C19                                            XH008A(IEC C19)Korea


Applicable cable:


H05VV-F 3x0.75mm2  3x1.0mm2  3x1.5mm2

H05RR-F 3x0.75mm2  3x1.0mm2  3X1.5mm2

H05RN-F 3x0.75mm2  3x1.0mm2  3X1.5mm2

H07RN-F 3x1.0mm2   3x1.5mm2

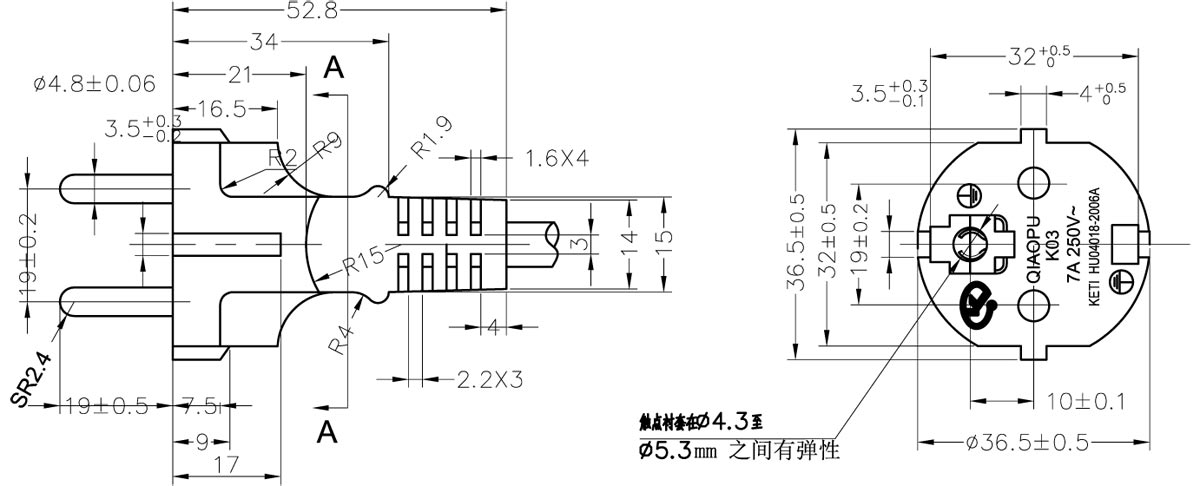

Straight Plug 16A Drawing


16A straight Korea KC Power Cord


Korea Power Cord 3 Wire 16 Amp CEE 7/7, Type F Straight Plug,KSC8305 Standard,AC Power Supply Cords,Custom Length,KTL KC Approved

Korea AC Power Supply Cords Custom Long KC Approved

Plug type: Non-rewireable Type E,F plug Straight
Standard:CEE 7/7 Schuko
Approvals:KTL,KC
Electricity:16A.250V
Number of Poles and Wires:2 pole 3 wires
Cable length:1.0 meter, 1.5m, 1.8m,custom length
Termination Options:ROJ,IEC,terminations
Quality System:ISO9001:2008
Color:Custom color,white and black are normal
Outer Mold Material:PVC,Rubber
Plug Insert Material:PBT,ABS
Blade Material:Nickel coated Brass
Cable Specifications:Standard and custom made
Wire Outject Material:PVC,Rubber,TPE,Textile
Environmental Certifications:RoHS, REACH, PAHS
Model Number:K03
Plug standard CEE 7/7, Type E,F Plug 16 Amp 250 Volt, 2 Pole 3 Wire Grounding Straight Plug, Connector Standards IEC 60320 (320) C-13, C-13 Locking, C-19, C-19 Locking, C-5, C-7, C-15, Unterminated.


Available Opposite End
Normal Stripped, Splitter, and ROJ

We manufacturers and supply Korea power cord 3 wire 16 Amp CEE 7/7 straight plug, the other end can be stripped, ROJ with custom length.

Available Opposite End


Common Termination

The Korea power cord 3 wire 16 Amp CEE 7/7 straight plug one end molded with standard plugs, the opposite could be terminated with types of terminals such as grounding rings terminals, fork with heat shrink or nylone insulated.

Common Termination


IEC 60320 Connectors

The Korea power cord 3 wire 16 Amp CEE 7/7 straight plug to IEC 320 C13 computer power cord,IEC 60320 C5 laptop power cord is normal versions of  Korea power supply cord,ac power cords with IEC connectors.

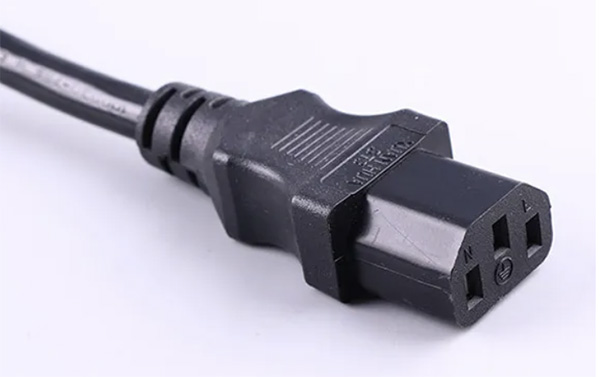

IEC 60320 C13 Straight Power Cord

IEC 60320 C13 Straight Power Cord

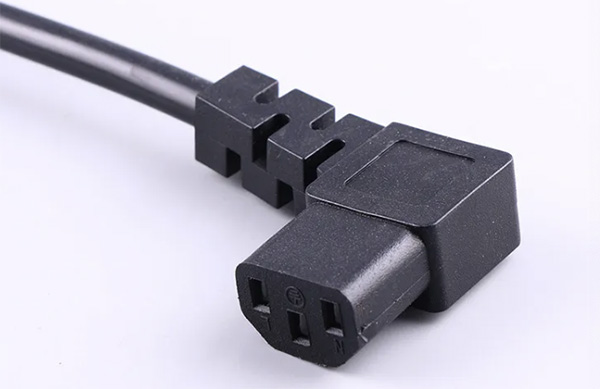

IEC 60320 C13 Right Angle Power Cord

IEC 60320 C13 Right Angle Power Cord

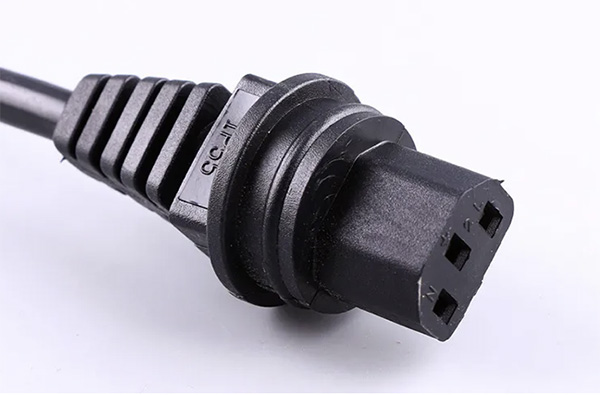

IEC 60320 C13 Waterproof Power Cord

IEC 60320 C13 Waterproof Power Cord

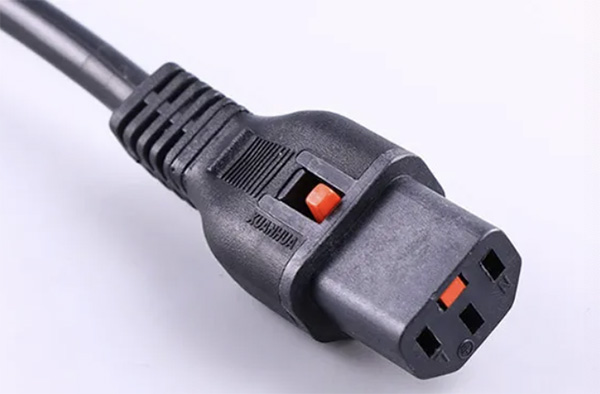

IEC 60320 C13 Locking Power Cord

IEC 60320 C13 Locking Power Cord

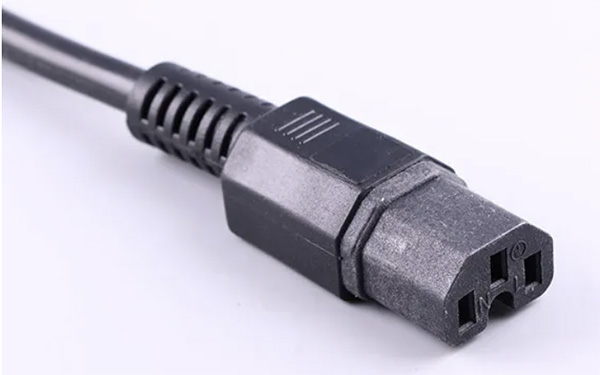

IEC 60320 C15 Power Cord

IEC 60320 C15 Power Cord

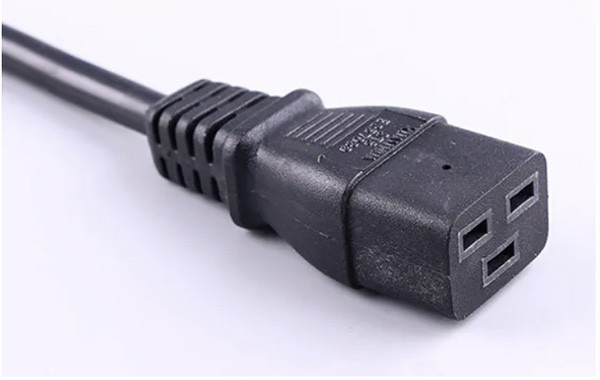

IEC 60320 C19 Power Cord

IEC 60320 C19 Power Cord

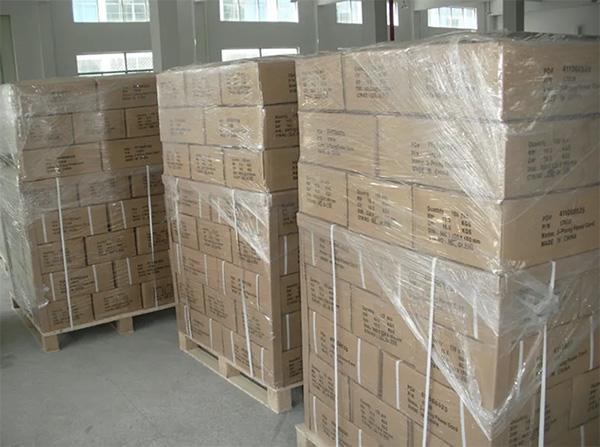

Package

The Korea power cord 3 wire 16 Amp CEE 7/7 straight plug mostly bulk packed with export cartons, pallets.
Package
Yunhuan manufacturers and supplies electrical AC power supply cords for use in Korea and all Countries in the world. Our extensive and complete Korea power cord line includes power receptacle outlets, Plug, weatherproof receptacle outlets, sockets, multiple outlet power strips, power supply cords, power cable wire and plug adapters . Contact us for Korea AC power cords as China leading power cord manufacturer and supplier.all of our Korea power supply cords are are made of high quality approved by KTL, KC  with Rohs and Reach compliant.
