AC Power Cord > Power Cord > Korean Power Cords > Korean KSC 8305 KTL KC 2 Pin 16A Plug AC Power Cord
Korean-KSC-8305-KTL-KC-2-Pin-16A-Plug-AC-Power-Cord

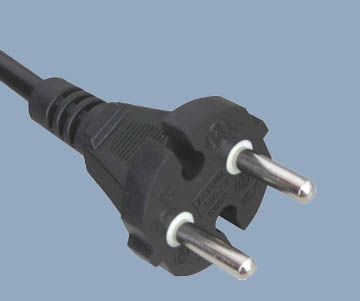

  • Korean KSC 8305 KTL KC 2 Pin 16A Plug AC Power Cord

  • KSC 8305 Korea two prong straight power cord plug with KTL (Korea Testing Laboratory) certification.Rated up to 16A 250V.Built to the Korea KSC 8305 and K60884-1 power cord plug standard.Our Korean power cord products are fully molded with a low profile ergonomic design and RoHS and REACH compliant.

    KSC 8305 Korea 2 pin power supply cord with KTL certification,Rated up to 16A 250V,Built to Korean KSC 8305 standards and designed for designed for Korean househould applications power supply cables,All of our Korean AC plugs,connectors and power cords are fully made with high quality and RoHS / REACH compliant as we are China premier Korea power cord manufacturer.

  • Contact Us
Detailed description
Connector Standard Korea 2 prong plug
Maximum Current rating 16A
Maximum Voltage 250V
Number of Poles and Wires 2 poles, 2 wires
Outer Mold Material 50P PVC
Blade Material Nickel coated Brass
Color Custom color available
Cable Length Custom length available
Temperature Rating minus 70C though plus 90C
Approvals KTL KC
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity
MOQ 3000pcs
Delivery lead date 15-20days


Other Termination Options:


Click Here


Available Cable Styles:


H03VVH2-F 2x0.75mm2

H05VVH2-F 2x0.75mm2

H05VV-F  2x0.75mm2   2x1.0mm2

H05RR-F  2x0.75mm2   2x1.0mm2

H05RN-F  2x0.75mm2   2x1.0mm2

H07RN-F  2x1.0mm2

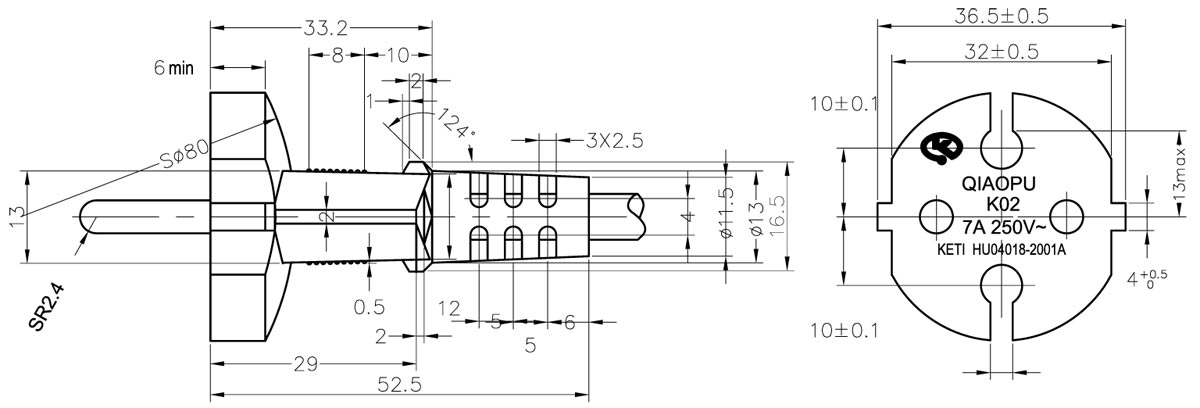

Korea KC Plug Drawing

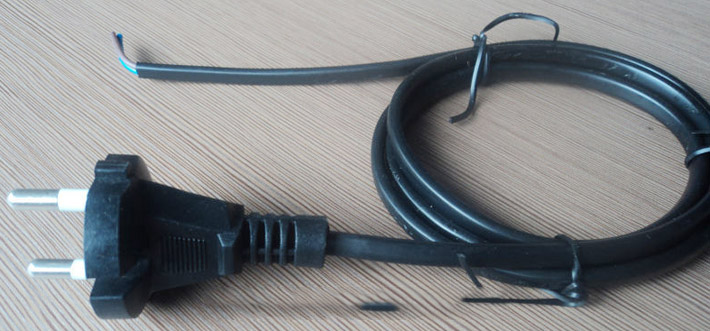

Korea 2 Pin Plug Power Supply Cord

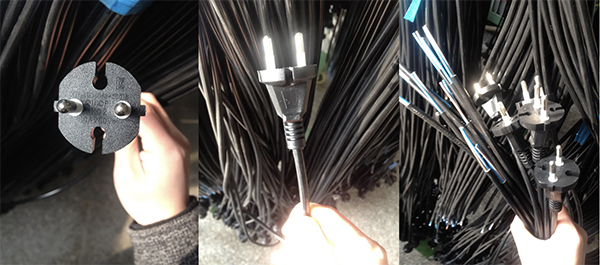

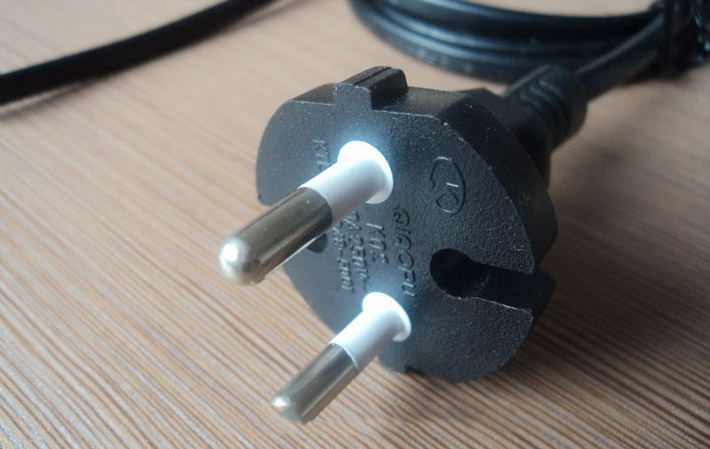

KSC8305 2 Pin Plug Pictures


Korea power cord,Korean power cord,Korea power cords,Korea power plugs,Korea plugs,Korea electrical plug,Korea plug,KC power cord,Korea KTL power cord


Korea Power Supply Cord


Korea Power Cord 2 Wire Non-Grounding 16 Amp Plug,KSC8305 Standard,AC Power Supply Cords,Custom Length,KTL KC Approved

Korea Plug,AC Power Supply Cords,Custom Length

Plug type: Non-rewireable Type C plug
Standard:CEE 7/17
Approvals:KTL,KC
Electricity:16A, 250V
Number of Poles and Wires:2 pole 3 wires
Cable length:1.0 meter, 1.5m, 1.8m,custom length
Termination Options:ROJ,IEC,terminations
Quality System:ISO9001:2008
Color:Custom color,white and black are normal
Outer Mold Material:PVC,Rubber
Plug Insert Material:PBT,ABS
Blade Material:Nickel coated Brass
Cable Specifications:Standard and custom made
Wire Outject Material:PVC,Rubber,TPE,Textile
Environmental Certifications:RoHS, REACH, PAHS
Model Number:K02,K2-16
Plug standard CEE 7/17, 16 Amp 250 Volt, 2 Pole 2 Wire Non-Grounding ,KTL KC approvals, Connector Standards IEC 60320 (320) C-9, C-17 Unterminated.Connector Standards IEC 60320 (320) C17, Unterminated. The Korea AC plugs and sockets are same as European and Indonesia but different safety approvals.

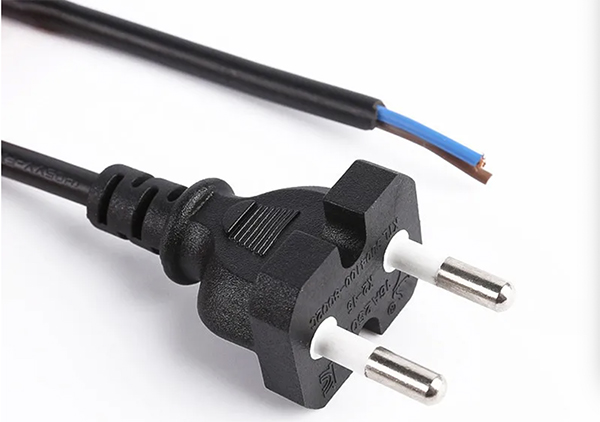

Korea Power Cord 2 Pin 16A Plug


Available Opposite End

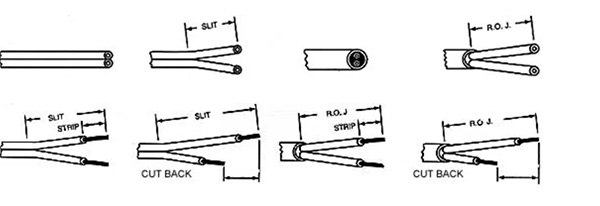

Normal Stripped, Splitter, and ROJ

We manufacturers and supply Korea power cord 2 wire Non-Grounding 16 Amp plug, the other end can be stripped, ROJ with custom length.

KTL KC 2 Wire 10 16A Power Supply Cord

Available Opposite End

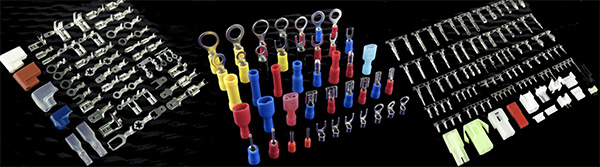

Common Termination

The Korea power cord 2 wire Non-Grounding 16 Amp plug one end molded with standard plugs, the opposite could be terminated with types of terminals such as grounding rings terminals, fork with heat shrink or nylone insulated.

Common Termination


Package

The Korea power cord 2 wire Non-Grounding 16 Amp plug mostly bulk packed with export cartons, pallets.

Package

Yunhuan manufacturers and supplies electrical AC power supply cords for use in Korea and all Countries in the world. Our extensive and complete Korea power cord line includes power receptacle outlets, Plug, weatherproof receptacle outlets, sockets, multiple outlet power strips, power supply cords, power cable wire and plug adapters . Contact us for Korea AC power cords as China leading power cord manufacturer and supplier.all of our Korea power supply cords are are made of high quality approved by KTL, KC  with Rohs and Reach compliant.
