AC Power Cord > Power Cord > Brazil Power Cords > Brazil 14136 Plug to IEC 60320 C19 Power Supply Cord
Brazil-14136-Plug-to-IEC-60320-C19-Power-Supply-Cord

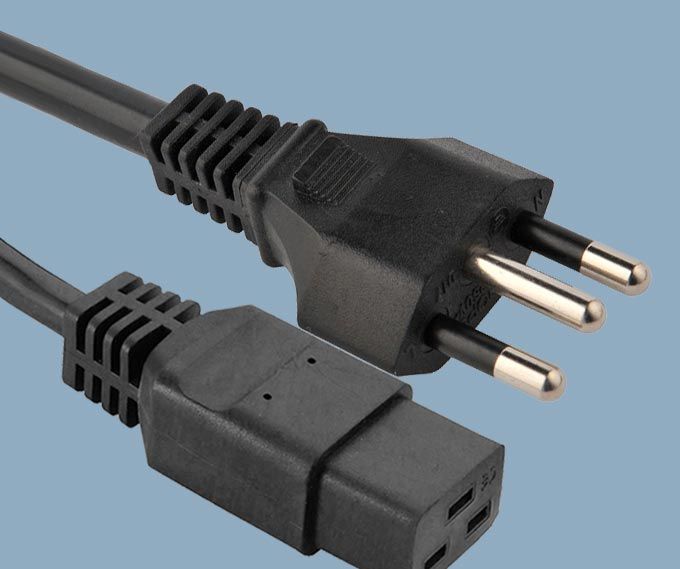

  • Brazil 14136 Plug to IEC 60320 C19 Power Supply Cord

  • Brazilian NBR 14136 stanadard 3 conductor plug to IEC 60320 C19 cord with UC Inmetro certification,RoHS and REACH approved and molded with high quality.The 60320 C19 IEC power cord receptacle is commonly used in high power data center and server environments with devices such as servers, PDUs and other data center and network gear.We produce high quality products at competitively low prices. All of our products are RoHS compliant and environment friendly.
  • Contact Us
Detailed description

Male Plug Brazil NBR 14136 10A plug
Female Receptacle IEC60320 C19 Brazil
Amperage Up to 16A
Voltage Up to 250V AC
Outer Mold Material 50P PVC
Blade Material Nickel coated Brass
Color Custom color available
Cable Length Custom length available
Certifications NBR UC InMetro
Environmental Certifications RoHS, REACH
Testing 100percent are individually tested
Available Wire Styles H03VV-F 3G0.5-0.75
H05VV-F 3G0.75-2.5
H03RT-F 3G0.75-1.0
H05RR-F 3G0.75-1.5
H05RN-F 3G0.75-1.0
H07RN-F 3G1.0-2.5
MOQ 3000pcs
Delviery lead date 15-20days
Pakcing Export cartons
Samples Free samples can be sent within 3 days
Payment TT 30percent Advance,balance after shipping,L/C


Brazil Plug to IEC 60320 C19 Power Cord, AC Power Cable For Servers and PDU with Custom Length / Color , Inmetro / TUV Certified
Brazil Power Cord, IEC 320 C19 AC Power Cable

Plug type: Brazil 3 wire grounding plug
Standard:NBR 14136
Approvals:Inmetro,TUV
Electricity:10A,12A,16A,250V
Number of Poles and Wires:2 pole 3 wires
Cable length:1.0 meter, 1.5m, 1.8m,custom length
End Options:IEC 320 C19
Quality System:ISO9001:2008
Color:White and black are normal,Custom color
Outer Mold Material:PVC,Rubber
Plug Insert Material:PBT,ABS
Blade Material:Nickel coated Brass
Cable Specifications:Standard and custom made
Wire Outject Material:PVC,Rubber,TPE,Textile
Environmental Certifications:RoHS, REACH, PAHS
Model Number:B3-10/ST6, B3-20/ST6
NBR 14136 Brazil Power Cord Plug, 10Amp 250 Volt AC, 2 Pole 3 Wire Non-Grounding Brazil Power Cords, Power Supply Cord Sets to Connector Standards IEC 60320 (320)  C-19, C-19 Locking, C19 right angle,C19 left angle. Brazil NBR 14136 (Brazilian 10A,12A,16A,20A / 250 V) and compatible types (Type N), connected with a three-wire grounding plug max rated at 20 A , 250 V defined by Inmetro, TUV. The Brazil AC plugs and Sockets are moslty used in Brazil only.
Brazil Power Cord IEC 320 C-19 are black, white as standard color. Brazil power cords in gray or custom colors are special order. Custom length and shielded Brazil AC power cables available. hanked Brazil cords available. IEC  C15 locking type connectors available on some Brazil AC power cords.


Package

The Brazil Power Cord to IEC 60320 C19 Bulk packed with export cartons, pallets.
Package

Yunhuan manufacturers and supplies electrical AC power supply cords for use in Brazil and all Countries in the world. Our extensive and complete Brazil power cord line includes power receptacle outlets, Plug, weatherproof receptacle outlets, sockets, multiple outlet power strips, power supply cords, power cable wire, and plug adapters. Contact us for Brazil AC  power cords as China leading Brazil power cord manufacturer and supplier. all of Brazil’s AC power cables are approved by Inmetro or TUV and Rohs  /  Reach compliant.
