AC Power Cord > Power Cord > Brazil Power Cords > 2 Pin Brazil NBR 6147 Non-ground Plug Power Cord
2-Pin-Brazil-NBR-6147-Non-ground-Plug-Power-Cord
  • 2 Pin Brazil NBR 6147 Non-ground Plug Power Cord

  • NBR 6147 Brazil 2 conductor plug power cord with UC InMetro certification Rated up to 16A 250V. Built to NBR NBR 6147 standard and designed for Brazil 2 prong Non-ground household applications power connections,NBR 6147 to IEC C7 describe Brazilian plug molded with IEC 60320 connectors, Our Brazilian standard AC power cables,plugs,sockets products are fully molded with high quality and RoHS/REACH compliant.

    Click here NBR 6147 2 prong 2.5A/250V power cord:YHB-1

  • Contact Us
Detailed description

Plug Standard Brazil NBR 14136 2P plug
Maximum Current rating 16A
Maximum Voltage 250V
Number of Poles and Wires 2 poles, 2 wires
Available Wire Thickness 1.5mm² through 0.5mm²
Outer Mold Material 50P PVC
Blade Material Nickel coated Brass
Flammability Rating UL 94V-0
Color Any color available
Temperature Rating minus 40C though plus 75C
Approvals Brazil UC/NBR INMETRO
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity


Available Opposite End Connectors:


Standard                                                    Part NO


IEC 60320 C7                                            ST2(IEC C7)Brazil


Other Termination Options:


Click Here


More Information:


Brazil INMETRO Certification


Φ4.0 Pin Plug Maximum Current Rating 10A

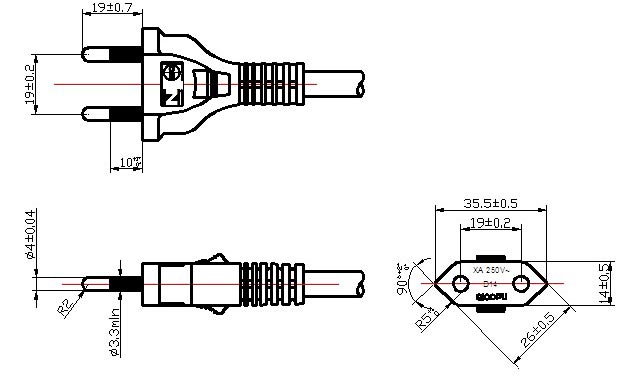

Plug Drawing

Brazilian New NBR 14136 Standard Φ4.0 Plug 2 Prong ungrounded Plug Technical Max 10 Amps Drawing.


2 Pin Plug Brazil Power Cord Product Drawing


Φ4.8 Pin Plug Maximum Current Rating 16A


Plug Drawing

Brazilian New NBR 14136 Standard Φ4.0 Plug 2 Prong ungrounded Plug Technical Max 10 Amps Drawing.


Brazilian New NBR 14136 Standard Φ4.8 Plug 2 Prong Plug Drawing

Electrical Rating (Amps) Wire Styles Conductor Normal Area
2.5 Cabo Flexivel Circular 300V H03VV-F 60227 IEC 52 2x0.5mm2
Cabo Flexivel Circular 300V H03H2VV-F 60227 IEC 52
10 Cabo Flexivel Circular 300V H03VV-F 60227 IEC 52 2x0.75mm2
Cabo Flexivel Circular 300V H03H2VV-F 60227 IEC 52
Cabo Flexivel Circular 500V H05VV-F 60227 IEC 53 2x0.75mm2 or 2x1.0mm2
Cabo Flexivel Circular 500V H05H2VV-F 60227 IEC 53
Cabo Flexivel Circular 500V H05RR-F 60245 IEC 53
Cabo Flexivel Circular 500V H05RN-F 60245 IEC 57
Cabo Flexivel Circular 500V H05V2V2-F 60245 IEC 57

Electrical Rating (Amps) Wire Styles Conductor Normal Area
12 Cabo Flexivel Circular 500V H05VV-F 60227 IEC 53 2x1.0mm2
Cabo Flexivel Circular 500V H05VVH2-F 60227 IEC 53
Cabo Flexivel Circular 500V H05RR-F 60245 IEC 53
Cabo Flexivel Circular 500V H05RN-F 60245 IEC 57
Cabo Flexivel Circular 750V H07RN-F 60245 IEC 66
Cabo Flexivel Circular 500V H05V2V2-F 60245 IEC 57
16 Cabo Flexivel Circular 500V H05VV-F 60227 IEC 53 2x1.5mm2
Cabo Flexivel Circular 500V H05RR-F 60245 IEC 53
Cabo Flexivel Circular 500V H05RN-F 60245 IEC 57
Cabo Flexivel Circular 750V H07RN-F 60245 IEC 66
Cabo Flexivel Circular 500V H05V2V2-F 60245 IEC 57


NBR 6147 (Non-Polarized) Brazil Power Cord Plug, 2.5 Amp, 10 Amp 250 Volt AC, 2 Pole 2 Wire Non-Grounding
Brazil power cord NBR 6147 Plug, 2 Pole 2 Wire Non-Grounding Custom Length Cable

Plug type: Brazil 2 wire plug
Standard: NBR 6147
Approvals: TUV
Electricity:2.5 Amp , 10A,250V
Number of Poles and Wires:2 poles 2 wires
Cable length:1.0 meter, 1.5m, 1.8m,custom length
End Options: ROJ, Termination, IEC connectors
Quality System: ISO9001:2008
Color: White and black are normal, Custom color
Outer Mold Material: PVC, Rubber
Plug Insert Material: PBT, ABS
Blade Material: Nickel Coated Brass
Cable Specifications: Standard and custom made
Wire Jacket Material: PVC, Rubber, TPE, Textile
Environmental Certifications: RoHS, REACH, PAHS
Model Number: D14,YHB-1,YHB-2
NBR 6147 (Non-Polarized) Brazil Power Cord Plug, 2.5 Amp 250 Volt AC, 2 Pole 2 Wire Non-Grounding Brazil Power Cords, Power Supply Cord Sets to Connector Standards IEC 60320 (320) C-7, C17,  Unterminated. Brazil NBR 6147 (Brazilian 2.5A, 10A / 250 V) and compatible types (Type N), connected with a two-wire ungrounded plug rated at 10 A, 250 V defined by Inmetro, TUV. The Brazil AC plugs and Sockets are mostly only used in Brazil
Brazil Type N power cords are black, white as a standard color. Brazil power cords in gray or custom colors are special orders. Custom length and shielded Brazil AC power cables available. Terminated, custom stripping, hanked Brazil cords available. IEC 60320 C-7, C17 connectors available on some Brazil AC power cords.

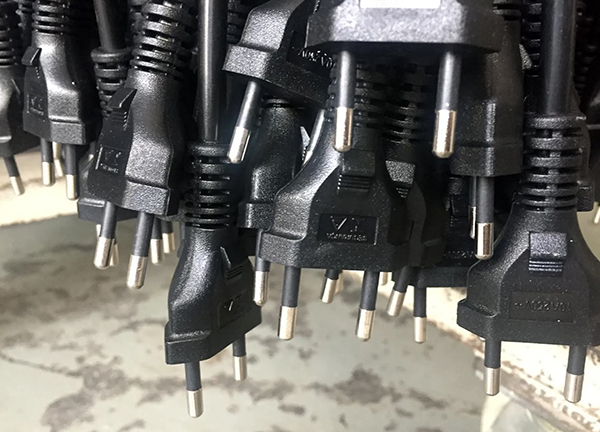

Brazil Power Cord

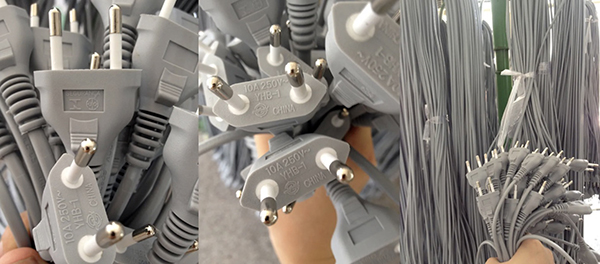

2.5A Brazil Plug

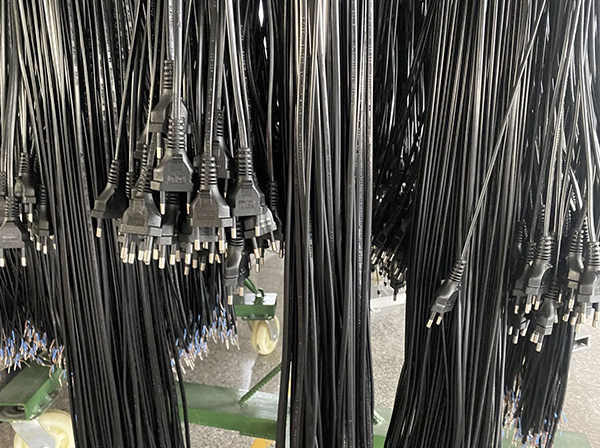

2 Wire Brazil Power Cord

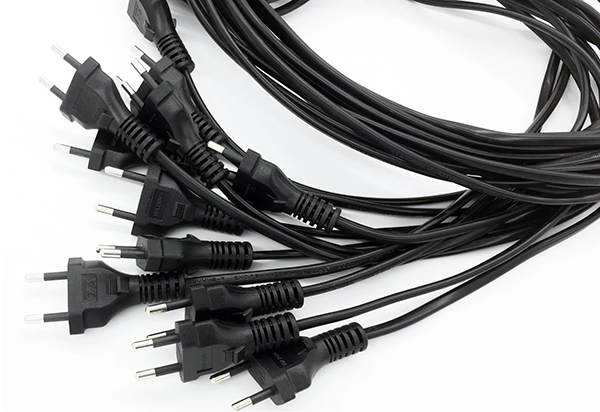

Brazil power cord NBR 6147 Plug

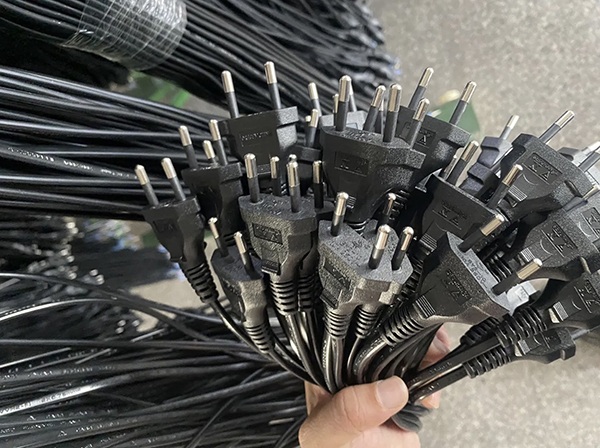

10A Brazil Power Cord

Cable Standards Brown, Blue (2 wire) inner leads with below available standard flexible cables

Electrical Rating
Amps
Cable Type Conductor Normal Area
2.5 Cabo Flexivel Circular 300V H03VV-F 60227 IEC 52 2×0.5mm2
Cabo Flexivel Circular 300V H03H2VV-F 60227 IEC 52
10 Cabo Flexivel Circular 300V H03VV-F 60227 IEC 52 2×0.75mm2
Cabo Flexivel Circular 300V H03H2VV-F 60227 IEC 52
Cabo Flexivel Circular 500V H05VV-F 60227 IEC 53 2×0.75mm2 or 2×1.0mm2
Cabo Flexivel Circular 500V H05H2VV-F 60227 IEC 53
Cabo Flexivel Circular 500V H05RR-F 60245 IEC 53
Cabo Flexivel Circular 500V H05RN-F 60245 IEC 57
Cabo Flexivel Circular 500V H05V2V2-F 60245 IEC 57


Available Opposite End
Normal Stripped, Splitter, and ROJ

We manufacturers and supply NBR 6147 (Non-Polarized) Brazil Power Cord Plug, 2.5 Amp, 10 Amp 250 Volt AC, 2 Pole 2 Wire Non-Grounding, the other end can be stripped, ROJ with custom length.

Available Opposite End


Common Termination

The NBR 6147 (Non-Polarized) Brazil Power Cord Plug, 2.5 Amp, 10 Amp 250 Volt AC, 2 Pole 2 Wire Non-Grounding is one end molded with standard plugs, the opposite could be terminated with types of terminals such as grounding rings terminals, fork with heat shrink or nylone insulated.

Common Termination


IEC 60320 Connectors

The NBR 6147 (Non-Polarized) Brazil Power Cord Plug, 2.5 Amp, 10 Amp 250 Volt AC, 2 Pole 2 Wire Non-Grounding to IEC 60320 C7 is normal versions of Brazil ac power cords with IEC connectors.

Brazil Power Cord to IEC C7

Brazil Power Cord to IEC C7

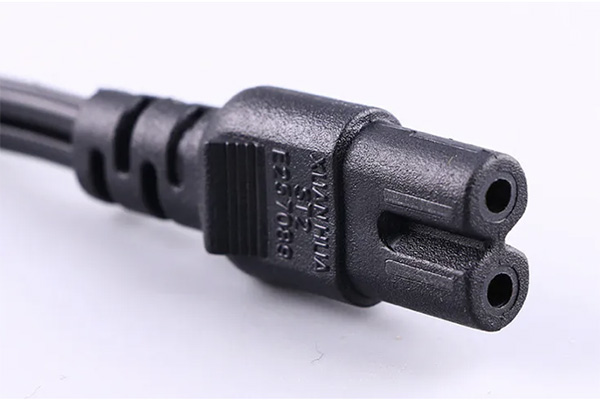

IEC 60320 C7 Power Cord

IEC 60320 C7 Power Cord


Power Cord Available Switches

NBR 6147 (Non-Polarized) Brazil Power Cord Plug, 2.5 Amp, 10 Amp 250 Volt AC, 2 Pole 2 Wire Non-Grounding is used to molded with online switches for salt lamp power supply cords.

Swich Series

The color of online swtiches mostly white, black and transparent

Power cord with Swich

Power Supply Cord with Swich


Package

The NBR 6147 (Non-Polarized) Brazil Power Cord Plug, 2.5 Amp, 10 Amp 250 Volt AC, 2 Pole 2 Wire Non-Grounding Bulk packed with export cartons, pallets.

Package

Yunhuan manufacturers and supplies electrical AC power supply cords for use in Brazil and all Countries in the world. Our extensive and complete Brazil power cord line includes power receptacle outlets, Plug, weatherproof receptacle outlets, sockets, multiple outlet power strips, power supply cords, power cable wire, and plug adapters. Contact us for Brazil AC  power cords as China leading Brazil power cord manufacturer and supplier. all of Brazil’s AC power cables are approved by Inmetro or TUV and Rohs  /  Reach compliant.
