AC Power Cord > Power Cord > Brazil Power Cords > Brazil Right (Left) Angle Plug Max 20A Power Cord
Brazil-Right-Left-Angle-Plug-Max-20A-Power-Cord
  • Brazil Right (Left) Angle Plug Max 20A Power Cord

  • NBR 6147 NBR 14136 Brazil 3 prong Right (left) Angle power plug with new NBR Inmetro, TUV certifications Rated up to 20A 250V Built to UC ,InMeto standards and designed for 3-conductor Brazilian power supply cord applications,Our Brazilian plug,sockets and flexible cables are fully molded with high quality and RoHS / REACH compliant.


  • Contact Us
Detailed description

Connector Standard Brazil NBR 14136 3P right angle plug
Maximum Current rating 20A
Maximum Voltage 250V
Number of Poles and Wires 2 poles, 3 wires
Outer Mold Material 50P PVC
Blade Material Nickel coated Brass
Color Any color available
Temperature Rating minus 40C though plus 75C
Approvals Brazil UCIEE/NBR INMETRO
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity


  • Available Opposite End Connectors:


    Standard                                                    Part NO


    IEC 60320 C13                                          ST3(IEC C13)Brazil


    IEC 60320 C15                                           ST3H(IEC C15)Brazil


    IEC 60320 C19                                            XH008A(IEC C19)Brazil


    IEC 60320 C5                                              ST1(IEC C5)Brazil


    Other Termination Options:


    Click Here



    Cord Type Electrical Rating (Amps/Volts)
    60227IEC52(HO3VV-F)3*0.75
    60227IEC53(HO3VV-F)3*0.75
    60227IEC53(HO5VV-F)3*1
    60227IEC53(HO5VV-F)3*1.5
    60227IEC53(HO5VV-F)3*2.5

    10/250
    16/250
    20/250

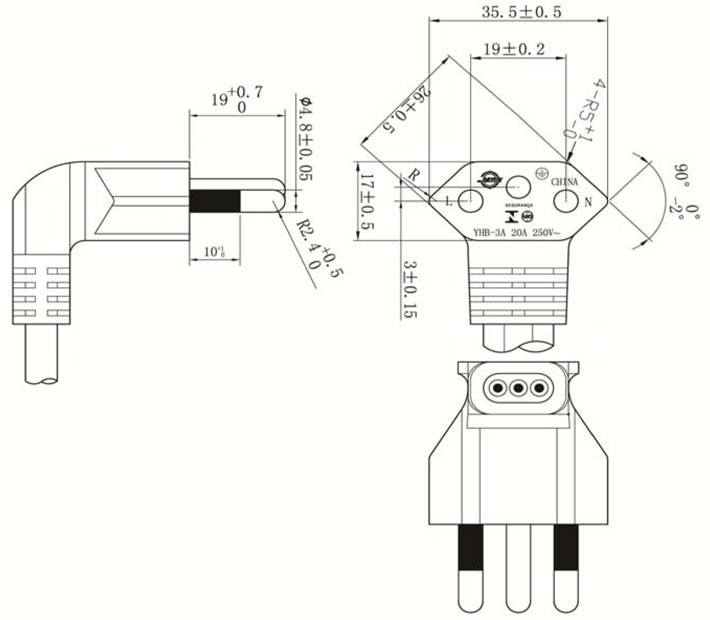

    Product Drawing

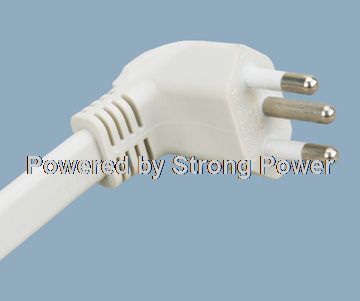

    Right Angle Brazil Power Cord

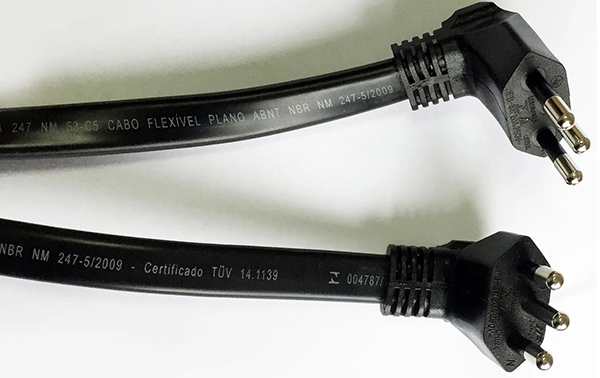

    Factory Manufacturing Images

    Brazilian Right (Left) Angle Plug 10A,16A,20A with flat flexible cable with any color and custom length power cords.

  • Brazil 20A Plug Power Cord Right Angle


    Brazil Power Cord NBR 14136 UC Type N Right Angle Plug Max 20 Amp Inmetro Certified TUV AC Power Supply Cable
    Brazil Power Cord Right Angle Plug Max 20 Amp  in Custom Long,Color

    Plug type: Brazil 3 wire angle plug
    Standard:NBR 14136
    Approvals:Inmetro,TUV
    Electricity:2.5A,10A,12A,16A,20A,250V
    Number of Poles and Wires:2 pole 3 wires
    Cable length:1.0 meter, 1.5m, 1.8m,custom length
    End Options:ROJ, Termination, IEC connectors
    Quality System:ISO9001:2008
    Color:White and black are normal,Custom color
    Outer Mold Material:PVC,Rubber
    Plug Insert Material:PBT,ABS
    Blade Material:Nickel coated Brass
    Cable Specifications:Standard and custom made
    Wire Outject Material:PVC,Rubber,TPE,Textile
    Environmental Certifications:RoHS, REACH, PAHS
    Model Number:JFB-3W
    NBR 14136 Brazil Power Cord Plug,2.5 Amp ,10Amp,12Amp,16Amp an Max 20 Amp, 250 Volt AC, 2 Pole 3 Wire Non-Grounding Brazil Power Cords, Power Supply Cord Sets to Connector Standards IEC 60320 (320) C-13, C-13 Locking, C-19, C-19 Locking, C-5,  C-15, Unterminated. Brazil NBR 14136 (Brazilian 10A,12A,16A,20A / 250 V) and compatible types (Type N), connected with a three-wire grounding plug max rated at 20 A , 250 V defined by Inmetro, TUV. The Brazil AC plugs and Sockets are moslty used in Brazil only.
    Brazil Type N power cords are black, white as standard color. Brazil power cords in gray or custom colors are special order. Custom length and shielded Brazil AC power cables available. Terminated, custom stripping, hanked Brazil cords available. IEC 60320 C-15 connectors with high temperature available on some Brazil AC power cords.
    Brazil Power Supply Cord

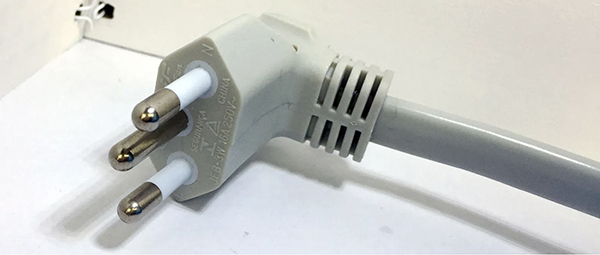

    Brazil Power Cord Right Angle Plug

    Cable Standards Brown, Blue (2 wire) inner leads with below available standard flexible cables

    Electrical Rating (Amps) Wire Styles Conductor Normal Area
    2.5 Cabo Flexivel Circular 300V H03VV-F 60227 IEC 53 3×0.5mm2
    10 Cabo Flexivel Circular 300V H03VV-F 60227 IEC 53 3×0.75mm2
    Cabo Flexivel Circular 500V H05VV-F 60227 IEC 53 3×0.75mm2 or 3×1.0mm2
    Cabo Flexivel Circular 500V H05RR-F 60245 IEC 53
    Cabo Flexivel Circular 500V H05RN-F 60245 IEC 57
    Cabo Flexivel Circular 500V H05V2V2-F 60245 IEC 57
    12 Cabo Flexivel Circular 500V H05VV-F 60227 IEC 53 3×1.0mm2
    Cabo Flexivel Circular 500V H05VVH2-F 60227 IEC 53
    Cabo Flexivel Circular 500V H05RR-F 60245 IEC 53
    Cabo Flexivel Circular 500V H05RN-F 60245 IEC 57
    Cabo Flexivel Circular 750V H07RN-F 60245 IEC 66
    Cabo Flexivel Circular 500V H05V2V2-F 60245 IEC 57
    16 Cabo Flexivel Circular 500V H05VV-F 60227 IEC 53 3×1.5mm2
    Cabo Flexivel Circular 500V H05RR-F 60245 IEC 53
    Cabo Flexivel Circular 500V H05RN-F 60245 IEC 57
    Cabo Flexivel Circular 750V H07RN-F 60245 IEC 66
    Cabo Flexivel Circular 500V H05V2V2-F 60245 IEC 57
    20 Cabo Flexivel Circular 500V H05VV-F 60227 IEC 53 3×2.5mm2

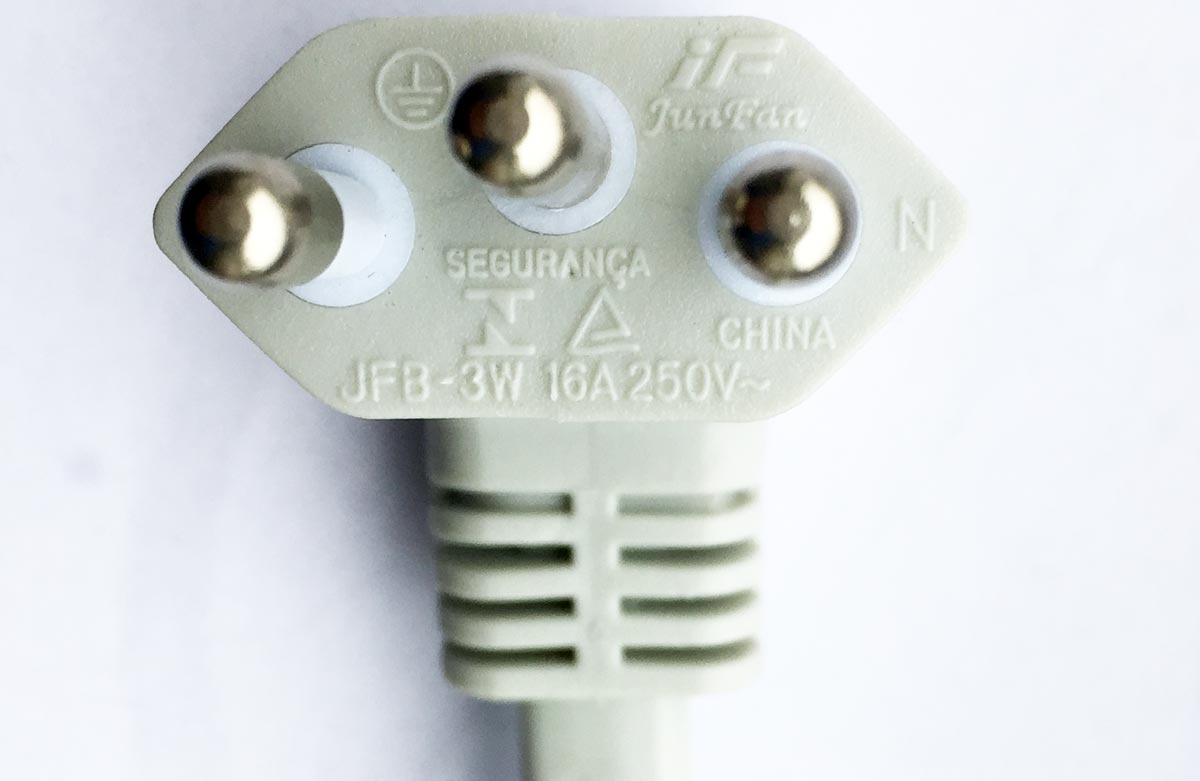

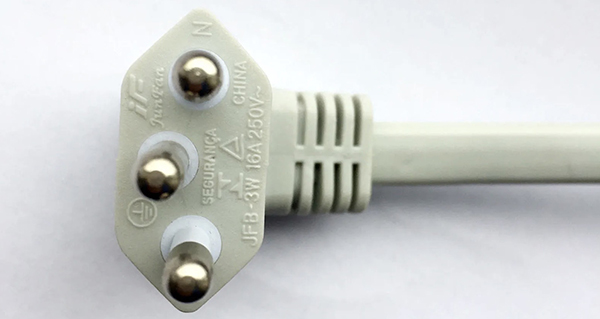

    NBR 14136 Type N Brazil Plug


    Available Opposite End
    Normal Stripped, Splitter, and ROJ

    We manufacturers and supply Brazil Power Cord Right Angle Plug MAX 20 Amp the other end can be stripped, ROJ with custom length.

    Available Opposite End

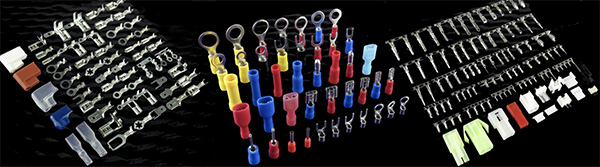

    Common Termination

    The Brazil Power Cord Right Angle Plug MAX 20 Amp is one end molded with standard plugs, the opposite could be terminated with types of terminals such as grounding rings terminals, fork with heat shrink or nylone insulated.

    Common Termination


    IEC 60320 Connectors

    The Brazil Power Cord Right Angle Plug MAX 20 Amp to IEC 60320 C5 laptop,IEC 60320 C13 computer power cable,IEC 60320 C19 PDU power cord is normal versions of Brazil ac power cords with IEC connectors.

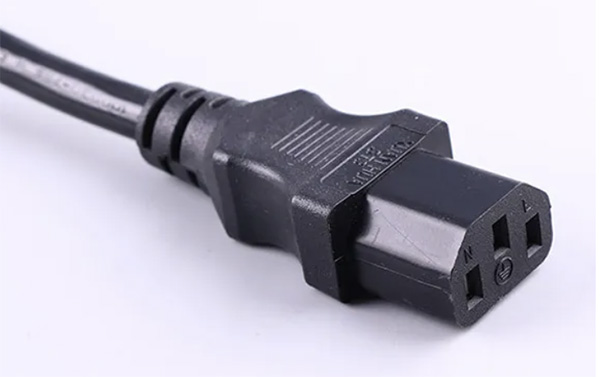

    IEC 60320 C13 Straight Power Cord

    IEC 60320 C13 Straight Power Cord

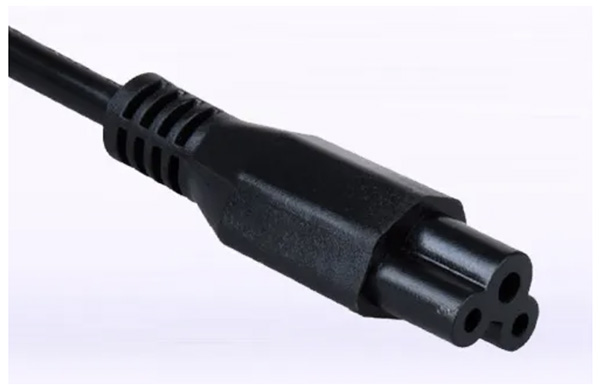

    IEC 60320 C5 Power Cord

    IEC 60320 C5 Power Cord

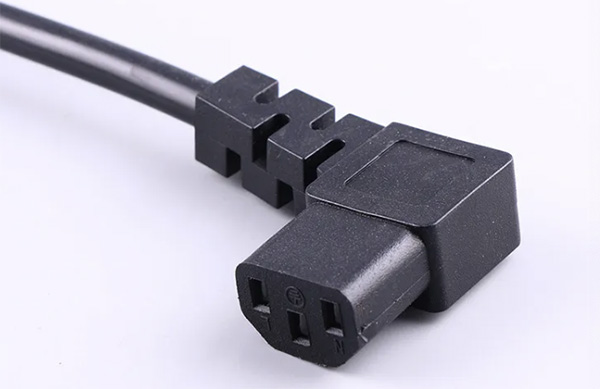

    IEC 60320 C13 Right Angle Power Cord

    IEC 60320 C13 Right Angle Power Cord

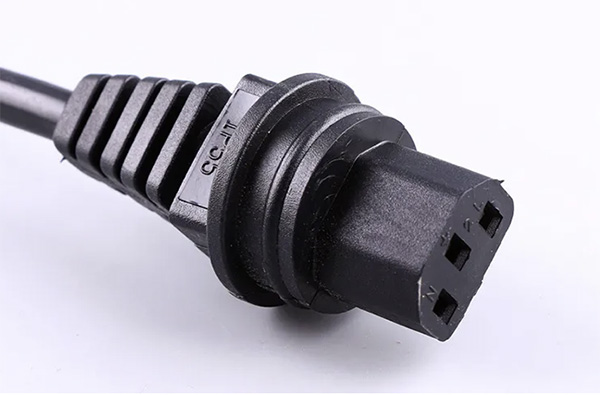

    IEC 60320 C13 Waterproof Power Cord

    IEC 60320 C13 Waterproof Power Cord

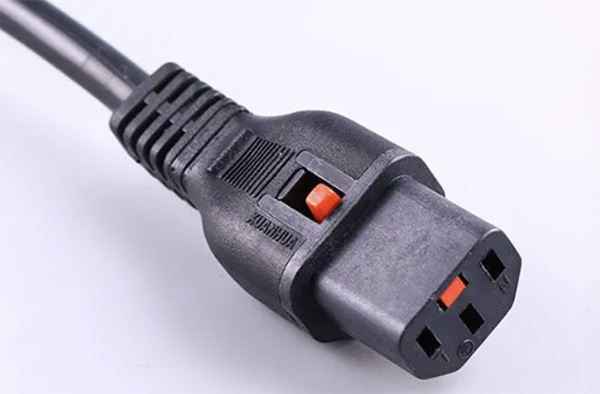

    IEC 60320 C13 Locking Power Cord

    IEC 60320 C13 Locking Power Cord

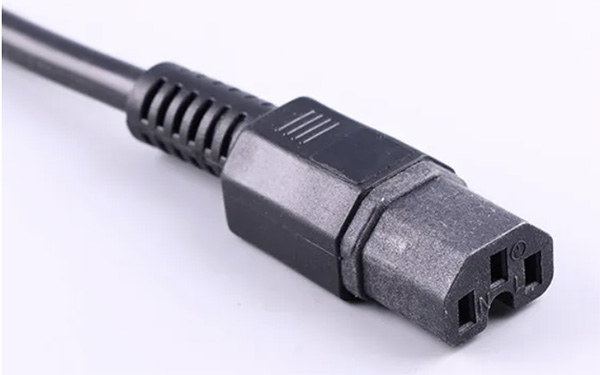

    IEC 60320 C15 Power Cord

    IEC 60320 C15 Power Cord

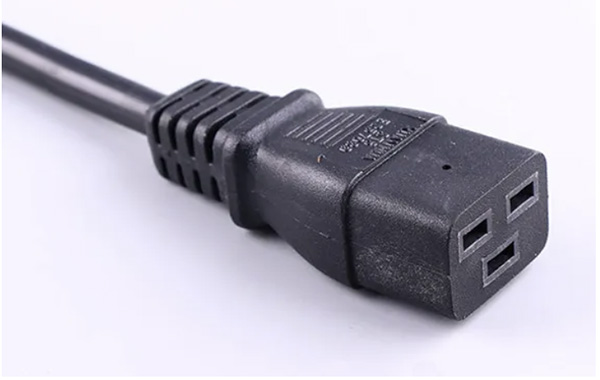

    IEC 60320 C19 Power Cord

    IEC 60320 C19 Power Cord

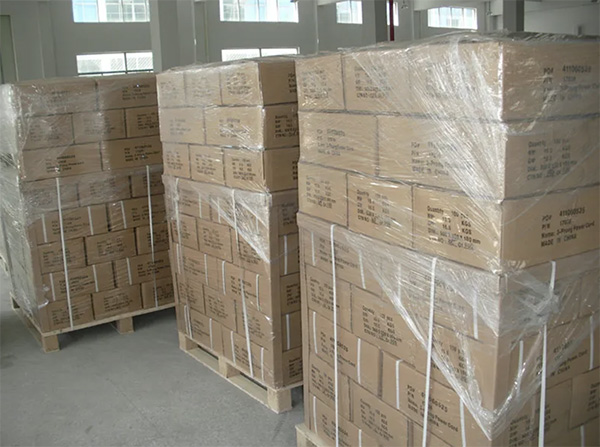

    Package

    The Brazil Power Cord Right Angle Plug MAX 20 Amp Bulk packed with export cartons, pallets.
    Package
  • Yunhuan manufacturers and supplies electrical AC power supply cords for use in Brazil and all Countries in the world. Our extensive and complete Brazil power cord line includes power receptacle outlets, Plug, weatherproof receptacle outlets, sockets, multiple outlet power strips, power supply cords, power cable wire, and plug adapters. Contact us for Brazil AC  power cords as China leading Brazil power cord manufacturer and supplier. all of Brazil’s AC power cables are approved by Inmetro or TUV and Rohs  /  Reach compliant.
