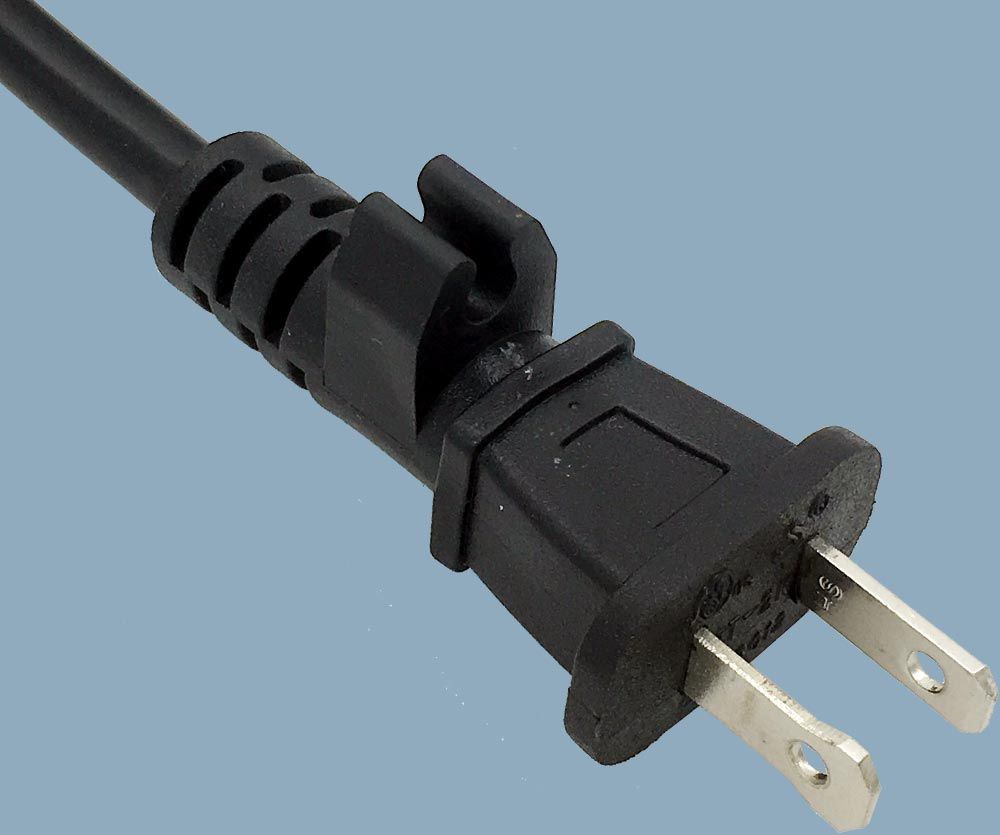

1-15P 15A 125V 2 Conductor Plug with Clip AC Power Cord

Specifications

Available Wire Styles

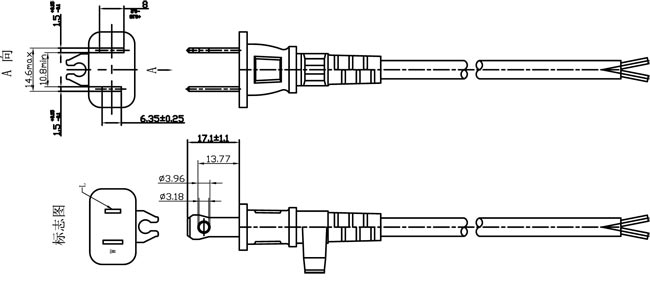

Product Drawing

North American UL cUL approved NEMA 1-15P Plug with Clip Power Supply Cord Drawing.

Vacuum Cleaner Power Supply Cords, Custom Long, Color, UL Listed

Vacuum Cleaner Cords NEMA 1-15P

• Plug type: 2 pole 2 wire plug
• Standard: NEMA 1-15P
• Approvals: UL, cUL
• Electricity:15A, 120V
• Number of Poles and Wires:2 poles 2 wires
• Cable length:1.0 meter, 1.5m, 1.8m,custom length
• End Options: ROJ, Termination
• Quality System:ISO9001:2008
• Color: White and black are normal, Custom color
• Outer Mold Material: PVC, Rubber
• Plug Insert Material: PBT, ABS
• Blade Material: Nickel Coated Brass
• Cable Specifications: Standard and custom made
• Wire Jacket Material: PVC, Rubber, TPE, Textile
• Environmental Certifications: RoHS, REACH, PAHS
• Model Number: YY-2III

Available Opposite End

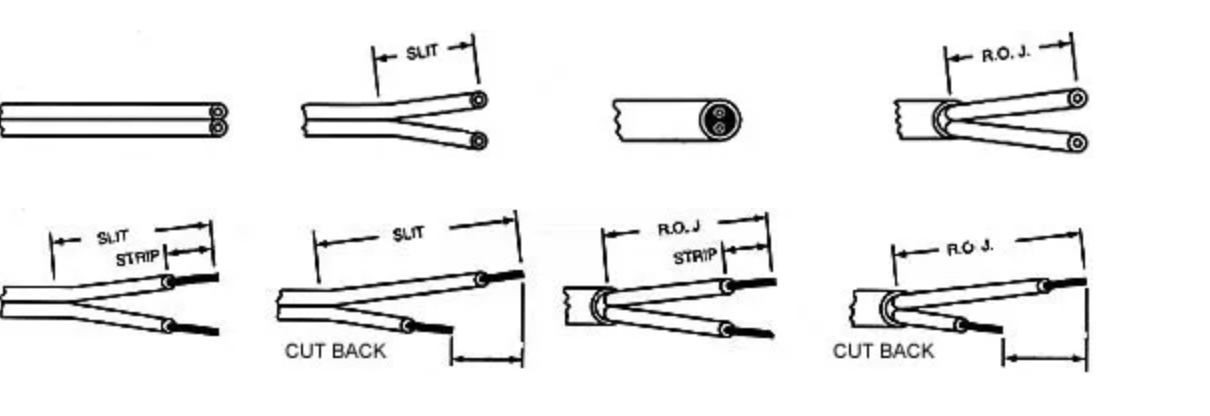

Normal Stripped, Splitter and ROJ

We manufacturers and supplies Vacuum cleaner cords NEMA 1-15P, custom color, the other end can be stripped, ROJ with custom length.

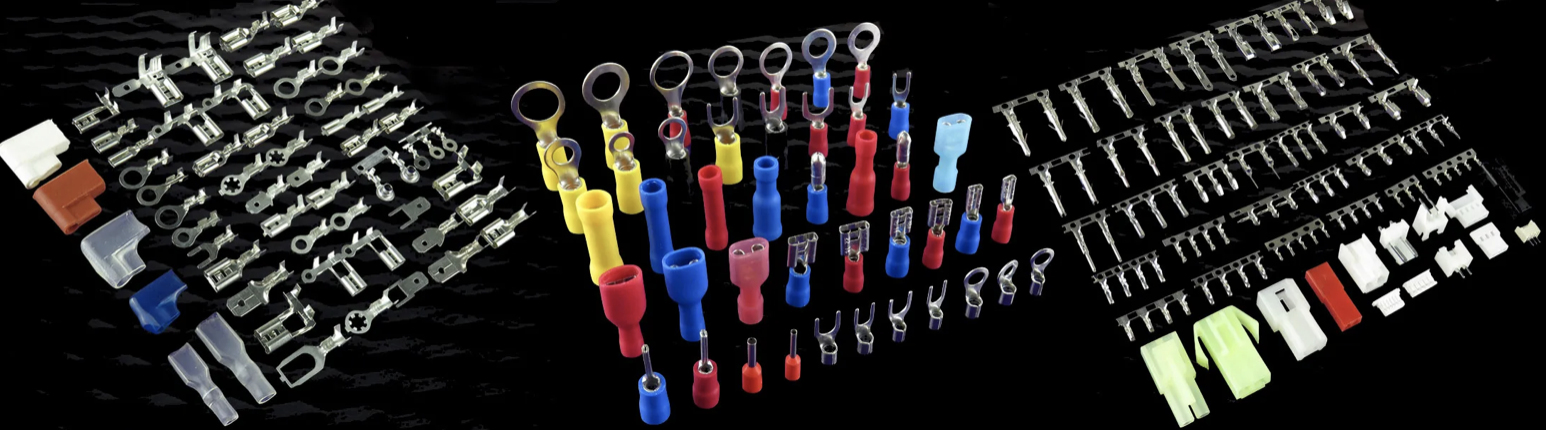

Common Termination

Vacuum cleaner cords NEMA 1-15P, one end is molded with NEMA  standard sheet plugs, the opposite could be terminated with types of terminals such as grounding rings terminals, fork with heat shrink or nylone insulated.

Package

Vacuum cleaner cords NEMA 1-15P Bulk packed with export cartons, pallets.

Yunhuan manufacturers and supplies electrical AC power supply cords for use in USA, Canada and all countries in the world. Our extensive and complete USA power cord line includes power receptacle outlets, Plug, weatherproof receptacle outlets, sockets, multiple outlet power strips, power supply cords, power cable wire, and plug adapters. Contact us for North America power cords as China leading USA power cord manufacturer and supplier.all of US power cords are approved by UL, cUL with Rohs and Reach compliant.
