Israel Power Cord Standard

Israel SI32 SII Power Cord Plug Flexible Cable Extension Socket

Plug and socket - outlet for household and similar purposes: plugs and sockets for single phase up to 16A - General requirements Israel standard.

Contents

1 . Plug Guide
2 . Power Cord
3 . Extension Outlet
4 . Flexible Cable
5 . Certification
6 . Reference

Israel Plug Socket

Plug Guide

The plug defined in SI 32 (IS16A-R) is used only in Israel and in territories of the State of Palestine (the West Bank and the Gaza Strip).update plugs with round pins. In 1989 new standard was publisehd, with three round 4.5 mm (0.177 in) pins in the same locations designed to allow the socket to accept both older and newer Israeli plugs, and non-earthed Europlugs (often used in Israel for equipment which does not need to be earthed and does not use more current than the Europlug is rated for). Pre-1989 sockets which accept only old-style plugs have become very rare in Israel. SI 32 plugs have no sleeve insulation, so when a plug is partially removed its prongs may still be powered although they can be touched by small fingers, metal objects, etc., with a risk of electric shock. Sockets have a defined polarity; if properly installed, looking at the front Neutral is to the left, Earth at the bottom, and Line to the right。

Power Cord

Israel power cord products with SII certification are manufactured to SI32 and IEC standards,designed for Israel power cord applications,We are producing Israel power cords in standard configurations and can make any custom version as well.100% of our Israel SII power cords are fully molded with high quality cords with RoHS and REACH compliant as We are China leading Israel power cords manufacturer and supplier providing cheapest prices of Israel SII approved ac power cords products with plug with IEC C7,C5,C13,C15,C19 power supply cords.

IEC 60320 Connectors

IEC 60320 power cables come in normal and high-temperature variants, as well as various rated currents. The connectors have slightly different shapes to ensure that it is not possible to substitute a cable with a lower temperature or current rating, but that it is possible to use an overrated cable. Cords also have different types of exterior jackets available to accommodate environmental variables such as moisture, temperature, oils, sunlight, flexibility, and heavy wear. For example, a heating appliance may come with a cord designed to withstand accidental contact with heated surfaces.


IEC 60320 C5 Power Receptacle	IEC 60320 C5 Power Cord	IEC 60320 C5 Power Cord with Protection Cover	IEC 60320 C7 Power Cord

IEC 60320 C7 Power Receptacle	IEC 60320 C13 Power Cord	IEC 60320 C13 Power Cord Right Angle	IEC 60320 C13 Power Cord Custom Made

IEC 60320 C13 Power Cord Waterproof	IEC 60320 C14 Power Plug	IEC 60320 C14 Power Plug Waterproof	IEC 60320 C14 Power Plug Custom

IEC 60320 C14 Power Cord Right Angle	IEC 60320 C15 Power Cord	IEC 60320 C15 Power Cord Right Angle	IEC 60320 C17 Power Connector

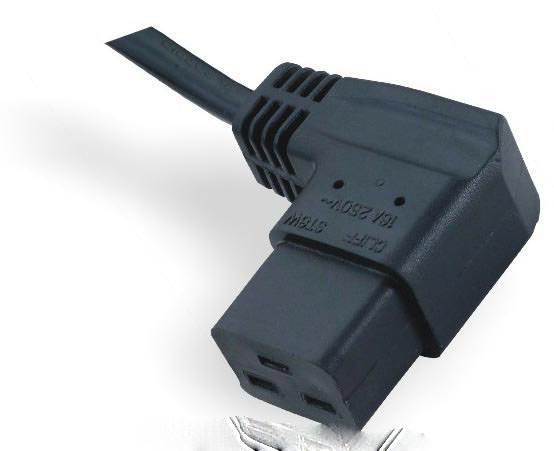

IEC 60320 C18 Power Plug	IEC 60320 C19 Power Connector	IEC 60320 C19 Power Cord Right Angle	IEC 60320 C20 Power Cord

Extension Outlet

Israel extension socket with Isarel SII certification are built to the SI32 standards for Israel AC extension cord applications also known as Israel extension outlets,We are producing 3,4,5,6,8 way Israel extension cable in standard configurations and can make any custom version as well.100% of our Israel extension sockets are fully molded high quality cords and RoHS and REACH compliant as We are China leading Isarel extension cord manufacturer and supplier providing cheapest prices of Israel SII approved power extension sockets,extension cord outlets,extension power cord,extension cable,outlet cord,outle power extension cords,products with good quality.

Flexible Cables

PVC Insulated Flexible Cord

Cable type	Number of cores conductors Section mm2
H03VVH2-F ( Flat)	2 x 0.5-0.75
H03VV-F	2-4 x 0.5-0.75
H05VVH2-F (Flat)	2x 0.75-1.0
H05VV-F	2-5 x 0.75-4.0

Rubber Flexible Cord

Cable type	Number of cores conductors Section mm2
H03RT-H	2-3 x 0.75-1.5
H05BB-F	2-4 x 0.75-2.5
H05RN-F	2-3 x 0.75-1.0
H05RR-F	2-5 x 0.75-4.0
H07RN-F	2-5 x 1.0-4.0

Certification

Plugs and socket in Israel with NEW SII standard.
