AC Power Cord > Power Cord > Korean Power Cords > Korean KSC 8305 KTL KC 2 Prong 2.5A Plug Power Cord
Korean KSC power cords--K01

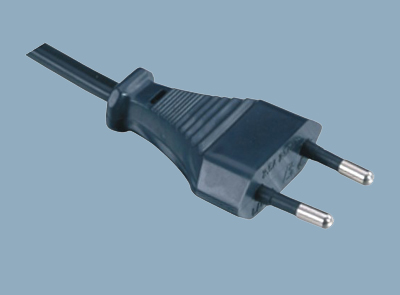

  • Korean KSC 8305 KTL KC 2 Prong 2.5A Plug Power Cord

  • KSC 8305 Korea two prong straight power cord plug with KTL (Korea Testing Laboratory) certification.  Rated up to 2.5A and 3A 250V.Built to the Korea KSC 8305 and K60884-1 power cord plug with C7 standard.  Our Korean power cord products are fully molded with a low profile ergonomic design and RoHS and REACH compliant.

    Click here:Korean KTL 2 Prong Plug(16A)

  • Contact Us
Detailed description

Male Plug

Korean KTL 2 Prong Plug

Female Receptacle

IEC 60320 C7 Korea

Amperage

Up to 2.5A

Voltage

Up to 250V AC

Outer Mold Material

50P PVC

Blade Material

Nickel coated Brass

Color

Any color available

Cable Length

Any length available

Certifications

KTL

Environmental Certifications

RoHS, REACH

Testing

100percent are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout


Other Termination Options:


Click Here


Available Opposite End Connectors:


Standard                                                         Part NO


IEC 60320 C7                                                  ST2(IEC C7)Korea


Available Cable Styles:


H03VVH2-F 2x0.5mm2

H03VVH2-F 2x0.75mm2

H03VV-F 2x0.5mm2

H03VV-F 2x0.75mm2

H05VVH2-F 2x0.75mm2

H05VV-F 2x0.75mm2


More Information:


KTL Certification


Korea Power Cord 2 Wire Non-Grounding 2.5 Amp Plug,KSC8305 Standard,AC Power Supply Cords,Custom Length,KTL KC Approved

Korea Plug AC Power Supply Cords,Custom Length

Plug type: 2 wire ungrounded ,non-polarized
Standard:CEE7 standard sheet 7-16
Approvals:KTL , KC
Electricity:2.5A,250V
Number of Poles and Wires:2 pole 2 wires
Cable length:1.0 meter, 1.5m, 1.8m,custom length
End Options:ROJ, Termination, IEC 320 C7, C17
Quality System:ISO9001:2008
Color:White and black are normal,Custom color
Outer Mold Material:PVC,Rubber
Plug Insert Material:PBT,ABS
Blade Material:Nickel coated Brass
Cable Specifications:Standard and custom made
Wire Outject Material:PVC,Rubber,TPE,Textile
Environmental Certifications:RoHS, REACH, PAHS
Model Number:K01
Plug standard 2 Wire Non-Grounding 2.5 Amp Plug, KSC8305 Standard, Connector Standards IEC 60320 (320) C7 figure 8 connector,C17,Unterminated, Korea KC compatible types (Type C), connected with a two-wire ungrounded plug rated at 2.5 Amp , 250 V defined by CEE 7/16.The Korea AC plugs and sockets are same as European and Indonesia but different safety approvals
Korea power cord 2 wire Non-Grounding 2.5 Amp plug are black and white as standard color. gray and custome color are  available. Custom length and shielded Korea AC power cord ,Korea AC power cables available, Terminated, custom stripping suitable for most the small electrical appliances using the two phase Korea power line, the Korea type  plug connecting the Koean plug connection with the household appliances.

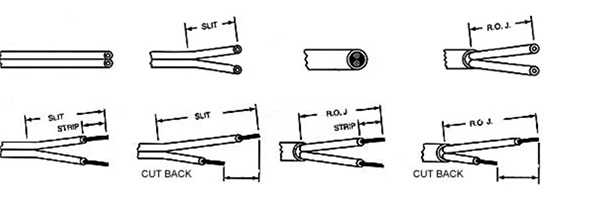

Available Opposite End
Normal Stripped, Splitter, and ROJ

We manufacturers and supply Korea power cord 2 wire Non-Grounding 2.5 Amp plug, the other end can be stripped, ROJ with custom length.

Available Opposite End


Common Termination

The Korea power cord 2 wire Non-Grounding 2.5 Amp plug one end molded with standard plugs, the opposite could be terminated with types of terminals such as grounding rings terminals, fork with heat shrink or nylone insulated.

Common Termination


IEC 60320 Connectors

The Korea power cord 2 wire Non-Grounding 2.5 Amp plug to IEC 320 C7,IEC 60320 C7 power cord is normal versions of  Korea power supply cord,ac power cords with IEC connectors.

IE C60320 C7 Power Cord



Power Cord Available Switches

The Korea power cord 2 wire Non-Grounding 2.5 Amp plug is used to molded with online switches for salt lamp power supply cords.

Swich Series

The color of online swtiches mostly white, black and transparent

Power cord with Swich

Power Supply Cord with Swich



Package

The Korea power cord 2 wire Non-Grounding 2.5 Amp plug mostly bulk packed with export cartons, pallets.

Package

Yunhuan manufacturers and supplies electrical AC power supply cords for use in Korea and all Countries in the world. Our extensive and complete Korea power cord line includes power receptacle outlets, Plug, weatherproof receptacle outlets, sockets, multiple outlet power strips, power supply cords, power cable wire and plug adapters . Contact us for Korea AC power cords as China leading power cord manufacturer and supplier.all of our Korea power supply cords are are made of high quality approved by KTL, KC  with Rohs and Reach compliant.
