  • Australia SAA approval power cord XH022B

    Australia SAA approval power cord XH022B

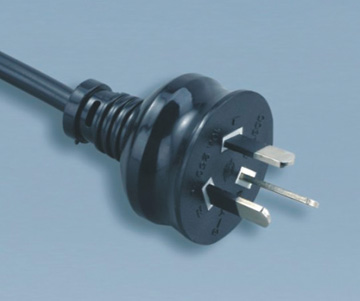

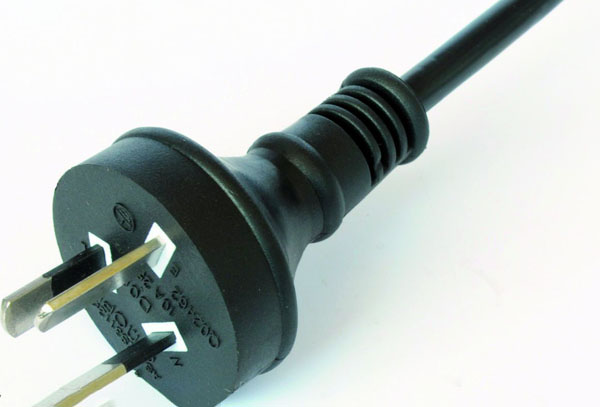

    AS 3112 Australia three prong power cord light duty plug with SAA certification.Rated up to 10A 250V.Our AS 3112 Australia power cord products are fully molded with a low profile ergonomic design and RoHS and REACH compliant.These are also referred to as AS 3112 mains plug and Australia mains plug.

    AS 3112 is the standard plug specification used in Australia and requires that the live and neutral prongs have at least 50% from base to tip, of a non-conductive coating to help prevent shock if the plug becomes partially dislodged or not plugged in all the way. New Zealand uses the exact same products as Australia and calls this plug the NZS 311.

    AS3112 Plug to C13:D06/QT3

    AS3112 Plug to C5:D06/QT1

    AS3112 Plug to C13(right angle):D06/ST3W

    AS3112 Heavy-Duty Plug:YA-4

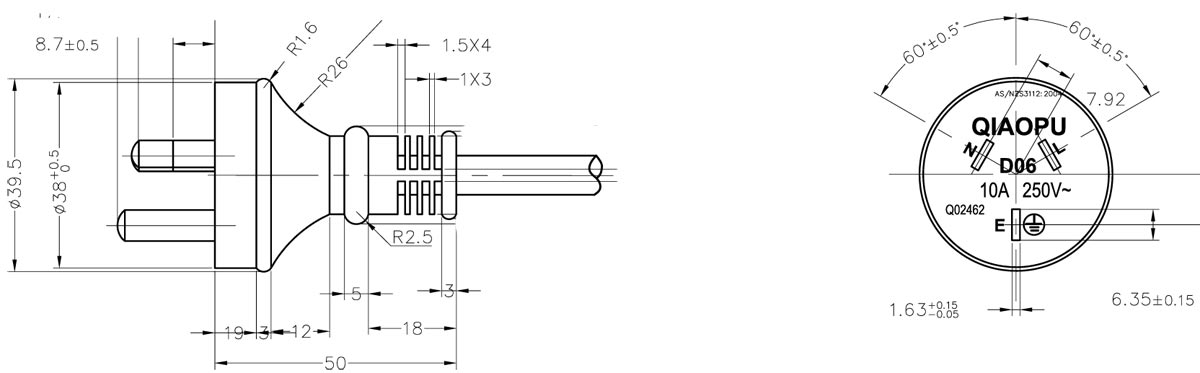

    AS3112 3 Prong:D06 Power Cord Drawing(PDF)




  • specifications

  • Male Plug

     Australia 3 Prong Plug

    Female Receptacle

    None

    Amperage

    Up to 10A

    Voltage

    Up to 250V AC

    Outer Mold Material

    50P PVC

    Blade Material

    Nickel coated Brass

    Color

    Any color available

    Cable Length

    Any length available

    Certifications

    SAA

    Environmental Certifications

    RoHS, REACH

    Testing

    100% are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout


    Available Opposite End Connectors:


    Standard                                    Part NO

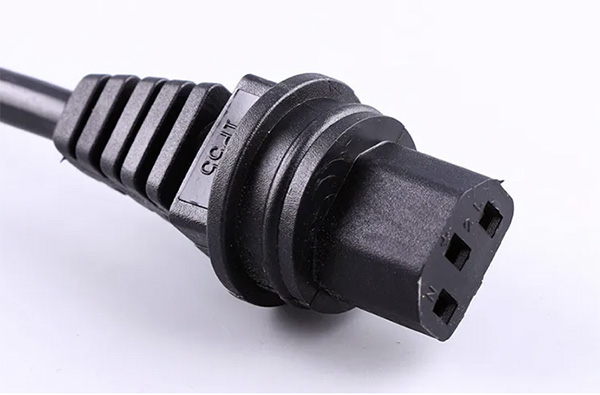

    IEC C13                                     QT3(IEC C13)Australia

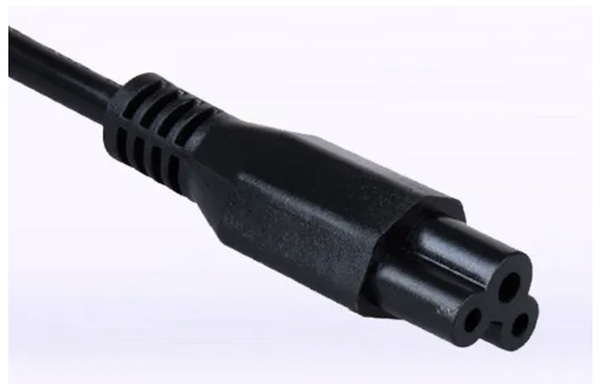

    IEC C5                                       QT1(IEC C5)Australia


    IEC C13(right angle)               ST3W(IEC C13)Australia


    Available Cable Styles:


    H05VV-F 3x0.75mm2  H05VV-F 3x1.0mm2  H05VV-F 3x1.5mm2

    H05RN-F 3x0.75mm2  H05RN-F 3x1.0mm2  H07RN-F 3x1.0mm2

    H05RR-F 3x0.75mm2  H05RR-F 3x1.0mm2  H07RR-F 3x1.0mm2

    H07RN-F 3x1.5mm2

    4V-75 0.6/1KV 3x1.0mm2

    4V-75 0.6/1KV 3x1.5mm2


    More Information:


    REACH 46 ITEMS test report

    Item NO Number Voltage Number of maximum current Number of conductors Jacket Type Jacket Color Standard
    XH022B 250V 10A 3 PVC,Rubber Any as Requested AS/NZS 3112
    End of treatment MOQ Payment Transportation Delivery period Packing Wiring Standard
    Bare 5000pcs T/T By air or sea 15 days Export cartons as bellow
