Australia AS/NZ 3112 3-conductor Plug To IEC 60320 C5 Power Cord

Future Products

AC Power Cord > Power Cord > Australia Power Cords > Australia AS/NZ 3112 3-conductor Plug To IEC 60320 C5 Power Cord

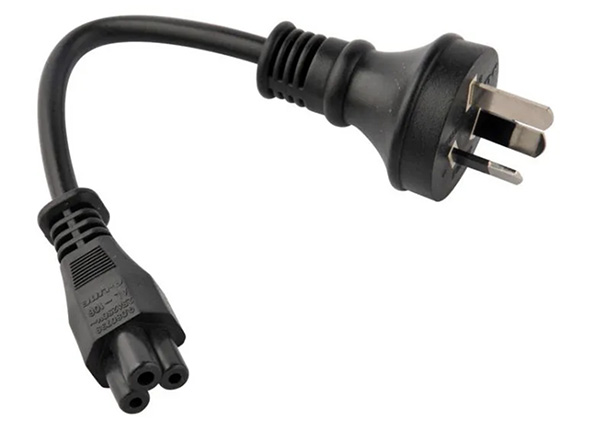

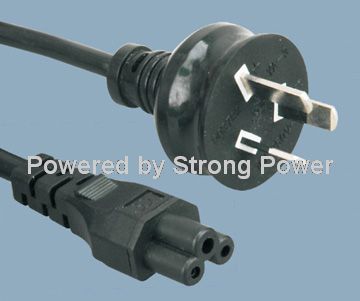

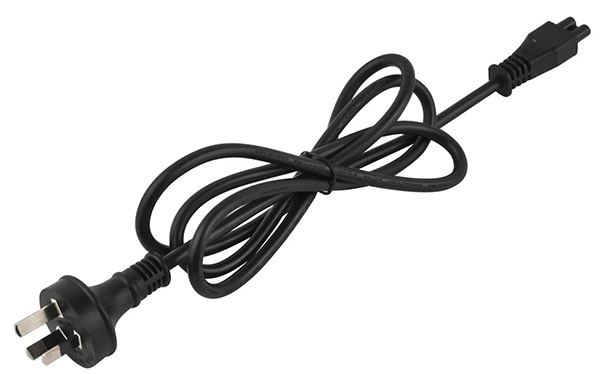

Australia AS/NZ 3112 3-conductor Plug To IEC 60320 C5 Power Cord
Australia to C5 power cord:Australia plug to c5 Power Cord,AS/NZ 3112 standard 3 prong earthing lead plug to IEC 60320 C5 international power connector with Australia SAA certification mostly used in laptop and electronics as Australia mains leads,Australia mains cords,Australia mains cables,All of our Plugs and Sockets Australia are fully made with low profile ergonomic design and RoHS / REACH compliant as China leading AC power cord manufacturer.

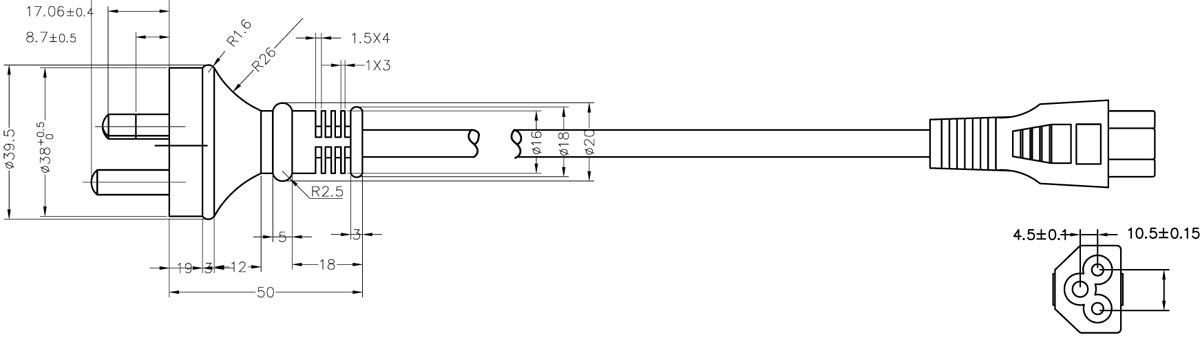

View the technical drawing:D06 to C5 power cord(PDF)
Contact Us

Detailed description

Male Plug	Australia 3 prong plug
Female Receptacle	IEC 60320 C5 Australia
Amperage	Up to 10A
Voltage	Up to 125V AC
Outer Mold Material	50P PVC
Blade Material	Nickel coated Brass
Color	Custom color available
Cable Length	Custom length available
Certifications	SAA
Environmental Certifications	RoHS, REACH
Testing	100percent are individually tested
Available Wire Styles	H03VV-F 3G0.5-0.75 H05VV-F 3G0.75-2.5 H03RT-F 3G0.75-1.0
MOQ	3000 pcs
Delivery lead date	15-20 days
Packing	Export cartons
Samples	Free samples can be sent within 3 days
Payment	TT 30percent Advance,balance after shipping,L/C

Other Termination Options:

Click Here

Australia AS/NZ 3112 Plug to IEC C13 Drawing

The Australian and New Zealand AS 3112 is physically the same as the Argentinean IRAM 2073 and the Chinese GB 2099 but the line blades are insulated mold with IEC 60320 receptacle as mains power cord for household applications.
