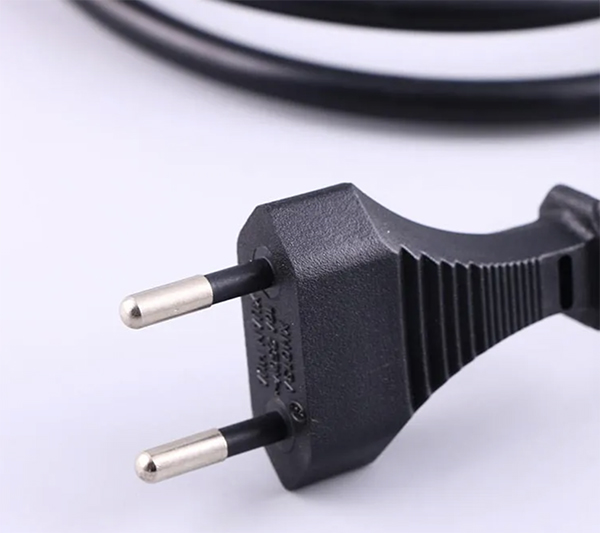

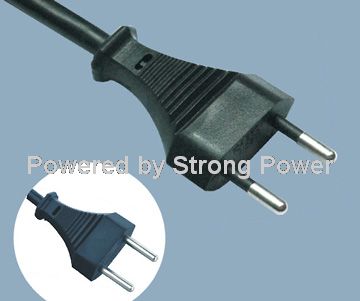

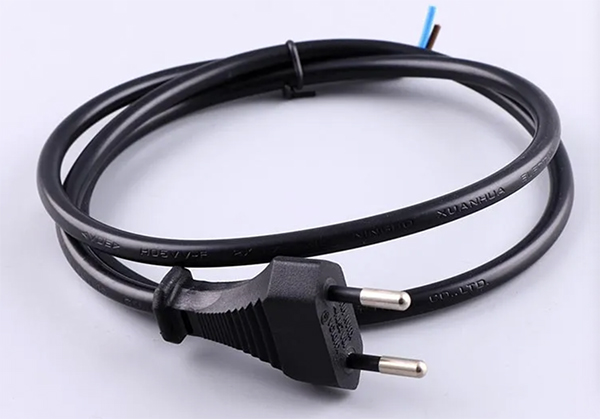

Swiss CH-Type 11 Non-rewirable SEV 2-pole 10A Plug Power Cord
SEV1011 Swiss two prong power cord plug with ESTI certification.Rated up to 10A 250V.Built to the Swiss power cord plug standard SEV 1011.Our Swiss power cord products are fully molded with a low profile ergonomic design and RoHS and REACH compliant.R2-10,D12 Plug CH-Type 11,Standard Sheet SEV 6533-2 with Non-rewirable Cord IP20 for class I equipment IEC 60884-1(eD.3):02+A1:06 SEV 1011:09+A1:12 Federal Inspectorate for Heavy Current Installations ESTI Rated up to 10A 250V .All of Our Swiss plugs,sockets and power cables are fully made with high quality

Link to SEV1011 to C13 Power Cord:Y005/ST3

Link to SEV1011 to C5 Power Cord:Y005/ST1
Contact Us

Detailed description

Connector Standard	Swiss 2P plug
Maximum Current rating	10A
Maximum Voltage	250V
Number of Poles and Wires	2 poles, 2 wires
Outer Mold Material	50P PVC
Blade Material	Nickel coated Brass
Color	Custom color available
Cable length	Custom length available
Temperature Rating	minus 60C though plus 90C
Approvals	Swiss SEV,VDE
Environmental Certifications	RoHS, REACH
Testing	Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity
MOQ	2000pcs
Samples	Free samples Available

Available Opposite End Connectors:

Standard Part NO

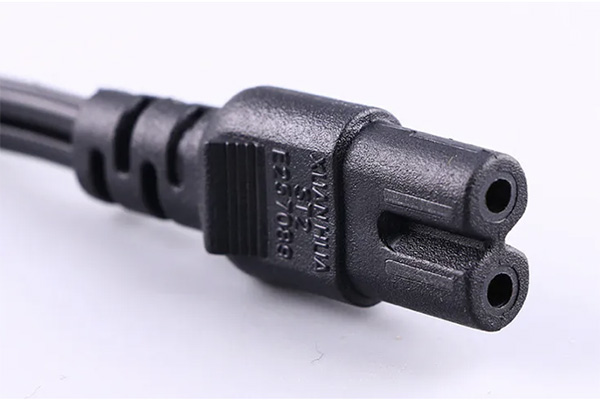

IEC 60320 C7 ST2(IEC C7)Swiss

Other Termination Options:

Click Here

Available Cable Styles:

H03VV-F 2x0,5 mm² H03VV-F 2x0,75 mm²
H03VVH2-F 2x0,5 mm² H03VVH2-F 2x0,75 mm²
H03V2V2-F 2x0,5 mm² H03V2V2-F 2x0,75 mm²
H03V2V2H2-F 2x0,5 mm² H03V2V2H2-F 2x0,75 mm²
H05VV-F 2x0,75 mm² H05VV-F 2x1,0 mm² ²
H05VVH2-F 2x0,75 mm² H05VVH2-F 2x1,0 mm² ²
H05V2V2-F 2x0,75 mm² H05V2V2-F 2x1,0 mm² ²
H05V2V2H2-F 2x0,75 mm² H05V2V2H2-F 2x1,0 mm² ²
H05VVH2-F 2x0,75 mm² H05VVH2-F 2x1,0 mm² ²
H03RT-H 2x0,75 mm² H03RT-H 2x1,0 mm² H03RT-H 2x1,5 mm²
H03V2V2-F 2x0,5 mm² H03V2V2-F 2x0,75 mm²
H05V2V2-F 2x0,75 mm H05V2V2-F 2x1,0 mm² H05V2V2-F 2x1,5 mm²
H05RR-F 2x0,75 mm² H05RR-F 2x1,0 mm²
H05RN-F 2x0,75 mm² H05RN-F 2x1,0 mm²

More Information:

Swiss Y005 Power Cord Drawing(PDF)

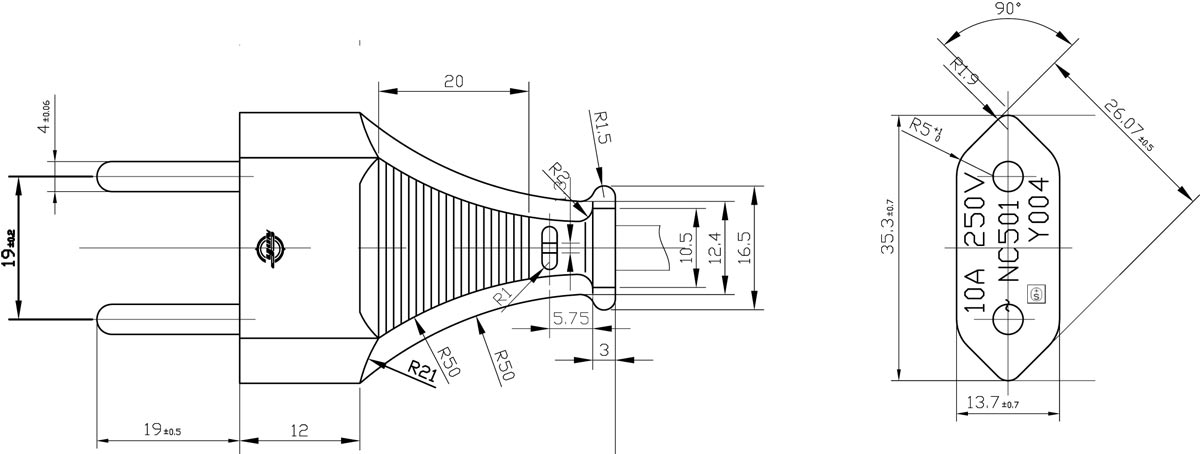

Plug Drawing
