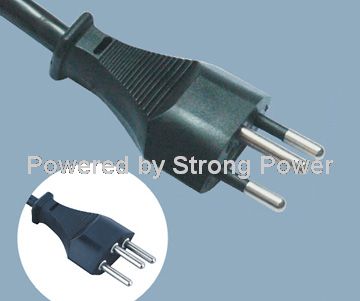

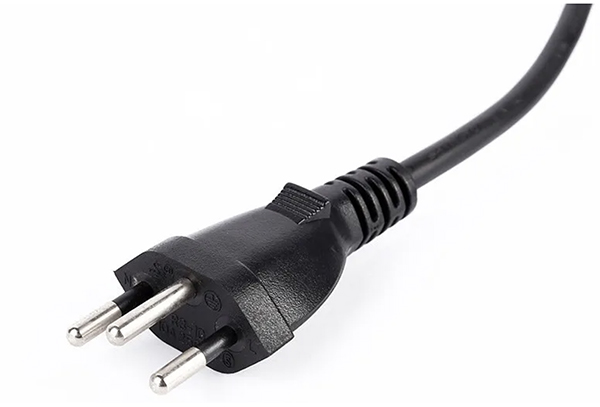

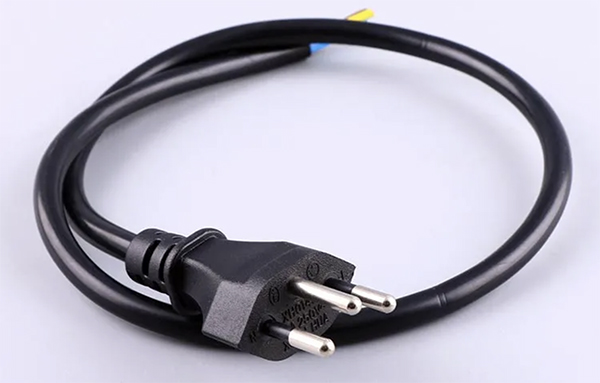

Swiss CH-Type 12 Non-rewirable SEV 3 Prong Grounded 10A Plug Power Cord
Plug CH-Type 12,Standard Sheet SEV 6534-2 with Non-rewirable Cord IP20 for class I equipment IEC 60884-1(eD.3):02+A1:06 SEV 1011:09+A1:12 Federal Inspectorate for Heavy Current Installations ESTI rated up to 10A 250V designed for Switzerland household appliance power supply cords.with IEC C5 , With IEC C13 , With IEC C15 , With IEC C19 descripe Swiss plug moulded with IEC 60320 connectors,All of Our Swiss plugs,sockets and power cables are fully made with high quality and RoHS / REACH compliant as we are China premier Swiss power cord manufacturer.
Contact Us

Detailed description

Connector Standard	Swiss 3P plug
Maximum Current rating	10A
Maximum Voltage	250V
Number of Poles and Wires	2 poles, 3 wires
Outer Mold Material	50P PVC
Blade Material	Nickel coated Brass
Flamability Rating	UL 94V-0
Color	Custom color available
Cable length	Custom length available
Temperature Rating	minus 40C though plus 75C
Approvals	SEV,VDE
Environmental Certifications	RoHS, REACH
Testing	Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity
MOQ	2000pcs
Samples	Free samples Available

Other Termination Options:

Click Here

Available Cable Styles:

H03VV-F 3G 0,5 mm²
H03VV-F 3G 0,75 mm²
H05VV-F 3G 0,75 mm² H05VV-F 3G 1,0 mm² H05VV-F 3G 1,5 mm²
H05RR-F 3G 0,75 mm² H05RR-F 3G 1,0 mm² H05RR-F 3G 1,5 mm²
H05RN-F 3G 0,75 mm² H05RN-F 3G 1,0 mm²
H07RN-F 3G 1,0 mm² H07RN-F 3G 1,5 mm²
H03RT-H 3G 0,75 mm² H03RT-H 3G 1,0 mm² H03RT-H 3G 1,5 mm²
H03V2V2-F 3G 0,5 mm² H03V2V2-F 3G 0,75 mm²
H05V2V2-F 3G 0,75 mm H05V2V2-F 3G 1,0 mm² H05V2V2-F 3G 1,5 mm²

Available Opposite End Connectors:

Standard Part NO

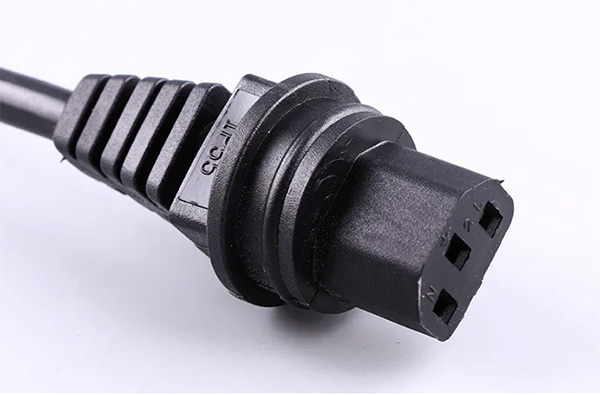

IEC 60320 C13 ST3(IEC C13)Swissland

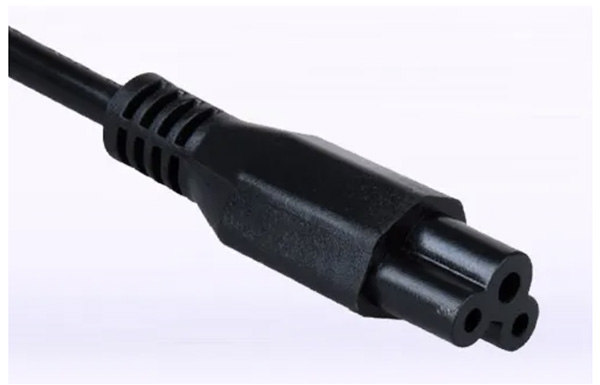

IEC 60320 C5 ST1(IEC C5)Swissland

IEC 60320 C15 ST3H(IEC C15)Swissland

IEC 60320 C19 XH008A(IEC C19)Swissland

More Information:

5 Items PVC ROHS

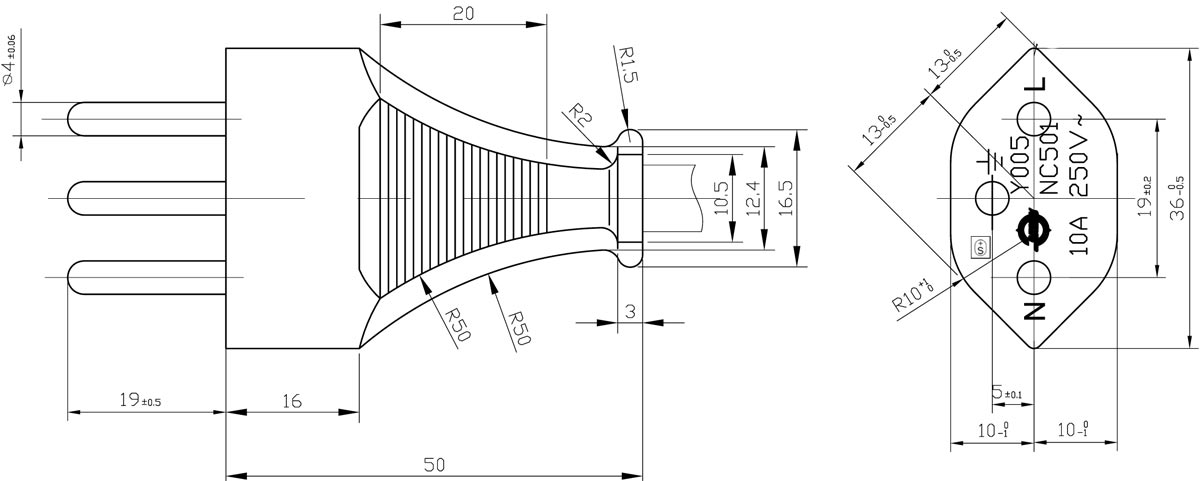

SEV 1011 Plug Drawing
