Home > Power Cord > Swiss Power Cords > Swiss CH-type 12 SEV 1011 Plug IEC 60320 C13 Receptacle AC Power Cord
Swiss_SEV_power_cord_Y005_to_ST3_C13

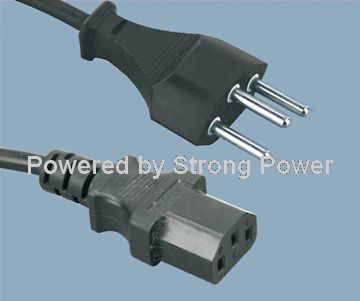

  • Swiss CH-type 12 SEV 1011 Plug IEC 60320 C13 Receptacle AC Power Cord

  • Swiss to C13 power cord:SEV1011 Switzerland 3 pin plug to IEC C13 with Swiss ESTI approval.

    Swiss CH-type 12 SEV 1011 Plug to IEC 60320 C13 Receptacle international connector with Swiss SEV,European VDE certifications.These IEC C13 power cords are commonly used in a variety of applications including computers, portable electronics, household applications, chargers , kitchen appliances and game systems such as PlayStation II and Wii.


    View the technical drawing:SEV1011 to C13 Power Cord Drawing(JPG)

  • Contact Us
Detailed description

Male Plug Swiss SE1011 plug
Female Receptacle IEC 60320 C13 Switzerland
Amperage Up to 10A
Voltage Up to 250V AC
Outer Mold Material 50P PVC
Blade Material Nickel coated Brass
Color Custom color available
Cable Length Custom length available
Certifications SEV,VDE
Environmental Certifications RoHS, REACH
Testing 100percent are individually tested
Available Wire Styles H03VV-F 3G 0,5 mm² max.2m
H03VV-F 3G 0,75 mm²
H05VV-F 3G 0,75 mm² max.2m
H05VV-F 3G 1,0 mm² H05VV-F 3G 1,5 mm²
H05RR-F 3G 0,75 mm² max.2m
H05RR-F 3G 1,0 mm² H05RR-F 3G 1,5 mm²
H05RN-F 3G 0,75 mm² max.2m
H05RN-F 3G 1,0 mm²
H07RN-F 3G 1,0 mm² H07RN-F 3G 1,5 mm²
H03RT-H 3G 0,75 mm² max.2m
H03RT-H 3G 1,0 mm²
H05V2V2-F 3G 0,75 mm² max.2m
H05V2V2-F 3G 1,0 mm
MOQ 2000 pcs
Delivery lead date 15-20 days
Packing Export cartons
Samples Free samples can be sent within 3 days
Payment TT 30percent Advance,balance after shipping,L/C


Other Termination Options:


Click Here


More Information:


Swiss SEV Certification(JPG)

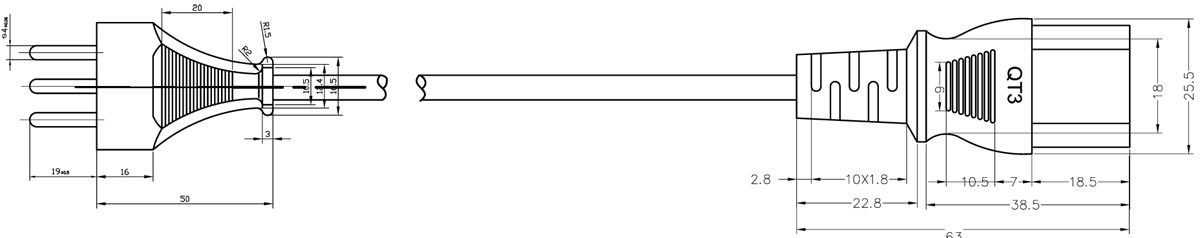

Switzerland SEV 1011 Plug to IEC C13 Drawing

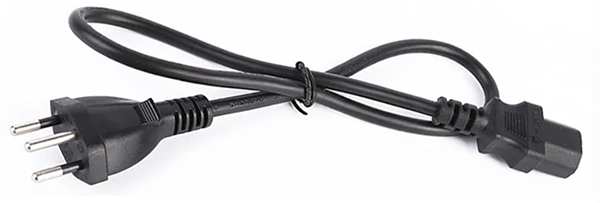

Swiss CH-type 12 SEV 1011 Plug to IEC 60320 C13 Receptacle moulded with custom length,color,flexible cable power supply cord.


Swissland SEV 1011 Plug to IEC 60320 C13 Power Cord
