AC Power Cord > Power Cord > Italy Power Cords > Italian CEI 23-16 2P+T IMQ 10A Plug to IEC 60320 C15 Power Cord
Italian-CEI-23-16-2P-T-IMQ-10A-Plug-to-IEC-60320-C15-Power-Cord

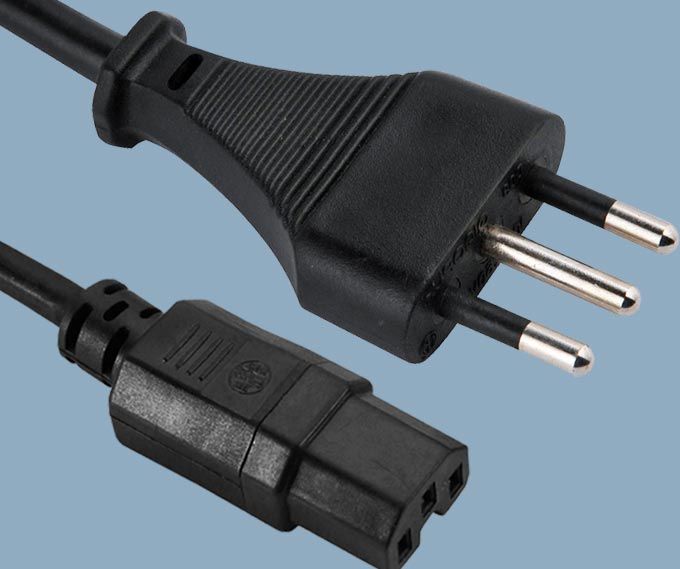

  • Italian CEI 23-16 2P+T IMQ 10A Plug to IEC 60320 C15 Power Cord

  • Italian CEI 23-16 2P+T IMQ 10A Plug to IEC 60320 C15 Power Cord with VDE,IMQ certification,RoHS and REACH approved C15 connectors are designed in such a way that they can handle high temperature devices like electric kettles, server rooms, computing networking closets and Power over Ethernet switches having high wattage power supply. These connectors work on the temperature rating of 120°C.C15 power cords are used in high temperature surroundings like electric kettle and computer networking close.
  • Contact Us
Detailed description

Male Plug Italy CEI 23-16 3P plug
Female Receptacle IEC 60320 C15 Italy
Amperage Up to 15A
Voltage Up to 250V AC
Outer Mold Material 50P PVC
Blade Material Nickel coated Brass
Color Custom color available
Cable Length Custom length available
Certifications VDE , IMQ
Environmental Certifications RoHS, REACH
Testing 100percent are individually tested
Available Wire Styles H05RR-F 3G 0,75 mm² max.2m
H05RR-F 3G 1,0 mm² H05RR-F 3G 1,5 mm²
H03RT-H 3G 0,75 mm² max.2m
H03RT-H 3G 1,0 mm²
MOQ 3000pcs
Delviery lead date 15-20days
Pakcing Export cartons
Samples Free samples can be sent within 3 days
Payment TT 30percent Advance,balance after shipping,L/C


Italy Plug 2P+T Plug to IEC 60320 C15 High Temperature Power Cord,AC Power Cable With Custom Long ,Color,IMQ Approved
Italy Power Cord IEC 320 C15 Power Cable

Plug type: Italy plug type L
Standard:CEI 23-50
Approvals:IMQ,VDE
Electricity:10A,250V
Number of Poles and Wires:2 pole 3 wires
Cable length:1.0 meter, 1.5m, 1.8m,custom length
End Options:IEC 320 C15
Quality System:ISO9001:2008
Color:White and black are normal,Custom color
Outer Mold Material:PVC,Rubber
Plug Insert Material:PBT,ABS
Blade Material:Nickel coated Brass
Cable Specifications:Standard and custom made
Wire Outject Material:PVC,Rubber,TPE,Textile
Environmental Certifications:RoHS, REACH, PAHS
Model Number:
Plug standard CEI 23-50 (10 Amp Cords),  2 pole 3 wires grounding Type L Plug; Connector Standards  IEC 60320 (320) C-15, C-15Locking, C15 right angle, C15 left angle ,IEC C15 custom made waterproof. Italian IMQ compatible types (Type L),  connected with a three-wire grounding plug rated at max 10 Amp , 250 V.
Italy power cord IEC C15 connector are black and white as standard color. gray and custom color are  available. Custom length and shielded Italy AC power cord , AC power cables available. Suitable for high temperature power cable using the three phase Italian power line, the Italy type  plug connecting the Italy plug connection with the household appliances.
Italy Power Cord to IEC 60320 C15 Connector


Package


The Italy Power Cord to IEC 60320 C15 mostly bulk packed with export cartons, pallets.

Package

Yunhuan manufacturers and supplies electrical AC power supply cords for use in Italy and all Countries in the world. Our extensive and complete Italy power cord line includes power receptacle outlets, Plug, weatherproof receptacle outlets, sockets, multiple outlet power strips, power supply cords, power cable wire and plug adapters . Contact us for Italy AC power cords as China leading  power cord manufacturer and supplier.all of our Italy power supply cords are are made of high quality approved by IMQ, German VDE with Rohs and Reach compliant.
