86-0574-62162348
Ningbo Yunhuan Electronics Group
Future Products
AC Power Cord > Power Cord > China Power Cords > IEC 60320 C5 to China CCC AC Power Cord
IEC-60320-C5-to-China-CCC-AC-Power-Cord

  • IEC 60320 C5 to China CCC AC Power Cord

  • China to C5 power cord:Chinese to IEC C5 China GB2099 standard 3 prong plug to IEC 60320 C5 connector AC power cord with CCC(3C) certification is often referred to as the "Clover Type Power Cable ~ Cloverleaf ~ Mickey Mouse Laptop / Notebook / Notepad Power Adapter ~ Lead ~ Mains ~ IEC power cord receptacle. These IEC C5 power cords are commonly used in a variety of applications including electric computer,projector, portable electronics, notebook computers and game systems.all of ourplugs and socket China are fully molded with low profile ergonomic design and RoHS / REACH compliant.

    View the technical drawing:

  • Contact Us
Detailed description
Male Plug China 3 prong plug
Female Receptacle IEC 60320 C5 China
Amperage Up to 10A
Voltage Up to 125V AC
Outer Mold Material 50P PVC
Blade Material Nickel coated Brass
Color Any color available
Cable Length Any length available
Certifications CCC/3C
Environmental Certifications RoHS, REACH
Testing 100percent are individually tested
Available Wire Styles 227 IEC 53 RVV 3X0.5-0.75
MOQ 3000 pcs
Delivery lead date 15-20 days
Packing Export cartons
Samples Free samples can be sent within 3 days
Payment TT 30percent Advance,balance after shipping,L/C

Other Termination Options:


Click Here


More Information:

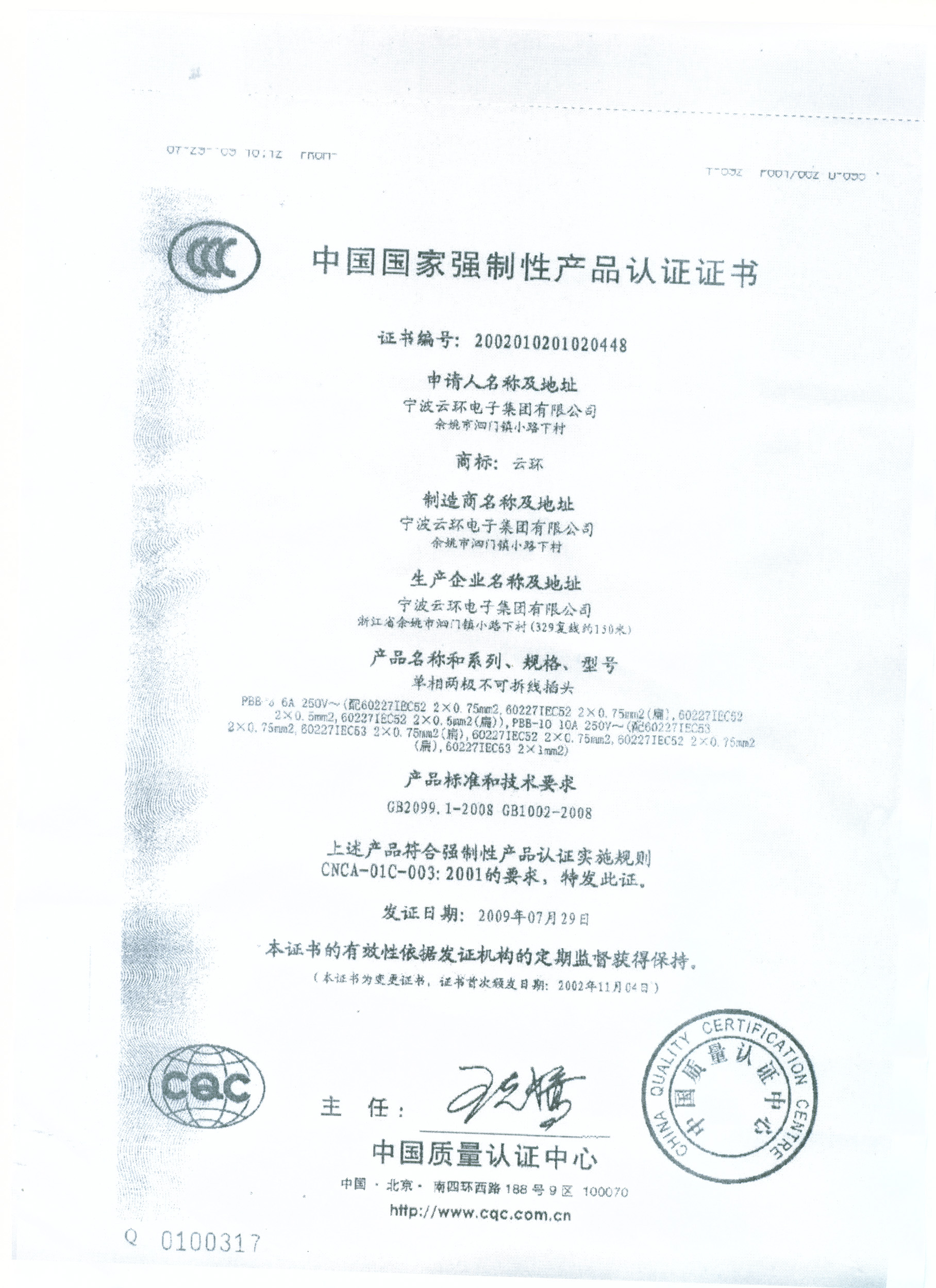

China Plug Certification

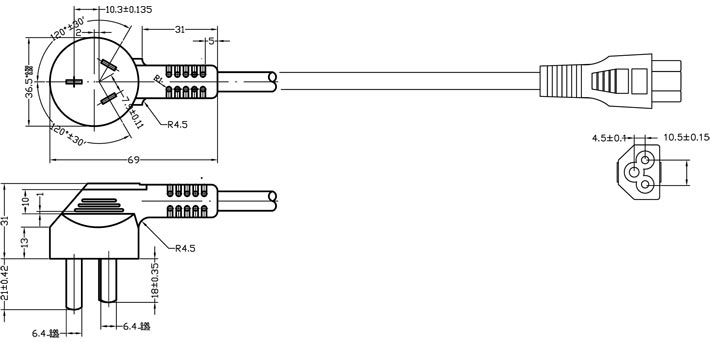

China GB2099 Plug to IEC C5 Drawing

China CCC approved 3 conductor plug to IEC 60320 C5 connector with custom length,color cables drawing.

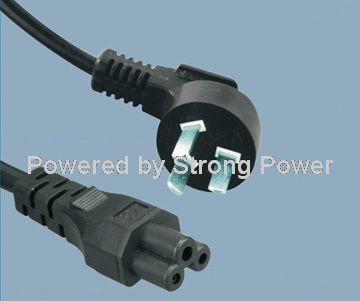

Chinese GB 2099 IEC 60320 C5 Power Cord


China Power Cord IEC 320 C5 Mickey Mouse Laptop /Notebook/Notepad Adapter , Lead , Mains Clover Type Cloverleaf Power Cable
China Power Cord IEC 320 C5 Connector

Plug type: 3 wire China plug
Standard:GB 2099
Approvals:CCC ,3C
Electricity:2.5A,250V
Number of Poles and Wires:2 pole 2 wires
Cable length:1.0 meter, 1.5m, 1.8m,custom length
Oppsite End:IEC 320 C5 Straight
Quality System:ISO9001:2008
Color:Custom color,white and black are normal
Outer Mold Material:PVC,Rubber
Plug Insert Material:PBT,ABS
Blade Material:Nickel coated Brass
Cable Specifications:Standard and custom made
Wire Outject Material:PVC,Rubber,TPE,Textile
Environmental Certifications:RoHS, REACH, PAHS
Model Number:PSB-10/QT1
China AC Power Cords Plug Standard GB 2099.1-1996, GB 1002-1996, Type I Plug GB 2099.1-1996, GB 1002-1996, Type I Plug China Power Cords and AC Cables Connector Standards GB 17465.1-1998, IEC 60320 (320) C-5, C-5 right angle. China GB2009 (Chinese 10 A/250 V) and compatible types (Type A), connected with a three-wire grounded plug rated at 10 A , 250 V defined by CCC. The China AC plugs and Sockets are similar in appearance to the Australlian and Argentine plugs.
China Power Cord IEC C-5 are black and white as standard color. gray and custome color are  available. Custom length and shielded China cordsets light duty China AC power cables available. Terminated, custom stripping.

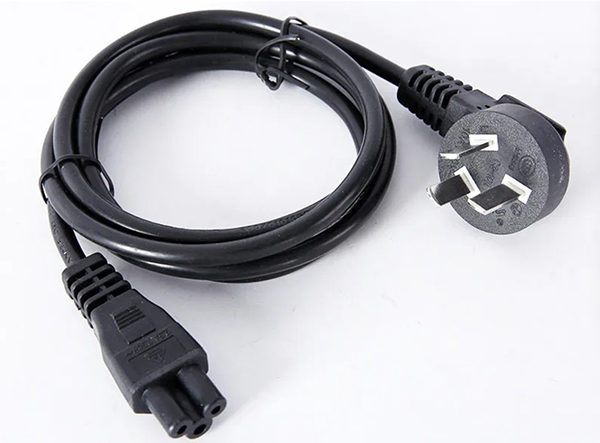

China 3 Prong Power Cord to IEC 60320 C5

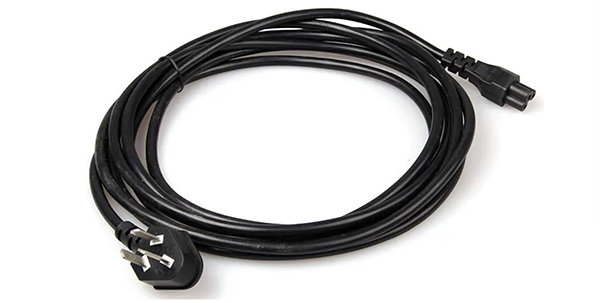

China 3 Wire Low Prolile Angle Power Cord to IEC 60320 C5 Laptop Power Cable


Package

China Power Cord to IEC 60320 C5 connector Bulk packed with export cartons, pallets.

Package

Yunhuan manufacturers and supplies electrical AC power supply cords for use in China and all Countries in the world. Our extensive and complete China power cord line includes power receptacle outlets, Plug, weatherproof receptacle outlets, sockets, multiple outlet power strips, power supply cords, power cable wire, and plug adapters. Contact us for China AC  power cords as China leading China power cord manufacturer and supplier. all of China’s AC power cables are approved by CCC or 3C and Rohs  /  Reach compliant.
