AC Power Cord > Power Cord > China Power Cords > China 3 Prong Right Angle Power Cord
China-3-Prong-Right-Angle-Power-Cord

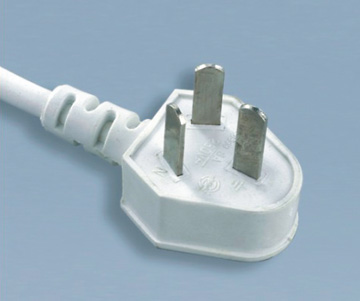

  • China 3 Prong Right Angle Power Cord

  • GB209 China three prong 10A right angle ac power cords with CCC certification,Built to GB2099 standards and designed for any China 3 prong power cord applications , With IEC C13 power cords describe China plug molded with IEC 60320 C13 connector, Our Chinese 3C power supply cord products are fully made with RoHS and REACH compliant.
  • Contact Us
Detailed description

Plug standard China 3P plug
Maximum Current rating 10A
Maximum Voltage 250V
Number of Poles and Wires 2 poles, 3 wires
Outer Mold Material 50P PVC
Blade Material Nickel coated Brass
Color Any color available
Temperature Rating minus 40C though plus 75C
Approvals CCC/3C
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity
MOQ 3000pcs
Delivery lead date 15-20days
Samples Free samples can be sent within 3 days

Available Opposite End Connectors


Standard Part Number
IEC 60320 C5 IEC C5 China
IEC 60320 C13 IEC C13 China
IEC 60320 C15 IEC C15 China


Available Wire Styles


Cord Type Electrical Rating (Amps/Volts)
60227IEC53 3x1-1.5
60227IEC53 3x0.75-1-1.5
60227IEC57 3x0.75-1-1.5

10/250

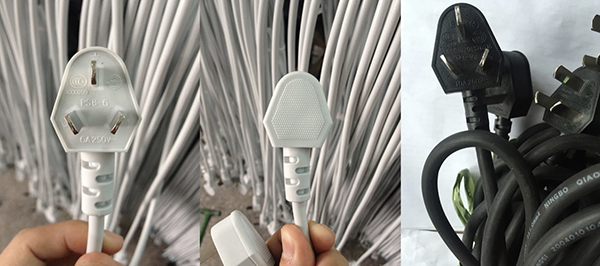

PSB-10 China 3 prong right angle power cords picture


Power Supply Cord China 3 Conductor Plug MoldingPower Supply Cord China 10A Plug


China Power Cords 10 Amp 250 Volt 3 Wire Grounding CCC Approved Type I Low Profile Plug AC Power Supply Cords
China 10 Amp 250 Volt 2 Pole 3 Wire Grounding 2099GB  AC Power Supply Cords


3 Wire Grounding CCC Approved.
Type I Low Profile Plug AC Plug.
Electrical Rating: AC 10A 1250V 60Hz 1875W.
Cable: PVC Cable, Rubble Cable, and Textile Cords
from 3×0.75mm2, 3×1.0mm2, 3×1.5mm2
Custom Length Cable from 1m to 30m.
Custom Colors are Available.
CCC (3C) Certified GB2099 standard.
Power Cables are ROHS/Reach Compliant.
Plug type:GB 2009 Type I China plug
Standard:2099.1,GB 1002
Approvals:CCC,3C
Electricity:10A,250V
Number of Poles and Wires:3 pole 3 wires
Cable length:3-foot,6-foot, Custom long
Cable Color: White,Black, Custom color
Termination Options:ROJ,IEC,terminations
Quality System: ISO9001:2008
Color: Custom color,white and black are normal
Outer Mold Material: PVC, Rubber
Plug Insert Material: PBT,ABS
Blade Material: Nickel coated brass
Cable Specifications: Standard and custom made
Wire Outject Material:PVC,Rubber,TPE,Textile
Environmental Certifications: RoHS, REACH, PAHS
Model number: PSB-10
China AC Power Cords Plug Standard GB 2099.1-1996, GB 1002-1996, Type I Plug GB 2099.1-1996, GB 1002-1996, Type I Plug China Power Cords and AC Cables Connector Standards GB 17465.1-1998, IEC 60320 (320) C-13, C-13 Locking, C-19, C-19 Locking, C-5, C-7, C-15, Unterminated.China GB2009 (Chinese 10 Amp/250 Voltage) and compatible types (Type A), connected with a three-wire grounding plug rated at 10 A , 250 V defined by CCC. The China AC plugs and Sockets are similar in appearance to the Australian and Argentine plugs.
China Power Cord (CCC Power Cord) 10 Amp 250 Volt 2 Pole 3 Wire Grounding are black and white as the standard colors. gray and custom colors are available. Custom length and shielded China cord set light-duty China AC power cables available. Terminated, custom stripping.
China Power Cords

China AC Power Cord

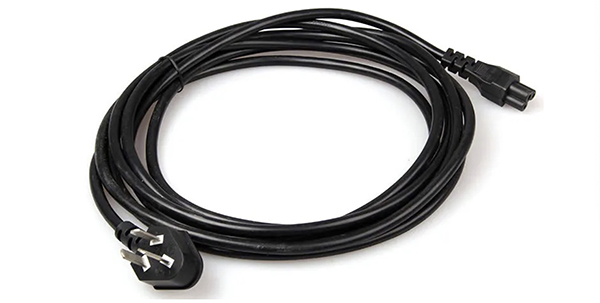

China 3 Wire Low Prolile Angle Power Cord to IEC 60320 C5 Laptop Power Cable

China 3 Wire Grounding Low Profile Angle Plug to IEC 60320 C13 Computer Power Cord

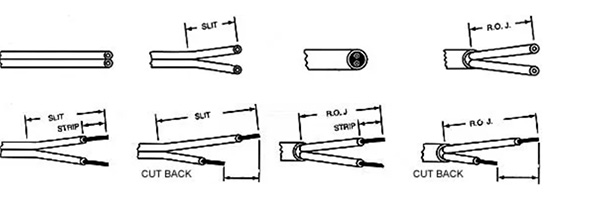

Available Opposite End
Normal Stripped, Splitter, and ROJ

We manufacturers and supply China Power Cord , GB2099 3 wire,grounding Type I Plug,AC Power Cords, the other end can be stripped, ROJ with custom length.

Available Opposite End

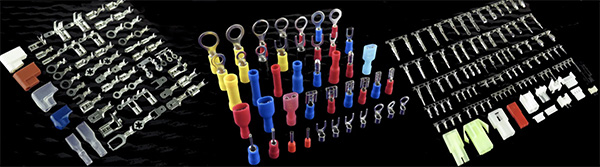

Common Termination

The China Power Cord 10Amp 250 Volt AC, 2 Pole 3 Wire Grounding GB2099 Standard CCC/3C approved Type I Plug is one end molded with standard plugs, the opposite could be terminated with types of terminals such as grounding rings terminals, fork with heat shrink or nylone insulated.

Common Termination


IEC 60320 Connectors

The China Power Cord 10Amp 250 Volt AC, 2 Pole 3 Wire Grounding GB2099 Standard CCC/3C approved Type I Plug to IEC 60320 C5 laptop,IEC 60320 C13 computer power cable,IEC 60320 C19 PDU Power Cords is normal versions of China ac power cords with IEC connectors.

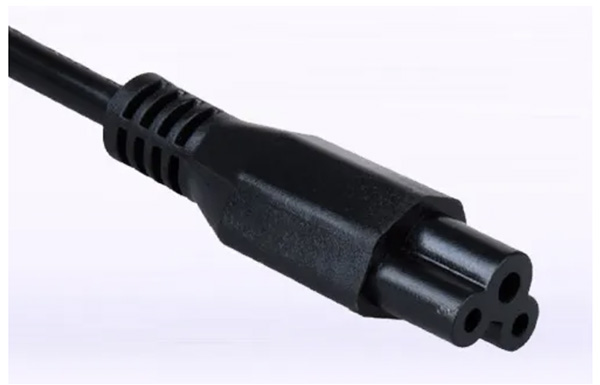

IEC 60320 C5 Power Cord

IEC 60320 C5 Power Cord

IEC 60320 C13 Straight Power Cord

IEC 60320 C13 Straight Power Cord

IEC 60320 C13 Right Angle Power Cord

IEC 60320 C13 Right Angle Power Cord

IEC 60320 C13 Waterproof Power Cord

IEC 60320 C13 Waterproof Power Cord

IEC 60320 C13 Locking Power Cord

IEC 60320 C13 Locking Power Cord

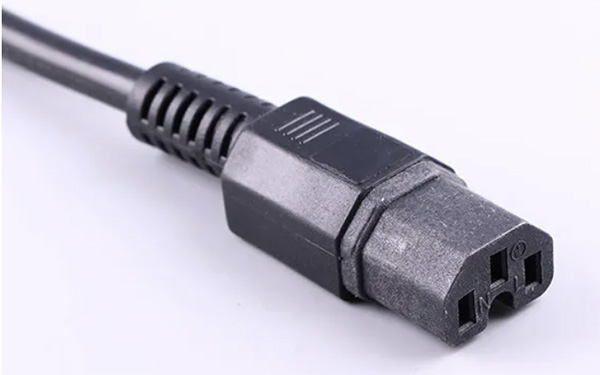

IEC 60320 C15 Power Cord

IEC 60320 C15 Power Cord

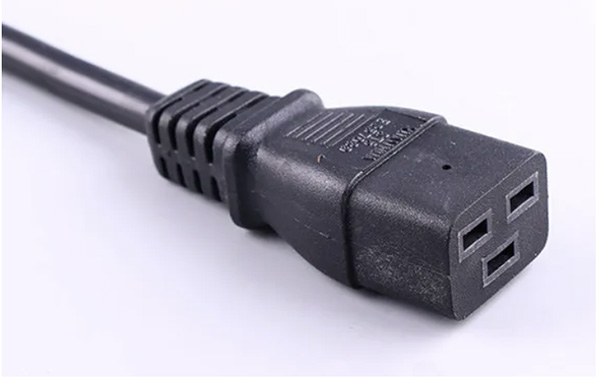

IEC 60320 C19 Power Cord

IEC 60320 C19 Power Cord

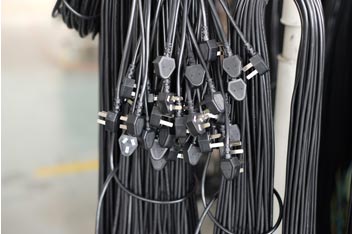

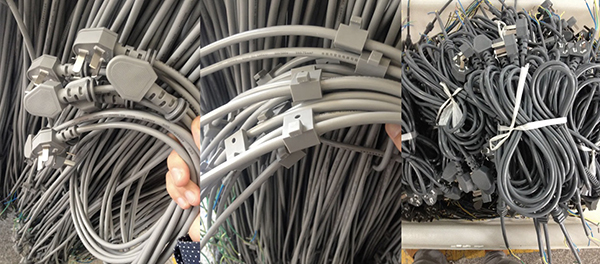

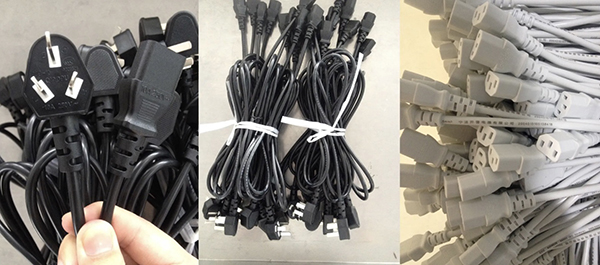

Package

China Power Cord 10Amp 250 Volt AC, 2 Pole 32 Wire Non-Grounding GB2099 Standard CCC/3C approved Type I Plug Bulk packed with export cartons, pallets.
Package

Yunhuan manufacturers and supplies electrical AC power supply cords for use in China and all Countries in the world. Our extensive and complete China power cord line includes power receptacle outlets, Plug, weatherproof receptacle outlets, sockets, multiple outlet power strips, power supply cords, power cable wire, and plug adapters. Contact us for China AC  power cords as China leading China power cord manufacturer and supplier. all of Chinas AC power cables are approved by CCC or 3C and Rohs  /  Reach compliant.
