AC Power Cord > Locking Power Cord > America Locking Power Cords > L5-20P 20A 250V Locking Plug Power Cord
L5-20P-20A-250V-Locking-Plug-Power-Cord

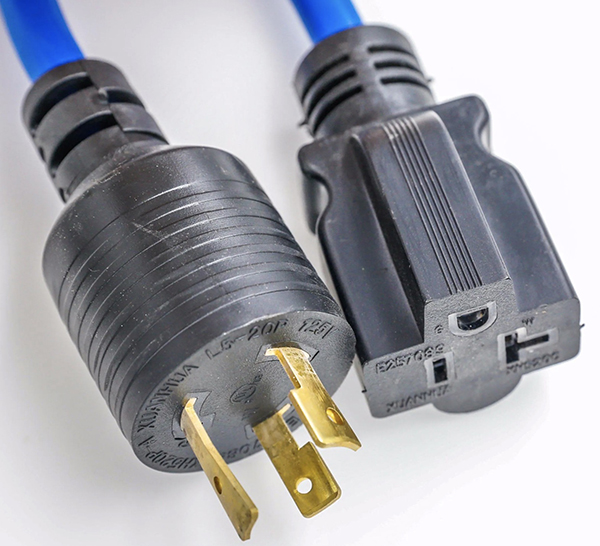

  • L5-20P 20A 250V Locking Plug Power Cord

  • NEMA L5-20P locking power cord plug with UL approval.Built to the NEMA L5-15R standard. Rated up to 20A 125V.These NEMA L5-20 power cords are fully molded with a low profile ergonomic shape with RoHS and REACH compliance.

  • Contact Us
Detailed description

Male Plug

America 3 Prong Locking Plug

Female Receptacle

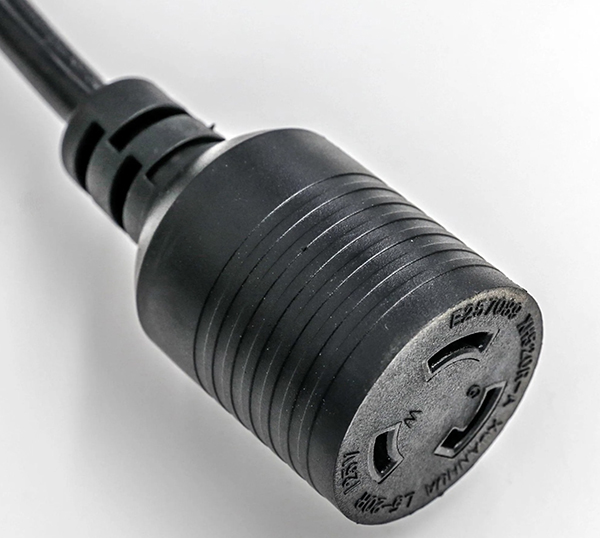

L5-20R

Amperage

Up to 20A

Voltage

Up to 125V AC

Outer Mold Material

50P PVC

Blade Material

Nickel coated Brass

Color

Any color available

Cable Length

Any length available

Certifications

UL CUL

Environmental Certifications

RoHS, REACH

Testing

100percent are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout


Available Opposite End Connectors:


Standard                                                        Part NO


L5-20R                                                           XL520R-A(L5-20R)America

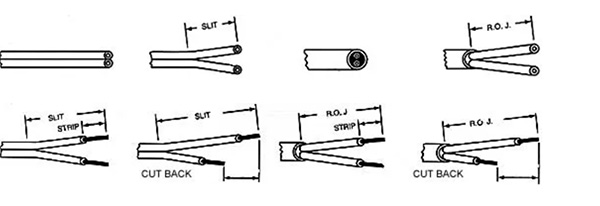

Other Termination Options:


Click Here


Available Cable Styles:


AWG 18-12 3/C SJ,SJW,SJO,SJOO,SJOOW.SJOW,SJT,SJTW,SJTO,SJTOW,SJTOO,SJTOOW,S,SW,SO,SOW,

SOO,SOOW,ST,STW,STO,STOW,STOOW,STOO


Locking Power Cords Guide

15 Amp
Item Ref.: Standard /configuration
( rating voltage )

Pin Configuration

End Options Description
XL515P-A NEMA L5-15P
( 125V ~ )
L5-15P America power cords

locking configuration
2 pole
3 wire grounding
XL615P-A NEMA L6-15P
( 250V ~ )
L6-15P America power cords

NEMA locking configuration
2 pole
3 wire grounding
XL715P-A NEMA L7-15P
( 277V ~ )
L7-15P America power cords

NEMA locking configuration
2 pole
3 wire grounding

20 Amp

XL520P-A NEMA L5-20P
( 125V ~ )
L5-20P America power cords

NEMA locking configuration
2 pole
3 wire grounding
XH109 NEMA L7-20P
( 277V ~ )
7-20P America power cords

locking configuration
2 pole
3 wire grounding
XH107 NEMA L8-20P
( 480V ~ )
L8-20P America power cords

locking configuration
2 pole
3 wire grounding
XH101 NEMA L14-20P
( 125/250V ~ )
L14-20P America power cords

locking configuration
3 pole
4 wire grounding

30 Amp

XH105 NEMA L5-30P
( 125V ~ )
L5-30P 30A America power cords

NEMA locking configuration
2 pole
3 wire grounding
XH106 NEMA L6-30P
( 250V ~ )
L6-30P America interlocking power cords

NEMA locking configuration
2 pole
3 wire grounding
XH103 NEMA L14-30P
( 125/250V ~ )
L14-30P America locking 30A power cords

locking configuration
3 pole
4 wire grounding
