AC Power Cord > Locking Power Cord > America Locking Power Cords > 20A 250V 3 L14-20P 3 Pole 4 Wire America Twist Lock Plug Power Cord
America UL Locking power cords XL1420P-A

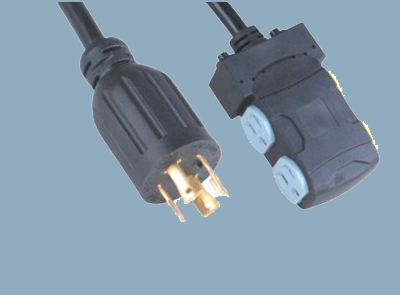

  • 20A 250V 3 L14-20P 3 Pole 4 Wire America Twist Lock Plug Power Cord

  • NEMA L14-20P locking power cord plug with North America approval.  Built to the NEMA L14-20P standard. Rated up to 20A 250V.  These NEMA L14-20P power cords are fully molded with a low profile ergonomic shape with RoHS and REACH compliance.

  • Contact Us
Detailed description

Male Plug

America 3 Prong Locking Plug

Female Receptacle

None

Amperage

Up to 20A

Voltage

Up to 250V AC

Outer Mold Material

50P PVC

Blade Material

Nickel coated Brass

Color

Any color available

Cable Length

Any length available

Certifications

UL CUL

Environmental Certifications

RoHS, REACH

Testing

100percent are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout


Available Opposite End Connectors:


Standard                                                        Part NO


L14-20P                                                         XL1420P-A(L14-20P)America


Other Termination Options:


Click Here


Available Cable Styles:


AWG 18-12 4/C SJ,SJW,SJO,SJOO,SJOOW.SJOW,SJT,SJTW,SJTO,SJTOW,SJTOO,SJTOOW,S,SW,SO,SOW,

SOO,SOOW,ST,STW,STO,STOW,STOOW,STO

Locking Power Cords Guide

15 Amp
Item Ref.: Standard /configuration
( rating voltage )

Pin Configuration

End Options Description
XL515P-A NEMA L5-15P
( 125V ~ )
L5-15P America power cords

locking configuration
2 pole
3 wire grounding
XL615P-A NEMA L6-15P
( 250V ~ )
L6-15P America power cords

NEMA locking configuration
2 pole
3 wire grounding
XL715P-A NEMA L7-15P
( 277V ~ )
L7-15P America power cords

NEMA locking configuration
2 pole
3 wire grounding

20 Amp

XL520P-A NEMA L5-20P
( 125V ~ )
L5-20P America power cords

NEMA locking configuration
2 pole
3 wire grounding
XH109 NEMA L7-20P
( 277V ~ )
7-20P America power cords

locking configuration
2 pole
3 wire grounding
XH107 NEMA L8-20P
( 480V ~ )
L8-20P America power cords

locking configuration
2 pole
3 wire grounding
XH101 NEMA L14-20P
( 125/250V ~ )
L14-20P America power cords

locking configuration
3 pole
4 wire grounding

30 Amp

XH105 NEMA L5-30P
( 125V ~ )
L5-30P 30A America power cords

NEMA locking configuration
2 pole
3 wire grounding
XH106 NEMA L6-30P
( 250V ~ )
L6-30P America interlocking power cords

NEMA locking configuration
2 pole
3 wire grounding
XH103 NEMA L14-30P
( 125/250V ~ )
L14-30P America locking 30A power cords

locking configuration
3 pole
4 wire grounding


Manufacturer Base Twist Lock Power Cord NEMA L14-20P 3-Prong 20-Amp 125-250-Volt Generator Locking Type AC Power Cable
Twist Lock Power Cord NEMA L14-20P

Twist Lock Power Cord NEMA L14-20P 20A, 125/250V,  4-prong plug molded with custom long ,color PVC, rubber or TPE cable.

Plug type: L14-20P twist lock plug
Standard:NEMA L14-20P
Approvals:UL, cUL
Electricity:20A, 125/250V
Number of Poles and Wires:3 pole 4 wires
Cable length:1.0 meter, 1.5m, 1.8m,custom length
End Options:Locking Socket,ROJ, Termination
Quality System:ISO9001:2008
Color:White and black are normal,Custom color
Outer Mold Material:PVC,Rubber
Plug Insert Material:PBT,ABS
Blade Material:Nickel coated Brass
Cable Specifications:Standard and custom made
Wire Outject Material:PVC,Rubber,TPE,Textile
Environmental Certifications:RoHS, REACH, PAHS
Model Number:XH101
Plug Standard America NEMA L14-20P plug Maximum Electric current rating 20A Maximum Voltage 250V Number of Poles and Wires 3 poles, 4(3) wires Grounded Loacking Type Plug, Connector Standards Twist lock type receptacles, IEC 60320 conectors, NEMA standard receptacles,Unterminated.

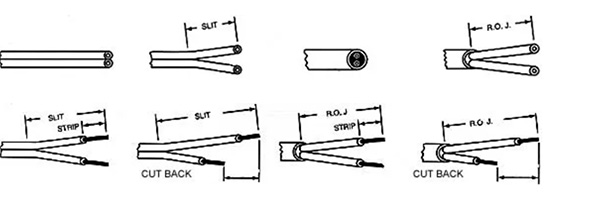

Available Opposite End
Normal Stripped, Splitter and ROJ

We manufacturers and supplies Twist Power Cord NEMA L14-20P,custom color,the other end can be stipped ,ROJ with custom length.

Available Opposite End

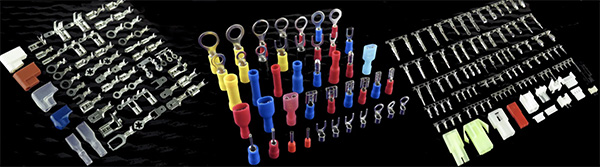

Common Termination

Twist Lock Power Cord NEMA L7-20P, one end is molded with NEMA Locking standard sheet plugs, the opposite could be terminated with types of terminals such as grounding rings terminals ,fork with heat shrink or  nylone insulated.

Common Termination


IEC 60320 Connectors

Twist Lock Power Cord NEMA L14-20P to IEC 320 C5 laptop, IEC C13 computer power cable and molded with IEC C19 as PDU power cords are normal versions of America locking power cords with IEC connectors.

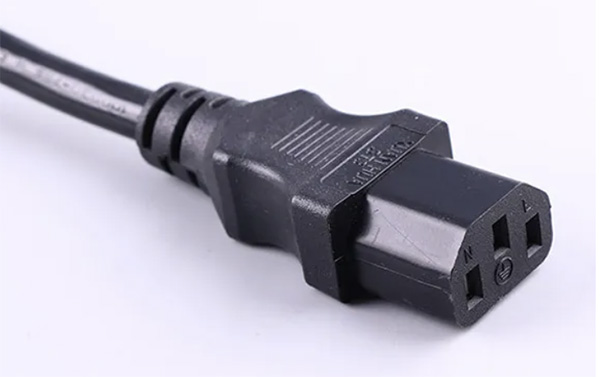

IEC 60320 C13 Straight Power Cord

IEC 60320 C13 Straight Power Cord

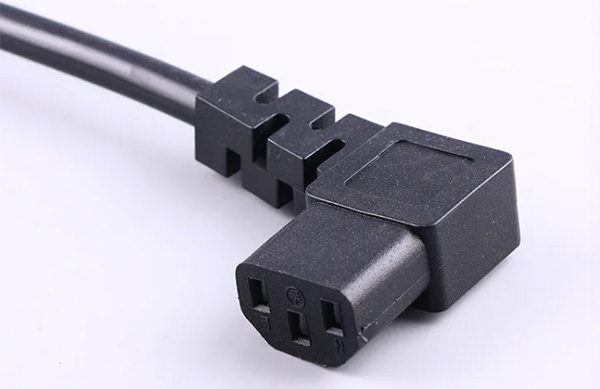

IEC 60320 C13 Right Angle Power Cord

IEC 60320 C13 Right Angle Power Cord

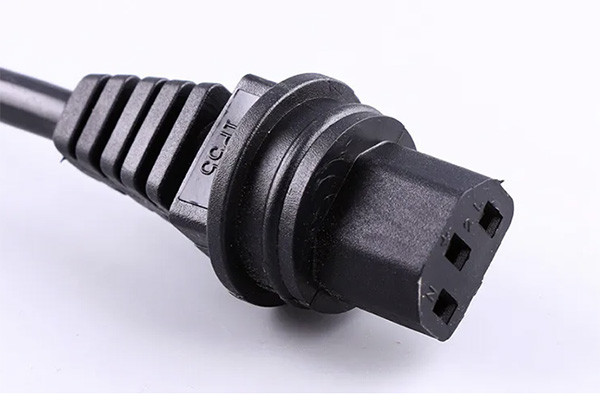

IEC 60320 C13 Waterproof Power Cord

IEC 60320 C13 Waterproof Power Cord

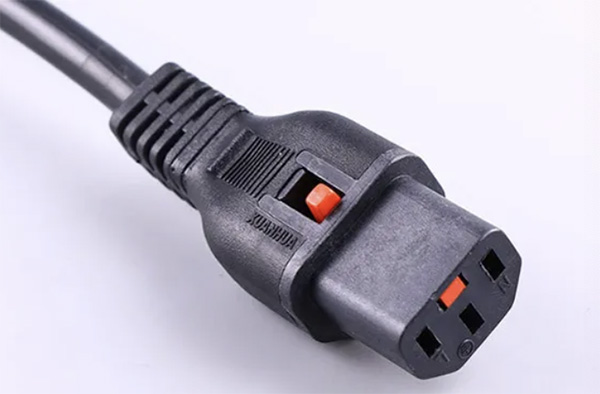

IEC 60320 C13 Autolock Power Cord

IEC 60320 C13 Autolock Power Cord

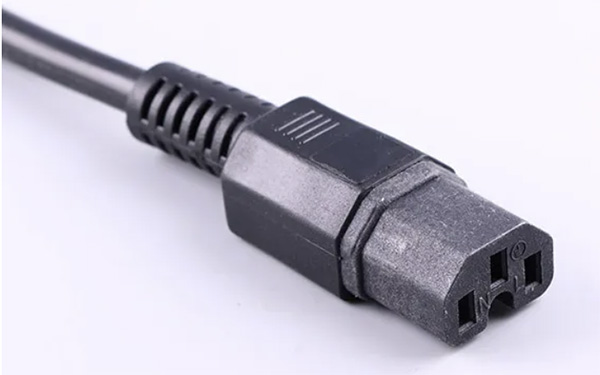

IEC 60320 C15 Power Cord

IEC 60320 C15 Power Cord

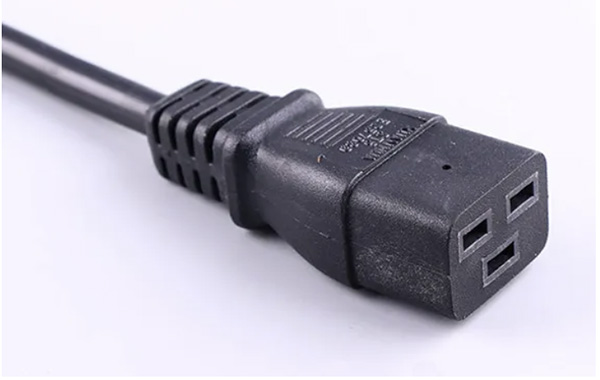

IEC 60320 C19 Power Cord

IEC 60320 C19 Power Cord


Package

Twist Lock Power Cord NEMA L14-20P bulk packed with export cartons, pallets.
Package
