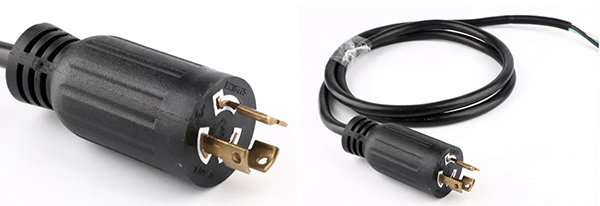

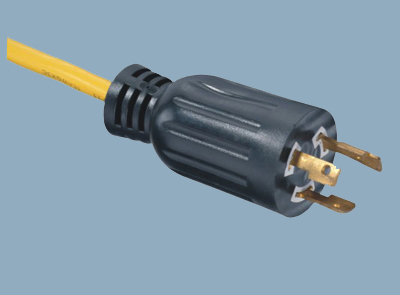

NEMA L5-15P locking power cord plug with UL approval. Built to the NEMA L5-15P standard. Rated up to 15A 125V.These NEMA L5-15P power cords are fully molded with a low profile ergonomic shape with RoHS and REACH compliance.
Male Plug |
|
Female Receptacle |
L5-15R |
Amperage |
Up to 15A |
Voltage |
Up to 125V AC |
Outer Mold Material |
50P PVC |
Blade Material |
Nickel coated Brass |
Color |
Any color available |
Cable Length |
Any length available |
Certifications |
|
Environmental Certifications |
RoHS, REACH |
Testing |
100percent are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout |

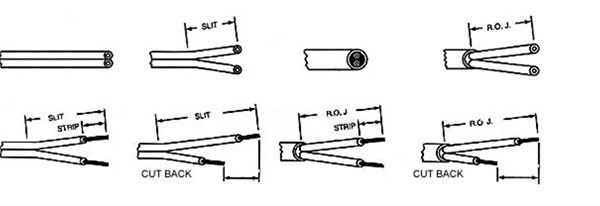

Other Termination Options:

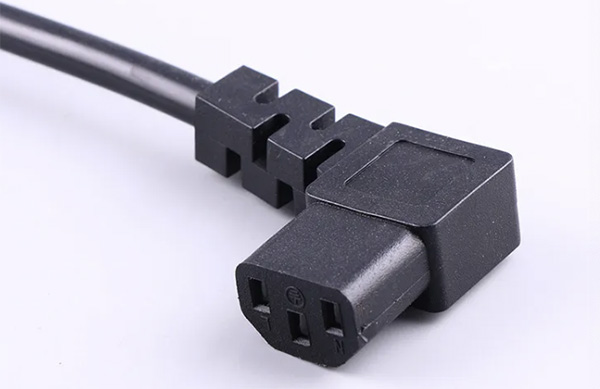

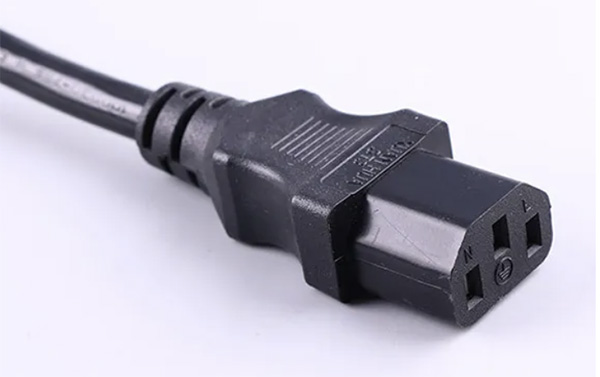

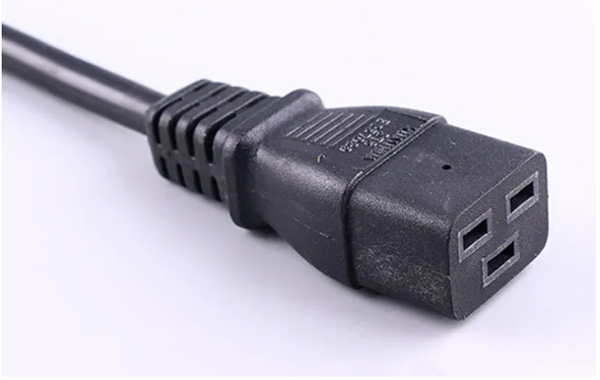

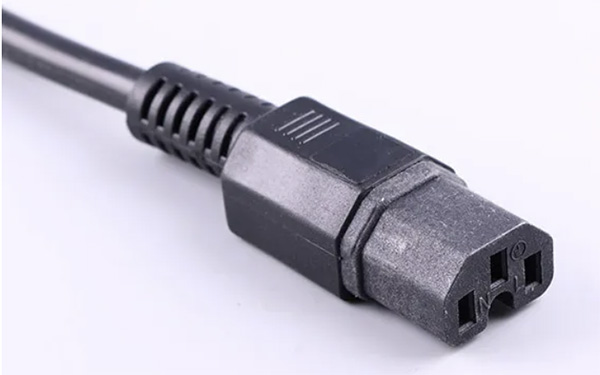

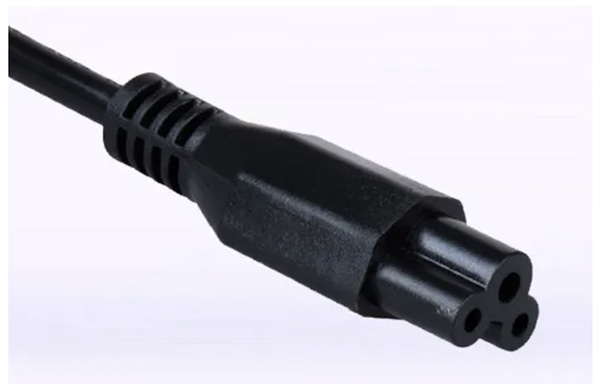

Available Opposite End Connectors:
Standard Part NO
L5-15R XH105(L5-15R)America
Available Cable Styles:
18-12AWG SJ,SJW,SJO,SJOW,SJOO,SJOOW,SJT,SJTW,SJTO,SJTOW,SJTOO,SJTOOW,
S,SO,SW,SOW,SOO,SOOW,ST,STW,STO,STOW,STOO,STOOW
![]() |
||||
Item Ref.: |
Standard /configuration ( rating voltage ) |
Pin Configuration |
End Options | Description |
XL515P-A |
NEMA L5-15P ( 125V ~ ) |
![]() |
|
locking configuration 2 pole 3 wire grounding |
XL615P-A |
NEMA L6-15P ( 250V ~ ) |
![]() |
|
NEMA locking configuration 2 pole 3 wire grounding |
XL715P-A |
NEMA L7-15P ( 277V ~ ) |
![]() |
|
NEMA locking configuration 2 pole 3 wire grounding |
|
||||
XL520P-A |
NEMA L5-20P ( 125V ~ ) |
![]() |
|
NEMA locking configuration 2 pole 3 wire grounding |
XH109 |
NEMA L7-20P ( 277V ~ ) |
![]() |
|
locking configuration 2 pole 3 wire grounding |
XH107 |
NEMA L8-20P ( 480V ~ ) |
![]() |
|
locking configuration 2 pole 3 wire grounding |
XH101 |
NEMA L14-20P ( 125/250V ~ ) |
![]() |
|
locking configuration 3 pole 4 wire grounding |
|
||||
XH105 |
NEMA L5-30P ( 125V ~ ) |
![]() |
|
NEMA locking configuration 2 pole 3 wire grounding |
XH106 |
NEMA L6-30P ( 250V ~ ) |
![]() |
|
NEMA locking configuration 2 pole 3 wire grounding |
XH103 |
NEMA L14-30P ( 125/250V ~ ) |
![]() |
|
locking configuration 3 pole 4 wire grounding |
