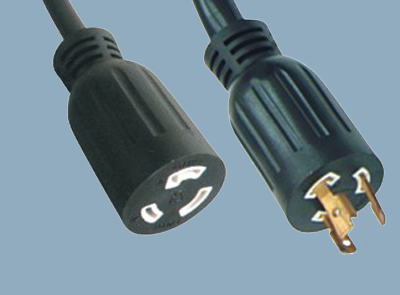

20A 347V L24-20R Lock Power Supply Cord
NEMA L24-20R locking power cord plug with North America approval.Built to the NEMA L24-20R standard. Rated up to 20A 347V. These NEMA L24-20R power cords are fully molded with a low profile ergonomic shape with RoHS and REACH compliance.
Contact Us

Detailed description

Male Plug	America 3 Prong Locking Plug
Female Receptacle	L24-20P
Amperage	Up to 15A
Voltage	Up to 125V AC
Outer Mold Material	50P PVC
Blade Material	Nickel coated Brass
Color	Any color available
Cable Length	Any length available
Certifications	UL CUL
Environmental Certifications	RoHS, REACH
Testing	100percent are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout

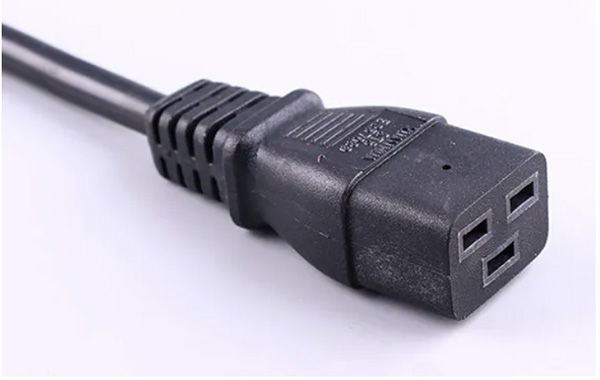

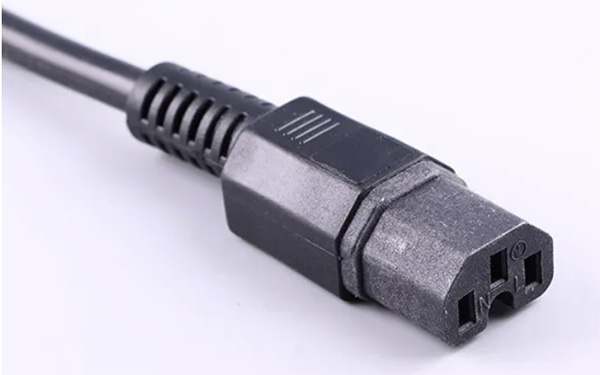

Available Opposite End Connectors:

Standard Part NO

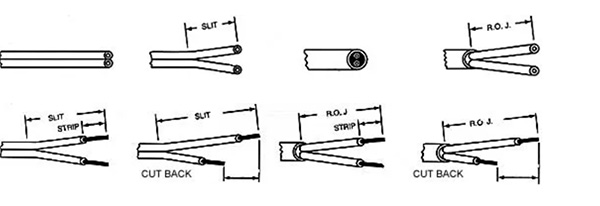

Other Termination Options:

Click Here

Available Cable Styles:

AWG 18-12 3/C SJ ,SJW,SJO,SJOW,SJOO,SJOOW,SJT,SJTW,SJTO,SJTOW,SJTOO,SJTOOW,S,SW,SO,

SOW,SOO,SOOW,ST,STW,STO,STOW,STOO,STOOW

Locking Power Cords Guide

Item Ref.: Standard /configuration
( rating voltage )
Pin Configuration
End Options Description

XL515P-A NEMA L5-15P
( 125V ~ )

locking configuration
2 pole
3 wire grounding

XL615P-A NEMA L6-15P
( 250V ~ )

NEMA locking configuration
2 pole
3 wire grounding

XL715P-A NEMA L7-15P
( 277V ~ )

NEMA locking configuration
2 pole
3 wire grounding

XL520P-A NEMA L5-20P
( 125V ~ )

NEMA locking configuration
2 pole
3 wire grounding

XH109 NEMA L7-20P
( 277V ~ )

locking configuration
2 pole
3 wire grounding

XH107 NEMA L8-20P
( 480V ~ )

locking configuration
2 pole
3 wire grounding

XH101 NEMA L14-20P
( 125/250V ~ )

locking configuration
3 pole
4 wire grounding

XH105 NEMA L5-30P
( 125V ~ )

NEMA locking configuration
2 pole
3 wire grounding

XH106 NEMA L6-30P
( 250V ~ )

NEMA locking configuration
2 pole
3 wire grounding

XH103 NEMA L14-30P
( 125/250V ~ )

locking configuration
3 pole
4 wire grounding

If you have questions or suggestions, please leave us a message,we will reply you as soon as we can!


Item Ref.:	Standard /configuration ( rating voltage )	Pin Configuration	End Options	Description
XL515P-A	NEMA L5-15P ( 125V ~ )			locking configuration 2 pole 3 wire grounding
XL615P-A	NEMA L6-15P ( 250V ~ )			NEMA locking configuration 2 pole 3 wire grounding
XL715P-A	NEMA L7-15P ( 277V ~ )			NEMA locking configuration 2 pole 3 wire grounding

XL520P-A	NEMA L5-20P ( 125V ~ )			NEMA locking configuration 2 pole 3 wire grounding
XH109	NEMA L7-20P ( 277V ~ )			locking configuration 2 pole 3 wire grounding
XH107	NEMA L8-20P ( 480V ~ )			locking configuration 2 pole 3 wire grounding
XH101	NEMA L14-20P ( 125/250V ~ )			locking configuration 3 pole 4 wire grounding

XH105	NEMA L5-30P ( 125V ~ )			NEMA locking configuration 2 pole 3 wire grounding
XH106	NEMA L6-30P ( 250V ~ )			NEMA locking configuration 2 pole 3 wire grounding
XH103	NEMA L14-30P ( 125/250V ~ )			locking configuration 3 pole 4 wire grounding
