AC Power Cord > Power Cord > China Power Cords > 3 Prong China Power Cord
3-Prong-China-Power-Cord

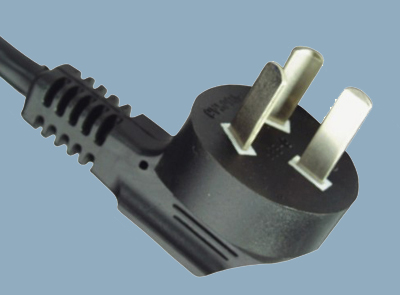

  • 3 Prong China Power Cord

  • GB2099 China 10A right angle plug cordset with CCC/3C certification,Built to GB2099 standard and designed for China 3 conductor power supply cord applications,With IEC C5 , With IEC C13, With IEC C15 , With IEC C19 describe China plug molded with IEC 60320 standard connectors.Our Chinese 3C AC power cords are fully made with ergonomic design and RoHS / REACH compliant as we are China leading power cable manufacturer.

  • Contact Us
Detailed description

Plug standard China 3P plug
Maximum Current rating 10A
Maximum Voltage 250V
Number of Poles and Wires 2 poles, 3 wires
Outer Mold Material 50P PVC
Blade Material Nickel coated Brass
Color Any color available
Temperature Rating minus 40C though plus 75C
Approvals CCC/3C
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity
MOQ 3000pcs
Delivery lead date 15-20days
Samples Free samples can be sent within 3 days


Available Opposite End Connectors:


Standard                                             Part NO


IEC 60320 C13                                   ST3(IEC C13)China


IEC 60320 C5                                      ST1(IEC C5)China


IEC 60320 C15                                   ST3H(IEC C15)China


IEC 60320 C19                                   XH008A(IEC C19)China


Other Termination Options:


Click Here


Available Cable Styles:


227IEC53(RVV)  0.75-1.0mm2 X3

245IEC53(YZ)   0.75-1.0mm2 X3

245IEC57(YZW) 0.75-1.0mm2 X3


More Information:


PSB-10 Drawing(JPG)                 CCC Certification

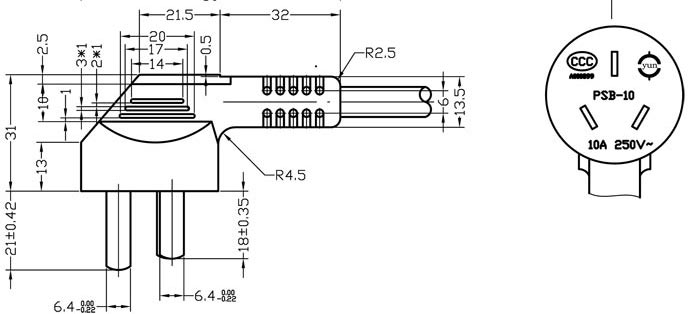

PSB-10A 3 prong China AC Plug drawing


3 Prong China AC Plug


China AC Power Cords, Power Supply Cords China Power Cords CCC 3C 2099GB 10 Amp 250 Volt AC, 2 Pole 3 Wire Grounding, Type I Plug
China AC Power Cords CCC 2099GB 10 Amp 250 Volt AC Power Cord

Plug type: GB 2009 Type I China plug
Standard:2099.1,GB 1002
Approvals:CCC,3C
Electricity:10A,250V
Number of Poles and Wires:2 poles 3 wires
Cable length:3-foot,6-foot, Custom long
Cable Color: White, Black, Custom color
Termination Options:ROJ,IEC,terminations
Quality System:ISO9001:2008
Color: Custom color, white and black are normal
Outer Mold Material: PVC, Rubber
Plug Insert Material: PBT, ABS
Blade Material: Nickel Coated Brass
Cable Specifications: Standard and custom made
Wire jacket Material: PVC, Rubber, TPE, Textile
Environmental Certifications: RoHS, REACH, PAHS
Model number: PSB-10
China AC Power Cords Plug Standard GB 2099.1-1996, GB 1002-1996, Type I Plug GB 2099.1-1996, GB 1002-1996, Type I Plug China Power Cords and AC Cables Connector Standards GB 17465.1-1998, IEC 60320 (320) C-13, C-13 Locking, C-19, C-19 Locking, C-5, C-7, C-15, Unterminated.China GB2009 (Chinese 10 Amp/250 Voltage) and compatible types (Type A), connected with a three-wire grounding plug rated at 10 A, 250 V defined by CCC. The China AC plugs and Sockets are similar in appearance to the Australian and Argentine plugs.
China AC Power Cords (CCC Power Cord) 10 Amp 250 Volt 2 Pole 3 Wire Grounding are black and white as a standard color. gray and custom colors are available. Custom length and shielded China cord sets light duty China AC power cables available. Terminated, custom stripping.

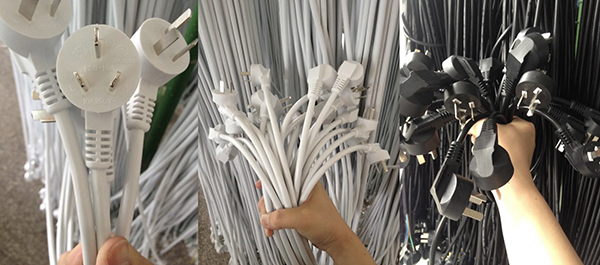

China 3 Wire Power Supply Cord

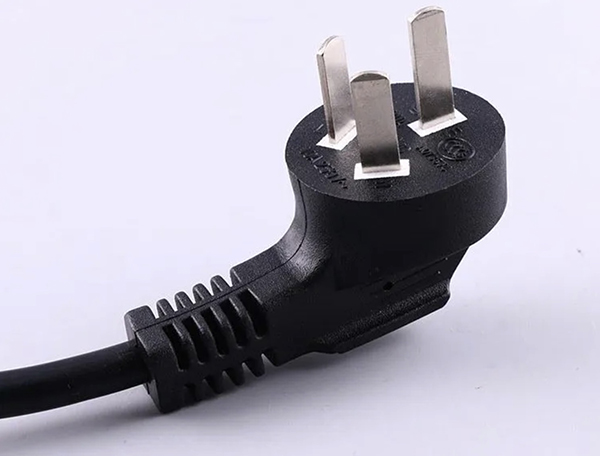

China GB2099 Plug

China 10A Type I AC Power Cord

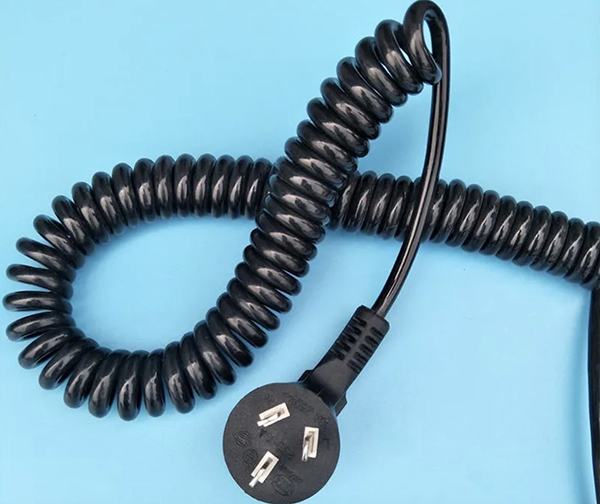

China Spiral Power Cord


Available Opposite End

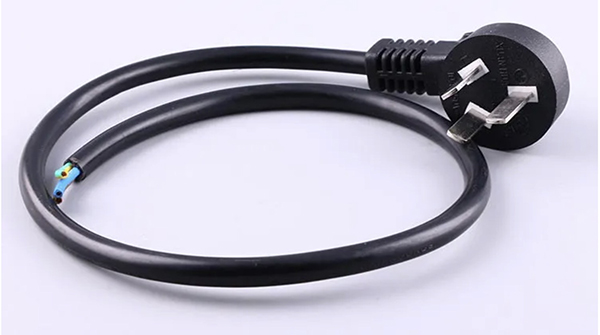

Normal Stripped, Splitter, and ROJ

We manufacturers and supply China Power Cord , GB2099 3 wire,grounding AC Power Cords, the other end can be stripped, ROJ with custom length.

Available Opposite End


Common Termination

The China AC Power Cord 10Amp 250 Volt AC, 2 Pole 3 Wire Grounding GB2099 Standard CCC/3C approved CCC Power Cord is one end molded with standard plugs, the opposite could be terminated with types of terminals such as grounding rings terminals, fork with heat shrink or nylone insulated.

Common Termination


IEC 60320 Connectors

The China AC Power Cord 10Amp 250 Volt AC, 2 Pole 3 Wire Grounding GB2099 Standard CCC/3C approved CCC Power Cord to IEC 60320 C5 laptop,IEC 60320 C13 computer power cable,IEC 60320 C19 PDU Power Cords is normal versions of China ac power cords with IEC connectors.

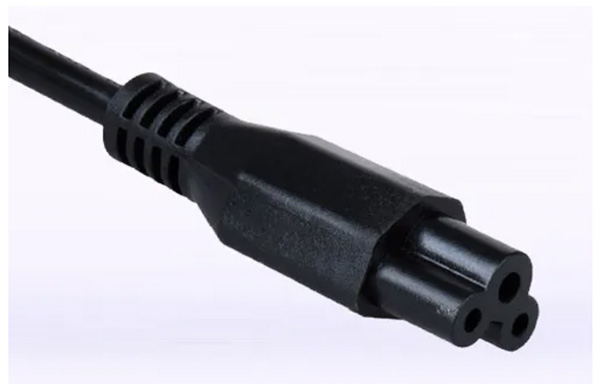

IEC 60320 C5 Power Cord

IEC 60320 C5 Power Cord

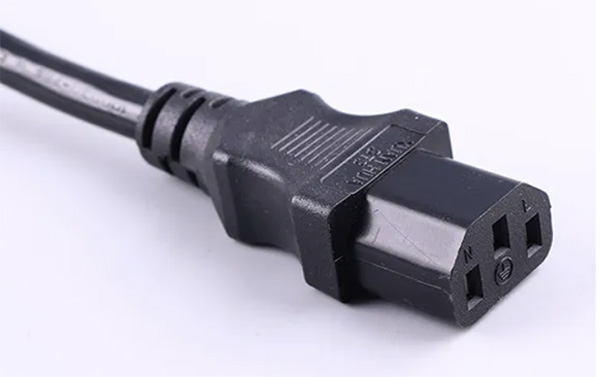

IEC 60320 C13 Straight Power Cord

IEC 60320 C13 Straight Power Cord

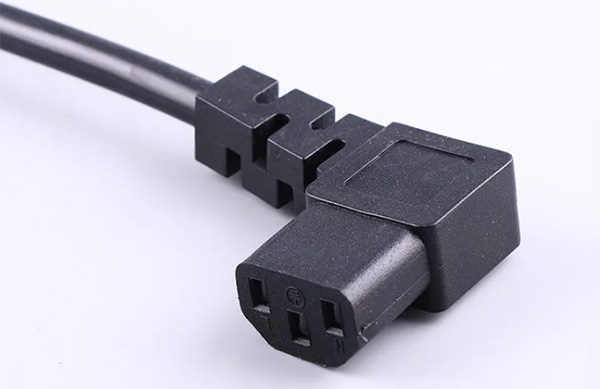

IEC 60320 C13 Right Angle Power Cord

IEC 60320 C13 Right Angle Power Cord

IEC 60320 C13 Waterproof Power Cord

IEC 60320 C13 Waterproof Power Cord

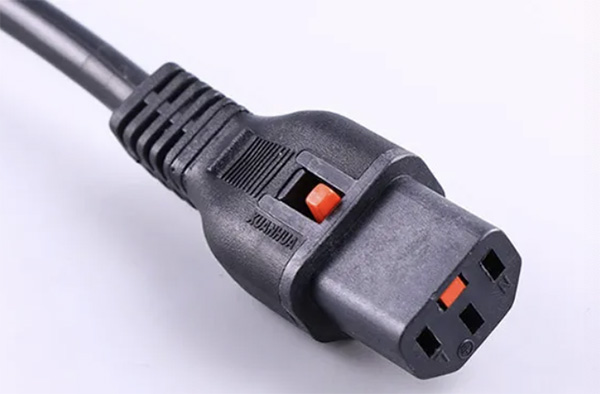

IEC 60320 C13 Locking Power Cord

IEC 60320 C13 Locking Power Cord

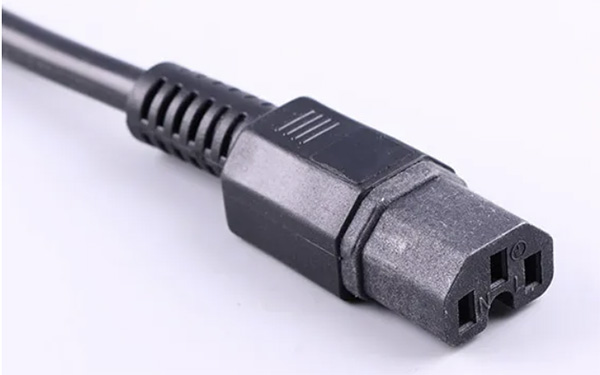

IEC 60320 C15 Power Cord

IEC 60320 C15 Power Cord

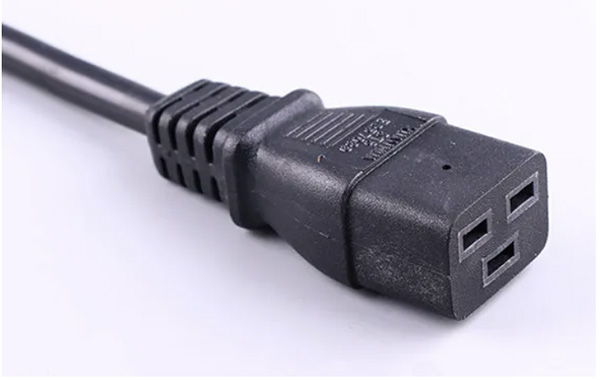

IEC 60320 C19 Power Cord

IEC 60320 C19 Power Cord

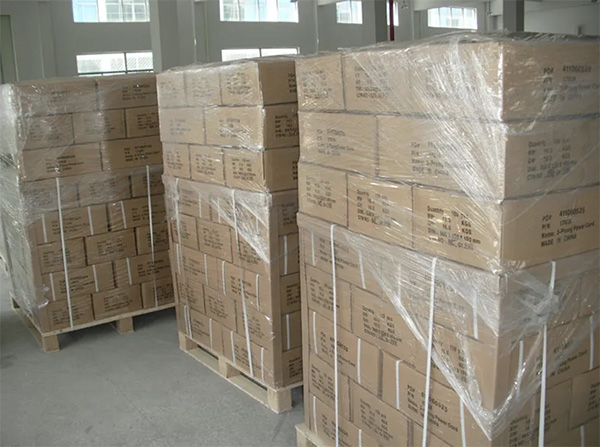

Package

China AC  Power Cord 10Amp 250 Volt AC, 2 Pole 3 Wire Grounding GB2099 Standard CCC/3C approved CCC Power Cord Bulk packed with export cartons, pallets.
Package

Yunhuan manufacturers and supplies electrical AC power supply cords for use in China and all Countries in the world. Our extensive and complete China power cord line includes power receptacle outlets, Plug, weatherproof receptacle outlets, sockets, multiple outlet power strips, power supply cords, power cable wire, and plug adapters. Contact us for China AC  power cords as China leading China power cord manufacturer and supplier. all of Chinas AC power cables are approved by CCC or 3C and Rohs  /  Reach compliant.
