AC Power Cord > Power Cord > America Power Cords > NEMA 5-15P Plug to IEC 60320 C13 Power Cord
NEMA-5-15P-Plug--to-IEC-60320-C13-Power-Cord

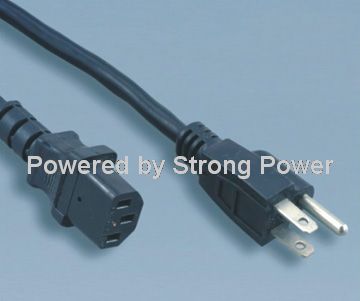

  • NEMA 5-15P Plug to IEC 60320 C13 Power Cord

  • America to C13 Power Cord UL NEMA 5-15P standard 3 prong plug Max 15A,125V to IEC 60320 C13 international connector power supply cord commonly used in a variety of applications including computers, portable electronics, household applications. All Of our Power Plug and Socket America , IEC 60320 C13 power cord are mold with North America safety certification and RoHS / REACH environment compliant high quality as we are China leading AC power cord manufacturer and supplier.

  • Contact Us
Detailed description

Male Plug American NEMA 5-15P
Female Receptacle IEC60320 C13 America
Wire Jacket Standard SVT,SJTJTW/SJTOW/SJTOOW STW/STOW/STOOW  SPT-3 SJT/SJTO/SJTOO   SJ/SJO/SJOW
Gauge 18.16.1 AWG
Conductors 3 Wire
Copper Wire Stranding 41 strands of 0.16mm
Jacket Material PVC
Temperature Rating Up to 105C
Wire Outer Diameter 6.3mm
Conductor Color Code Black, White and Green / NACC (North American Color Code)
Voltage Up to 125 Volts AC
Amperage Up to 10 Amps
Color anything
Carton Weight 21/20kgs
Carton Dimensions 51 X 31 X 24cm
Testing 100percent are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout.
Certifications

UL CUL CSA

Environmental Compliance RoHS, REACH, Sony Green Partner, ISO14001:2004, ISO9001:2008



More Information

America power cord spec(DOC)

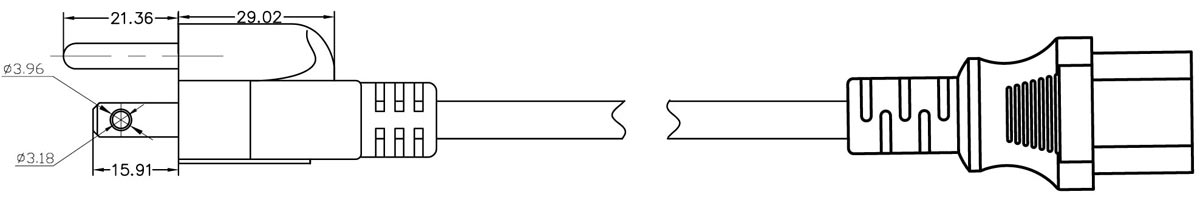

Power CordSet Drawing

The North American NEMA 5-15 is the standard 3 wire wall receptacle found in the United States molded with IEC 60320 C13 connectors and usual SJT , SVT Cables 3FT,6FT AS Appliance Cables.


Computer Power Cord NEMA 5 15P IEC 60320 C13

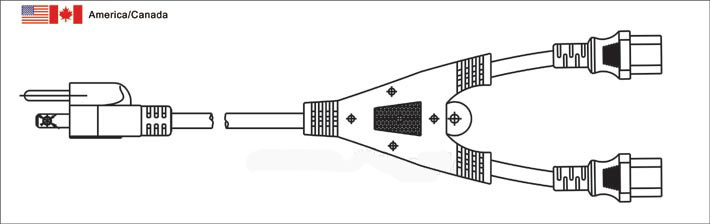

Power Cord Splitter NEMA 5-15P to IEC C13 * 2

The North American NEMA 5-15 is the standard 3 wire wall receptacle found in the United States and IEC 60320 C3 connectors are standard appliances receptacles.


Power Cord Splitter NEMA 5-15P to IEC C13


US Power Supply Cord 5-15P IEC 60320 C13 Monitor Power Cord ( PC Power Cord / Computer Power Cord / AC Power Cable)

US IEC C13 Power Supply Cord

US IEC C13 Power Supply Cord 15 Amps 125 Voltage three prong plug molded with custom long, color PVC or rubber cable and IEC 320 C13 connector.

Plug type: US NEMA 5-15 Plug
Standard: NEMA 5-15P hospital grade
Opposite End: IEC 320 C13
Approvals: UL, cUL
Electricity:10A,15A 125V/250v
Number of Poles and Wires:2 poles 3 wires
Cable length:1.0 meter, 1.5m, 1.8m,custom length
Quality System:ISO9001:2008
Color: White and black are normal, Custom color
Outer Mold Material: PVC, Rubber
Plug Insert Material: PBT, ABS
Blade Material: Nickel Coated Brass
Cable Specifications: Standard and custom made
Wire Jacket Material: PVC, Rubber
Environmental Certifications: RoHS, REACH, PAHS
Model Number: JT-3/JT-ST3

Plug Standard America NEMA 5-15P earthed plug with Maximum Electric Current rating 15A, Maximum Voltage 125V, Number of Poles and Wires 2 poles, 3 wires Grounded, Connector Standards  IEC 60320 (320) C-13, C-13 Locking, C13 right angle, C13 left angle ,IEC C13 custom made waterproof- tested to ANSI/UL 62 and 817 and can/CSA C22.2 no. 21 and 49.
NEMA5-15P to IEC 60320 C13 Power Cord

NEMA5-15P to IEC C13 Computer Power Cord

IEC 60320 AC Power Cords Series

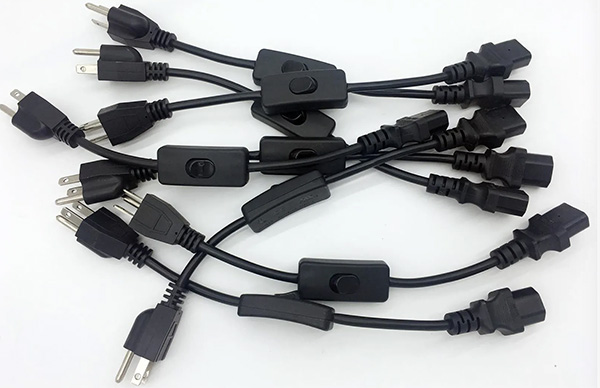

American Power Cord with Swich

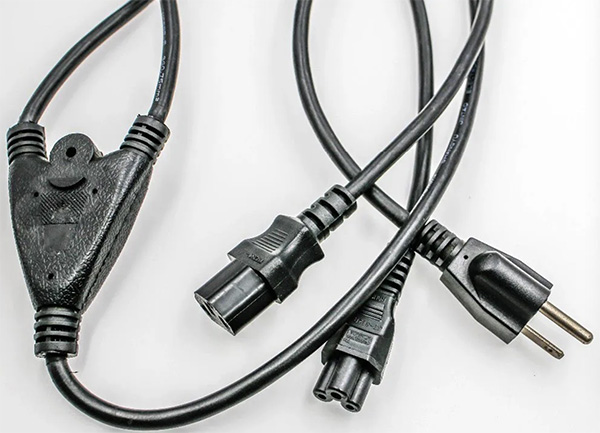

NEMA 5-15P to IEC C13 IEC C5 Power Supply Cord

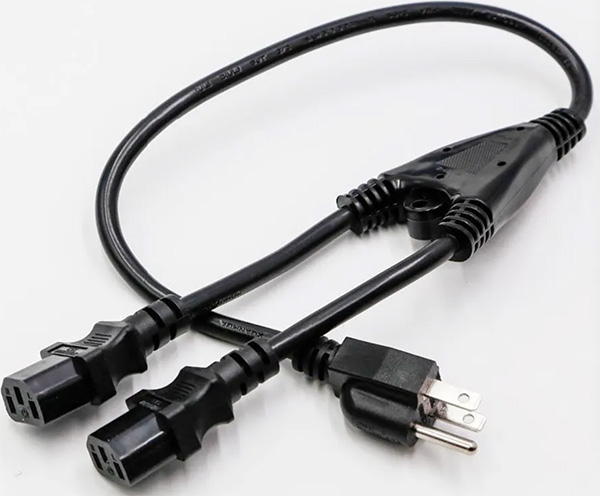

NEMA5-15P to IEC C13 Power Cord with Y Splitter

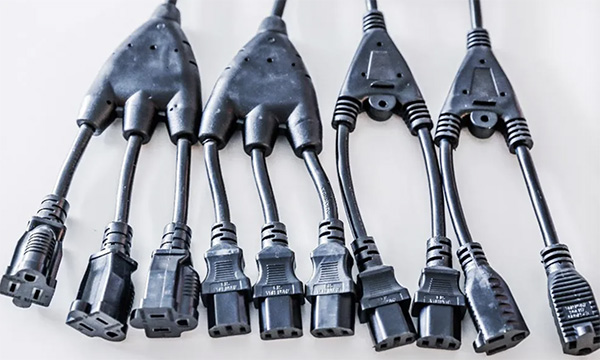

IEC 60320 C13 with splitter Power Cords

Color IEC 60320 Power Cords

US IEC C13 Power Supply Cord is black and white as the standard color. gray and custom color are available. Custom length and shielded America power cord, America AC power cables available. Terminated, custom stripping.

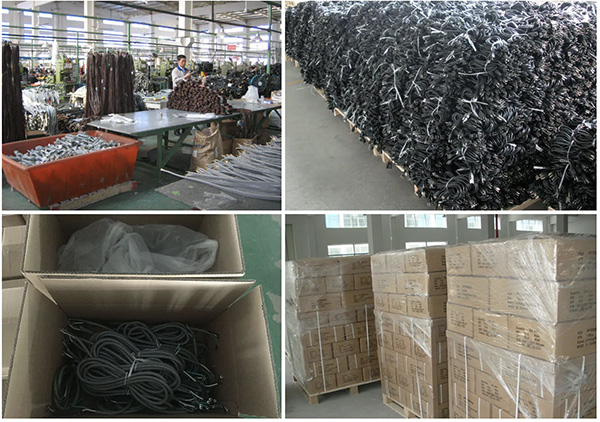

Package

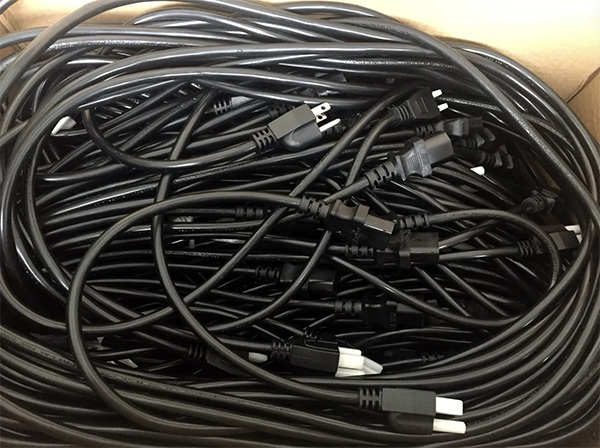

US IEC C13 Power Supply Cord bulk packed with export cartons, pallets.
Package
