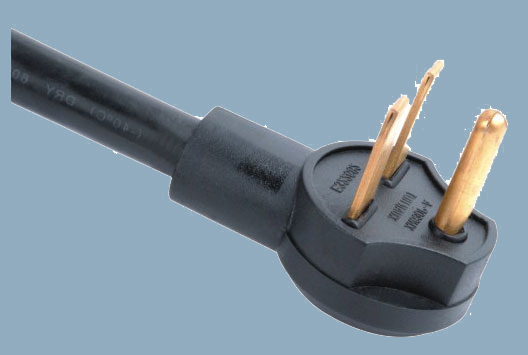

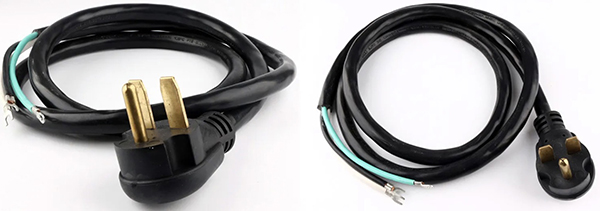

  • 6-30P 30A 250V 2 Pole 3 Wire Dryer Plug America Power Cord

  • NEMA 6-30P molded heavy duty three prong power cord plug with North America approval.  Rated up to 30A 250V.  Built to the NEMA 6-30P standard. Our NEMA 6-30P plugs are fully molded with a low profile ergonomic design and RoHS and REACH compliant.

  • Contact Us
Detailed description

Male Plug

America 3 Prong Plug

Female Receptacle

None

Amperage

Up to 30A

Voltage

Up to 250V AC

Outer Mold Material

50P PVC

Blade Material

Nickel coated Brass

Color

Any color available

Cable Length

Any length available

Certifications

UL CUL

Environmental Certifications

RoHS, REACH

Testing

100percent are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout


Other Termination Options:


Click Here


Available Cable Styles:


AWG 14/3C SPT-3,S,SO,SOW,SOO,SOOW,SJ,SJW,SJO,SJOW,SJOO,SJOOW,SJT,SJTW,SJTO,SJTOW,SJTOO,SJTOOW,ST,STW,

STO,STOW,STOO,STOOW

AWG 12/3C SPT-3,S,SO,SOW,SOO,SOOW,SJ,SJW,SJO,SJOW,SJOO,SJOOW,SJT,SJTW,SJTO,SJTOW,SJTOO,SJTOOW,ST,STW,

STO,STOW,STOO,STOOW

AWG 10/3C SPT-3,S,SO,SOW,SOO,SOOW,SJ,SJW,SJO,SJOW,SJOO,SJOOW,SJT,SJTW,SJTO,SJTOW,SJTOO,SJTOOW,ST,STW,

STO,STOW,STOO,STOOW


30 AMP RV Extension NEMA TT-30 Plug

30 AMP RV Extension NEMA Power Cords



30 AMP RV Extension NEMA TT-30 Receptacle


30 AMP RV Extension NEMA Receptacle


Manufacturer Base 3-pole 3-wire Power Suppply Cord 30 Amp NEMA 6-30P Custom Length Cord, UL Listed
Power Suppply Cord 30 Amp NEMA 6-30P

Power Suppply Cord 30 Amp NEMA 6-30P, 250V, 3-prong plug molded with custom length cable.

Plug type: US 30A Straight blade plug
Standard:NEMA 6-30P
Approvals:UL, cUL
Electricity:30A, 250V
Number of Poles and Wires:2 pole 3 wires
Cable length:Custom length
End Options:Strain relief clamp, terminals
Quality System:ISO9001:2008
Color:Black is normal,Custom color available
Outer Mold Material:PVC,Rubber
Plug Insert Material:PBT,ABS
Blade Material:Nickel coated Brass
Cable Specifications:Standard and custom made
Wire Outject Material:PVC,Rubber,TPE,Textile
Environmental Certifications:RoHS, REACH, PAHS
Model Number:LA008E, XH209
Plug Standard America NEMA 6-30 plug Maximum Electric current rating 30A Maximum Voltage 250V Number of Poles and Wires 2 poles, 3 wires Grounded Straight blade Type Plug, available cables:

LA008E 6-30P 10/3 SJTW, SJOOW, STW, ST, STO, STOW, STOO, STOOW 30A/250V
12/3 SJE, SJEW, SJEO, SJEOW, SJEOO, SJEOOW S,SO,SOO,SOW,SOOW ST, STW, STO, STOW, STOO, STOOW 25A/250V
14/3 SJE, SJEW, SJEO, SJEOW, SJEOO, SJEOOW S,SO,SOO,SOW,SOOW ST, STW, STO, STOW, STOO, STOOW 18A/250V
16/3 SJE, SJEW, SJEO, SJEOW, SJEOO, SJEOOW S,SO,SOO,SOW,SOOW ST, STW, STO, STOW, STOO, STOOW 13A/250V
8/2+10/1 STW, ST, STO, STOW, STOO, STOOW 30A/250V

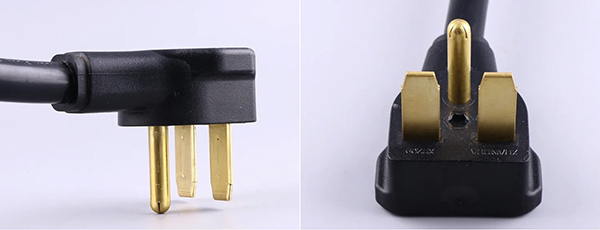

NEMA 6-30P Power Cord

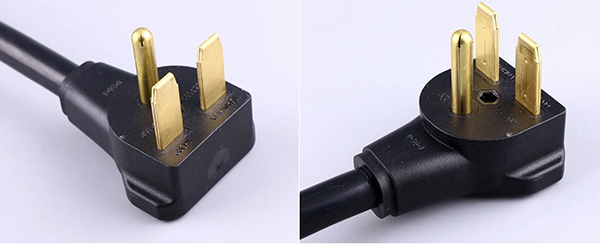

NEMA 6-30P Plug

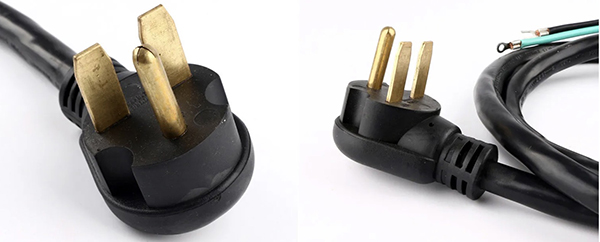

America NEMA 6-30P Power Cord

American Power Supply Cord 6-30P

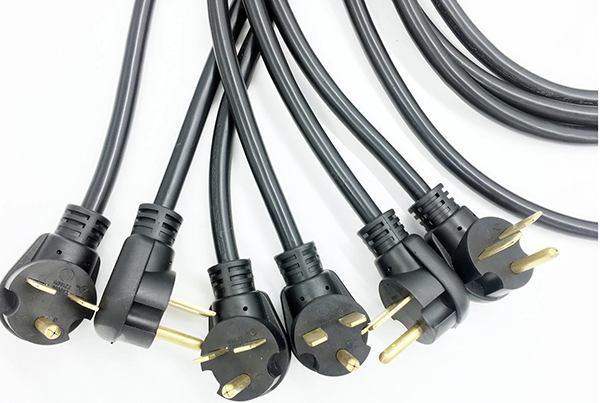

30 Amp NEMA 6-30P Power Cord

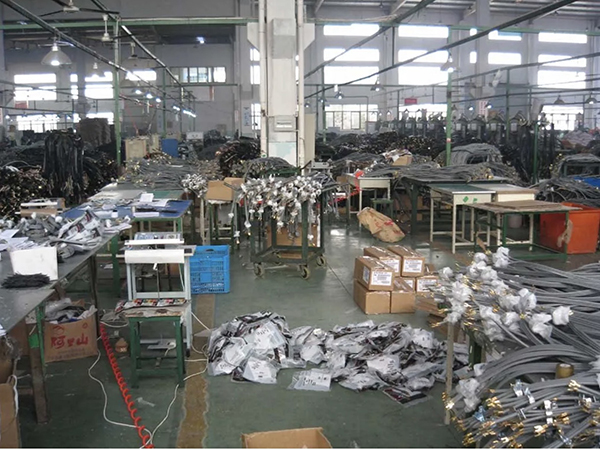

American Power Cord Work Room
