Home > Dryer Power Pord > America Dryer Power Cords > 14-50P 50A 125/250V 4 Prong Plug Power Cord
14-50P-50A-125-250V-4-Prong-Plug-Power-Cord
  • 14-50P 50A 125/250V 4 Prong Plug Power Cord

  • NEMA 10-30P molded heavy duty three prong power cord plug with North America approval.  Rated up to 30A 250V.  Built to the NEMA 10-30P standard. Our NEMA 10-30P plugs are fully molded with a low profile ergonomic design and RoHS and REACH compliant.

  • Contact Us
Detailed description

Male Plug

America 3 Prong Plug

Female Receptacle

None

Amperage

Up to 30A

Voltage

Up to 250V AC

Outer Mold Material

50P PVC

Blade Material

Nickel coated Brass

Color

Any color available

Cable Length

Any length available

Certifications

USA

Environmental Certifications

RoHS, REACH

Testing

100percent are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout


Other Termination Options:


Click Here


Available Cable Styles:


AWG 10/3C SRDT

AWG 8/2C+10/1C SRDT


UL CSA certified 50A North America Power Cords

14-50P plug, NEMA 14-50P Power supply cord with UL CSA approval
Rating: 50A 250V
Tech Specs
1) Standards: NEMA 14-50P, 3-pole 4-wire Dryer Cord 14-50P
2) Applicable cables:
009B 14/50 8/4 SRDT, DRT 35/125/250
6/4 SRDT, DRT 45/125/250
8/2 + 10/2 SRDT, DRT 40/125/250
6/2 + 8/2 SRDT, DRT 50/125/250
009C 14/50 6/4 STW, STOW, STOOW, SOW, SOOW 50/125/250
6/3 + 8/1 STW, STOW, STOOW 50/125/250
009C ALTERNATE 14/50 6/3 + 8/1 SOW 50/125/250

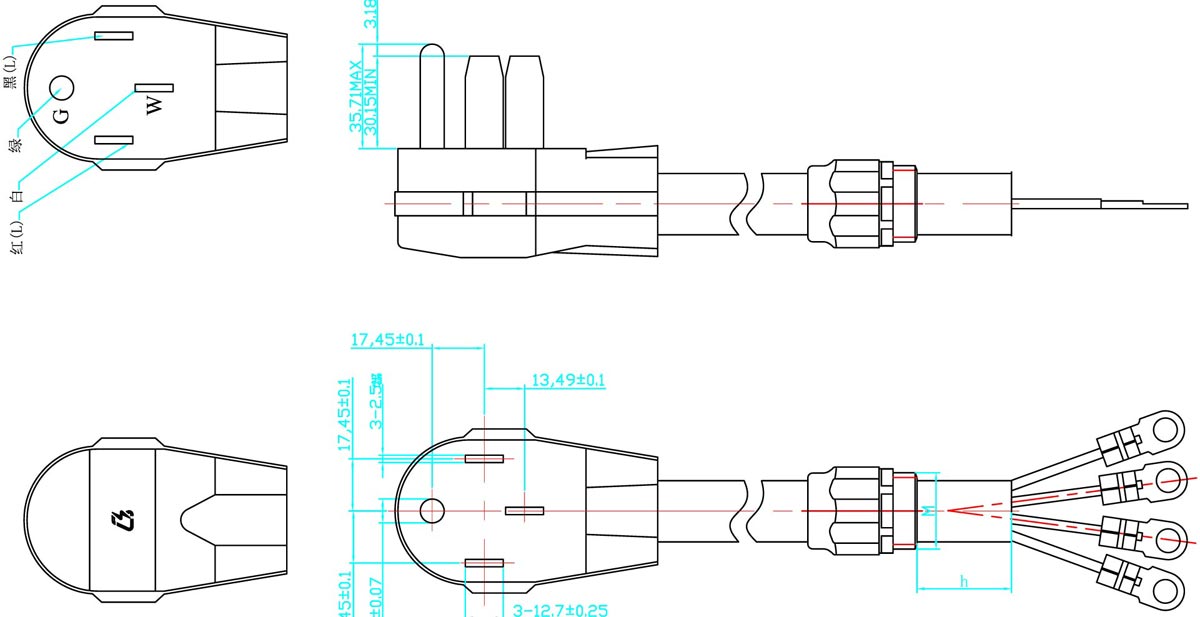

NEMA 14-50P Plug Drawing

3-pole 4-wire Range Cord 50 Amp NEMA 14-50P Round Cord
