  • NEMA5-15P 1-15P Power Cord YY-2

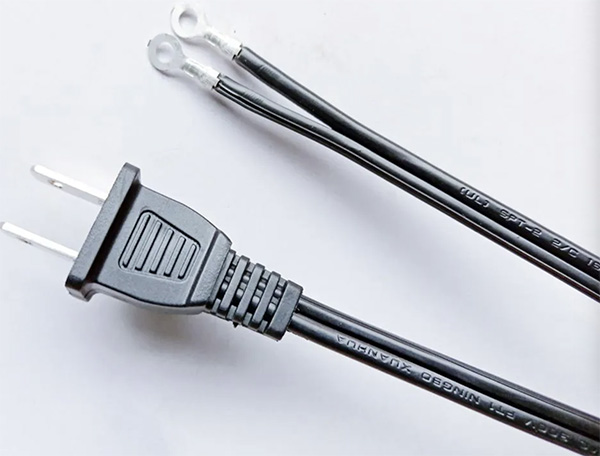

    NEMA5-15P 1-15P Power Cord YY-2

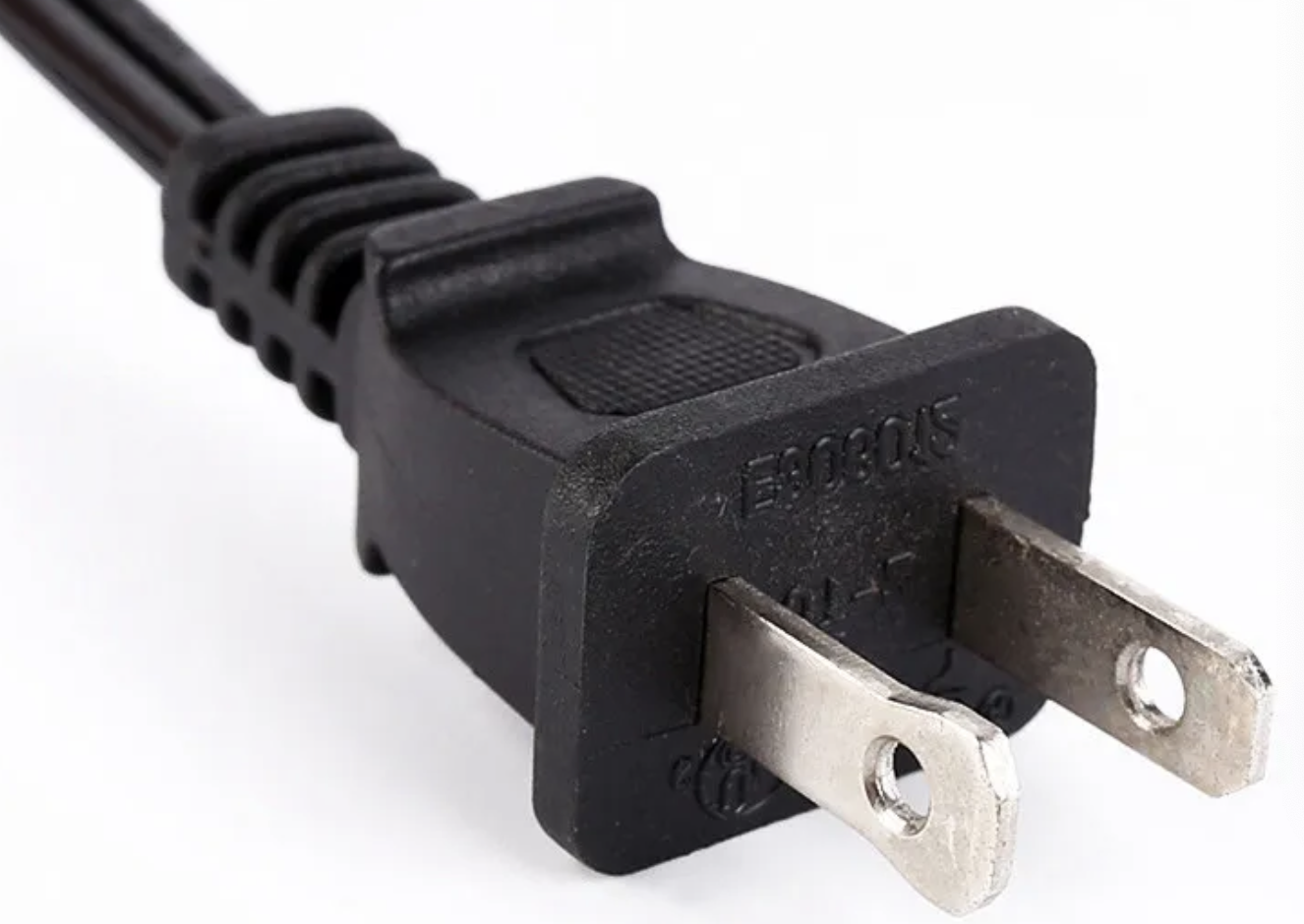

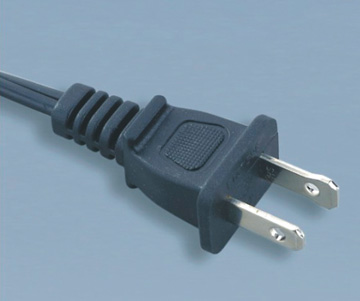

    NEMA 1-15P USA two prong power cord plug with UL and CUL CSA certification.  Built to NEMA 1-15P standards.  Rated up to 15A 125V, 13A 125V or 10A 125V.

    NEMA 1-15P non-polarized version available click here:NEMA 1-15P

    Link to 1-15P to C7 power cord:YY-2/ST2.



  • specifications

  • Items Details

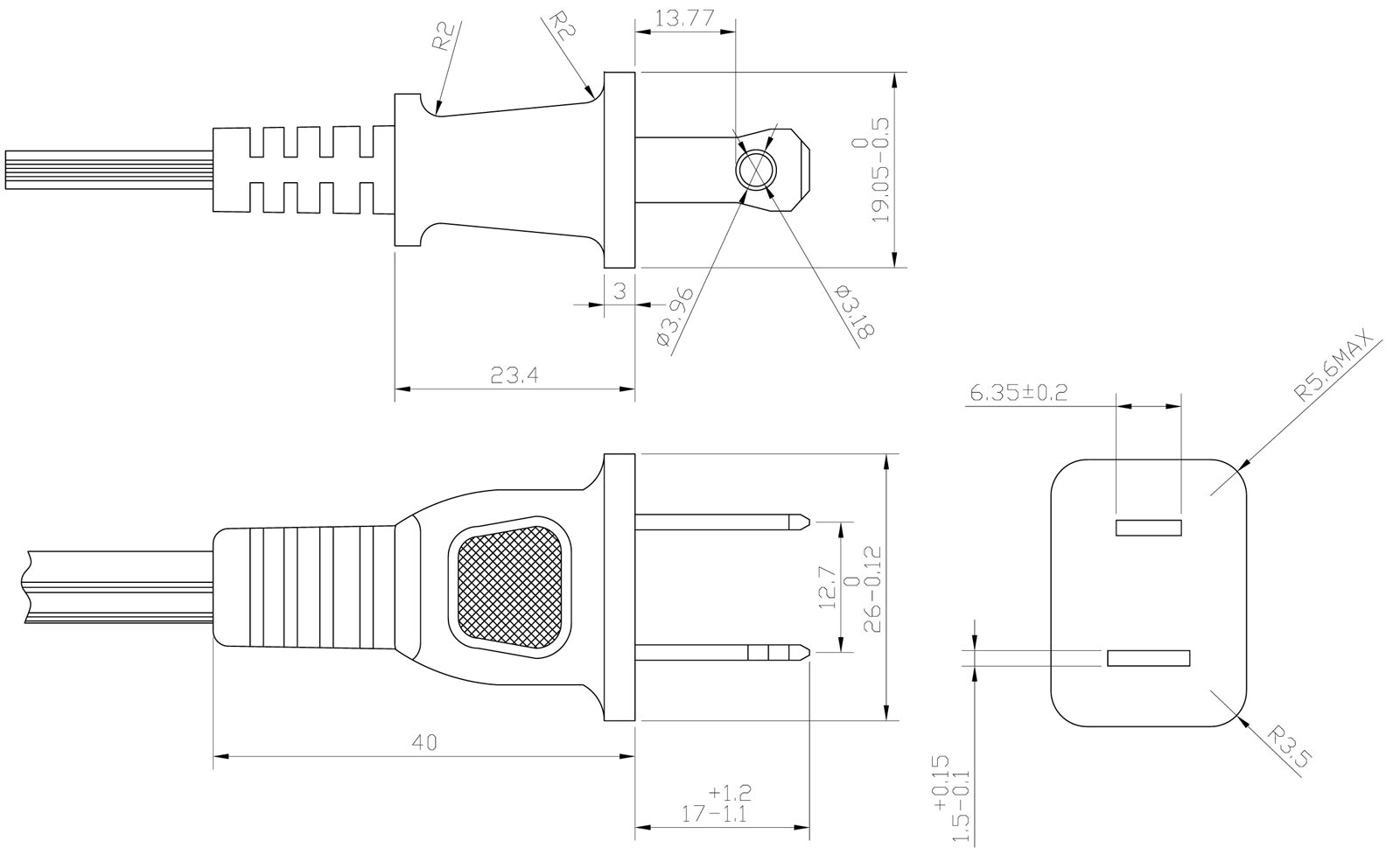

    Plug Standard America NEMA 1-15P plug
    Maximum Current rating 15A
    Maximum Voltage 120V
    Number of Poles and Wires 2 poles, 2 wires
    Outer Mold Material 50P PVC
    Blade Material Nickel coated Brass
    Flamability Rating UL 94V-0
    Color Any color available
    Approvals America,Canada UL/CSA(cUL)
    Environmental Certifications RoHS, REACH
    Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity


    Available Cable Styles


    18AWG/2C SPT-1, SPT-2, SPT-3, NISPT-1, NISPT-2, HPN, SVT, SVTO,

    SVTOO, SJT, SJTW, SJTO, SJTOW, SJTOO, SJTOOW 10A/125

    17 AWG/2C SJT, SJTW, SJTO, SJTOW, SJTOO, SJTOOW, SVT, SVTO,

    SVTOO 12A/125

    16 AWG/2C SPT-2, SPT-2W, SPT-3, NISPT-2, HPN, SVT, SVTO, SVTOO, SJT,

    SJTW, SJTO, SJTOW, SJTOO, SJTOOW 13A/125

    14 AWG/2C SPT-3, SJT, SJTW, SJTO, SJTOW, SJTOO, SJTOOW 15A/125

    HPN,SJ,SJO,SJOW,SJOO,SJOOW,SOO,SOOW,ST,STW,STO,STOW,STOO,STOOW


    Available Opposite End Connectors

    Item                                  Part No

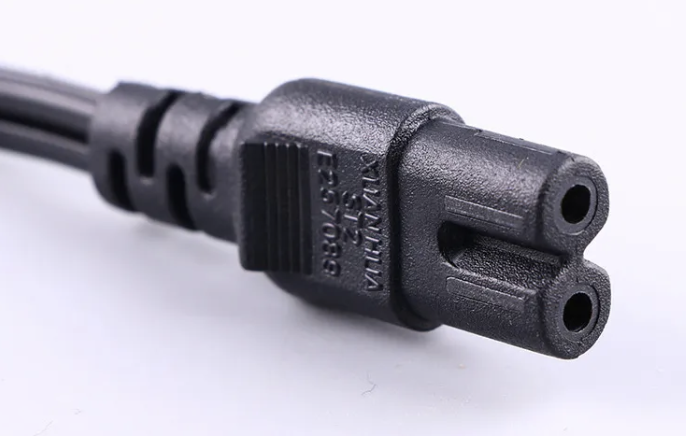

    IEC C7                             ST2,IEC C7 North America

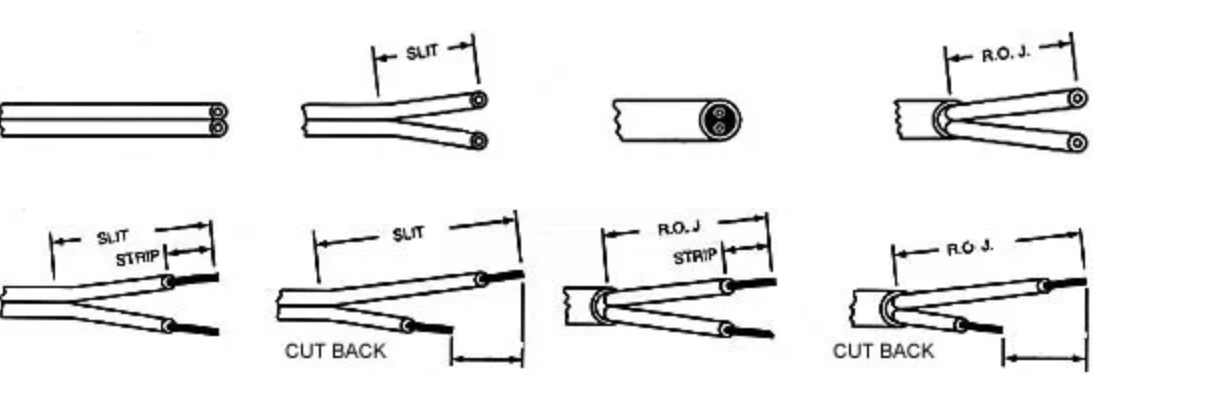

    Other Termination Options


    Click Here


    More Informaion


    E137198 UL/CUL approvals                         ROHS test report

    Item NO Number Voltage Number of maximum current Number of conductors Jacket Type Jacket Color Standard
    YY-2 125V 10/13A 2 PVC,Rubber Any as Requested NEMA 1-15P,CSA CAN/CSA-22.2 No.21-95
    End of treatment MOQ Payment Transportation Delivery period Packing Wiring Standard

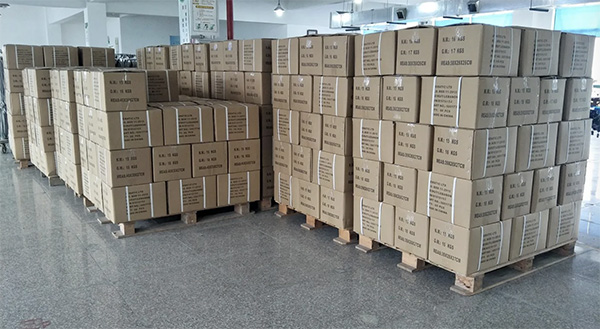

    Bare 5000pcs T/T By air or sea 15 days Export cartons as bellow
